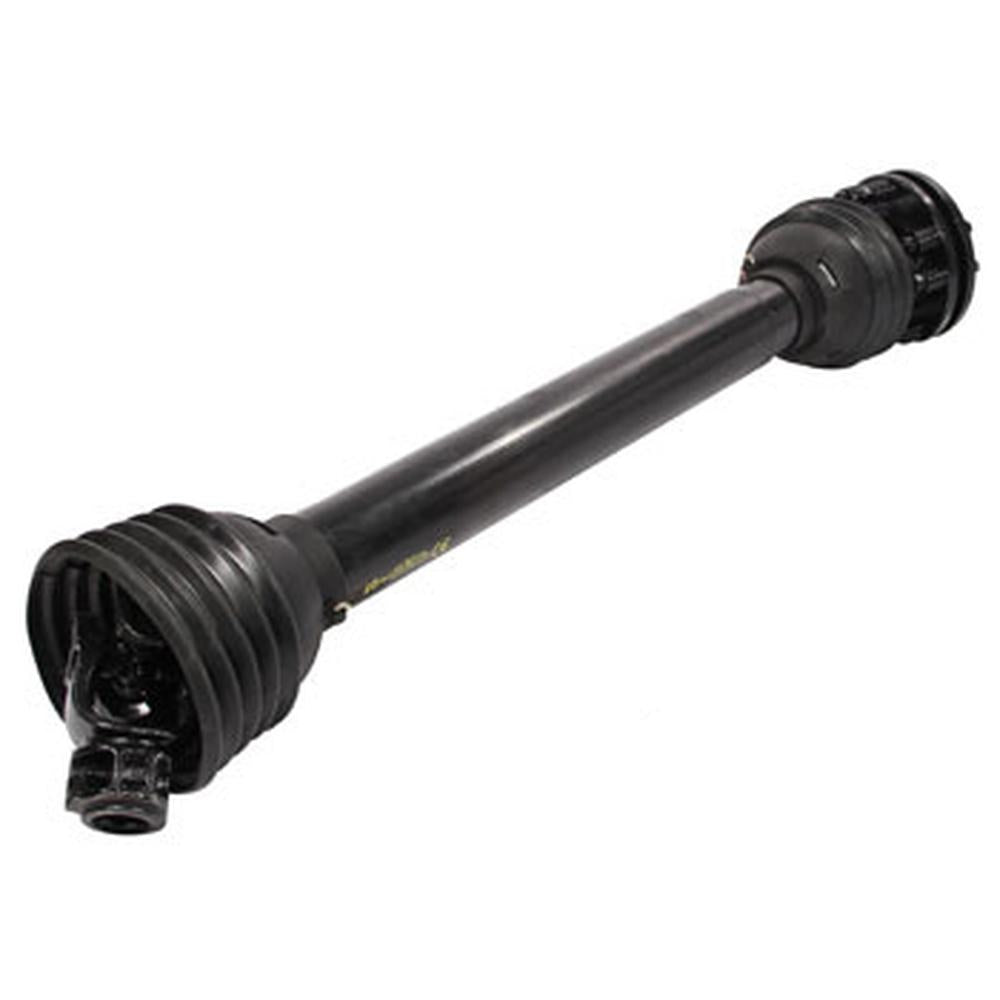

A-50034235-AI Driveline; Complete

Name: A-50034235-AI Driveline; Complete
SKU: A-50034235-AI
Price: 443.0 USD
Availability: InStock

A-50034235-AI Driveline; Complete

$443.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Driveline; Complete

-New 100 Series pull/tow Driveline with Friction Clutch. Driveline minimum C-to-C length: 35" (885 mm), Maximum C-to-C length: 52" (1310 mm), Total collapsed length: 45" (1140 mm). Driveline is size 5 and rated as a category 4 (47 hp). Tractor end: 1-3/8 6 Spline, Implement end: 1-3/8" 6 spline FF1 friction clutch. Clutch diameter is 7.09" Fits Bush Hog Rotary Cutters.
-It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficientoverlap of the drive tubes exists in all working positions without the possibility of bottoming out.
-C to C Max:1310 mm/ 52"
-C to C Min:885 mm/ 35"
-Category:4 (47HP)

Models This Part Fits:

SE6, P60-40-P, 100 Series, SQ840, L-72-40-SC-P6, P60-HD, 286, 25-34-50, 306, RTH, SQ72, 72, L-72-60-HD, 603, CY60, SQ7, L-72-80-HD, 275, SE7, 12, SQ84, 616, 613, P72HD, L360, 305, 80, LM378, L72 RD, L-72-40-SC, L60-HD, P72 RD, L366, CY72, L-72-60-SC-P6, 285, 600, 717, L-72-60-SC

Additional Information:

47 PTO Rated HP Collapsed Length: 46" Driveline Connector Tractor End: 1-3/8" 6 Spline QD Driveline Connector Implement End: 1-3/8" 6 Spline Slip Clutch QD ID: 1-3/8" ID 2: 1-3/8" Number of Splines: 6 Rating: 5S RPM: 540 Spline Count: 26 Type: Tri Tube

Reference Numbers:

W14106546DS, CS53516, CS5094E, CS5110E, CS53514, 111-60S, 15113245, 266014106546, 343-152, 658-15113245, AB4381386, 14106546, 50034235, 50034236, 76742, 111-60S, 15113245, 266014106546, 343-152, 658-15113245, AB4381386, 14106546, CS53516, CS5094E, CS5110E, CS53514, 111-60S, 15113245, 266014106546, 343-152, 658-15113245, AB4381386, 14106546, ECC5383, 15113245, 266014106546, 343-152, 658-15113245, AB4381386
