A-41158022-AI Rings, Piston

A-41158022-AI Rings, Piston

$25.00 CAD
$25.00 CAD
Sale Sold out
Shipping calculated at checkout.

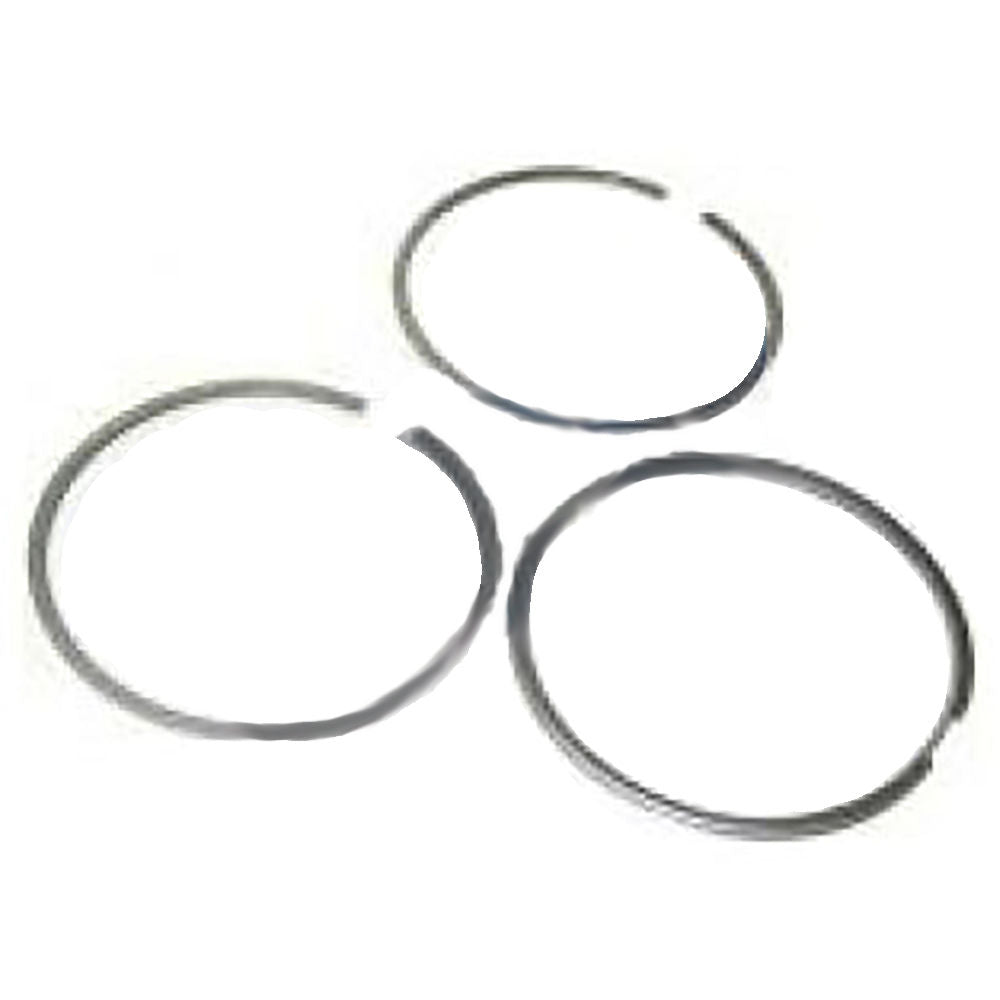

One New Aftermarket Replacement Piston Ring Set for Perkins A4.248 / A4.2482 Engines

This 3-ring piston ring set is a standard (STD) bore replacement for the Perkins A4.248 and A4.2482 four-cylinder diesel engine. It is used in a wide range of Fits Massey Ferguson tractors, Landini tractors, and Hyster/Yale forklifts and industrial equipment powered by the Perkins 4.248 engine family. The set includes one compression top ring, one compression second ring, and one oil-control third ring per cylinder.

Specifications

  • Piston Diameter: 101.05 mm (Standard Bore)
  • Number of Rings per Set: 3 (per cylinder)
  • Top Ring: Molybdenum Plated Barrel Faced Internally Stepped (2.50 mm)
  • 2nd Ring: Chrome Plated Taper Faced Internally Stepped (2.50 mm)
  • 3rd Ring: Chrome Plated Bevelled Edge with Helical Coil Spring (5.00 mm)
  • Engine Application: Perkins A4.248, A4.2482

Compatible Models

Fits Massey Ferguson Tractors: 20, 175, 178, 185, 188, 194, 194-4F, 275, 283, 285, 285 (US Built), 285 (FR), 290, 290 (US Built), 293, 294, 294-4, 294C, 350, 382, 383, 390, 390E (Brazilian), 393, 393LX, 394, 394C, 394S, 396C, 396CF, 397, 430 (Uzel), 590, 690, 840, 3050, 3060, 6110

Fits Massey Ferguson Industrial / Specialty: MF11, MF33, MF50E, MF50EX, MF50F, MF50HX, MF60H, MF60HX, MF300, MF6500H, MF ADVANTAGE 85, MF Fits Blizzard 85, MF REX 85, MF TREKKER 85

Fits Massey Ferguson Combines / Other: 7700, 7860, 7870, 7880, 8000, 8500, 8530, 8550, 8560, 8830, 8860, 8870, 8880

Landini Tractors: 816, 816B, C500, C500Y-100-150, C7800, C7830, C8860, D175, V60C, 60-80

Hyster / Yale Forklifts: H60-80E, H60-110E, T50-150D, T80D, CTD20-50

Perkins Engines (direct): A4.248, A4.248 (LF), A4.2482

Replaces Part Number(s):

41158022, 141158022, 747428M91, VPB4190, 6005000939, 4115Y001, 994-925, HCP1158022

Aftermarket Interchange Numbers

1076786M91, A47823

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

394, 383, 7860, H60-110E, MF50EX, MF50HX, 390, 3060, 178, 50HX, BLIZZARD 85, D175, 397, 8550, H60-80E, 50H, MF60H, 394C, V60C, 816, 8530, ADVANTAGE 85, C7800, REX 85, C500, C500Y-100-150, 390E BRAZILIAN, 430 UZEL, 396CF, 393, 194, MF50F, 293, 8870, 294-4, 20, 382, 350, C7830, 690, 8860, 175, 294C, 393LX, 194-4F, 290 US BUILT, 275, TREKKER 85, 590, 8500, 396C, A4.248 (LF), 8830, T80D, 6110, 840, 285 US BUILT, 188, MF33, 185, 7870, MF300, 50E, 294, 387, 7700, MF11, 394S, T50-150D, 8560, MF6500H, 283, 3050, 60-80, 7880, C8860, 50EX, CTD20-50, 60H, 8880, 816B, 60HX, 290, 285 (FR), 8000

Additional Information:

Top Ring: MR2 - Molybdenum Plated Barrel Faced Internally Stepped Top (2.50mm) 2nd Ring: CT2 - Chrome Plated Taper Faced Internally Stepped Top (2.50mm) 3rd Ring: CBEH - Chrome Plated Bevelled Edge with Helical Coil Spring (5.00mm)

Reference Numbers:

41158022, 747428M91, 41158022, 747428M91, VPB4190, 6005000939, 41158022, 747428M91, 994-925, HCP1158022, 141158022, 41158022, 747428M91, 41158022, 4115Y001
