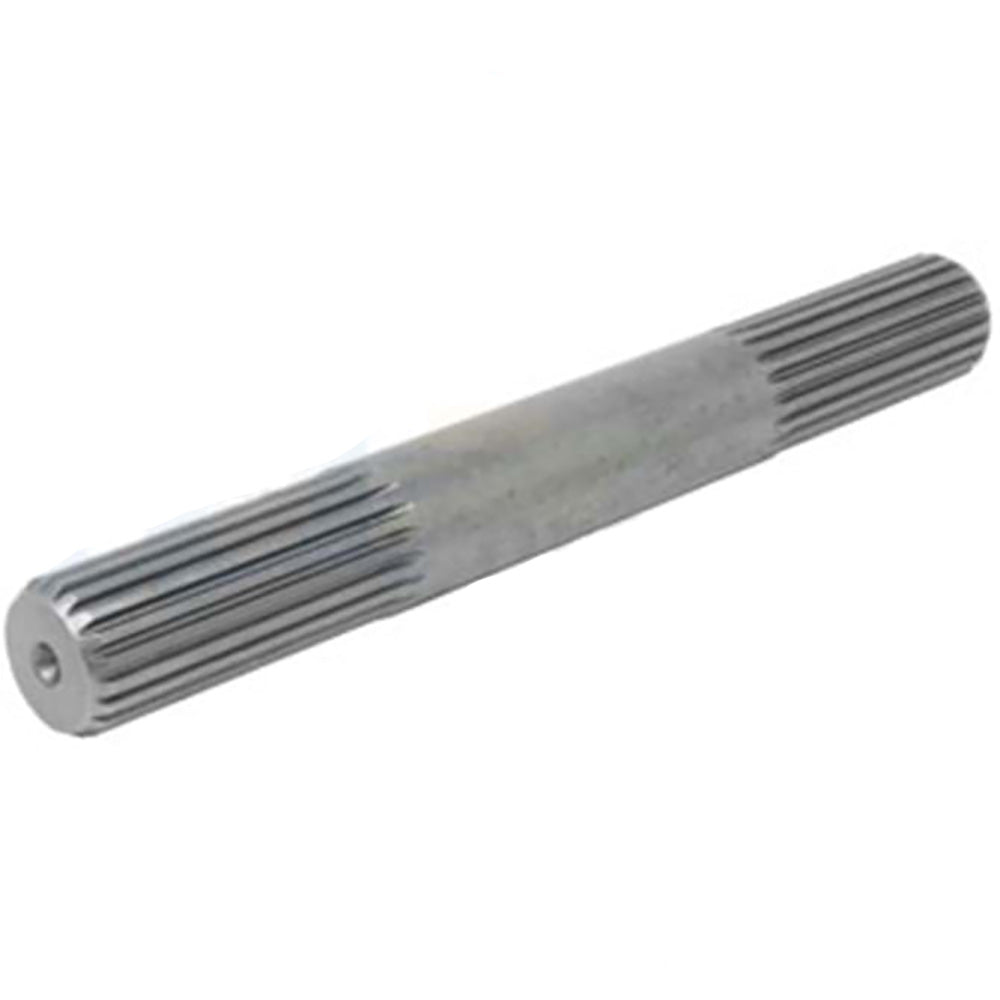

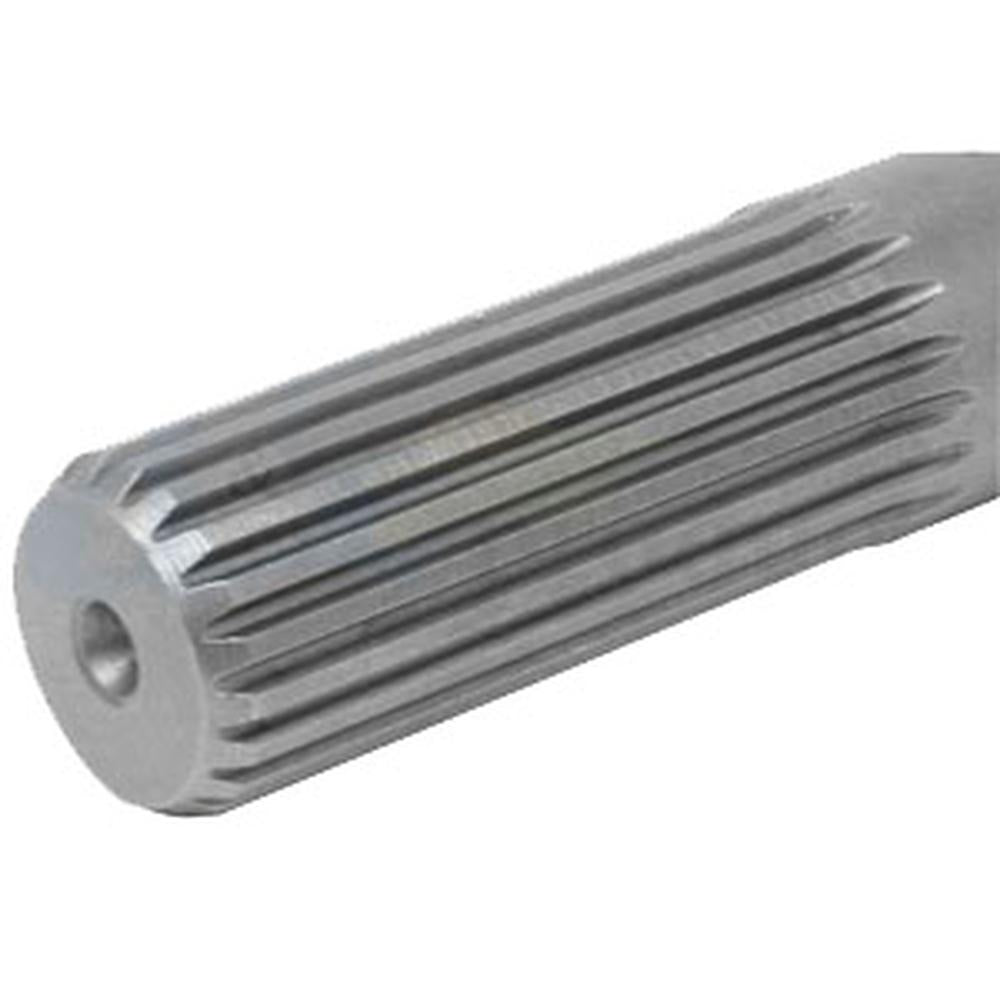

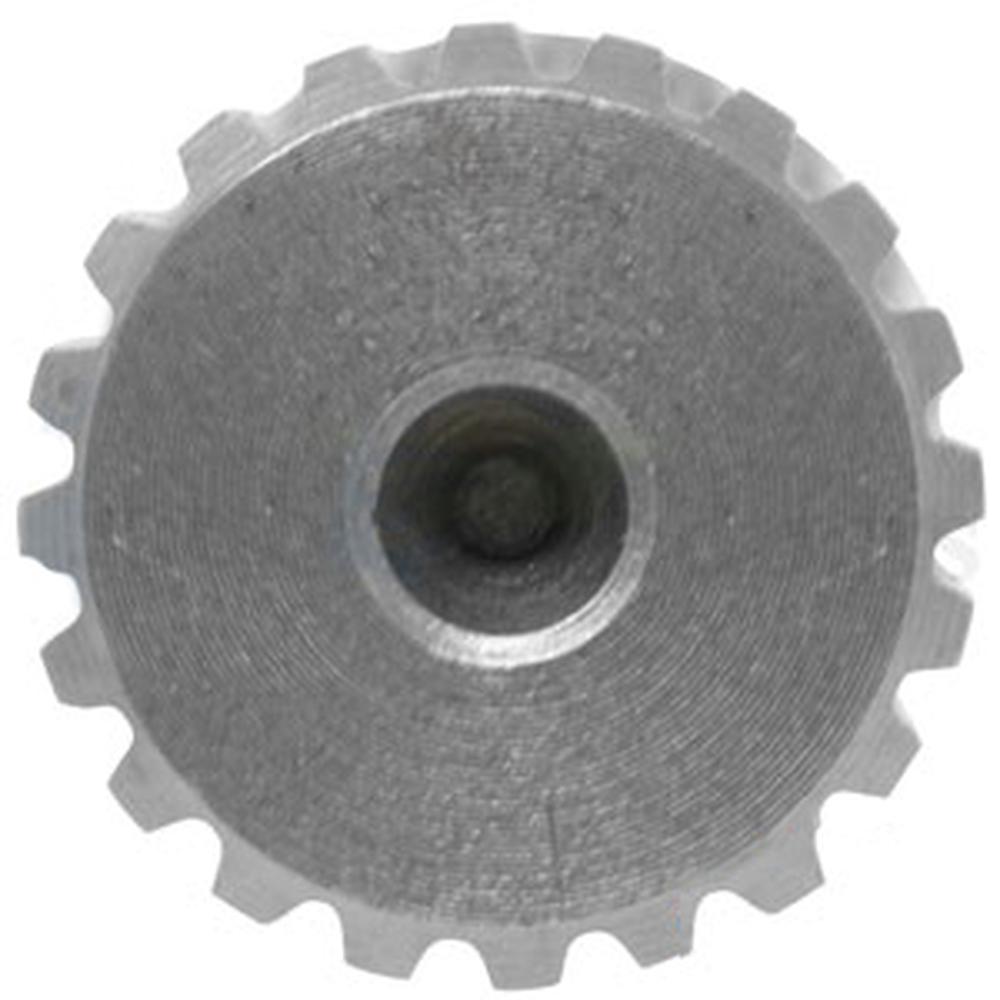

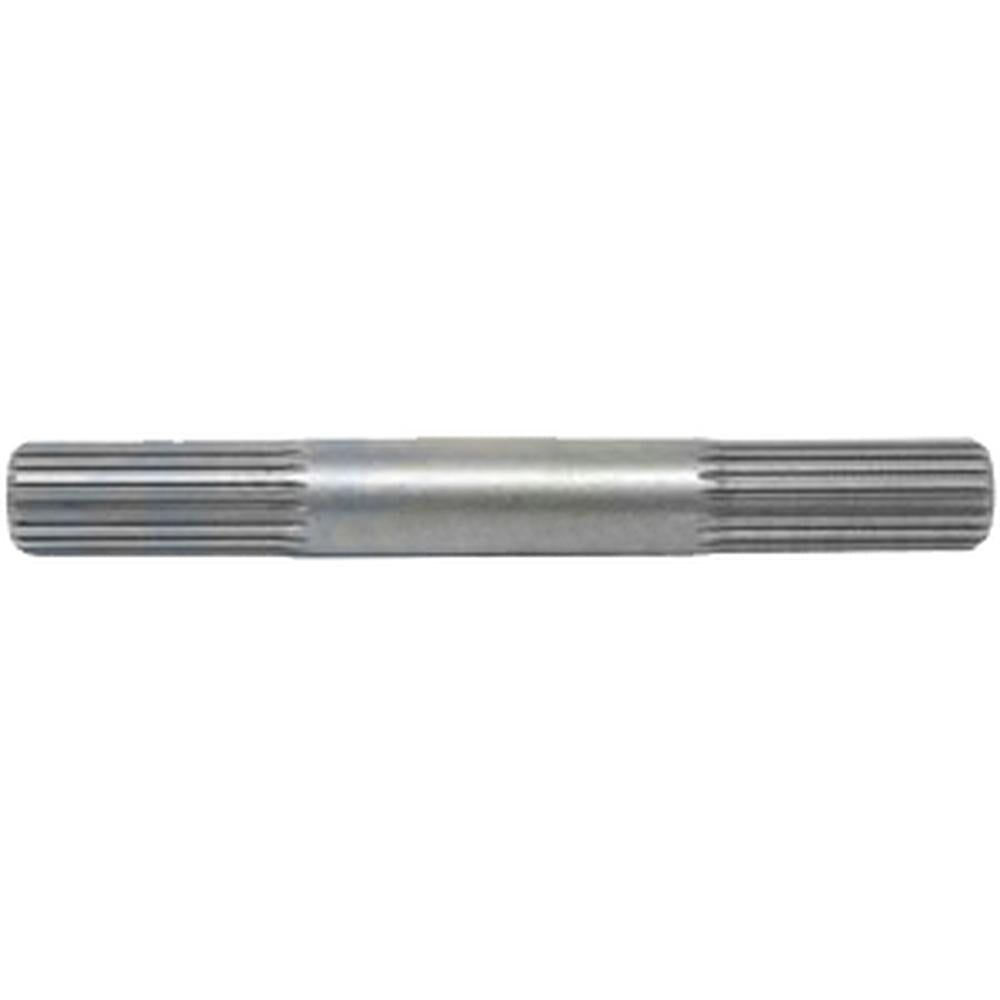

A-3C011-43410-AI Shaft, Differential Gear

One New Aftermarket Replacement Differential Gear Shaft Fits Kubota M-Series Tractors

This differential gear shaft (also referred to as a bevel gear shaft) is a precision steel component located in the front axle reduction gear assembly of Fits Kubota 4WD tractors. It is a 20-tooth vertical shaft, 225 mm in length, that transfers drive force through the front axle differential on Fits Kubota M6040, M7040, and M8540 series tractors. This is a drivetrain part for 4WD (MFWD) models only -- verify your model's drivetrain configuration before ordering.

Specifications

• Number of Teeth: 20T
• Length: 225 mm
• Shaft Diameter: 28 mm
• Spline/Cutter Length: 59 mm
• Cutter Diameter: 24 / 27 mm
• Material: Steel
• Location: Front axle reduction gear assembly (4WD models)

Compatible Models

Fits Kubota M-Series Tractors (4WD / MFWD): M6040, M6040DT, M6040DT-1, M6040DTC, M6040DTC-1, M6040HD, M6040HD-1, M6040HDC, M6040HDC-1, M7040, M7040DT, M7040DT-1, M7040DTC, M7040DTC-1, M7040HD, M7040HD-1, M7040HDC, M7040HDC-1, M8540, M8540DT, M8540DTC

Note: This part is for 4WD (MFWD) equipped models only. Confirm your serial number and drivetrain configuration before ordering.

Replaces Part Number(s):

3C011-43410, A-3C011-43410-AI

Aftermarket Interchange Numbers

5-01-208-13

New aftermarket replacement part - not remanufactured, not used.
