A-3C001-34597-AI Cable, Shuttle
A-3C001-34597-AI Cable, Shuttle
Couldn't load pickup availability

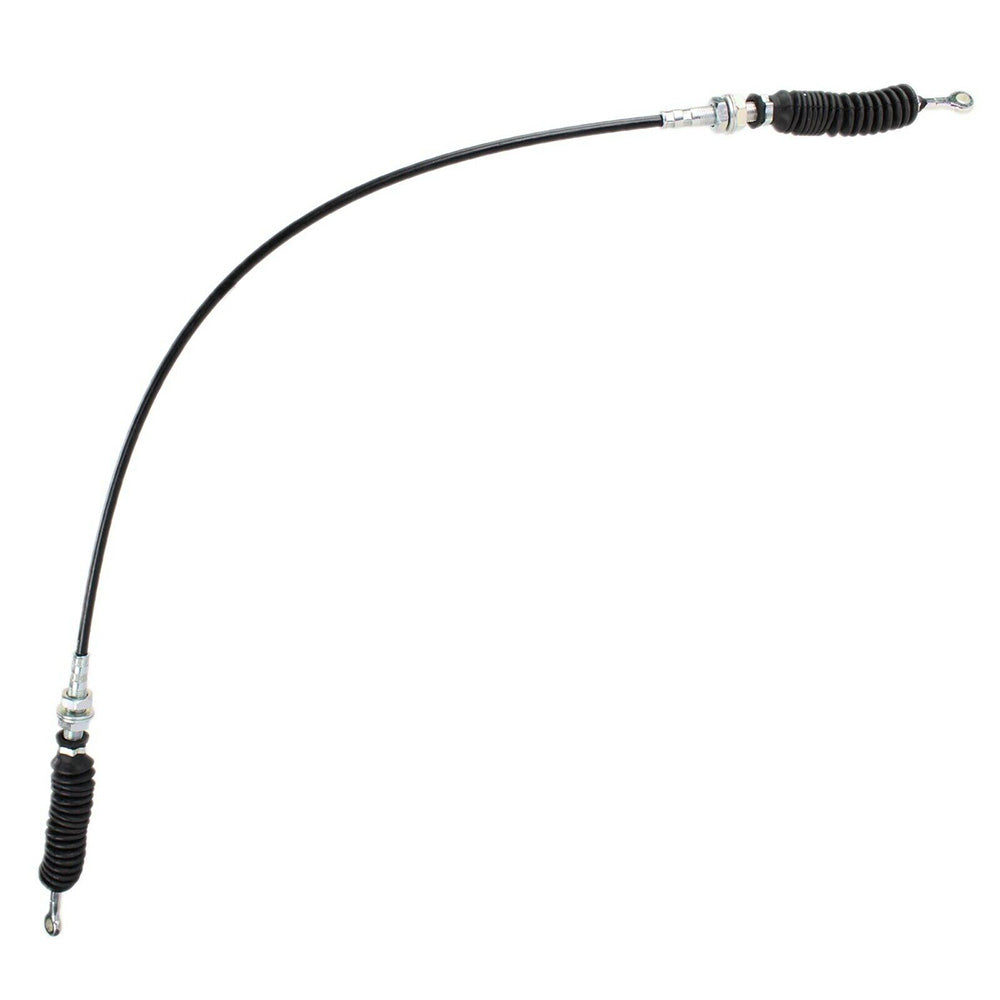

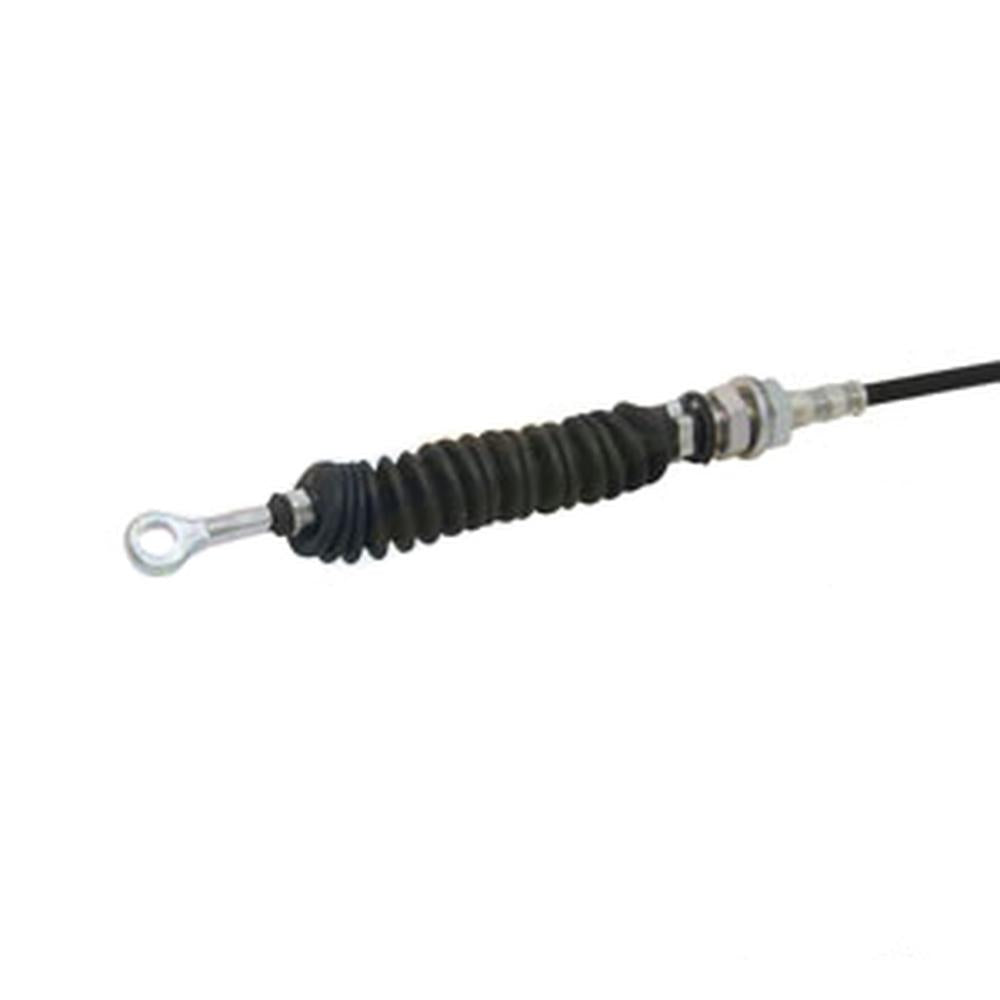

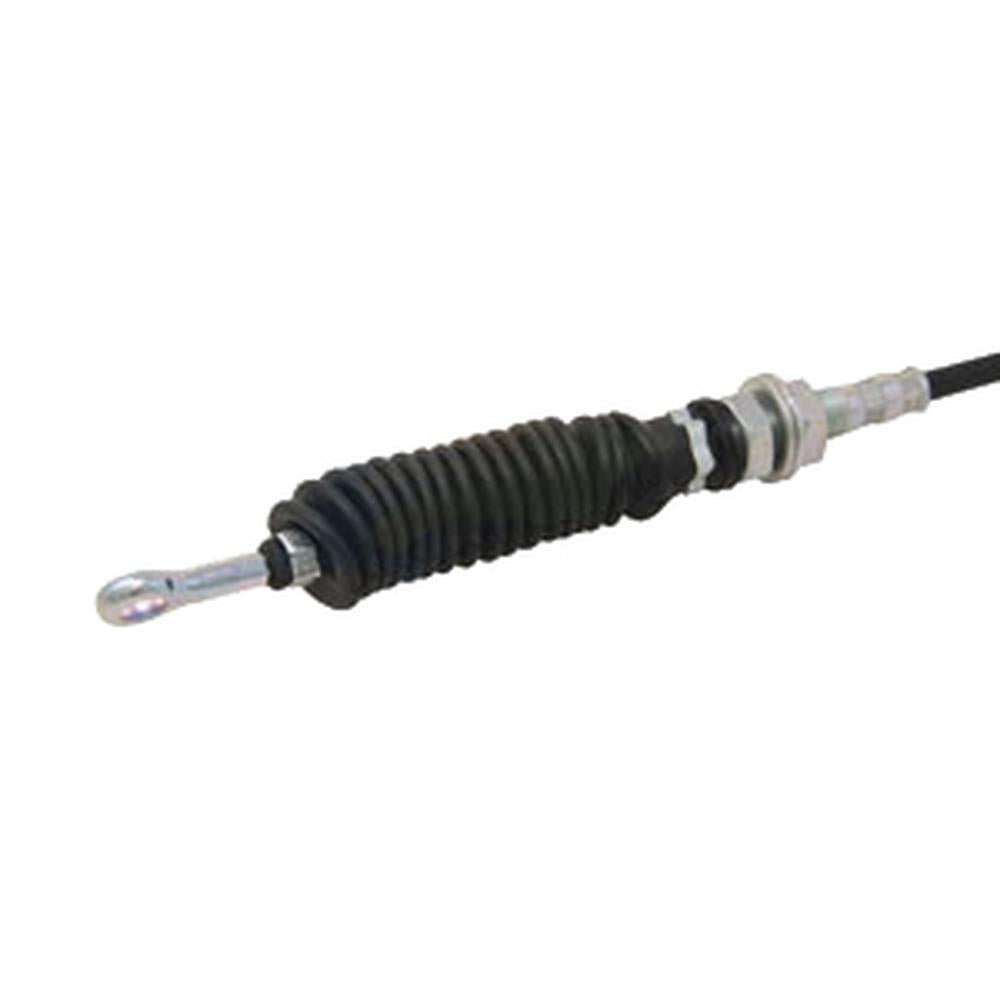

One New Aftermarket Replacement Shuttle Shift Cable Fits Kubota M-Series Tractors
This aftermarket replacement shuttle shift cable Fits Kubota M-Series utility tractors equipped with a shuttle transmission. The cable connects the shuttle shift lever to the transmission, allowing the operator to select forward or reverse direction without using the clutch. Located in the transmission and rear axle system, this is a direct-fit replacement for the original Fits Kubota cable.
Specifications
- Overall Length: 36 in.
- Usable Length: 35-3/8 in. (center to center of eyelet holes)
- Eyelet Hole Diameter: 5/16 in.
- Weight: approx. 0.65-0.80 lbs.
Compatible Models
Fits Kubota M-Series Tractors: M5040, M5040DT, M5040DT-1, M5040F, M5040F-1, M5140, M5140DT, M5140F, M6040, M6040DT, M6040DT-1, M7040, M7040F
Note: Parts can vary by serial number. Verify compatibility with your model and serial number before ordering.
Replaces Part Number(s):
3C001-34597, 3C001-34596, 3C001-34595, 3C001-34594, 3C001-34590
Aftermarket Interchange Numbers
A-3C001-34597-AI (A&I Products), E-3C001-34597 (Eparts), SW36630
New aftermarket replacement part - not remanufactured, not used.
