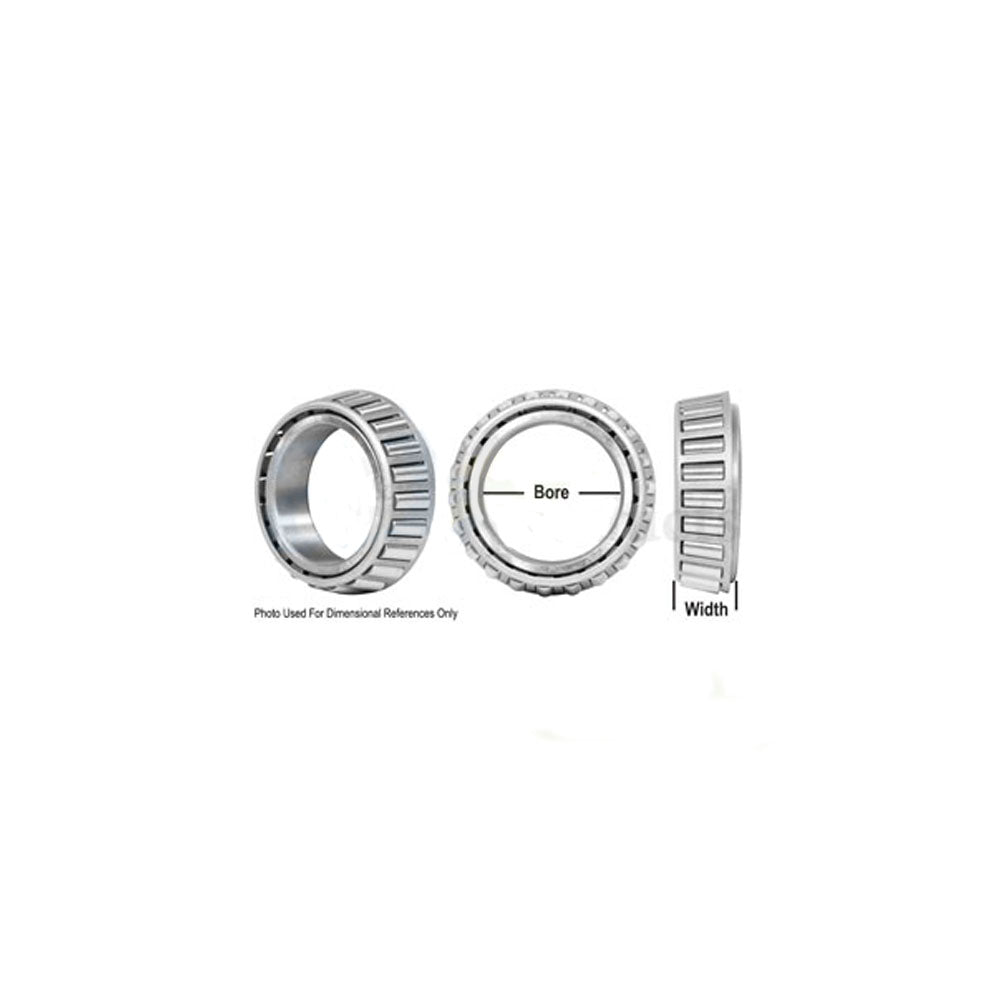

A-395S-P-AI Cone, Tapered Roller Bearing

One New Aftermarket Replacement Cone, Tapered Roller Bearing - 395S

This 395S single tapered roller bearing cone (inner ring assembly) is a widely used industrial and agricultural bearing designed to handle both radial and axial loads. The cone pairs with a compatible cup (outer ring, sold separately) to form a complete tapered roller bearing assembly. Common applications include trailer axles, wheel hubs, transfer case output shafts, agricultural equipment, construction machinery, and industrial gearboxes. Typically mounted in opposing pairs on a shaft for even load distribution.

Specifications

• Bearing Type: Single Tapered Roller Bearing Cone (Inner Ring)
• Bore (Inner Diameter): 2.625 in (66.675 mm)
• Width: 0.866 in (22 mm)
• Backface Radius: 0.14 in
• Cage Material: Stamped Steel
• Bearing Material: Chrome Steel
• ABMA Precision Rating: Class 2
• Operating Temperature Range: -65 to +250 degrees F (-54 to +120 degrees C)
• Finish: Uncoated
• Weight: approx. 1.25 lbs

Compatible Cups (Outer Rings)

This 395S cone is compatible with the following cup (race) numbers: 394A, 394, 394AS, 3920, 3920B. Cup sold separately.

Replaces Part Number(s):

395S, A-395S-P-AI

Aftermarket Interchange Numbers

Timken 395S, National 395S, Dexter 031-022-02, Terran Industries 000395S, Koyo 395S/394A (cone only)

New aftermarket replacement part - not remanufactured, not used.
