A-37X98-AI MURRAY BELT GO Kart belt Made With Aramid
A-37X98-AI MURRAY BELT GO Kart belt Made With Aramid
Couldn't load pickup availability

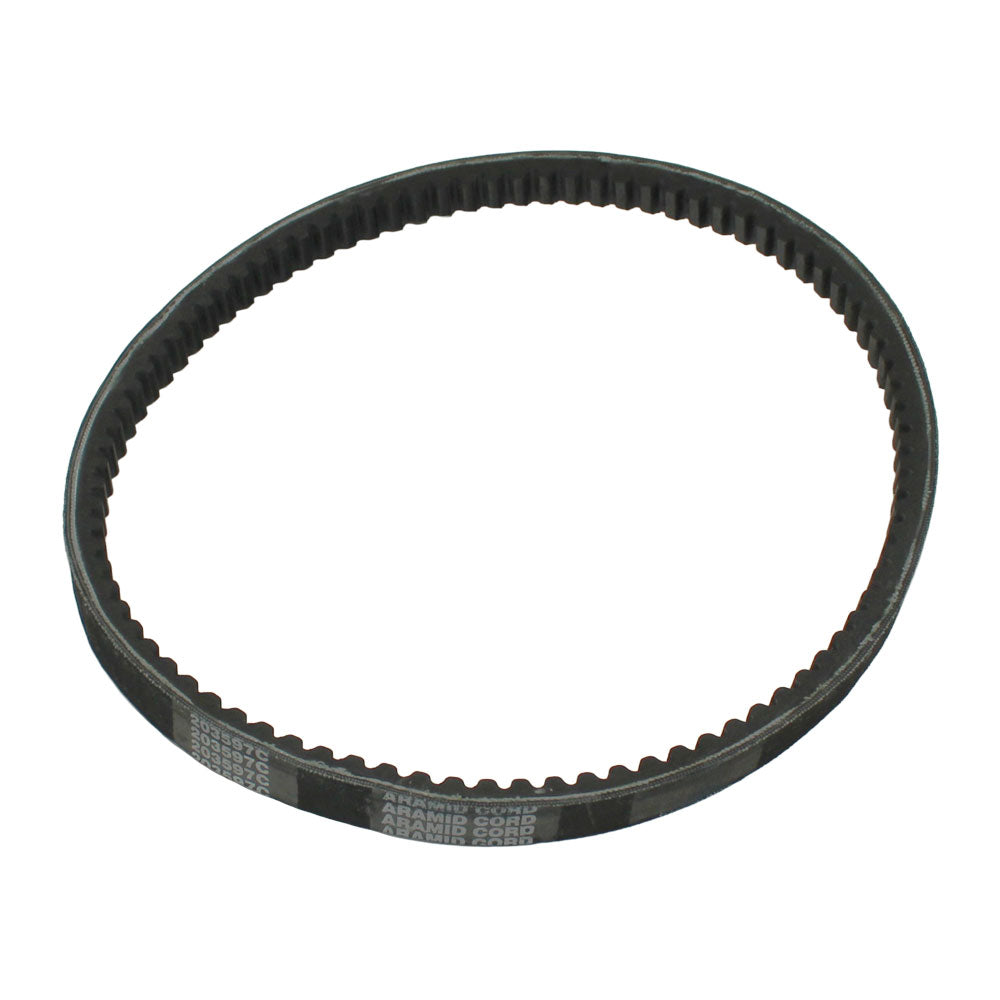

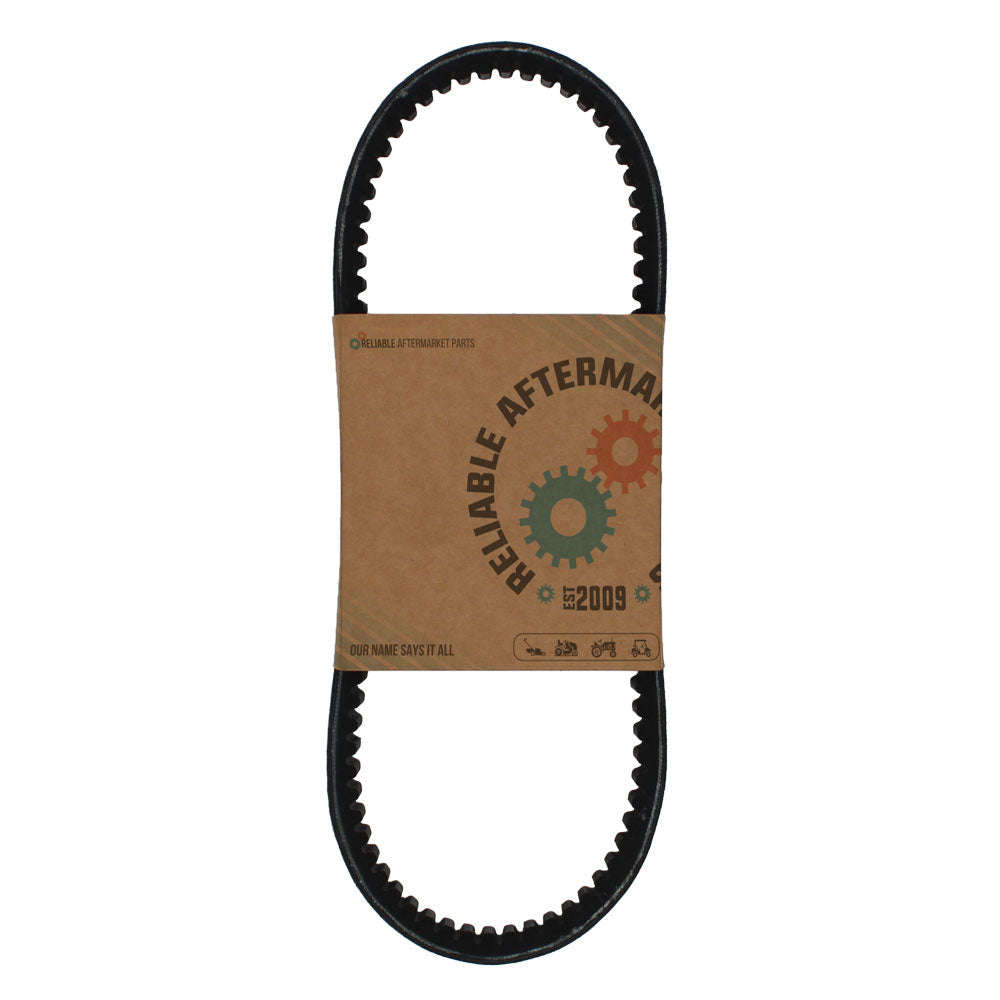

One New Aftermarket Replacement Asymmetric Drive Belt Fits Comet and Murray Go Karts
This aftermarket replacement asymmetric cogged drive belt Fits Comet 30 Series torque converter systems and Murray go karts. It is a raw edge cogged (REC) belt Made With Aramid cord material for strength and durability. The belt is asymmetric -- flat on one side (2.5 degree angle) and angled on the other (18 degree angle) -- and must be installed with the flat side toward the engine. Compatible with both the 6" and 7" driven pulleys used in Fits Comet 30 Series Torque-A-Verter (TAV2) systems.
Specifications
- Type: REC (Raw Edge Cogged) Asymmetric Drive Belt
- Top Width: 3/4" (19 mm)
- Length: 35.125" (approx. 35-1/8" to 35-3/8" outside length)
- Thickness: 0.399"
- Belt Angles: 18 degrees one side, 2.5 degrees other side
- Material: Made With Aramid cord reinforced
- Center-to-center distance: 6" driven - 10-3/4" to 10-13/16"; 7" driven - 9-13/16" to 9-7/8"
Compatible Models
Fits Comet 30 Series Torque Converter Systems: 30 Series 6" Driven, 30 Series 7" Driven (TAV2 / Torque-A-Verter)
Murray Go Karts: All Murray go kart models using belt 37X98 or 37X98MA
Also fits: Yerf-Dog go karts, Hammerhead go karts and dune buggies using Fits Comet 30 Series torque converter systems
Replaces Part Number(s):
37X98, 037X98, 203597, 203597A, 203597C, 12-10042, 1210042
Aftermarket Interchange Numbers
Fits Stens 255-407, Rotary 10042, Max Power 10042
New aftermarket replacement part - not remanufactured, not used.
