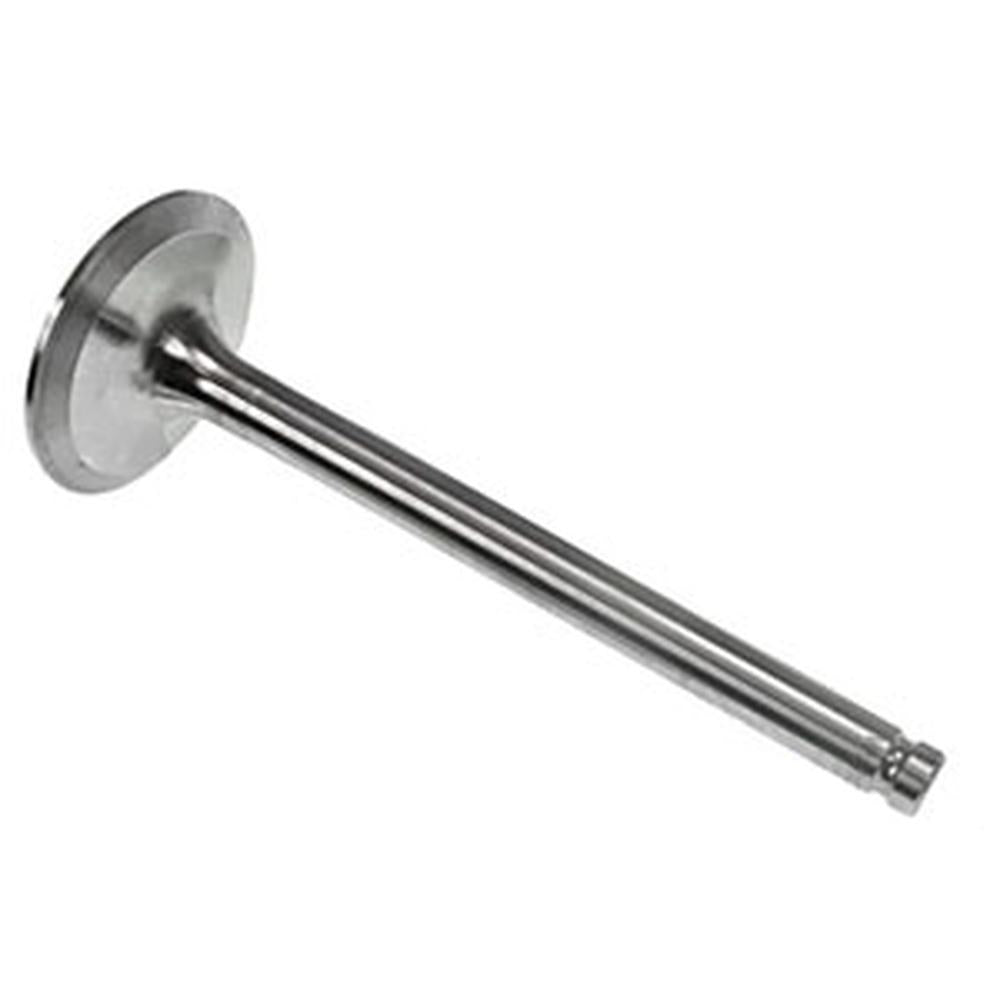

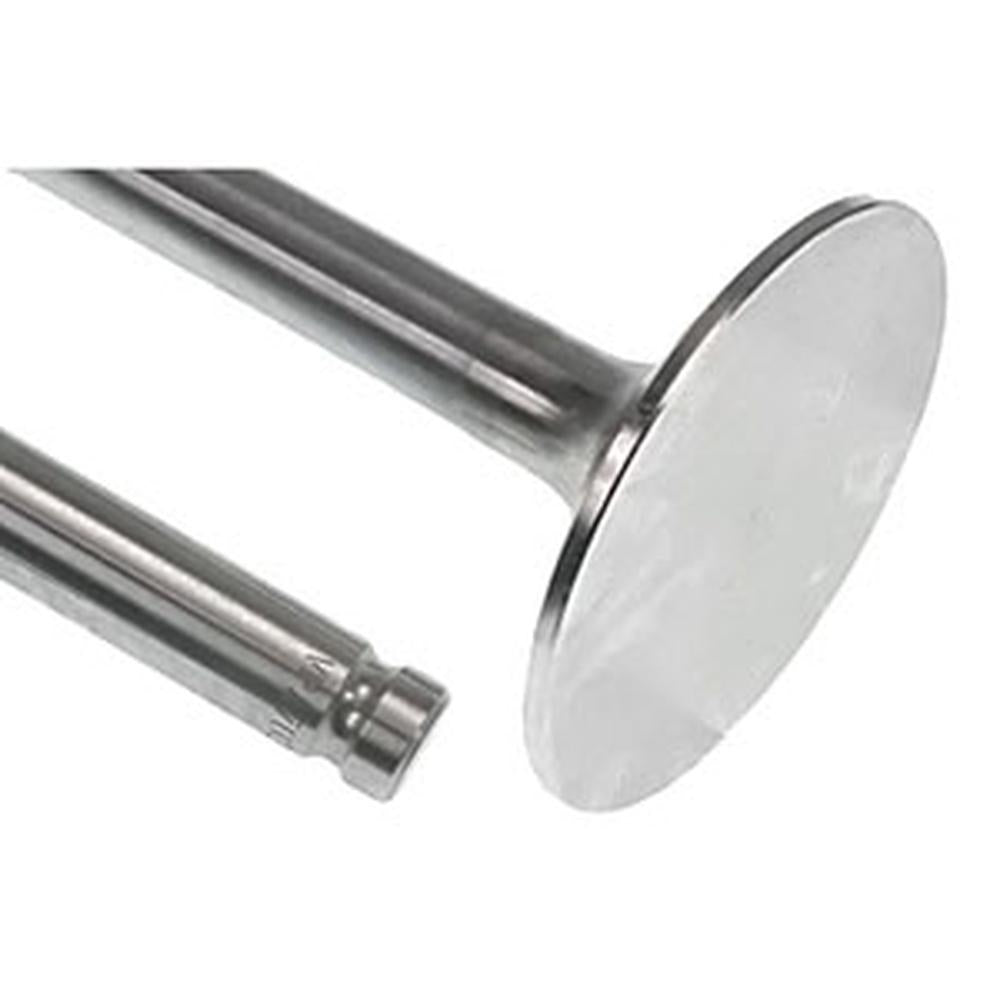

A-3142L072-AI Valve, Intake

One New Aftermarket Replacement Intake Valve for Perkins 1004 and 1006 Series Diesel Engines

This aftermarket replacement intake valve fits Perkins 1004 and 1006 series diesel engines, including turbocharged variants. The valve seats in the cylinder head and controls airflow into the combustion chamber. It is used in agricultural tractors, construction equipment, and industrial generator sets powered by Perkins engines. Engine serial number restriction applies: fits from engine S/N 557,976 (Perkins 1006.6T YB build lists).

Specifications

• Head Diameter: 1.768 in (45.0 mm)
• Stem Diameter: 9.5 mm
• Overall Length: 4.840 in (122.9 mm)
• Seat Angle: 30 degrees
• Valve Grooves: 1

Compatible Models

Perkins Engines: 1004.4T, 1006.6, 1006.6T, 1006.60T

Fits Massey Ferguson Tractors (Perkins 1004/1006 engine): 4243, 4245, 4245HV, 4253, 4255, 4255HV, 4270, 6110, 6120, 6130, 6140, 6150, 6170, 6180, 3075, 3120, 3125, 3140, 3635, 3645, 3655, 3660, 8110, 8120, 8130

Note: Verify fitment by engine serial number before ordering. Fits from engine S/N 557,976 on 1006.6T (YB) build lists.

Replaces Part Number(s):

3142L072, 3640597M1, 1004626, 100-4626, 0325IN, 70910061, V91250, R4989/RCR, 02/200863

Aftermarket Interchange Numbers

905-009, A-3142L072-AI

New aftermarket replacement part - not remanufactured, not used.
