A-2794-P-AI Cone, Tapered Roller Bearing
A-2794-P-AI Cone, Tapered Roller Bearing
Regular price
$72.00 CAD
Regular price
Sale price
$72.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

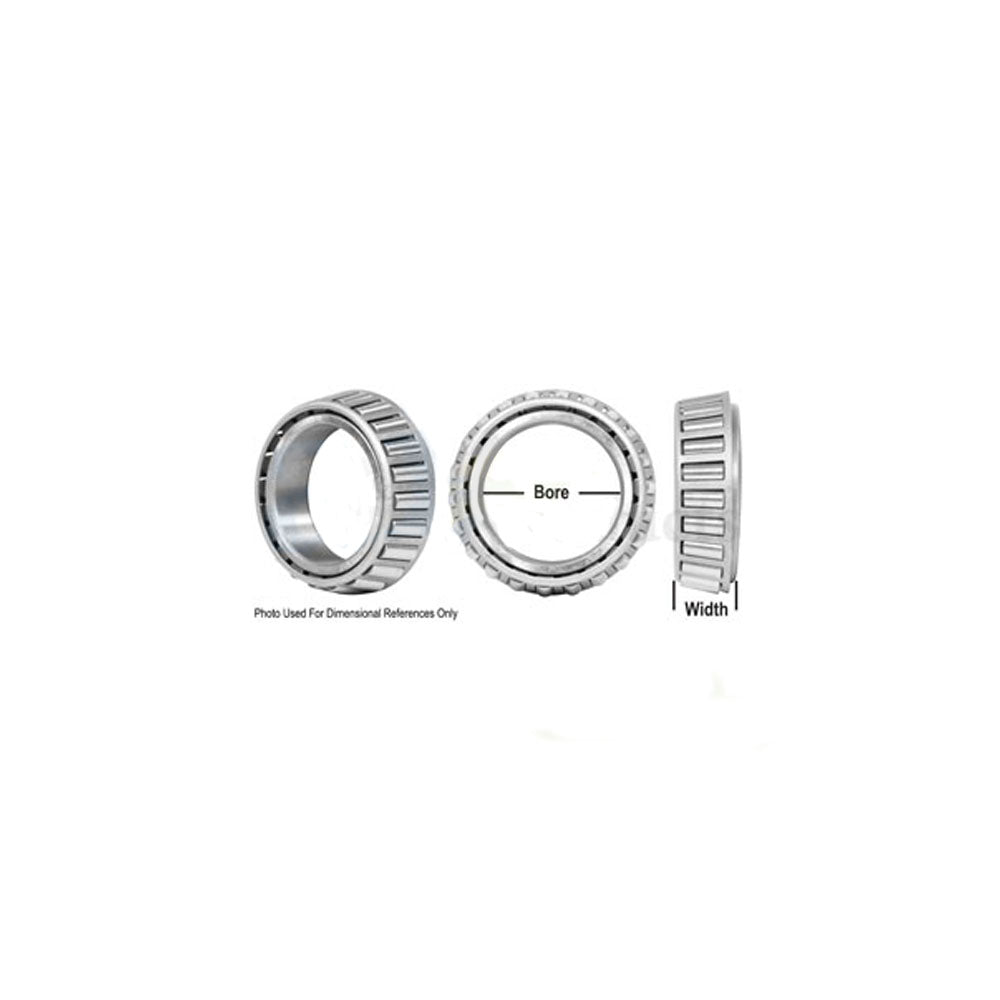

One New Aftermarket Replacement Cone, Tapered Roller Bearing - 2700 Series (2794 / A-2794-P)
This single-row tapered roller bearing cone (inner ring assembly) is a direct aftermarket replacement for OEM part number 2794. Note: this listing is for the cone only -- the matching cup (outer ring) is sold separately. Tapered roller bearing cones are widely used in wheel hubs, axle assemblies, transmission cases, gearboxes, and drive assemblies on agricultural equipment, construction machinery, and industrial applications where combined radial and axial (thrust) loads must be supported simultaneously. The cone is typically mounted in opposing pairs on a shaft.
Specifications
- Bore (Inside Diameter): 1.436 in
- Width: 1.010 in
- Maximum Shaft Fillet Radius: 0.14 in
- Series: Timken 2700
- Row Type: Single Row
- Bore Type: Straight
- Cage Material: Stamped Steel
- Operating Temperature Range: -65 to 250 deg F
Replaces Part Number(s):
2794, 2794-P, A-2794-P, A-2794-P-AI, 2794-I, A-2794-I
Aftermarket Interchange Numbers
913-2794, 9132794
New aftermarket replacement part - not remanufactured, not used.
