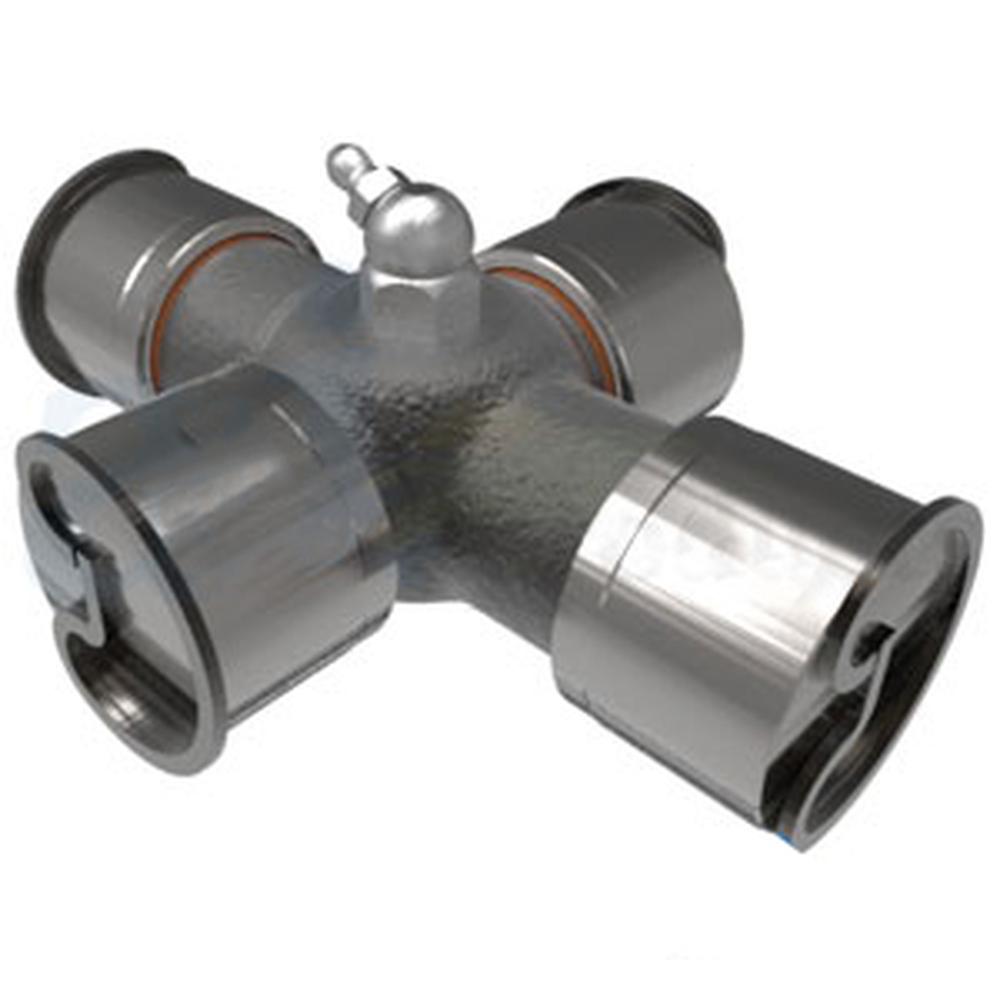

A-201-3545-AI Extended Lube Cross & Bearing Kit, 35-44

One New Aftermarket Replacement Extended Lube Cross & Bearing Kit for Weasler 35-44 Series PTO Drive Shafts

This aftermarket replacement Extended Lube (E-Kit) cross and bearing kit is designed for use in Weasler 35 Series and 44 Series PTO drive shaft applications. It services the universal joint assembly on agricultural PTO drivelines, restoring smooth power transmission between tractor and implement. The E-Kit design features larger roller bearings and a high-temperature, triple-lipped seal that keeps grease in and contaminants out, providing an extended lubrication interval far beyond that of a standard R-Kit.

Specifications

• Series: 35 and 44 (North American)
• 35 Series - Bearing Cap Diameter: 1-1/4 in. (32 mm)
• 35 Series - Cap-to-Cap Span: approx. 3.20 in. (81 mm)
• 44 Series - Bearing Cap Diameter: 1-5/16 in. (1.311 in.)
• 44 Series - Cap-to-Cap Span: approx. 4.00 in.
• Snap Ring Location: External (35 Series) / In Cup (44 Series - verify fitment)
• Grease Zerk Location: Center
• Extended Lube Cycle: 50-250 hours
• 44 Series Rating: 103 hp @ 540 rpm / 158 hp @ 1,000 rpm

Features

• Extended lubrication cycle of 50-250 hours vs. 8-hour cycle of standard R-Kits
• Larger roller bearings for added durability in demanding applications
• Grease access through the guard - no need to remove guard
• Interchangeable with standard cross and bearing kits in the market
• Upgradeable: PTO shaft fitted with E-Kits can still be upgraded to M-Kits

Replaces Part Number(s):

A-201-3545-AI, 201-3545

New aftermarket replacement part - not remanufactured, not used.
