A-194569-AI Blade, CW; 18� Bevel
A-194569-AI Blade, CW; 18� Bevel
Couldn't load pickup availability

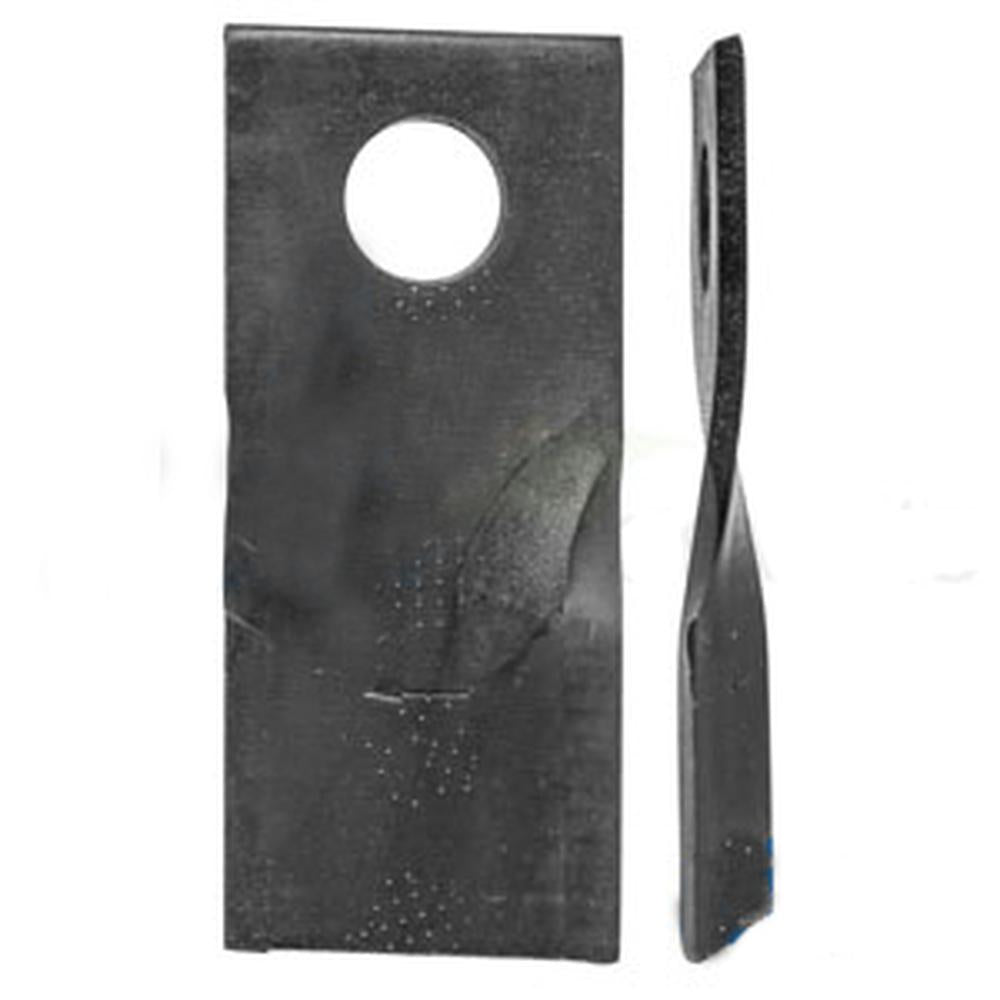

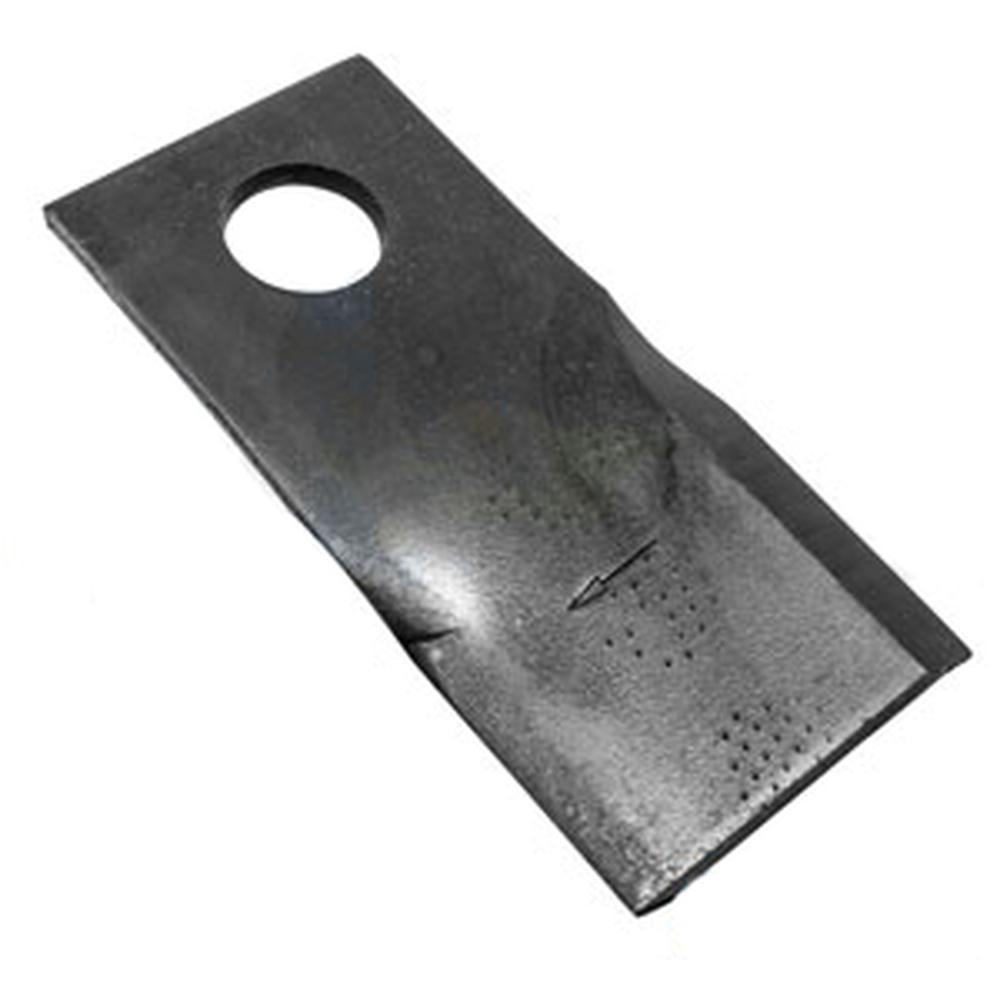

One New Aftermarket Replacement Disc Mower Blade - Clockwise (RH), 18-Degree Bevel Fits Case IH (Fits Case/International Harvester) Mower Conditioners
This Type 9 right-hand (clockwise) disc mower blade is designed for use on Fits Case IH and Hesston disc mower conditioners and headers. The 18-degree twisted bevel design works well in down crop conditions, lifting and guiding material efficiently through the cutterbar. Replaces OEM part number 86625673.
Specifications
- Length: 4.252" (108 mm)
- Width: 1.890" (48 mm)
- Thickness: 0.157" (4 mm)
- Bolt Hole Diameter: 0.728" (18.5 mm)
- Twist: 18 degrees
- Type: 9
- Rotation: Clockwise / Right-Hand (RH)
- Works well in down crop conditions
Compatible Models
Fits Case IH Mower Conditioners: 8309, 8312, 8315, DC515
Fits Case IH Headers: 725, 8850
Hesston Mower Conditioners: 1320, 1340, 1360, 1365
Hesston Headers: 8070, 9070
Fits Massey Ferguson Mower Conditioners: 1345, 1355, 1363, 1365, 1366, 1372, 1375, 1383, 1386, 9075, 9080
Fits Massey Ferguson Headers: 9070, 9080, 9175, 9183, 9185, 9186, 9190, 9192, 9195, 9196
Challenger Mower Conditioners: 1363, 1366, 1383, 1386, PTD10, PTD10B, PTD12, PTD12B, PTD15, PTD15B
Challenger Headers: DKHB, DKHC, DKHCT, DKHD, DKHDT, DKHE, DKHET, 9195, 9196
AGCO Mower Conditioners: 3312, 3315
AGCO Headers: 9170, 9180, 9190, 9192
New Idea Mower Conditioners: 5070, 5512, 5515
New Idea Headers: 6070
Replaces Part Number(s):
86625673
Aftermarket Interchange Numbers
A-194569, 194569, 700715575, 700712888 (TISCO), B45-6560, A31-172, RM575, 55903310, E80208, DM8403C, Rasspe 42049.0
New aftermarket replacement part - not remanufactured, not used.
