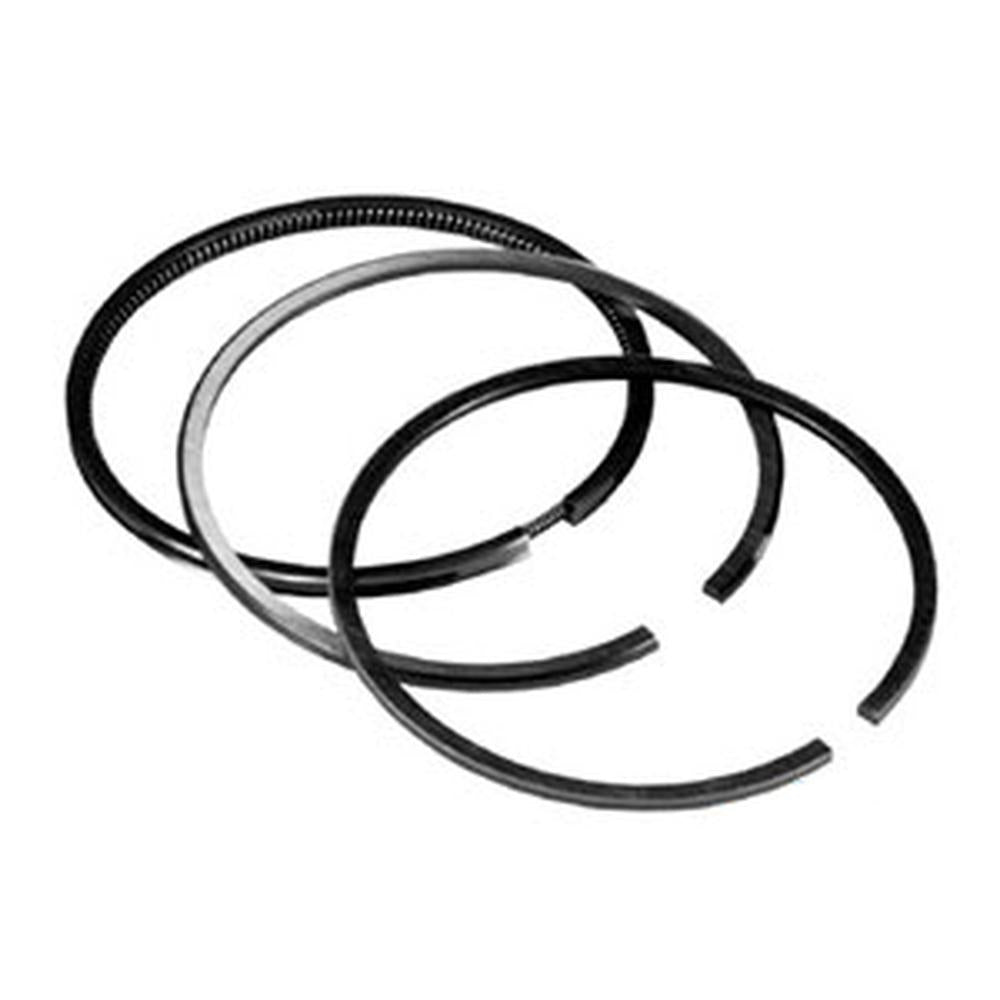

One New Aftermarket Replacement Piston Ring Set for Fiat Tractors
This aftermarket replacement piston ring set (3-ring design) fits the engine block on Fiat agricultural tractors equipped with the 8035.04, 8045.04, 8055.04, and 8065.04 engine series. Each set covers one cylinder and includes compression and oil control rings to restore proper cylinder sealing and engine performance.
Specifications
- Ring Set: 3-ring per cylinder
- Bore Diameter: 103 mm
- Ring Widths: 2.5 mm / 2.5 mm / 4 mm
- Fitment: Standard bore
Compatible Models
Fiat Tractors (8035.04 Engine): 566, 566DT, 570, 570DT, 580, 580DT
Fiat Tractors (8045.04 Engine): 766, 766DT, 780, 780DT
Fiat Tractors (8055.04 Engine): 880-5, 880-5DT
Fiat Tractors (8065.04 Engine): 1000 Super, 1000DT Super, 1180, 1180DT
Replaces Part Number(s):
1909234, 01909234, 1908739, 01908739
Aftermarket Interchange Numbers
VPB4604 (Fits Vapormatic), 72093006 (Hesston), 72093006V (AGCO Heritage), 08-782000-00 (Goetze Engine), 007 94 N0 (Fits Mahle)
New aftermarket replacement part - not remanufactured, not used.
