A-1618050R4-AI 12V,CW,D/D,LU

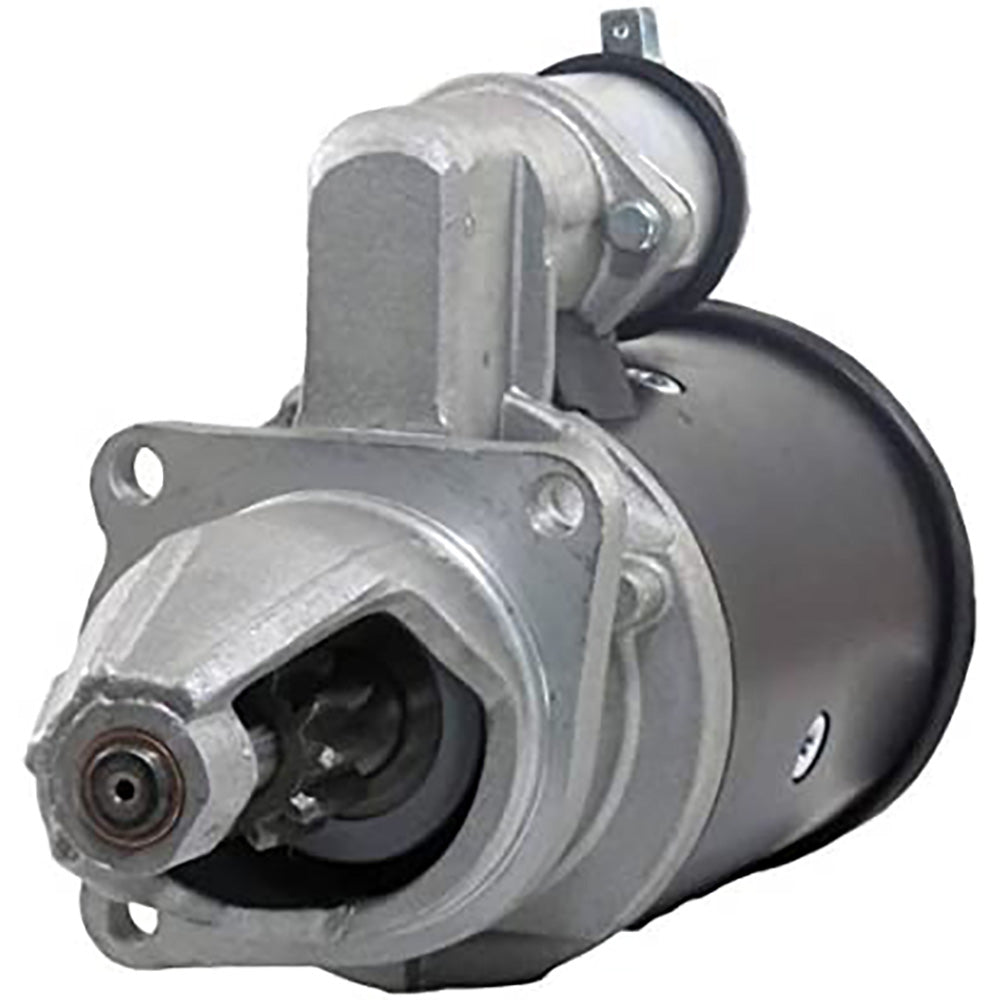

One New Aftermarket Replacement Starter Motor Fits Massey Ferguson Tractors

This aftermarket replacement starter motor Fits Massey Ferguson 2000, 3000, and 3600 Series tractors equipped with Perkins diesel engines. It is a direct-drive (D/D) Fits Lucas-style unit operating at 12 volts with clockwise (CW) rotation, designed as a drop-in replacement for the original equipment starter.

Specifications

• Voltage: 12V
• Power: 2.8 kW
• Rotation: Clockwise (CW)
• Drive Type: Direct Drive (D/D)
• Unit Type: Fits Lucas (LU)
• Tooth Count: 10
• Gear OD: 1.575 in / 40 mm
• Mounting Ears: 3 x 10.0 mm unthreaded
• Flange Diameter: 89 mm
• Mounting Points Diameter: 127 mm
• Mounting Angle: 40 degrees
• Weight: approx. 31 lbs / 14 kg

Compatible Models

Fits Massey Ferguson (MF) Tractors with Perkins Diesel Engines: 2620, 2640, 2645, 2675, 2680, 2685, 2705, 2720, 2725, 2810, 2830, 3080, 3090, 3505, 3525, 3545, 3610, 3630, 3650

Replaces Part Number(s):

Fits Massey Ferguson: 1618050R4, 1618-050-R4, 1618050M4, 1618-050-M4, 1618050M3, 1618-050-M3, 1618050M14, 161805M3, 1903145M91, 1903-145-M91, 3637269R91, 3637-269-R91, 3931421M91

Aftermarket Interchange Numbers

Iskra: 11.130.896, IS0896, AZJ3318 | Fits Lucas Industries: 27533, 27533A, 27533B, 27533D, 27533F, 27601, 27601B | Fits Lucas Remanufactured: 5028 | Fits Lucas: 26398, 26398A, 26398F, 26398H

New aftermarket replacement part - not remanufactured, not used.
