A-115017581-AI Piston Kit; Std.

One New Aftermarket Replacement Piston Kit (Standard) for Perkins 400 Series Turbocharged Diesel Engines

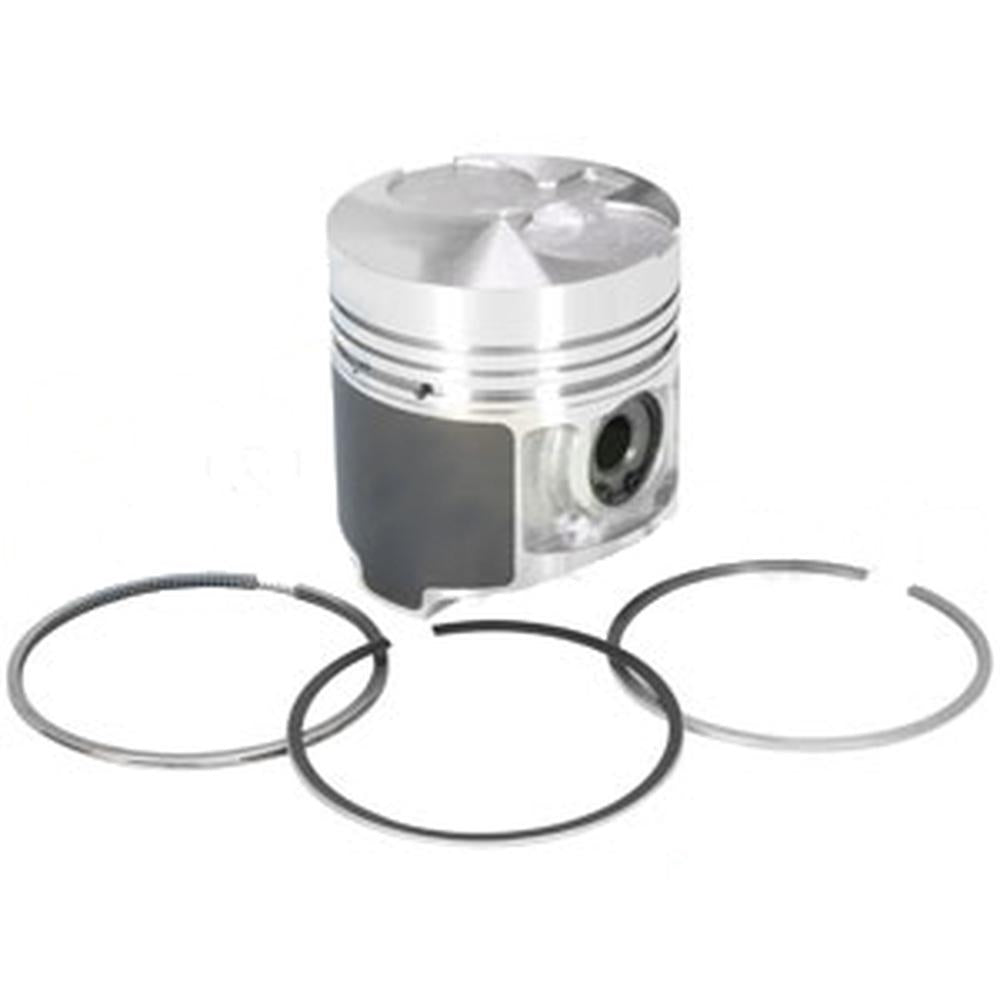

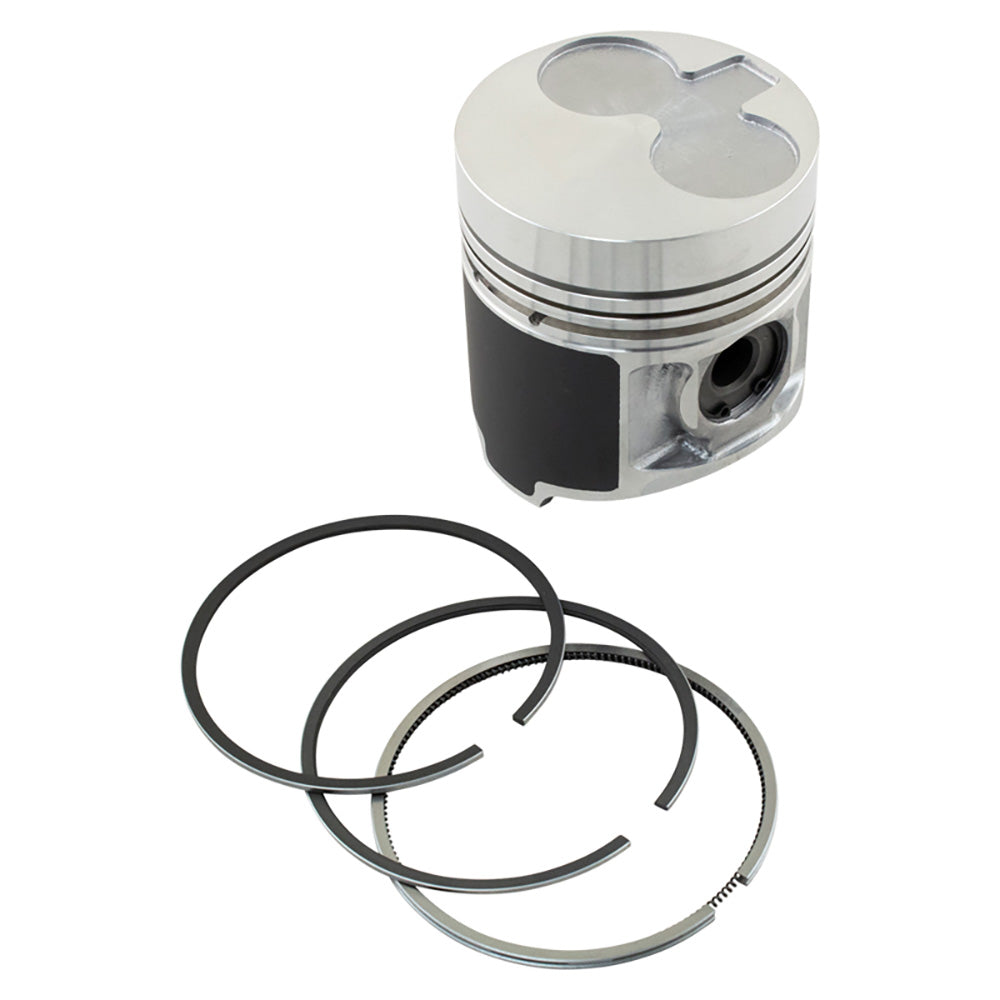

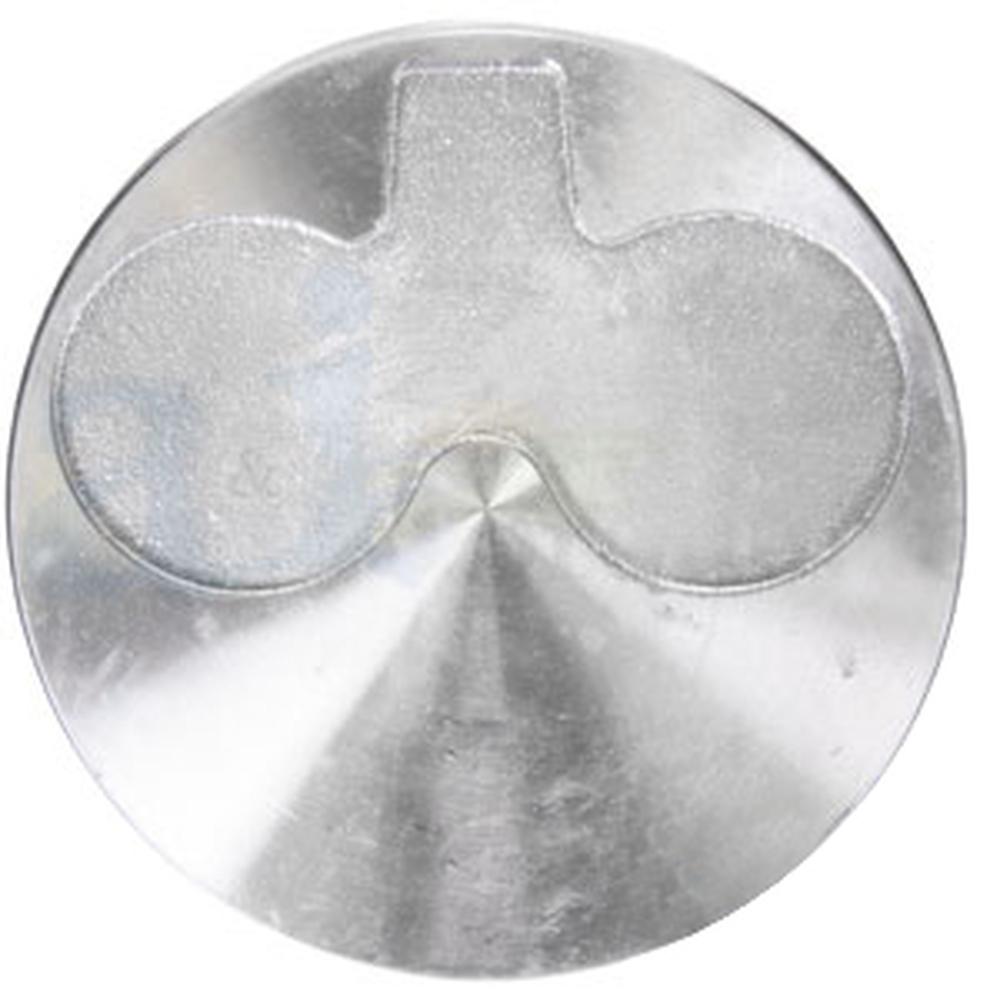

This standard-bore piston and ring kit is a direct replacement for Perkins OEM part 115017581, designed for the 4-cylinder turbocharged diesel engines used across Perkins, Caterpillar (Cat), Shibaura, Case IH, and New Holland equipment. The kit fits the Perkins 404C-22T and 404D-22T indirect-injection turbo engines and the Caterpillar 3024C / C2.2 engine family. It features a half-keystone top ring design and is built to standard bore dimensions.

Specifications

• Bore: 3.30" (84 mm)
• Stroke: 3.90" (100 mm)
• Piston Height: 87.7 mm
• Pin Diameter: 28 x 72 mm
• Configuration: 4-Cylinder, Turbocharged, Indirect Injection
• Top Ring: Half-Keystone
• Size: Standard (STD)

Compatible Models

Perkins Engines: 404C-22T (HR build lists), 404D-22T (GP build lists)

Caterpillar (Cat) Industrial Engines: 3024C (G4P, 4RF, 424, CSD, GGA), C2.2 (C4M, G7M)

Caterpillar (Cat) Marine Engines: C2.2 (JAW, TAG)

Caterpillar (Cat) Skid Steer Loaders: 216B, 226B, 226B2, 232B, 232B2, 242B, 242B2, 247B, 247B2, 257B, 257B2

Case IH: SR160 Skid Steer, SR175 Skid Steer

New Holland: TC55DA, C175

Shibaura: N844LT Turbo

Takeuchi Skid Steers: TS60R, TS60V

Terex: PT-60 Compact Track Loader, TSR-60 Skid Steer, TSV-60 Skid Steer

ASC Posi-Track: RC-60 Track Loader

JCB Teletruk: TLT30, TLT30D 4x4

Replaces Part Number(s):

115017581, 115017581B, SBA115017581

Aftermarket Interchange Numbers

Ring set: 115104021; Cross-reference: 2706968 (270-6968)

New aftermarket replacement part - not remanufactured, not used.
