A-113BH-AI Cup (14276)

Name: A-113BH-AI Cup (14276)
SKU: A-113BH-AI
Price: 38.0 USD
Availability: InStock

A-113BH-AI Cup (14276)

$38.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

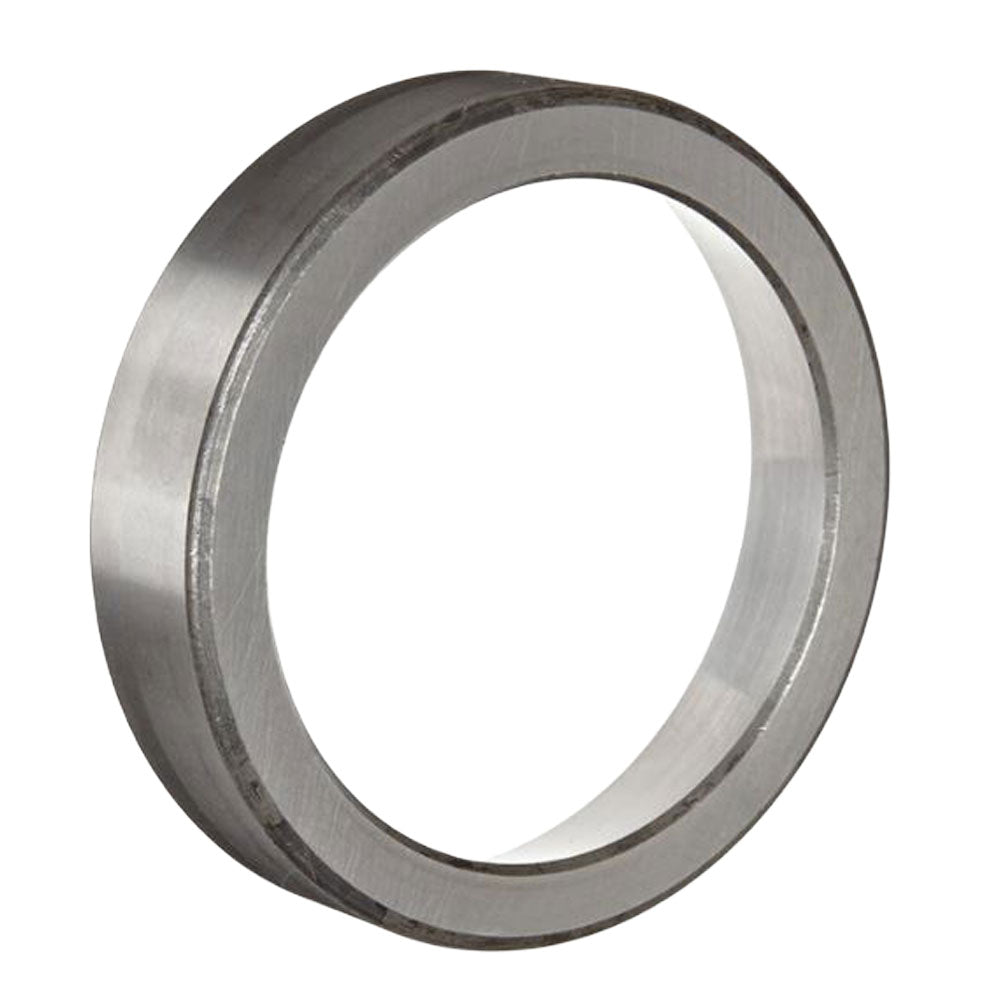

One New Aftermarket Replacement Tapered Roller Bearing Cup for Agricultural, Construction, and Lawn & Garden Equipment

This tapered roller bearing cup (outer race) is a direct-fit replacement for the standard industry number 14276. The cup seats in the housing bore and provides the hardened raceway surface on which the tapered rollers travel, supporting both radial and axial loads. It is used across a wide range of agricultural equipment including tractors, combines, round balers, rotary cutters, disc harrows, and balers from Fits John Deere, Fits Case/International Harvester, Fits Allis Chalmers, Fits Massey Ferguson, Minneapolis-Moline, Fits Ford/New Holland, GEHL, Hesston, Vermeer, Bush Hog, Rhino, Fits Woods, Kewanee, Krause, and others. Replace cup and cone together for best results; compatible cones include 14116, 14117A, 14118, 14124, 14125A, 14130, 14131, 14137A, 14138A, and 14139.

Specifications

Type: Single Tapered Roller Bearing Cup (Outer Race)
Outside Diameter: 2.717 in.
Width: 0.625 in.
Fillet Radius: 0.05 in.
Material: Fits Case Carburized Steel
Lubrication Hole: None
Finish: Uncoated

Compatible Models

Fits Case/International Harvester Combines: 1640, 1644, 1660, 1666, 1680, 1688, 2166, 2188, 2366, 2377, 2388, 2577, 2588

Fits Case/IH Cotton Pickers: 82, 84, 95

Minneapolis-Moline Tractors: G1000, JET STAR 3, JET STAR 4, M5, 5 STAR, 335, 445, 670

Fits John Deere Balers and Equipment: 303, 504C, 504F, 504G, 504H, 504I, 504I SILAGE, 504L, 503, 503I, 505I, 505L, 554XL, 555XL, 602, 604J, 604K, 604L, 604XL, 605F, 605G, 605H, 605J, 605K, 605L, 605XL, 615, 403, 403F, 403G

Fits Allis Chalmers Combines: 715, 815

Additional Models: R-21, R-23, 1400, 4901-4938, 2344

Replaces Part Number(s):

14276, 14276TIM, 113BH, A-113BH-AI, 526WD, 7069WD, 203021, 70209890, 74253284, 710350, 54628A, A29977, 80105, 016234X1, 8J0422, 1715019, 9N744, 116210, W10A7575, JD7409, 520031, 70025, W33, X5623, 10261

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

1666, 815, 605G, 504I SILAGE, 605K, 403F, JET STAR 4, 5 STAR, 2577, 5400 REBEL, 504F, 335, 303, 1660, 715, 95, 403, 604L, 1640, 503I, R-23, G1000, 2377, M5, 503, 2344, 1400, 602, 2588, 605J, 2166, 82, 555XL, JET STAR 3, 504H, 1644, 504L, 2366, 5500 REBEL, Outer Ring Of A Tapered Roller Bearing, 554XL, 504G, 604J, 1688, 615, 605F, R-21, 4901-4938, 604XL, 505L, 445, 605XL, 403G, 505I, 605H, 670, 605L, 84, 504C, 2188, 504I, 1680, 604K, 2388

Additional Information:

Outside Diameter 2.717" Radius .05" Width .625"

Reference Numbers:

70025, W33, 14276, A29977, 526WD, 7069WD, 70209890, 74253284, 113BH, 54628A, 9N744, 116210, 710350, 520031, JD7409, X5623, 1715019, 016234X1, 80105, 203021, 10261, 14276TIM, 8J0422, W10A7575
