A-1028587M1-AI Solenoid, Starter

A-1028587M1-AI Solenoid, Starter

$71.00 CAD
$71.00 CAD
Sale Sold out
Shipping calculated at checkout.

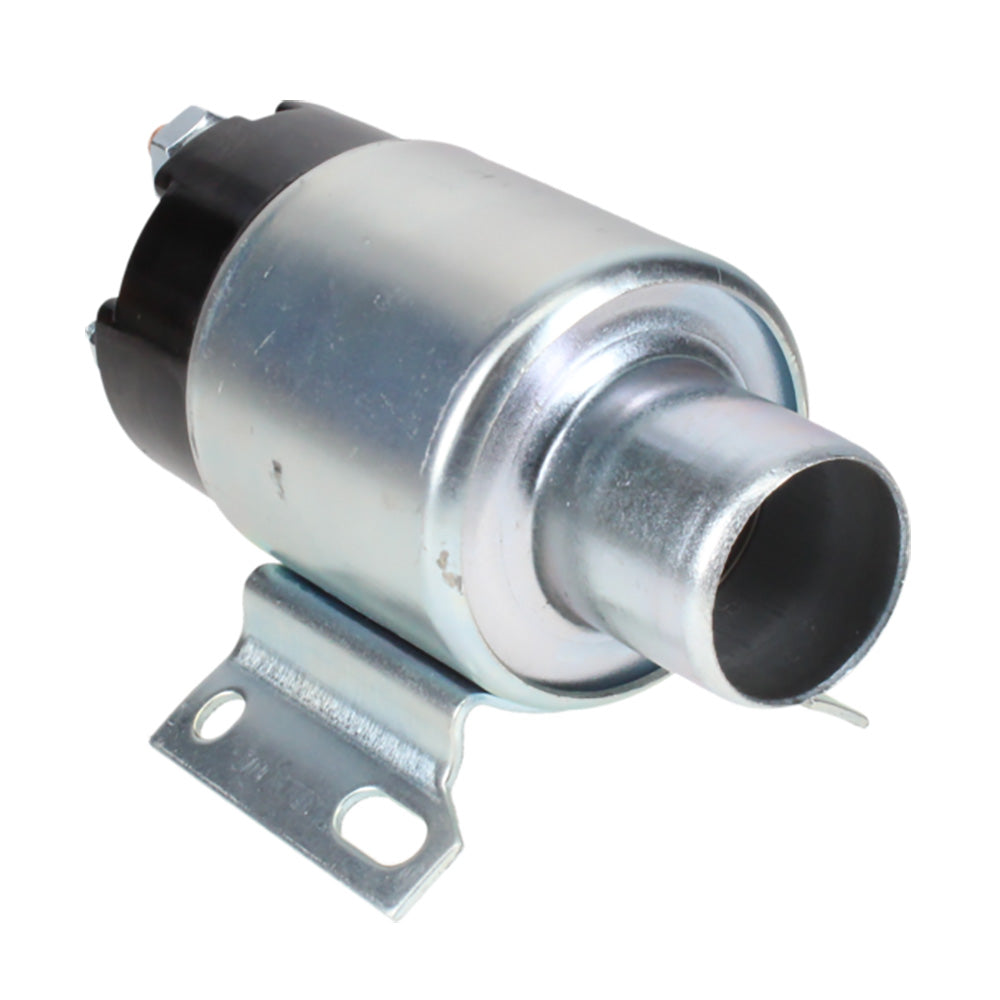

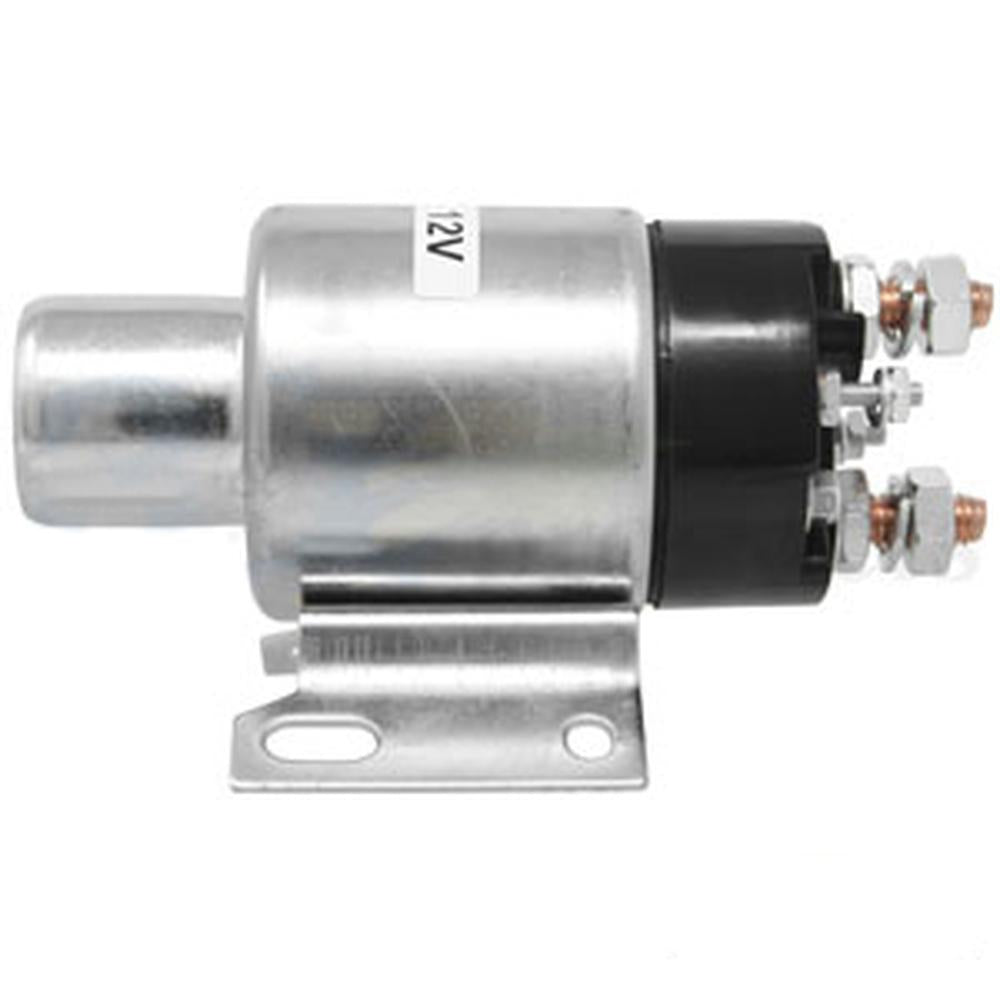

One New Aftermarket Replacement Starter Solenoid for Massey Ferguson Tractors and Combines

This 12-volt starter solenoid is a direct replacement for Massey Ferguson OEM part 1028587M1 (also listed as 1028587M91). It mounts on Delco 30MT and 35MT series direct-drive starters, acting as the electrical switch that routes battery current to the starter motor when the ignition is turned. Compatible with a wide range of Massey Ferguson tractors and combines, as well as select John Deere, International/Farmall, Allis Chalmers, Case, Minneapolis Moline, and White equipment equipped with Delco starters.

Specifications

  • Voltage: 12 Volt
  • Terminals: 4
  • Duty Cycle: Intermittent
  • Contact Material: Copper
  • Base: Grounded

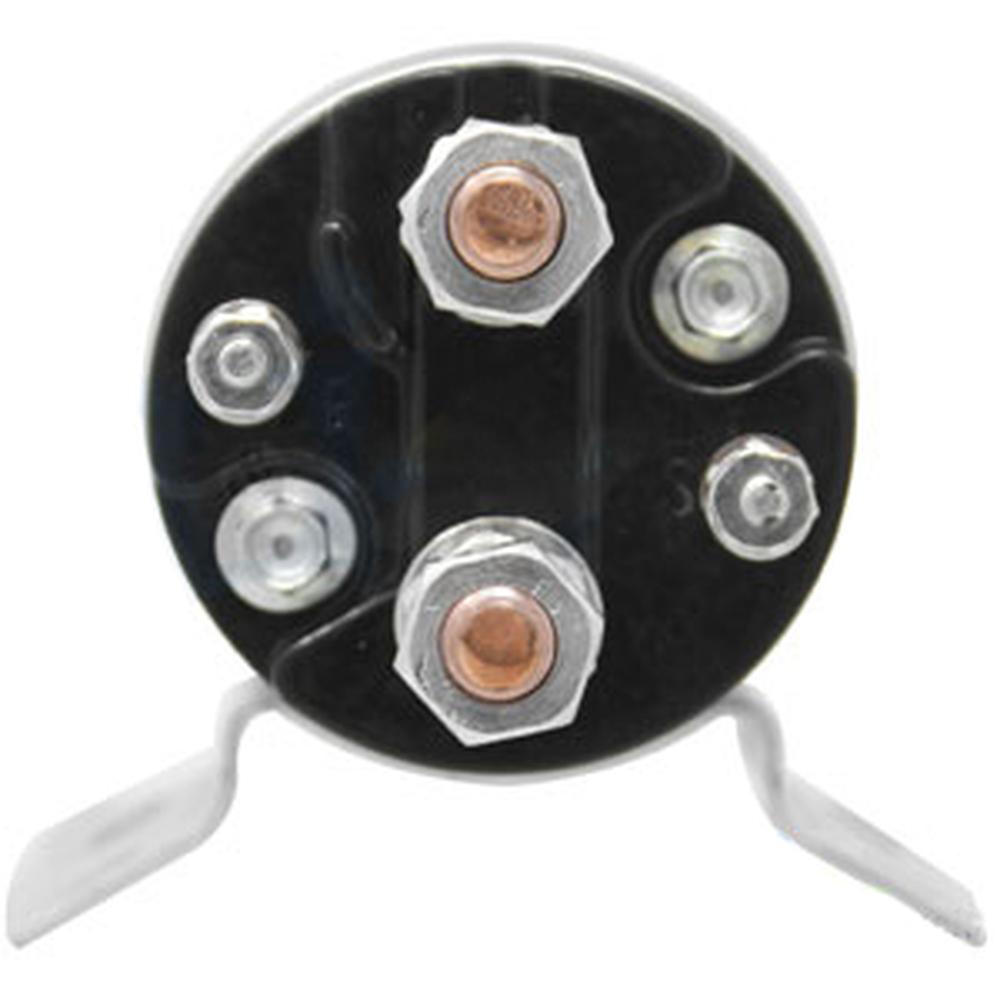

  • Battery Terminal: 3/8-16
  • Motor Terminal: 3/8-16
  • Switch Terminal: 8-32 (right-hand post)
  • Relay Terminal: 8-32 (left-hand post)
  • Compatible Starters: Delco 30MT, 35MT series; also used with Delco 1113126, 1113139, 1113676

Compatible Models

Massey Ferguson Tractors: 85, 88, Super 90 (Diesel), 275, 285, 1080, 1085, 1100, 1105, 1130, 1135, 2675, 2705

Massey Ferguson Combines: 410, 510, 540, 750, 760, 850, 860

John Deere Tractors: 820 (3-cyl), 830 (3-cyl), 1010, 1020, 1520, 1530, 2010, 2020, 2030, 2040, 2510, 2520, 2630, 3010, 3020 (Diesel SN: 123000 and up), 4000, 4010, 4020 (Diesel SN: 201000 and up), 4030, 4230, 4320, 4430, 4520, 4620, 4630, 7020, 8430, 8630 (using Delco starter 1113672 or 1113402)

John Deere Combines: 6600, 7700 (Diesel)

International/Farmall Tractors: 340, 350, 400, 404, 424, 444, 450, 454, 460, 464, 504, 544, 560, 574, 600, 606, 650, 656, 660, 666, 674, 684, 706, 756, 766, 806, 826, 856, 886, 966, 986, 1066 (to SN: 57251), 1086, 1206, 1256, 1456, 1466 (to SN: 29805), 1468, 1566 (to SN: 12872), 1568 (to SN: 7988), 2400, 2400A, 2400B, 2500A, Hydro 70, Hydro 86, Hydro 100, W400, 4166 (to SN: 12232)

Allis Chalmers Tractors: 160, 175, 179, 180, 185, 190, 190XT, 200, D17, 7000, 7010, 7020 (Diesel)

Allis Chalmers Combines: E3 - M2 (Gas)

Case Tractors: 400, 700, 730, 770, 780, 800, 830, 900, 930, 970 series

Case Combines: 800

Case Construction/Industrial: W7, 680CK

Gleaner Combines: G

Minneapolis Moline: M670 Super (Diesel with starter 1113654)

White: Applications using part 159711AS

Replaces Part Number(s):

1028587M1, 1028587M91, 1902935M91, 1902-935-M91, 1009784M91, 1017877M92, 159711AS, 159-711AS, 25A241, R11292, AR11049, AR11050, AT11593

Aftermarket Interchange Numbers

Delco: 1115510, 1115529, 1115537, 1115540, 1115582, D954, D959, D970, D971, D980, D985; Caterpillar: 3210507, 321507; Case OEM: A44817, A40461; Case Mfg: 1113634, 1113635, 1113646, 1113665, 323-734; IH: 585618C91, 65479C1, 65479C2, 104288A1R; Aftermarket: NDS-45, NSD-45, SD-45, SDR6003, 245-12058, 245-12121, 245-12152, 245-12154, 245-12175, 66-102

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

570, 560, Super 90, 7000, 1600, 7010, 544B, 1130, 740, 4030, 830, 180, 720, M670 Super, 8670, 8970, 420, 715, 570A, 2266, 966, 860, 503, 500B, 766, 1850, 8070, 1750, 8450, 4440, 5088, 8560, 770, D17, 826, 756, 500C, 2756, 2500, 674, 706, 1950T, 8440, 7060, 21456, 2264, 1456, 4166, 4000, 544A, 1566, 6030, Super 88, 5010, 8870, 1755, 915, 4020, 4230, 4630, M, 986, 644C, 1080, 464, 4640, 5020, 656, 4520, 7050, 5400, 7080, 1085, 550, 850, 7020, 6602, 1255, 3288, 8870A, 2-70, TV145, 1650, F, 230, 544G, 8010, 2-88, 2806, 970, 684, 615, 410, 2826, Starter Motor, 1355, 1800, 454, 544, 1135, 880, 660, 4320, 510, 664, W400, 4040, 190, 1100, 855, 1086, TV140, 4240, 650, 624G, 5488, 7700, 1555, 2-105, Hydro 100, 8050, 8030, 870, 4186, 2500B, 680CK, 2500A, 275, 95, M504, 620, 190XT, M604, 414, 690, 7040, 4620, 1655, Hydro 86, 11, 900, 1070, 686, 88, 285, L, Super 77, 5200, 806, 8670A, D282, 886, 4840, 7520, 1206, 21256, 2656, 6600, 8770A, 2-110, 1550, 3088, 630, 4430, 540, 1468, 1955, 666, 3500A, 1568, 600, 8430, 1066, 150, 2675, 3020, 8770, 856, 815, 7045, 616, Hydro 70, 622, 544E, 200, 105, 3688, 644A, 690B, 403, 70, 50C, 245, 730, 1466, 2705, M670, 2544, 1855, 1950, 190XTIII, 8970A, 644, 185, 6388, 2-85, 700, 800, 7030, 85, 865, 295, 1105, 8570, 2064, 135, 5288, 2200, 2066, D236, 930, 690A, 1256, 450, 6588, 2706, 574, 685, 760, 1090, G, 750, 2400, 2856

Additional Information:

12 Volt 4 Terminal Grounded Base For Gas and Diesel Applications

Reference Numbers:

R11292, NDS-45, NSD-45, SD-45, 6601-3010, 159711AS, 70243828, 1115510, A44817, 65479C1, 1028587M1,1028587M91,1902935M91
