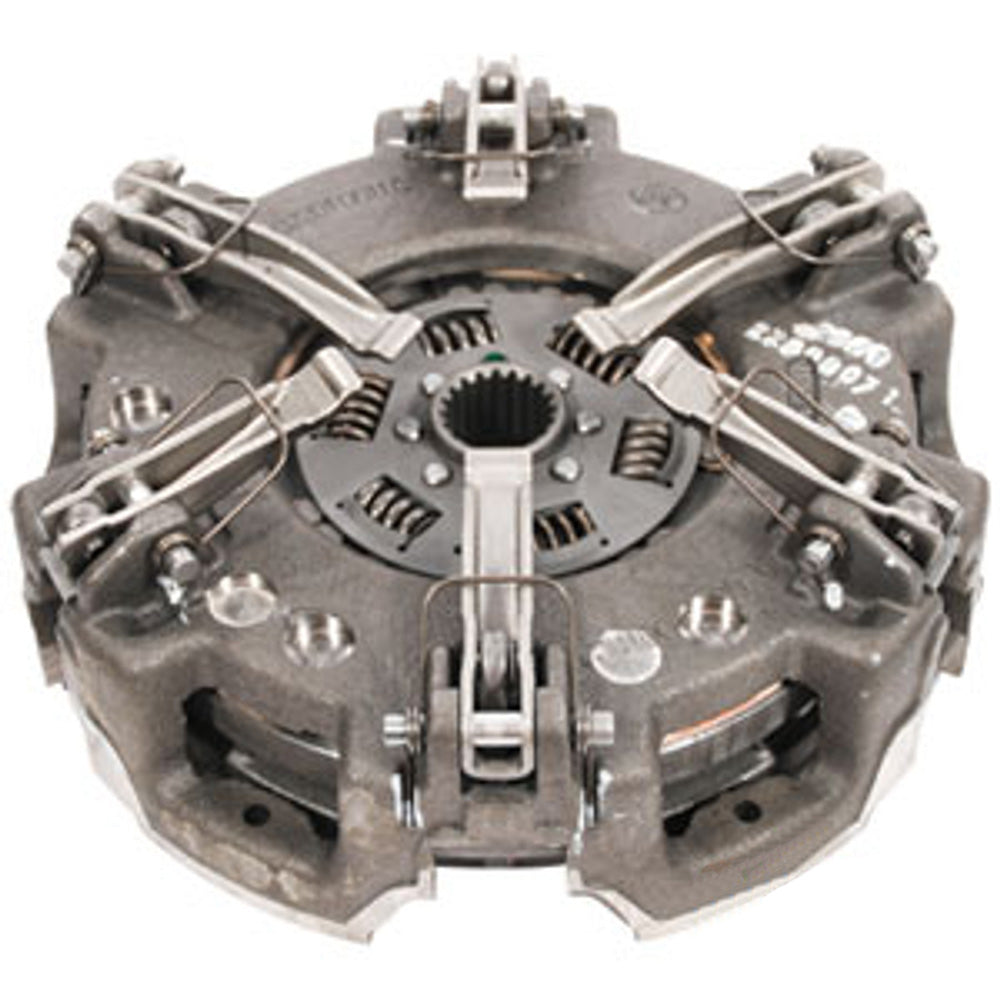

A-04392376-AI Pressure Plate: double, cast iron, independent PTO, 6 lever

One New Aftermarket Replacement Pressure Plate for Deutz and Deutz-Allis Tractors

This double clutch pressure plate is a direct aftermarket replacement for the independent PTO (IPTO) stage of the dual-stage clutch assembly on Deutz (Deutz-Allis) tractors. The cast iron construction features 6 levers and Belleville springs for consistent clamping force and long service life. Designed for tractors equipped with independent PTO, this pressure plate fits the dual-clutch configuration where the PTO and transmission clutches operate independently.

Specifications

• Type: Double (Dual Stage), Cast Iron
• Diameter: 11 in.
• Levers: 6
• Spring Type: Belleville
• Hub Spline: 20 spline, 1-9/16 in.
• PTO Type: Independent

Compatible Models

Deutz Tractors: D4507, D4807, D5006, D5206, D5207, D5506, D6007, D6206, D6207, D6240, D6250, D6260, D6275, D6507, DX3.10, DX3.10A, DX3.10SC, DX3.10V, DX3.10VA, DX3.30, DX3.30A, DX3.30FA, DX3.30VA, DX3.50, DX3.50A, DX3.50S, DX3.50SA, DX3.50VA, DX3.57, DX3.60, DX3.60A, DX3.60SC, DX3.60VC, DX3.65, DX3.70, DX3.90, DX4.07, DX4.17

Deutz-Allis Tractors: 6240, 6250, 6260

Same Tractors: 60 (All Rock), 70 (All Rock), 85 (All Frutetto)

Replaces Part Number(s):

04392376, A-04392376-AI, 4392376, 4392376V, 4350867, A-4350867

Aftermarket Interchange Numbers

LuK 228000712, LuK 228000715

New aftermarket replacement part - not remanufactured, not used.
