A-02474-P-AI Cone, Tapered Roller Bearing
A-02474-P-AI Cone, Tapered Roller Bearing
Regular price
$204.00 CAD
Regular price
Sale price
$204.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

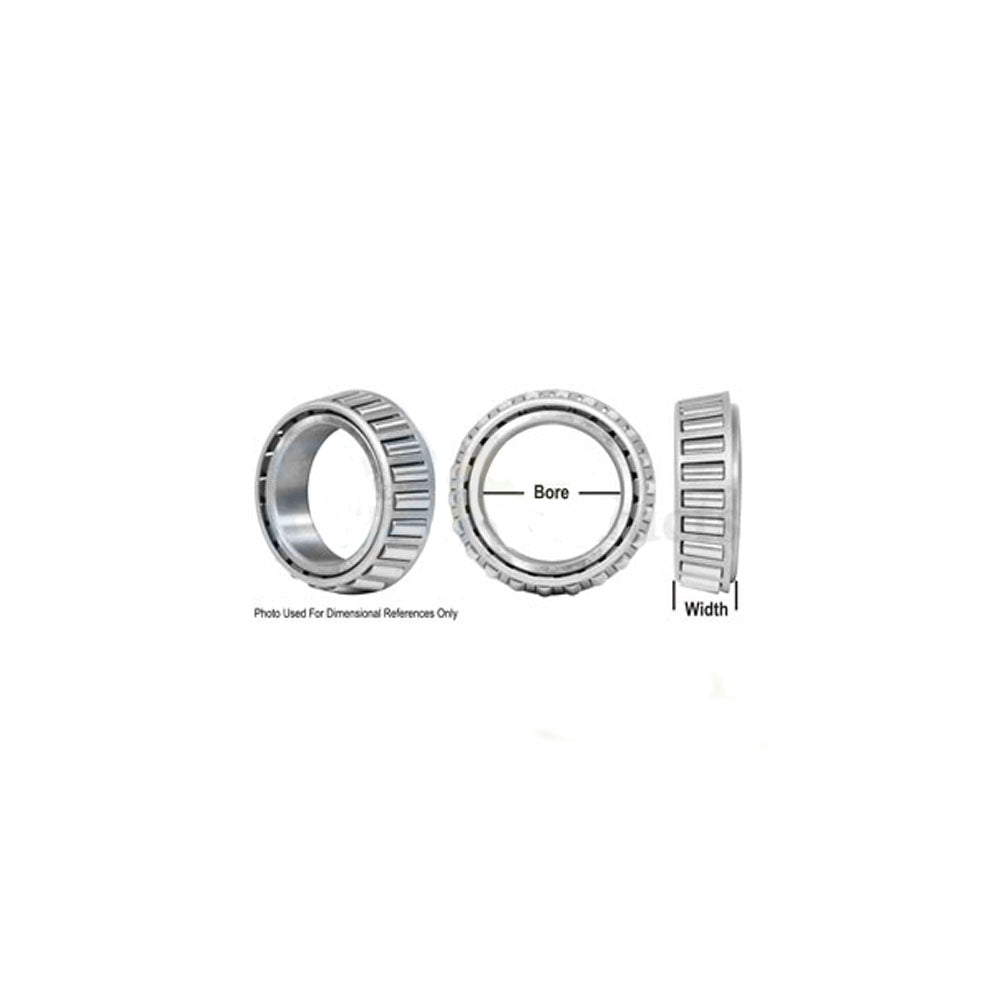

One New Aftermarket Replacement Cone, Tapered Roller Bearing - 02474 Series
This single-cone tapered roller bearing (inner ring assembly) is a standard imperial-series replacement used across agricultural equipment, construction machinery, automotive axle systems, gear reducers, and general industrial applications. The cone is designed to be paired with a compatible cup (outer ring) and is typically mounted in opposing pairs on a shaft to distribute both radial and axial loads. The open design allows for in-service lubrication and adjustment.
Specifications
- Bore (Inside Diameter): 1.125 in (1-1/8 in) | 28.575 mm
- Cone Width: 0.875 in (7/8 in) | 22.225 mm
- Outer Diameter (assembled with cup 02420): 2.6875 in | 68.263 mm
- Corner Radius: 0.03 in
- Series: 02400
- Cage Material: Steel
- Finish: Uncoated
- Compatible Cup: 02420
- Assembled Set: SET362 (cone 02474 + cup 02420)
Replaces Part Number(s):
A-02474-P, A-02474-P-AI, 02474
Aftermarket Interchange Numbers
Timken 02474, NTN 02474, Koyo 02474, SET362
New aftermarket replacement part - not remanufactured, not used.
