938294R91 Oil Seal Fits IH H HV M MD 544 656 666 600 650 Super H Hydro 86 35451D

938294R91 Oil Seal Fits IH H HV M MD 544 656 666 600 650 Super H Hydro 86 35451D

$23.00 CAD
$23.00 CAD
Sale Sold out
Shipping calculated at checkout.

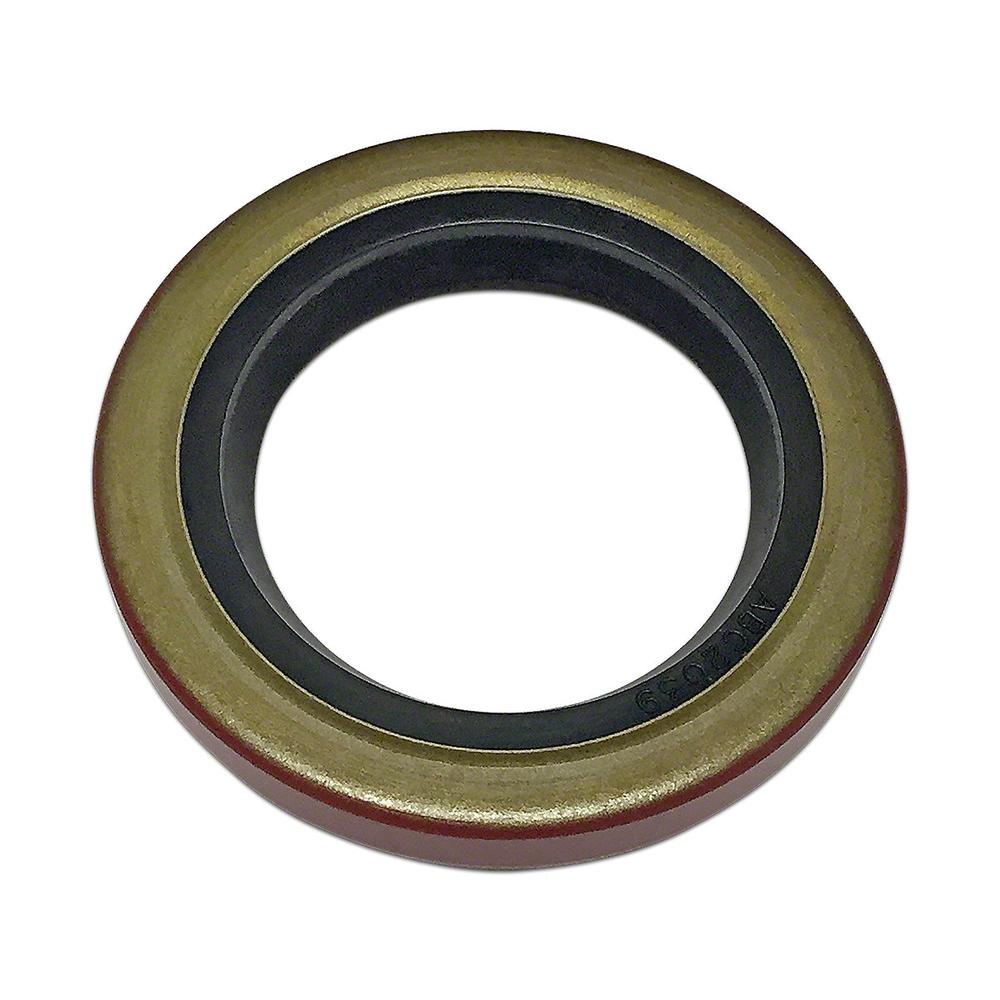

One New Aftermarket Replacement Oil Seal


Fits International Harvester Tractor Models:
H, HV, Super H, Super HV, I9, ID9, M, MD, Super M, Super MD, Super MDV, MDV, MV, Super MV, Super W9, W9, Super WD9, Super WDR9, WD9, WDR9, WR9, WR9S, Hydro 70, Hydro 86, 544, 600, 650, 656, 666

Tech Info:
Inner Diameter: 1.375"
Outer Diameter: 2.130"
Width: 0.437"

Fitment Notes:
H (Countershaft Driven Hydraulic Pump Seal),
HV (Countershaft Driven Hydraulic Pump Seal),
Super H (To SN: 19233, Countershaft Driven Hydraulic Pump Seal),
Super HV (To SN: 19233, Countershaft Driven Hydraulic Pump Seal),
I9 (Brake Pedal Shaft Seal, 2 Used Per Tractor),
ID9 (Brake Pedal Shaft Seal, 2 Used Per Tractor),
M (Countershaft Driven Hydraulic Pump Seal),
MD (Countershaft Driven Hydraulic Pump Seal),
Super M (Early, Countershaft Driven Hydraulic Pump Seal),
Super MD (Early, Countershaft Driven Hydraulic Pump Seal),
Super MDV (Early, Countershaft Driven Hydraulic Pump Seal),
MDV (Countershaft Driven Hydraulic Pump Seal),
MV (Countershaft Driven Hydraulic Pump Seal),
Super MV (Early, Countershaft Driven Hydraulic Pump Seal),
Super W9 (Brake Pedal Shaft Seal, 2 Used Per Tractor),
W9 (Brake Pedal Shaft Seal, 2 Used Per Tractor),
Super WD9 (Brake Pedal Shaft Seal, 2 Used Per Tractor),
Super WDR9 (Brake Pedal Shaft Seal, 2 Used Per Tractor),
WD9 (Brake Pedal Shaft Seal, 2 Used Per Tractor),
WDR9 (Brake Pedal Shaft Seal, 2 Used Per Tractor),
WR9 (Brake Pedal Shaft Seal, 2 Used Per Tractor),
WR9S (Brake Pedal Shaft Seal, 2 Used Per Tractor),
Hydro 70 (Hydro Charge Pump Seal),
Hydro 86 (Hydro Charge Pump Seal),
544 (Hydro Charge Pump Seal),
600 (Brake Pedal Shaft Seal, 2 Used Per Tractor),
650 (Brake Pedal Shaft Seal, 2 Used Per Tractor),
656 (Hydro Charge Pump Seal),
666 (Hydro Charge Pump Seal)

Replaces Part Numbers:
35451D, 357970R91, 357976R91, 380184R91, 43509D, 43509DA, 527829R91, 60454D, 659124R91, 70241D, 938294R91, 938294R92, M86688

Models This Part Fits:

Super H, 1440, 4W305, MI, Hydro 70, 7060, 190XT, 2450, C, 820, MDV, H3, Super WDR9, 5420, 2650, 2035, D15, 4W220, 2120, MC, 435, 820 3 cylinder, 942, 8010, 2544, 2630, Braking Systems, 7700, I40, 830 3 cylinder, 600, 2135, 40, I600, 1130, 1840, 1140, 9910, 7045, 175, 1530, W9, 4400, 1630, D19, 1470, 190, 7580, 970, 1600, 3140, 1480, 925, 1830, 1020, Super MV, IB, 666, G550, 180, I9, 2020, 1641, 7000, 7080, 2030, 3150, 440, 650, 1950, WD9, 2140, 1144, 1750, 830, 1010, Hydro 86, 935, 1850, 1030, MV, D17, Super W9, 1635, 2250, 945, 1120, 2240, B, Super MDV, 1133, 420, M, 503, 2040S, 1032, 1520, WR9, 430, 4420, 8030, 1555, 4-78, 2656, 930, Super HV, 170, WDR9, 315, 615, MT, 1052, Lift Shaft Housings, Wheel Hubs, Super M, 656, 544, 2040, 715, 303, D10, 1640, 320, 330, 185, MD, ID9, 920, 2-78, 3350, Power Take-Off Systems, Super MD, CA, 8050, 5440, 190XTIII, 8070, H, 2130, 200, I400, 932, 1550, 3050, Super WD9, 2640, WR9S, 940, D12, D14, 1042, 2440, HV, 403, I4, 1460, 3040, I60, 2850, 952

Additional Information:

Bore: 2.125" Outside Diameter: 2.129" Shaft Size: 1.375" Type: CRWH1 Width: .437"

Reference Numbers:

0511073, 224810, 230608, 241779, 340214, 511073, 70224810, 70230608, 70241779, 70230608, 511073, 230608, 70224810, 340214, 241779, 70241779, 0511073, 224810, A36711, F36775, F7618, F9743, K15177, N7291, T26573, 257970R91, 567829R1, 567829R91, 659107R91, 35451D, 357970R91, 357976R91, 380184R91, 43509D, 43509DA, 527829R91, 60454D, 659124R91, 70241D, 938294R91, 938294R92, M86688, 1K1590, K1590, AH14076, AL2094T, AL56820, AM253T, AN30648, AN32717, AP24021, N71730N, T22069, CR13649, 450135, 43509DA, 35451D, 357970R91, 527829R91, M86688, 380184R91, 60454D, 938294R91, 938294R92, 357976R91, 70241D, 43509D, 659124R91, T22069, AM253T, AP24021, AL56820, AH14076, AL2094T, N71730N, AN30648, AN32717, 35451D, 357970R91, 357976R91, 380184R91, 43509D, 43509DA, 527829R91, 60454D, 659124R91, 70241D, 938294R91, 938294R92, M86688

Product Sub Group:

Bearings, Bushings, Seals
