Muffler Assembly Clamp Exhaust Manifold Gaskets Fits Ford Tractor 2N 8N 9N

$283.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Muffler Assembly Kit

Fits Ford/New Holland Models: 2N, 8N, 9N

Replaces Part Number: 8N5230, CAPN5200A, 9N9425, 9N9447, 9N9448

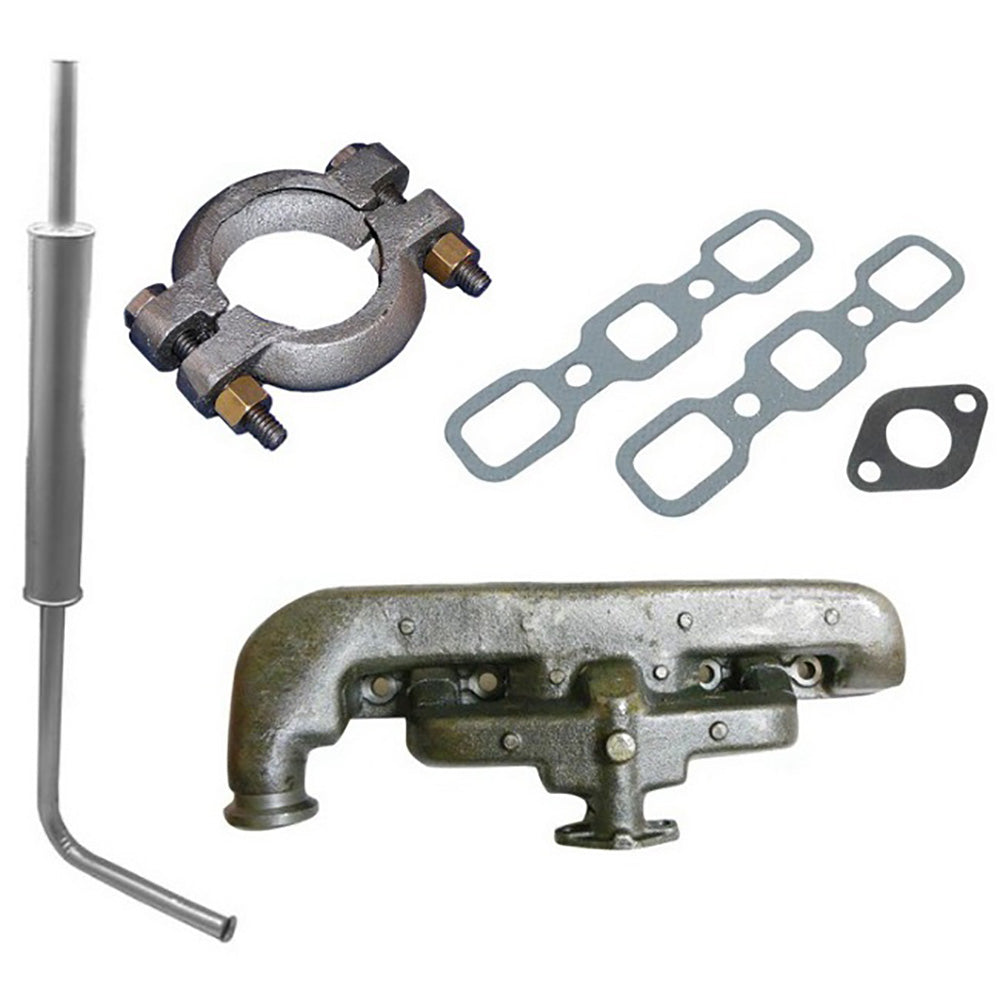

Kit Contains:
(1) Muffler & Pipe Assembly
(1) Muffler Clamp Kit
(1) Manifold
(1) Carburetor to Manifold Gasket
(2) Manifold Gasket

Muffler & Pipe Assembly - Tech Info:
Welded One Piece Muffler & Pipe Assembly with Flared Pipe Inlet.
Replaces Part Numbers: 8N5230, A-8N5230, ECON5230AADS, FO-3.

Muffler Clamp Kit - Tech Info:
Comes With: Clamps, Nuts, Bolts, and Lock Washers.
Fits Models: 2N (1939-1952), FO-300, Fits Ford 2N 8N 9N, Fits Massey TO20 TO30, T20, TE20, TO20, TO20 TO30, TO30
Replaces Part Numbers: 1117-8100, 181461M1, 181461m1

Models This Part Fits:

8N, 2N, TO30, 9N, TE20, TO20

Additional Information:

(1) Muffler & Pipe Assembly Body Style One piece welded assembly Clamp Not Included Inlet: 1 3/8" Length: 53" Material: Aluminum Outlet: 2" Type Horizontal Replaces Part Numbers: 8N5230, ECON5230AADS (1) Muffler Clamp Kit Comes with Clamps, Nuts, Bolts, and Lock Washers Inner Diameter: 1 3/8" Replaces Part Numbers: CAPN5200A (1) Manifold The center to center bolt holes are 2 1/2" on the flange The Inner Diameter on the flange is 1" The exhaust is 1 3/16" Inner Diameter and 2 1/16" Outer Diameter Overall length is 17" Approximately Replaces Part Numbers: 9N9425WG (1) Carburetor to Manifold Gasket 2-7/8" x 1-34" 2-1/4" Center to Center Replaces Part Numbers: 15162A, 1506634M1, 181531M2 (2) Manifold Gaskets Replace Part Number: 9N-9448
