8N3105 Steering Spindle Kit Fits Ford Tractor 8N NAA JUBILEE 8N3106B

Name: 8N3105 Steering Spindle Kit Fits Ford Tractor 8N NAA JUBILEE 8N3106B
SKU: 8N3105-KIT-IRT
Price: 369.0 USD
Availability: InStock

8N3105 Steering Spindle Kit Fits Ford Tractor 8N NAA JUBILEE 8N3106B

$369.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

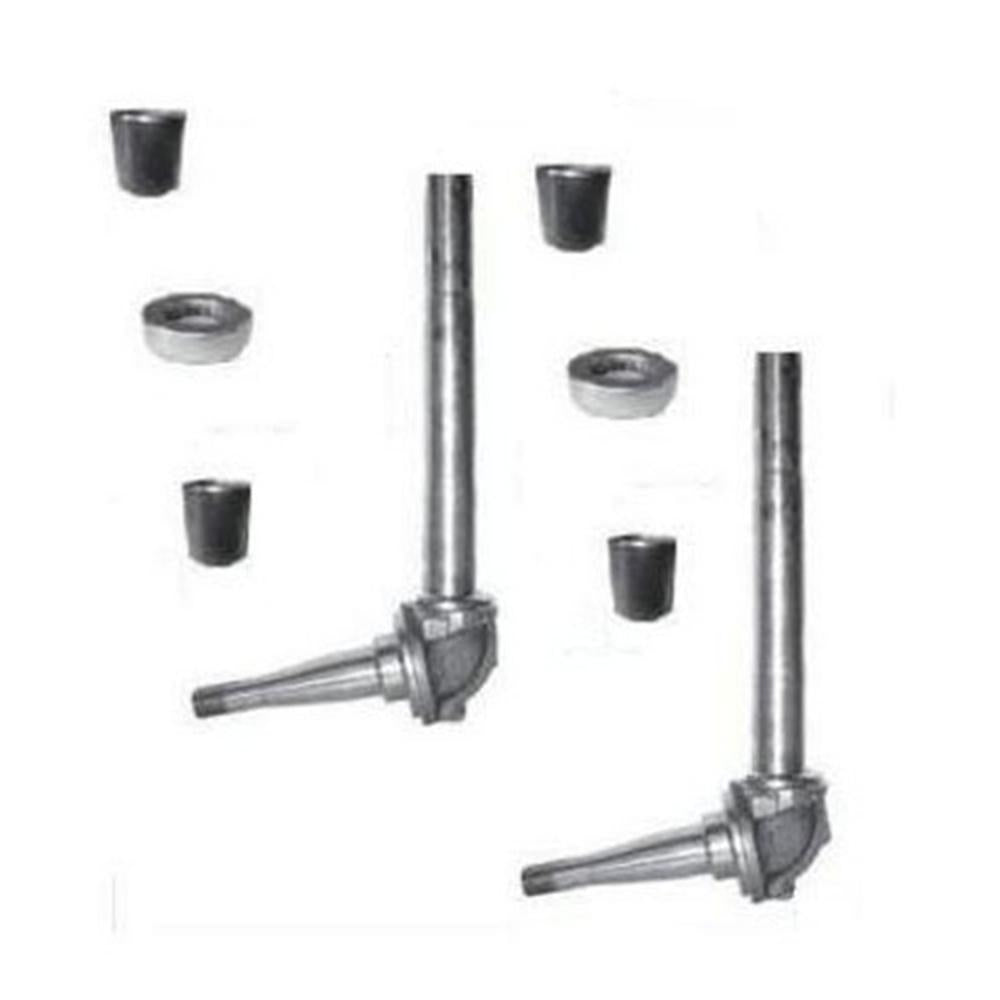

One Brand New Aftermarket Replacement Steering Spindle Kit

Fits Various Makes & Models:

Right Hand /Left Hand Spindle: Fits Ford/New Holland: 8N, Jubilee, NAA

Bushing: 8N, 900, 9N, Dexta, NAA/Jubilee, Super Dexta

Thrust Bearing: 8N, 9N, Dexta, Super Dexta

Tech Info:
Right Hand / Left Hand Spindle:
1 1/4" diameter, 10 1/4" length, 5 1/4" stub shaft length w/ .75" outer and 1.185"inner race surface, 1/4" x 3./4" keyway. RH side.

Bushing:
1.370" O.D.
1.250" I.D.
1.500" Long

Thrust Bearing:
ID is 1.345",
OD is 2.2",

Models This Part Fits:

2310, 4600, 601, 2000, 801, 4000, 901, 2810, 4000SU, 2610, 700, 600, NAA, 2910, 701, 4610, 3610, 9N, 8N, 4600SU, 900, 2N, 2600, 800, 3910, 3600

Additional Information:

(1) Right Hand Spindle: Right side as sitting in the tractor seat 10.750" machined upright shaft 1.250" shaft outside diameter 1.187" inner bearing diameter 0.750" outer bearing diameter Machined for 1/4" x 7/8" key Replaces Part Numbers: F3NN3105AA, 8N3105 (1) Left Hand Spindle: Keyed Side Axle Length 5 1/4" Diameter 1 1/4" ID 1 3/16" OD 3/4" Shaft Length 10 11/16" Type Left Hand Replaces Part Numbers: F3NN3106AA (4) Front Spindle Bushing: 4 used per tractor, 1.255" inside diameter, 1.378" outside diameter, 1.498" long, Must be honed or reamed to size when installed Replaces Part Numbers: 2N2109, 2N3109, 81717387, 81802940 (2) Thrust Bearing: Bearing Type Spindle Bearing Grease Greaseable ID 1.350" ID Type Round OD 2.200" Sourced Import Width Overall 0.620" Replaces Part Number: 957E3123A

Reference Numbers:

8N3105B, F3NN3105AA, 8N3105, 83980355, 8N3106, 8N3106B, F3NN3106AA, 2N3109, 81802940, 957E3109B, C5NN3446A, C0NN3123B, 81859284, 83910196, 957E3123A, 957E3123A
