8N3105 8N3106B Steering Spindle Kit Fits Ford Tractor 8N NAA JUBILEE

Name: 8N3105 8N3106B Steering Spindle Kit Fits Ford Tractor 8N NAA JUBILEE
SKU: 8N3105-KIT
Price: 373.0 USD
Availability: InStock

8N3105 8N3106B Steering Spindle Kit Fits Ford Tractor 8N NAA JUBILEE

$373.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

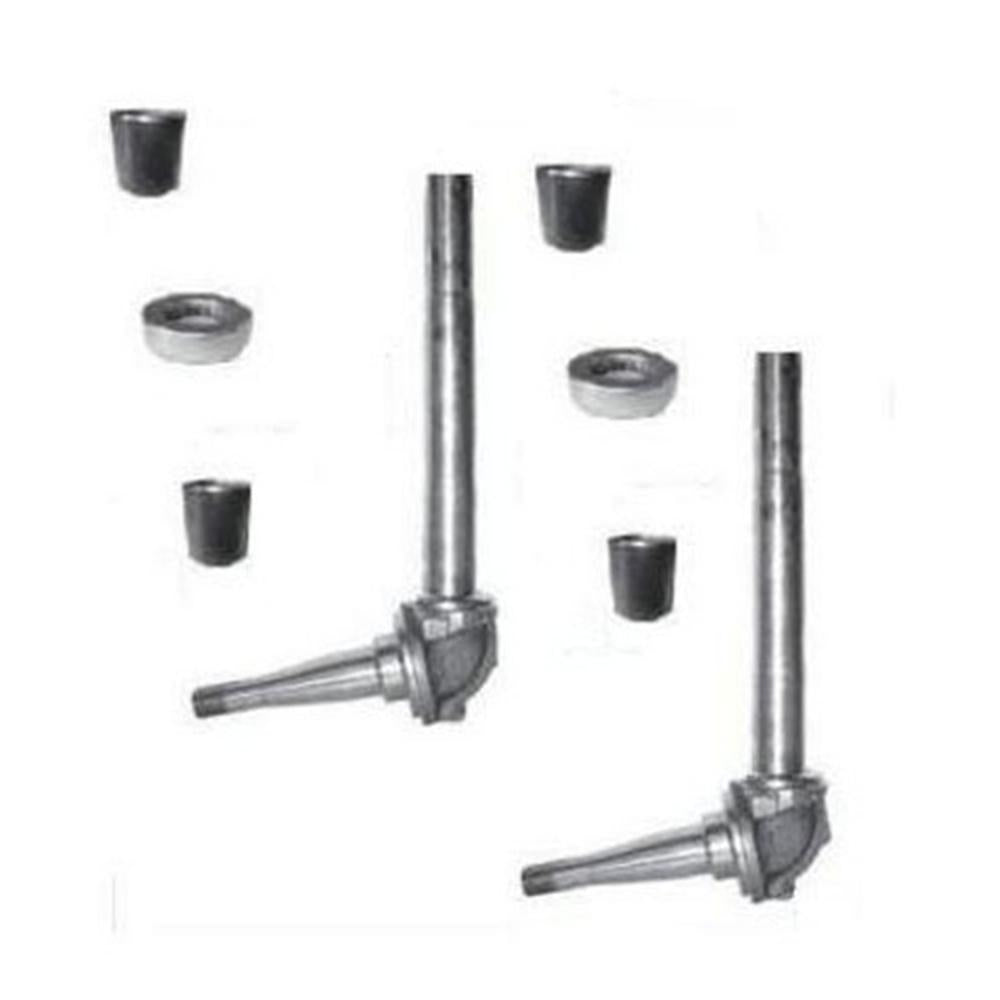

One New Aftermarket Replacement Steering Spindle Kit

Fits Ford Tractor models: NAA, Jubilee, 8N

Kit contains the following:
.
(1) 8N3105 R/H Spindle
(1) 8N3106B L/H Spindle
(4) 2N3109 Upper & Lower Spindle Bushings
(2) C0NN3123B, Spindle Thrust Bearings

Models This Part Fits:

NAA, 4600SU, 2910, 2000, 8N, 601, 900, 2610, 801, 2310, 700, 800, 901, 9N, 4000, 4000SU, 701, 600, 3600, 2N, 3610, 2810, 4600, 2600, 4610, 3910

Additional Information:

(1) Right Hand Spindle: Right side as sitting in the tractor seat 10.750" machined upright shaft 1.250" shaft outside diameter 1.187" inner bearing diameter 0.750" outer bearing diameter Machined for 1/4" x 7/8" key Replaces Part Numbers: F3NN3105AA, 8N3105 (1) Left Hand Spindle: Keyed Side Axle Length 5 1/4" Diameter 1 1/4" ID 1 3/16" OD 3/4" Shaft Length 10 11/16" Type Left Hand Replaces Part Numbers: F3NN3106AA (4) Front Spindle Bushing: 4 used per tractor, 1.255" inside diameter, 1.378" outside diameter, 1.498" long, Must be honed or reamed to size when installed Replaces Part Numbers: 2N2109, 2N3109, 81717387, 81802940 (2) Thrust Bearing: Bearing Type Spindle Bearing Grease Greaseable ID 1.350" ID Type Round OD 2.200" Sourced Import Width Overall 0.620" Replaces Part Number: 957E3123A

Reference Numbers:

957E3123A, 8N3105B, F3NN3105AA, 8N3105, 83980355, 8N3106, 8N3106B, F3NN3106AA, 2N3109, 81802940, 957E3109B, C5NN3446A, C0NN3123B, 81859284, 83910196, 957E3123A
