Spindle (Rh) Fits Massey Ferguson 165 U.K.; 20D; 20E; 240; 250;

Spindle (Rh) Fits Massey Ferguson 165 U.K.; 20D; 20E; 240; 250;

$71.00 CAD
$71.00 CAD
Sale Sold out
Shipping calculated at checkout.

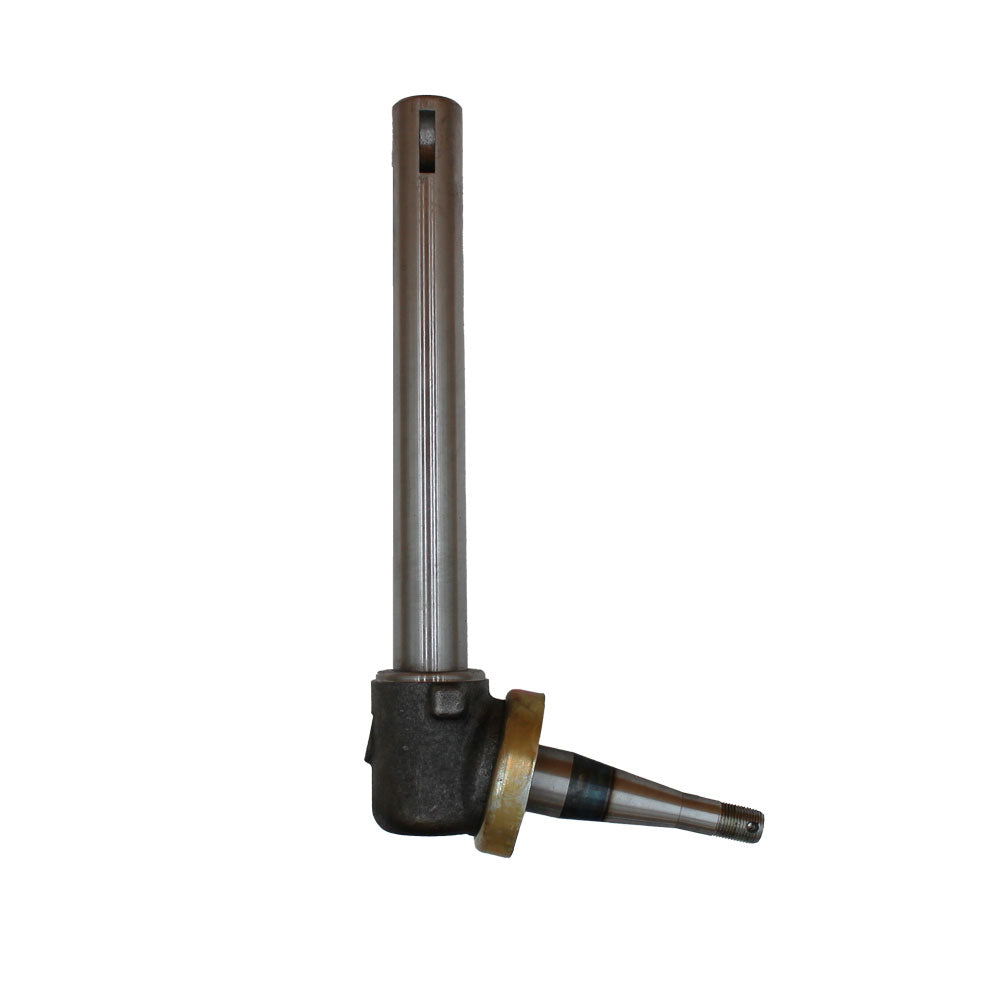

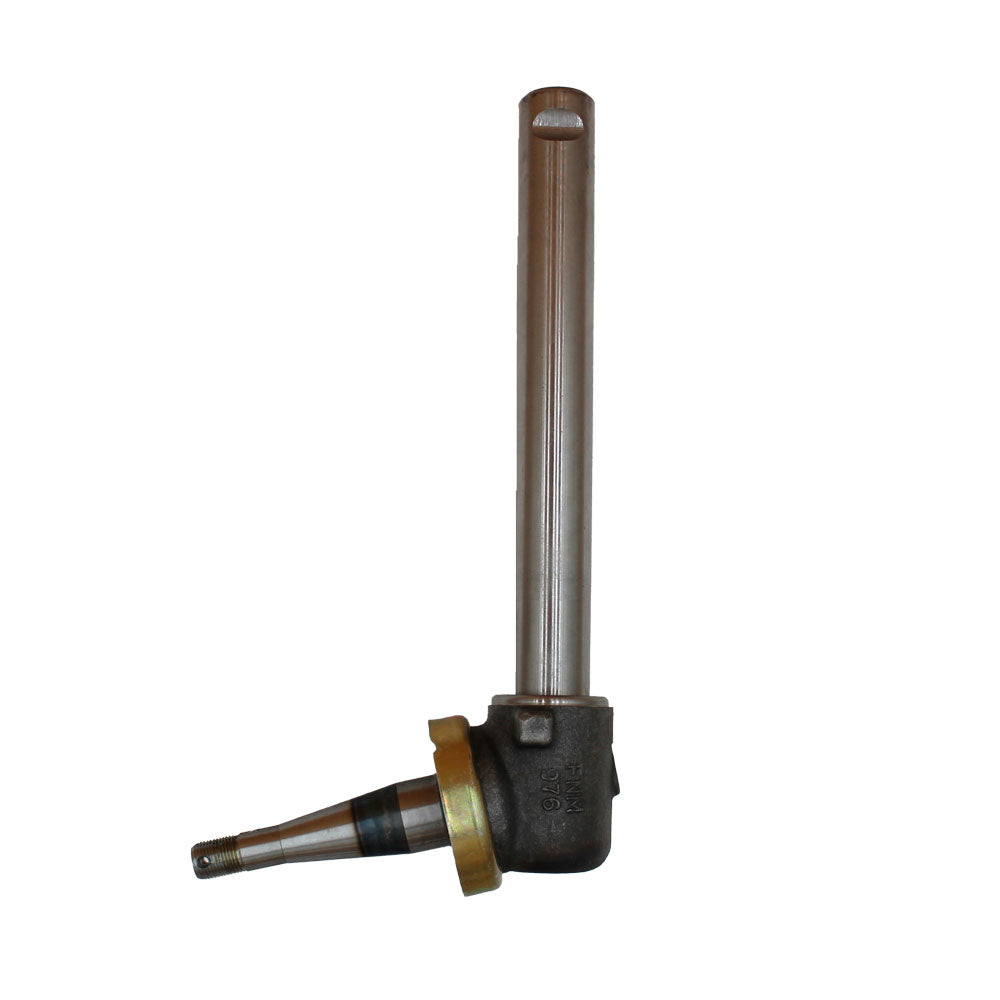

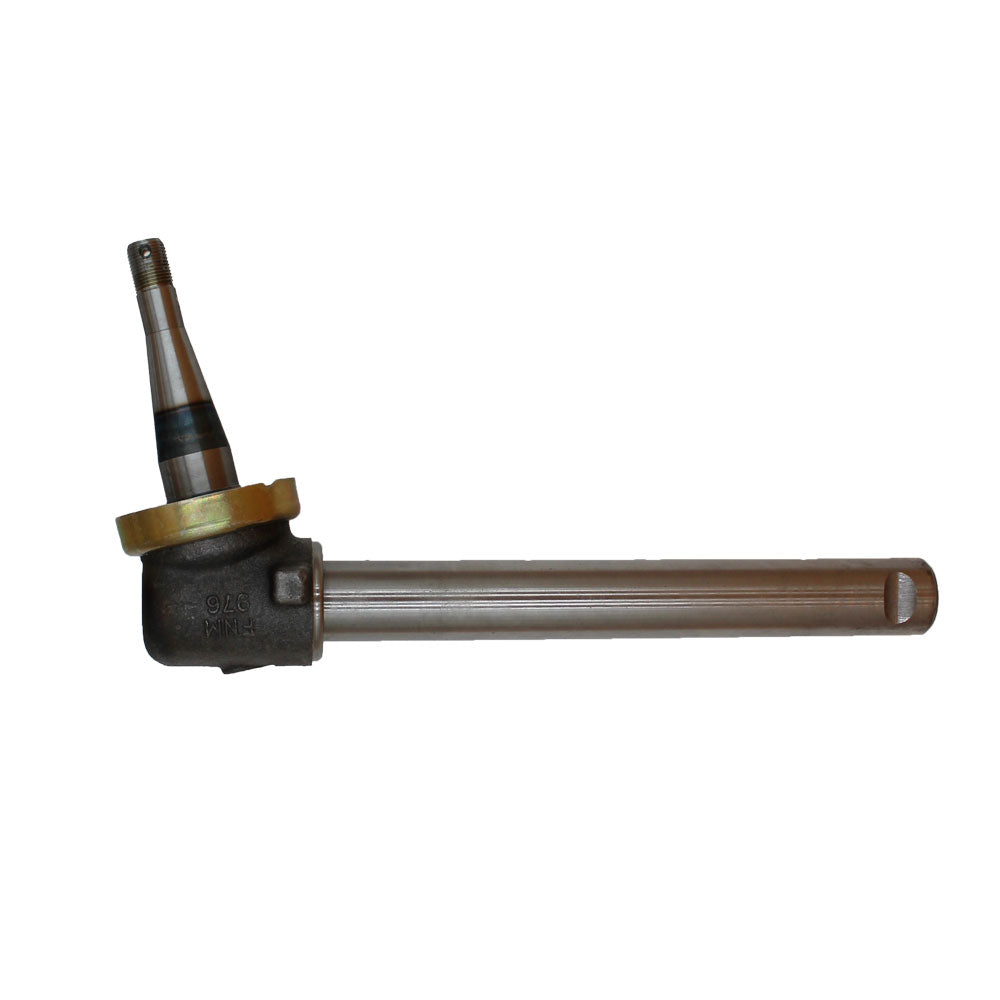

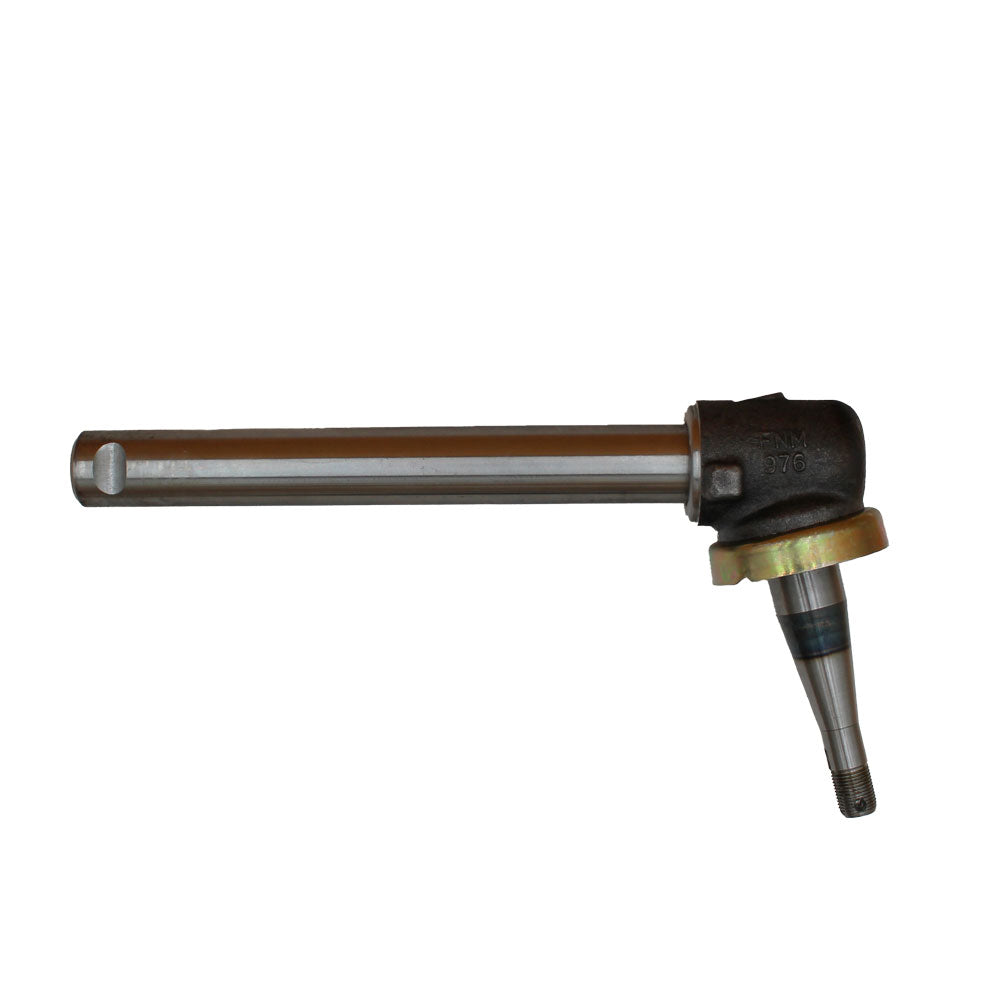

One New Aftermarket Replacement Right Hand Front Spindle Fits Massey Ferguson Tractors

This right hand (RH) front axle spindle is a direct replacement for the 2WD front axle assembly on Fits Massey Ferguson tractors and industrial machines. The spindle mounts in the front axle kingpin bore and carries the front wheel hub, providing the steering pivot point for the right-hand front wheel. Compatible with both agricultural tractors and industrial/construction variants.

Specifications

  • Side: Right Hand (RH)
  • Application: Front Axle Spindle
  • Shaft Length: 11.61 in (295 mm)
  • Shaft Diameter: 1-1/2 in (38 mm)
  • Thread: 3/4 in UNF
  • Duty: Standard / Normal Duty
  • Fitting: Keyway

Compatible Models

Fits Massey Ferguson Agricultural Tractors: 165, 165 UK, 168, 230, 240, 243, 250, 253, 263, 265, 275, 340, 342, 350, 550, 550 UK, 560, 565

Fits Massey Ferguson Industrial / Construction: 20D, 20E, 20F

Replaces Part Number(s):

897230M94, 897096M95, 897230V94, VPJ1011, VPJ1061, 897230M92, 1694233M91, 897230M91

Aftermarket Interchange Numbers

AM897230M94 (Abilene Machine), A-897230M94, S.15995, A48540, 1694233V91

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

20D, 550 UK, 265, 165 UK, 250, 240, 165, 20F, 565, 20E, 275

Additional Information:

Front Spindle Right Hand 11.61" Shaft Length 3/4" UNF

Reference Numbers:

897230M92, 1694233M91, 897230M91, 897230M94, 897096M95, 897230V94, VPJ1011, VPJ1061
