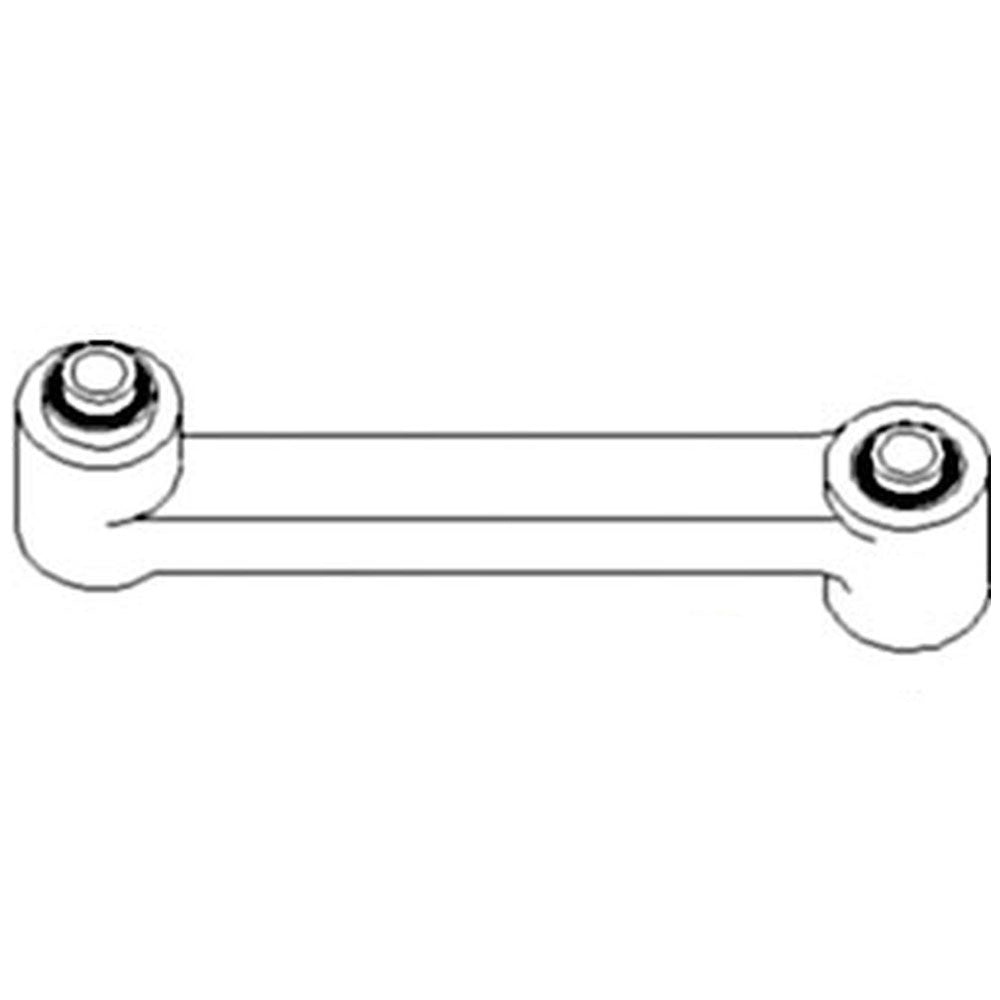

87671724 Arm Assy, Rear Chaffer Hanger
87671724 Arm Assy, Rear Chaffer Hanger
Regular price
$219.00 CAD
Regular price
Sale price
$219.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Replacement Rear Chaffer Hanger Arm Assembly Fits Case IH Combines
This rear chaffer hanger arm assembly is a key component of the combine's cleaning shoe separator system. It supports and suspends the rear of the chaffer from the combine frame, allowing the chaffer to oscillate and separate grain from material other than grain (MOG) during harvest. A worn or damaged hanger arm can cause chaffer misalignment, uneven sieve motion, and increased grain loss -- making timely replacement essential for clean samples and maximum throughput.
Compatible Models
Fits Case IH Combines: 1644, 1660, 1666, 1670, 1680, 1682, 1688, 2144, 2166, 2188, 2344, 2366, 2377, 2388, 2577, 2588, 7088
Replaces Part Number(s):
87671724, A-87671724, 1957451C1, 1957455C1
New aftermarket replacement part - not remanufactured, not used.
