87299946 Kit, Bushing; Sieve, Heavy Duty
87299946 Kit, Bushing; Sieve, Heavy Duty
Couldn't load pickup availability
One New Aftermarket Replacement Heavy Duty Sieve Bushing Kit Fits Case IH (Fits Case-IH) Combines
This heavy duty sieve and chaffer frame bushing kit is designed for the cleaning shoe system on Fits Case IH combines. It reduces vibration, extends sieve and chaffer frame life, and replaces worn mounting bushings on the shaker shaft, chaffer drive arm, sieve drive hanger, and rubber isolation points throughout the assembly.

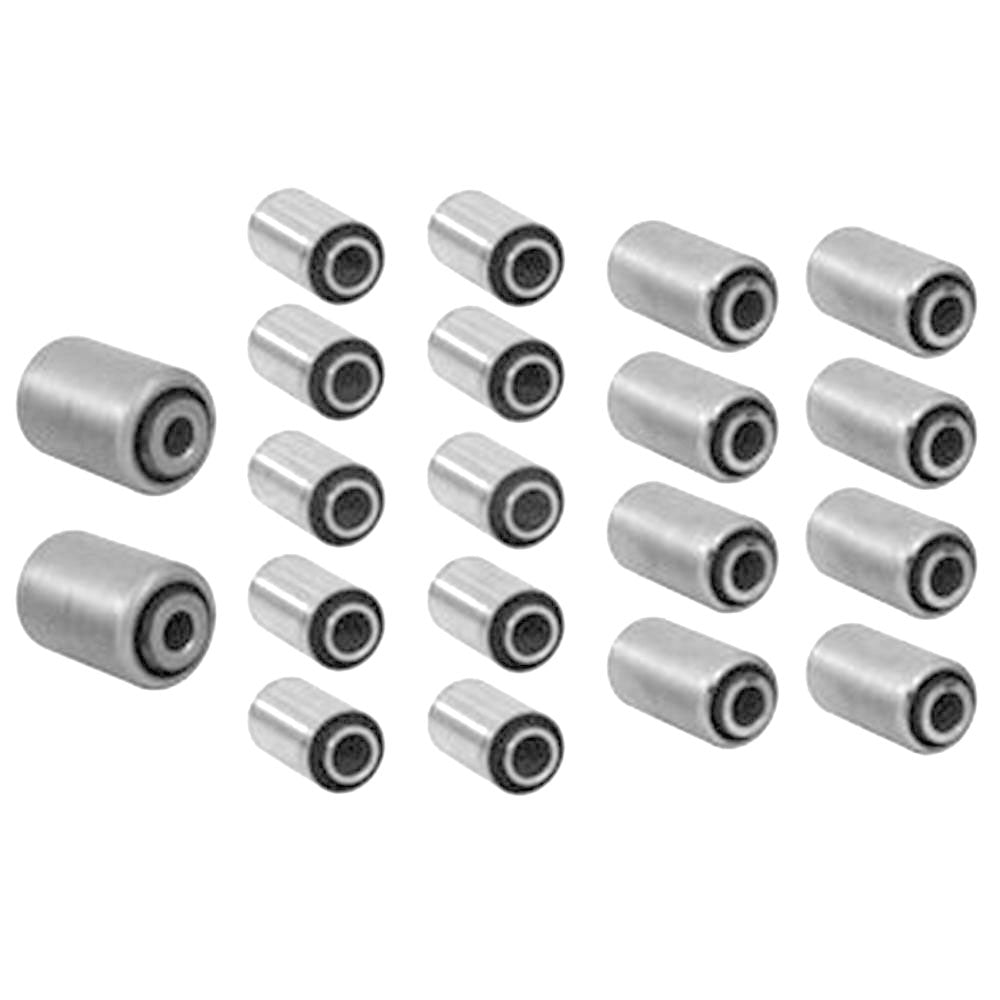

Kit Contents
- 2 - Shaker Shaft / Chaffer Drive Arm Bushings
- 8 - Sieve / Drive Hanger Bushings
- 10 - Rubber Bushings
- 20 bushings total
Compatible Models
Fits Case IH Combines: 1640 (SN JJC0035370 and above), 1644, 1660, 1666 (SN JJC0038346 and above), 1670 (SN JJC0080540 and above), 1680 (SN JJC0047878 and above), 1682, 1688, 2144, 2166, 2188, 2344, 2366, 2377 (SN HAJ0292001 and above), 2388 (SN below JJC0276540 and SN HAJ0292001 and above), 2577, 2588, 5088, 6088, 7088
Replaces Part Number(s):
87299946, 87299947, 87299948, 87299949, B94555, B94707, A-87299946, A-87299946-AI
Aftermarket Interchange Numbers
AM87299946 (Abilene Machine), 801601 (Sloan), 16829 (ASI); Kit component cross-references: 87376924 (x2), 1330323C1 (x8), 87538600 (x10)
New aftermarket replacement part - not remanufactured, not used.
