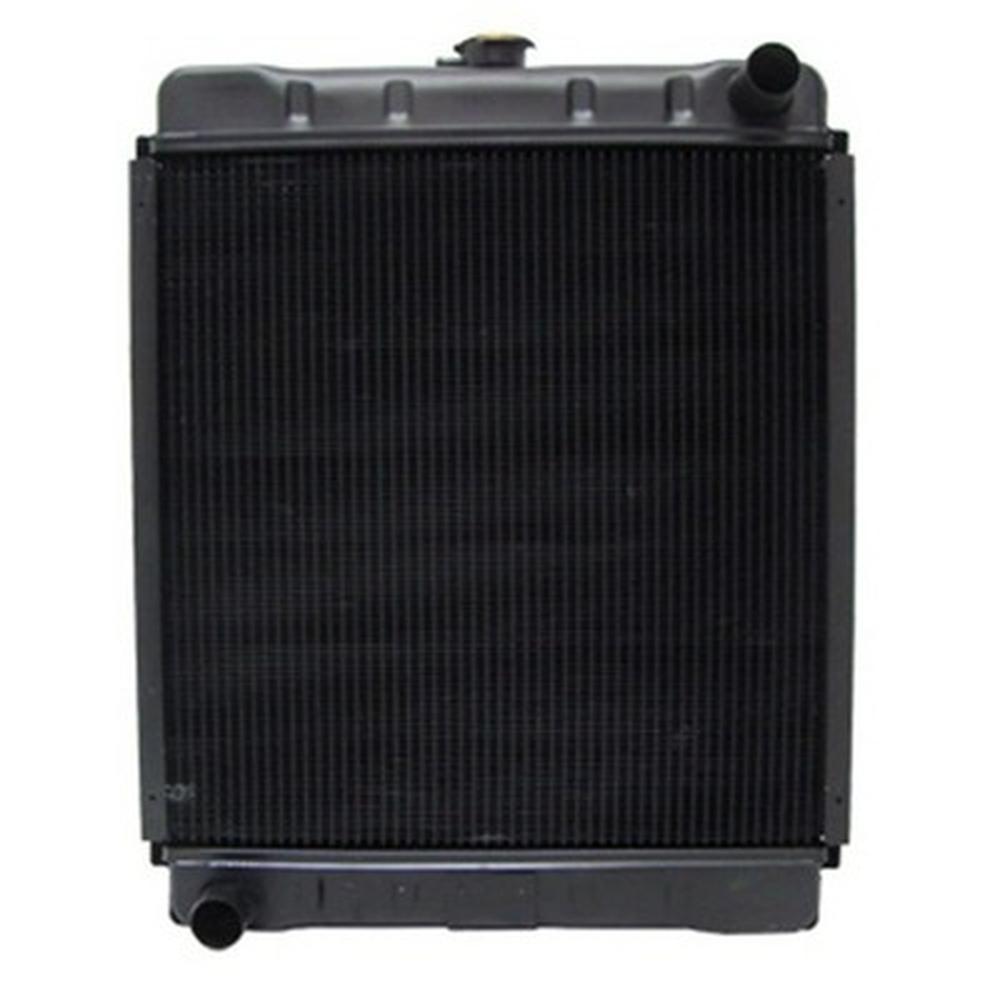

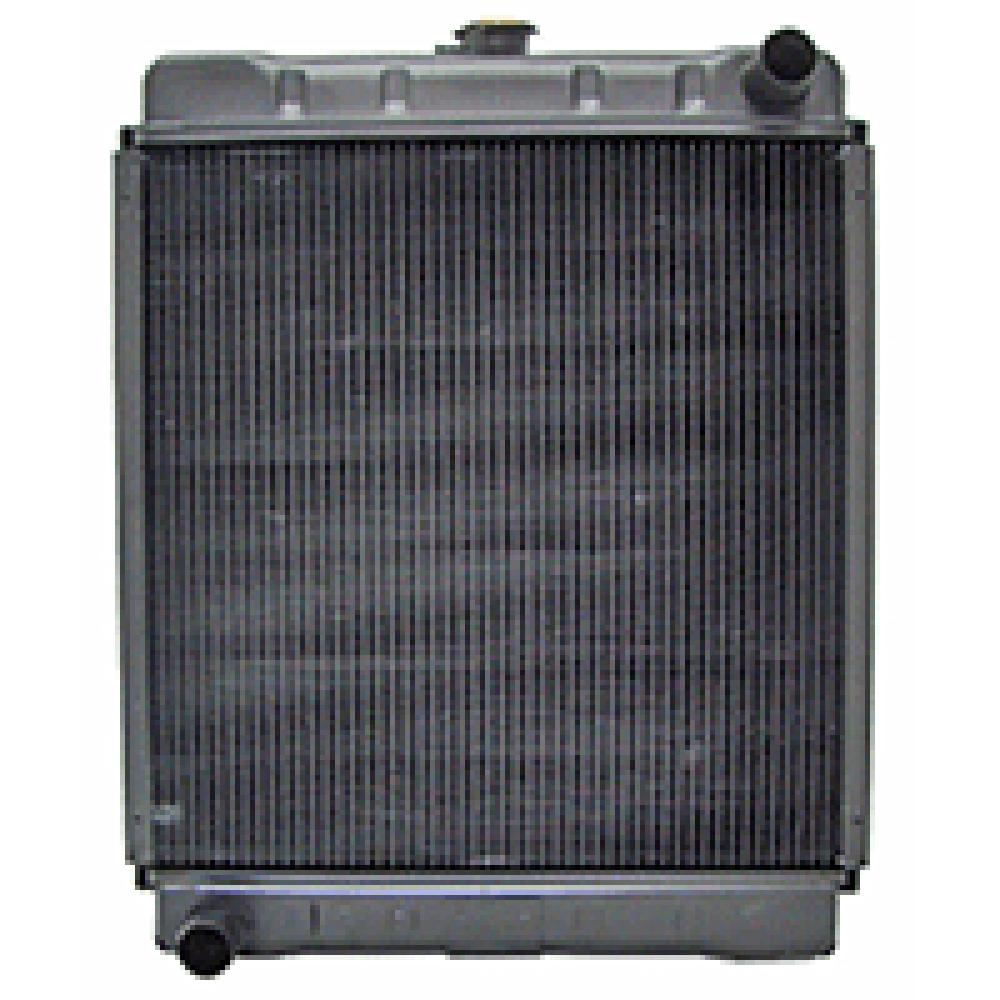

86563887 219833 Radiator Fits Ford/NH 86534249 Skidsteer L465 LS170E LX485

86563887 219833 Radiator Fits Ford/NH 86534249 Skidsteer L465 LS170E LX485

$1,013.00 CAD
$1,013.00 CAD
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Radiator Made to Fits Ford/New Holland Skid Steer Loader Models

Fits Ford/New Holland Skid Steer Models: L465, LX465, LX485, L565, L665, LX565, LX665, LS140, LS140E, LS150, LS150E, LS160, LS160E, LS170, LS170E

Item Specs:
Core Height: 18 5/16
Core Width: 18
Depth: 3 1/4
Fill Neck Height: 3/4
Fins Per Inch: 7 Flat Fin
Inlet: 1 3/8
Outlet: 1 3/8
Overall Height: 23
Overall Width: 18 3/4
Rows: 5
Uses: RW0021-1 Radiator Cap
*Has Stud Mounts on Bottom
*Threaded Inserts on Side Channel

Replaces Part Number(s): 219833, MG86534249, MG86563887, 86534248, 86534249, 9842126, 86563887

Models This Part Fits:

LS140E, LX665, LX485, L665, LS160E, 7775, LS140, L565, LS160, LS170E, 5575, 6675, LX465, L465, LX565, LS150, LS150E, LS170, 4475

Additional Information:

Core Height: 18 5/16 Core Width: 18 Depth: 3 1/4 Fill Neck Height: 3/4 Fins Per Inch: 7 Flat Fin Inlet: 1 3/8 Outlet: 1 3/8 Overall Height: 23 Overall Width: 18 3/4 Rows: 5 Uses: RW0021-1 Radiator Cap *Has Stud Mounts on Bottom *Threaded Inserts on Side Channel

Reference Numbers:

MG86534249, MG86563887, 86534248, 86534249, 9842126, 86563887, 219833, MG86534249, MG86563887, 86534248, 86534249, 9842126, 86563887, 86534248,8653877
