84530154 Hydraulic Pump Engine Mount Fits Ford/New Holland 3010S ++ Tractors

84530154 Hydraulic Pump Engine Mount Fits Ford/New Holland 3010S ++ Tractors

$213.00 CAD
$213.00 CAD
Sale Sold out
Shipping calculated at checkout.

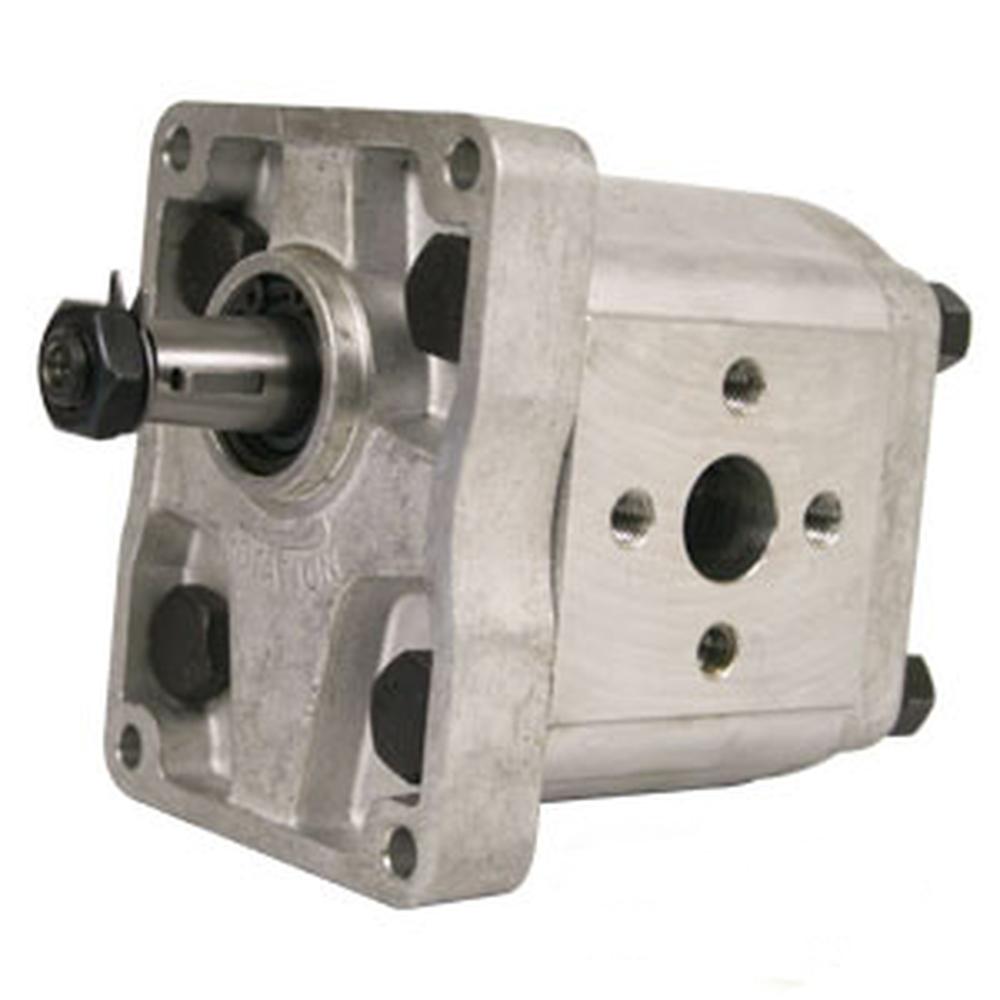

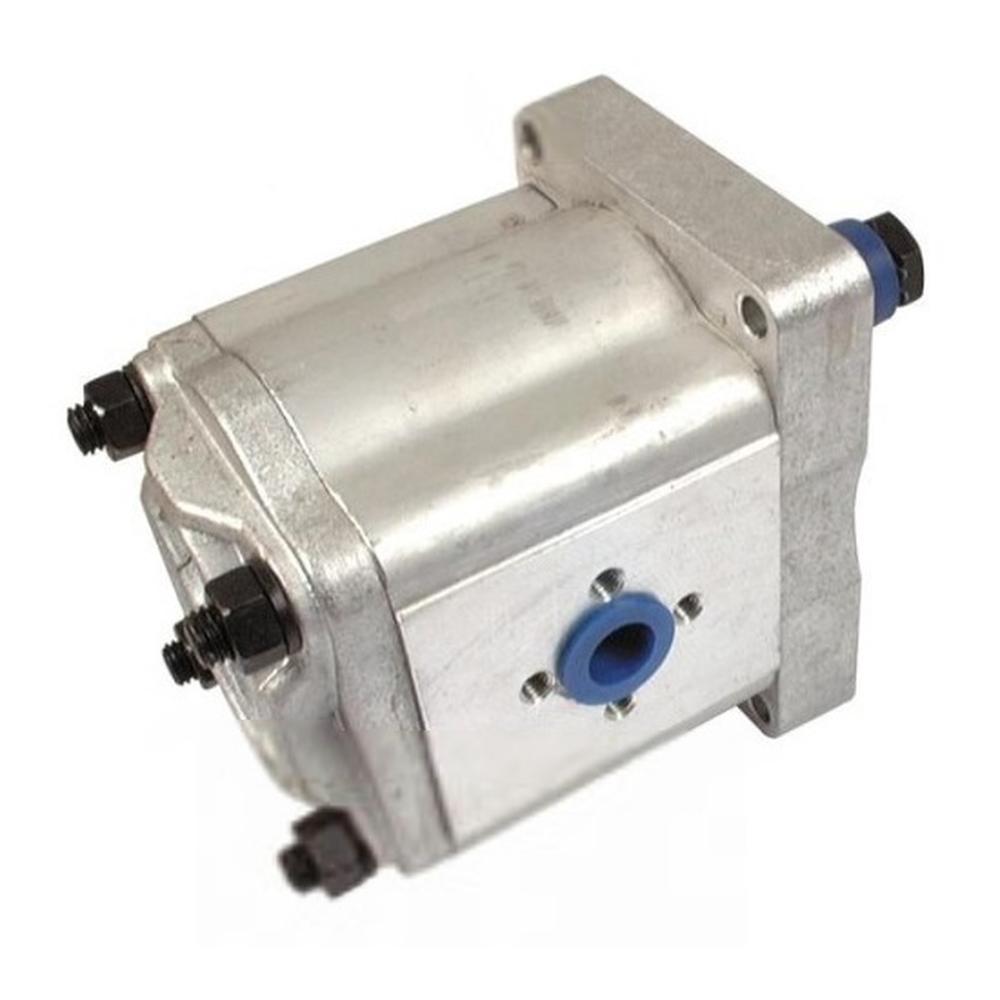

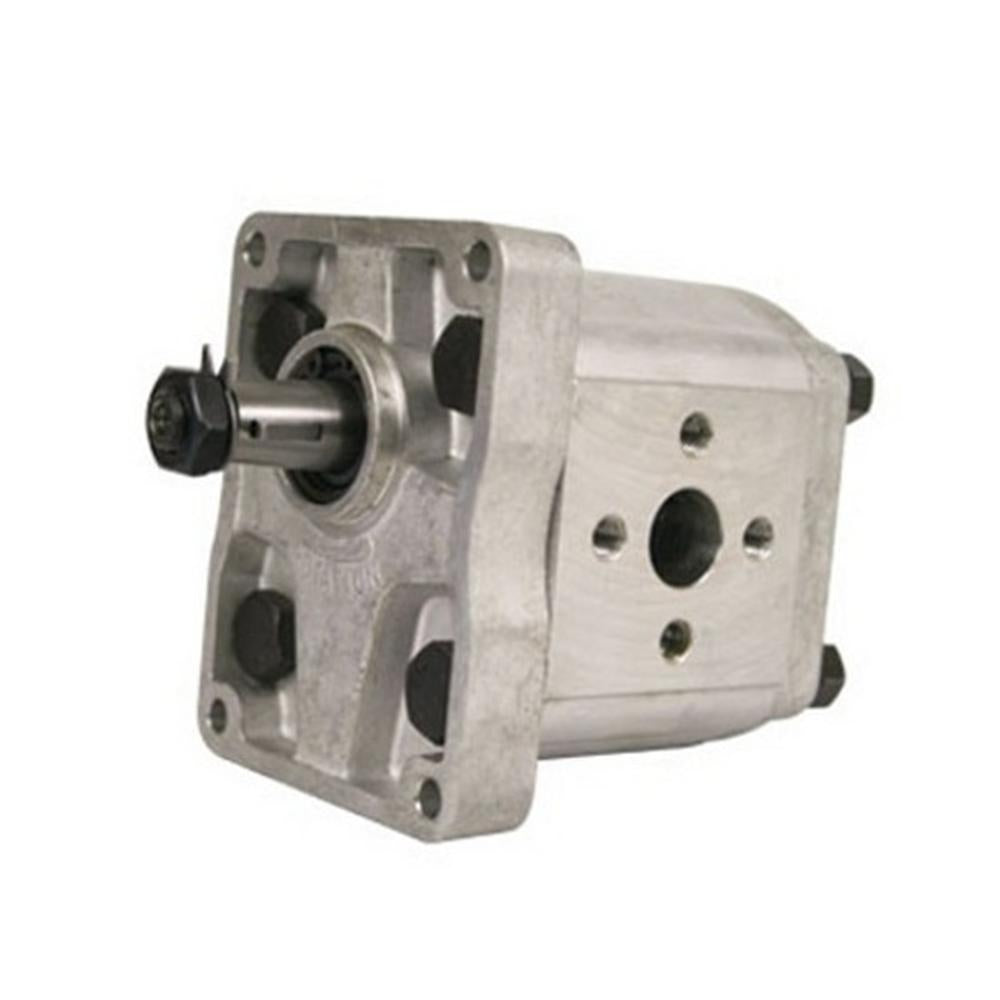

One New Aftermarket Replacement Hydraulic Pump (Engine Mount) for Ford/New Holland, Case IH, and Fiat Tractors

This engine-mount hydraulic pump supplies pressurized fluid to the hydraulic system on a wide range of Ford/New Holland (New Holland), Case IH, and Fiat tractors and crawlers. Rotating counter-clockwise at 19cc displacement (approximately 10.80 GPM), it mounts directly to the engine and is a direct replacement for OEM part number 84530154 and all superseded predecessors.

Specifications

  • Rotation: Counter-Clockwise
  • Displacement: 19cc (19.33 cc)
  • Output: Approximately 10.80 GPM
  • Mount Type: Engine Mount

Compatible Models

Ford / New Holland Tractors: 3010S, 4010S, 5010S, TD60D, TD70D, TD75D, TD80D, TD90, TD90D, TD90F, TD95, TD95D, TD95D HC PLUS, TD85D, TD85F, TD65D, TD65F, TD70, TD75F, TD80, TD55D, TD5.65, TD5.75, TD5.80, TD5.90, TD5.100, TD5.110, 3830, 4030, 4230, 4330, 4330 Vineyard, 4430, 6530, 7560, 8430, 8630, 8830, 9630, FD7

Ford / New Holland Tractors (Serial Number ASN T00352M): TT55, TT65

New Holland Crawlers: TK76, TK76M, TK80A, TK80MA, TK85, TK85M, TK65F, TK65V, TK70FA, TK70VA, TK75F, TK75FA, TK75M, TK75MA, TK75V, TK75VA, TK85M, TK90A, TK90MA, TK95M, TK100A

Case IH Tractors: JX55, JX60, JX65, JX70 (12/2005 and Later), JX75, JX80, JX85, JX90, JX95 (Excluding Straddle Mount), JX100, JX110, CX100, MX100C

Fiat Tractors: 50-86, 55-66, 55-86, 55-88, 60-66, 60-76, 60-86, 60-88, 60-90, 60-93, 60-94, 65-66, 65-88, 65-90, 65-93, 65-94, 70-66, 70-76, 70-88, 70-90, 72-86, 72-93, 72-94, 80-66, 80-76, 80-88, 80-90, 82-93, 82-94, 85-90, 88-93, 88-94, 90-90, 100-90, 110-90, 115-90, 130-90, 140-90, 160-90, 180-90, 1000, 1033, 1180, 1280, 1355, 1365, 1370, 1380, 1410, 1412, 1465, 1470, 1490, 1494, 1580, 1594, 1690, 1690 Turbo, 1880, 1894, 1930, Winner 100-130, 50-86VDT, 70-86VDT, 70-86SVDT, 140-90DT, 180-90DT (ASN D3600: 60-86F, 60-86FDT, 60-86V, 60-86VDT, 60-86SV, 60-86SVDT)

Fiat / Other Series: 353, 433, 453, 533, 553, 643, 683, 700, 700 Series, 766DT, 833, 885, 980, 995, 2-60, 5530, FD7, 980

Other Compatible Makes: Allis Chalmers, David Brown, Farmall, White Oliver models -- verify fitment by part number cross-reference before ordering.

Replaces Part Number(s):

84530154, 5129488, 05129488, 5179714, 5179711, 5169770, 5179414, 5120850, 5113283, 5094394, 5093658, 5129488GV, 2040333, 1909916, 1930226, 9967782, 9967927, 47562399, 82987745, 87737605, 87716629, 73328630, K200337, K949605, PRD2217S, A42X, 153634448, 675636AS, 20-7101188

Aftermarket Interchange Numbers

Also referenced as: 1A42-1J, 1PN.192.AB11/063, 051 29488

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

JX55, TK76, 82-94, 72-93, 88-94, TD80, TD70D, TK100A, 995, JX75, TD95D, MX100C, 1690, 4330 Vineyard, 3010S, TK75M, 1180, 885, 60-76, 80-66, 1690 Turbo, TD5.100, 115-90, 9630, 5530, TK75V, TK75FA, TK85M, TD5.75, TD75F, 1594, TD80D, 4430, 700 Series, 1580, TK65V, 353, JX95, TD95D HC PLUS, TK65F, TK70VA, 4030, 980, 4330, JX110, 1355, 65-94, 1490, 533, 4010S, JX85, TK76M, 1000, 160-90, 1465, TD85D, 72-86, 8630, 60-94, JX100, 60-86, 7560, 1470, TK75F, TK70FA, 833, 1394, 180-90, 72-94, 65-66, 90-90, 1280, 1370, TD5.90, TD5.65, 60-88, TK80A, TD55D, TK90A, 643, TD65D, 60-93, TD95, 1494, CX100, 1380, 130-90, 1412, 1880, TD65F, 65-90, 8830, 700, 70-88, 82-86, 110-90, 140-90, 80-76, 55-66, 88-93, 5010S, 50-86, TD90D, 100-90, 2-60, 82-93, 65-93, 1410, TK90MA, 1365, 60-66, JX65, 55-88, 70-90, JX70, 703, 85-90, 70-66, 80-90, FD7, TD60, TK95M, TD90, TD60D, TK75VA, TD5.80, 1033, TT55, 6530, 683, 80-88, 766DT, 55-86, 1694, 433, JX60, 65-88, 70-76, TT65, 3830, TD75D, 453, TD70, JX80, TD5.110, 8430, Winner 100-130, TK75MA, 553, TD85F, TK80MA, JX90, TK85, 4230, 60-90

Additional Information:

Rotation: Counter Clockwise Displacement: 19cc

Reference Numbers:

5129488, A42X, 84530154, 9967782, 9967927, 5129488GV, 5113283, 2040333, 5120850, 5093658, 5169770, 5179714, 05129488, 153634448, 1909916, 1930226, 9967782, 5179414, 5179711, 5094394, 5179714, 5169770, 5093658, 47562399, K949605, K200337, 84530154, 2040333, 87737605, 73328630, 82987745, 1909916, 1930226, 5113283, 5120850, 5169770, PRD2217S, 47562399, 9967782, 5179414, 5179711, 5094394, 5179714, 5169770, 5093658, K949605, K200337, 84530154, 2040333, 87737605, 73328630, 82987745, 5179714, 5129488, 2040333, 5169770, 84530154, 73328630, 5113283, PRD2217S, 5169770, 5129488, A42X, 84530154, 9967782, 9967927, 5129488GV, 5113283, 2040333, 5120850, 5093658, 5179714, 05129488, 153634448, 1909916, 1930226, K200337, K949605, 675636AS, 20-7101188
