One New Aftermarket Replacement Feeder Conveyor Upper Sprocket Assembly Fits Case IH (Fits Case/International Harvester) Combines

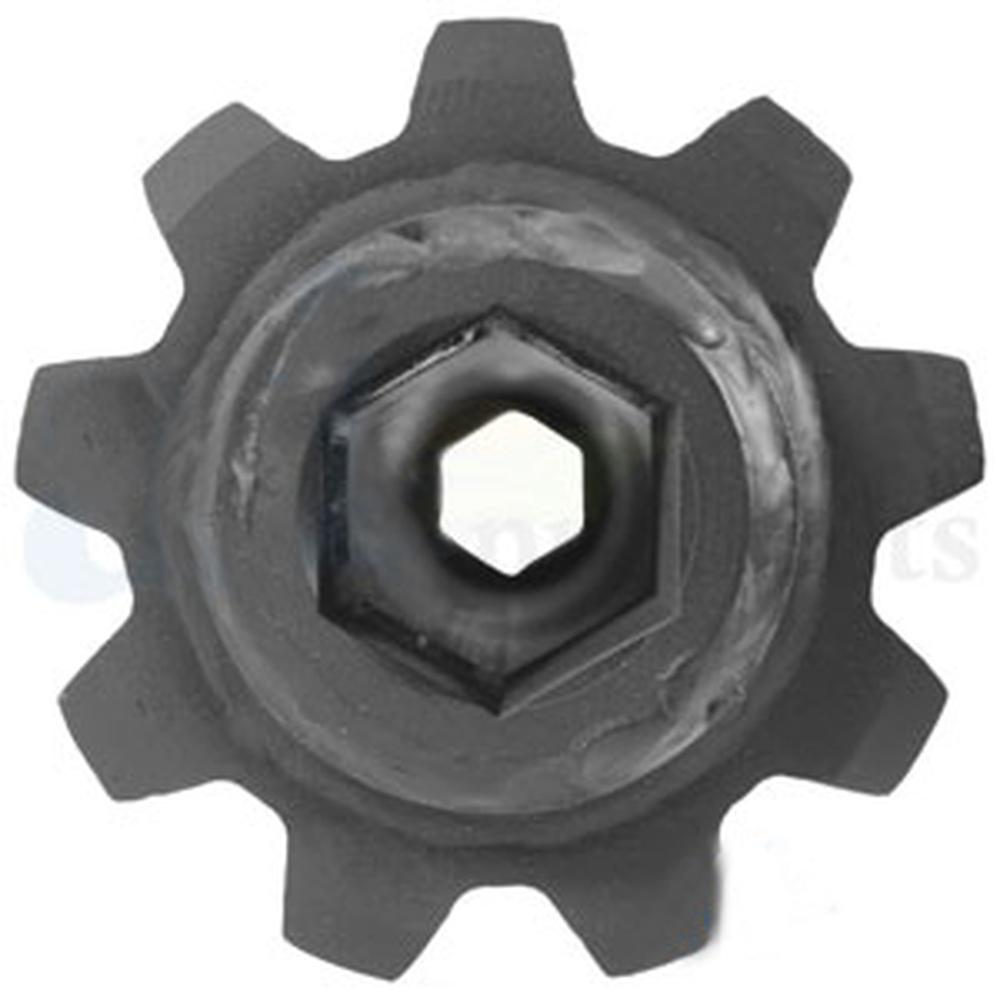

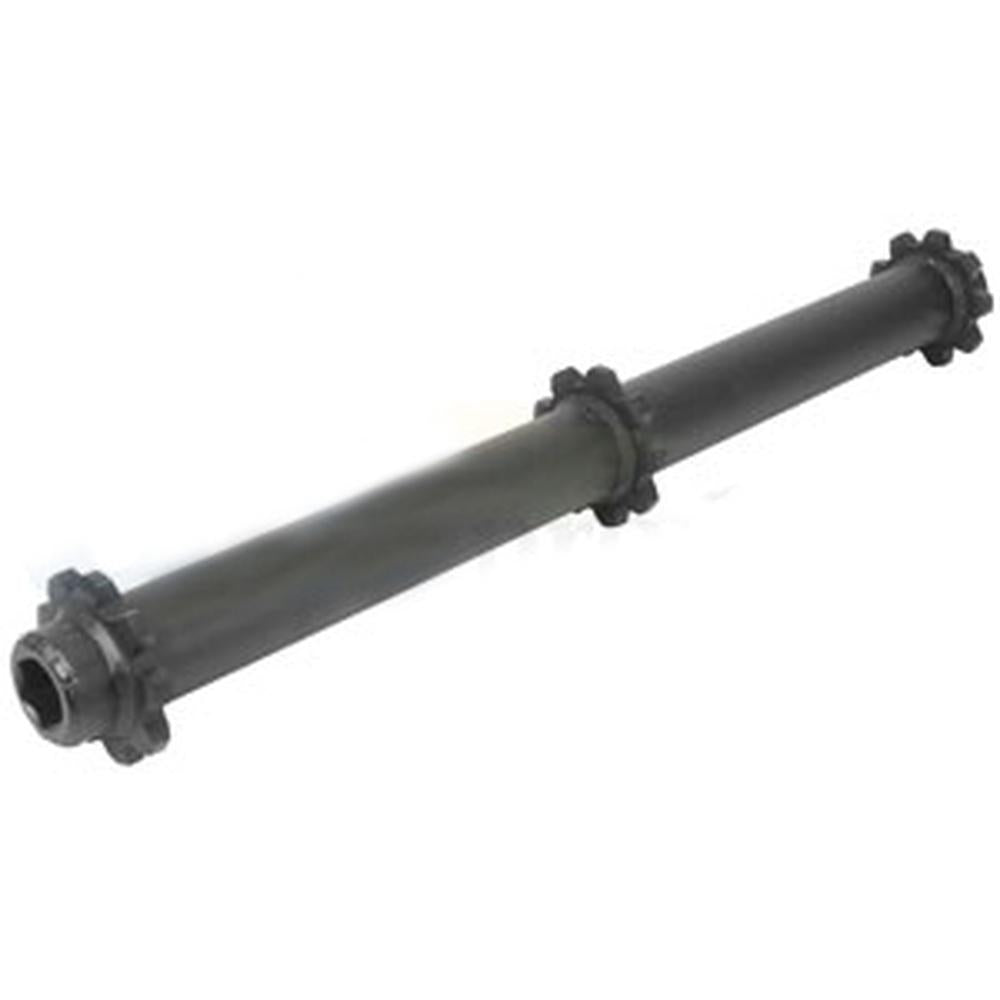

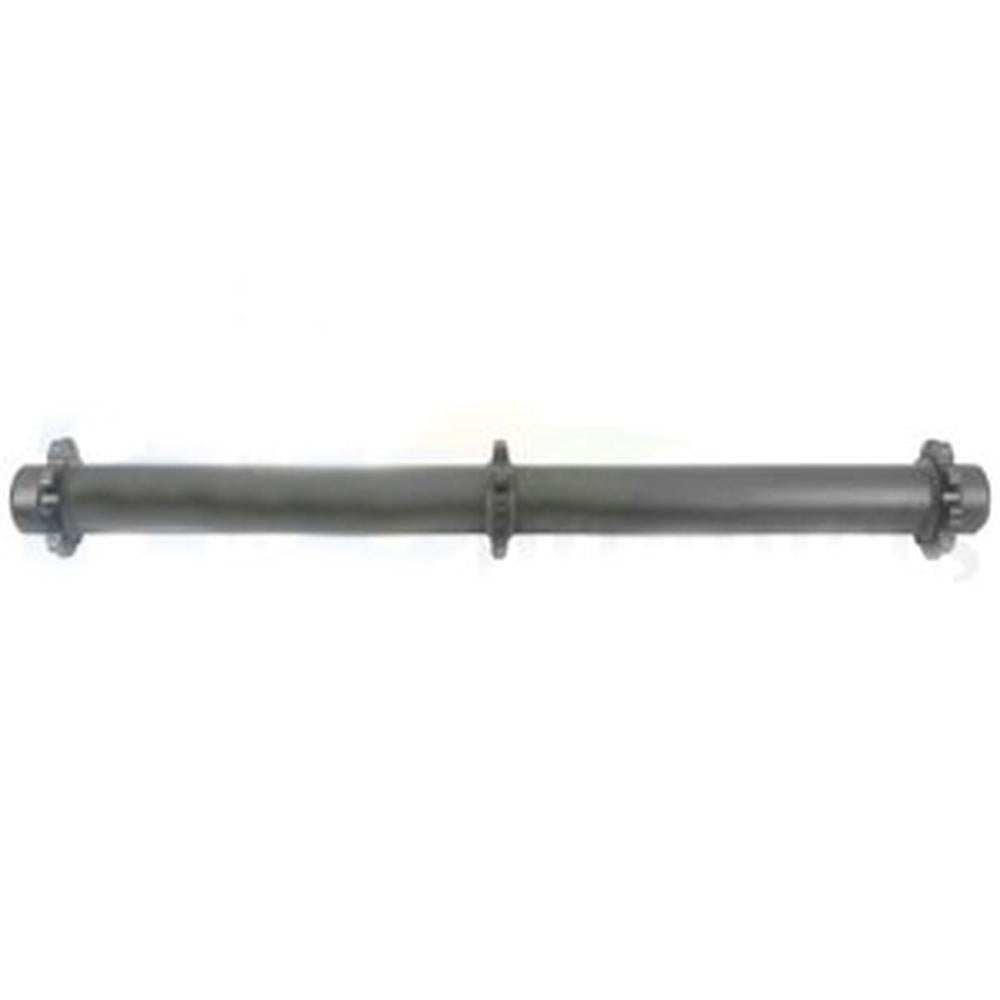

This feeder conveyor upper sprocket assembly (also referred to as a sprocket and tube assembly) is a key feeder house component on Fits Case IH combines, driving the crop conveyor chain that moves harvested material from the header into the threshing system. It mounts at the upper drive position in the feeder house and is subject to significant wear during harvest operations.
Specifications
- Spline Count: 9 spline
- Overall Length: 40.25 in.
- Tube Length: 39.75 in.
- Inside Spline Diameter: 3.001 in.
- Outside Spline Diameter: 5.14 in.
Compatible Models
Fits Case IH Combines: 5088, 5130, 5140, 5150, 6088, 6130, 6140, 6150, 7088, 7130, 7140, 7150
Replaces Part Number(s):
84122242
Aftermarket Interchange Numbers
AM84122242 (Abilene Machine), WN-84122242, WN84122242 (A&I Products), COG10-0135
New aftermarket replacement part - not remanufactured, not used.
