Steering Spindle Kit Fits Ford/New Holland Replaces 2N3109

Steering Spindle Kit Fits Ford/New Holland Replaces 2N3109

$368.00 CAD
$368.00 CAD
Sale Sold out
Shipping calculated at checkout.

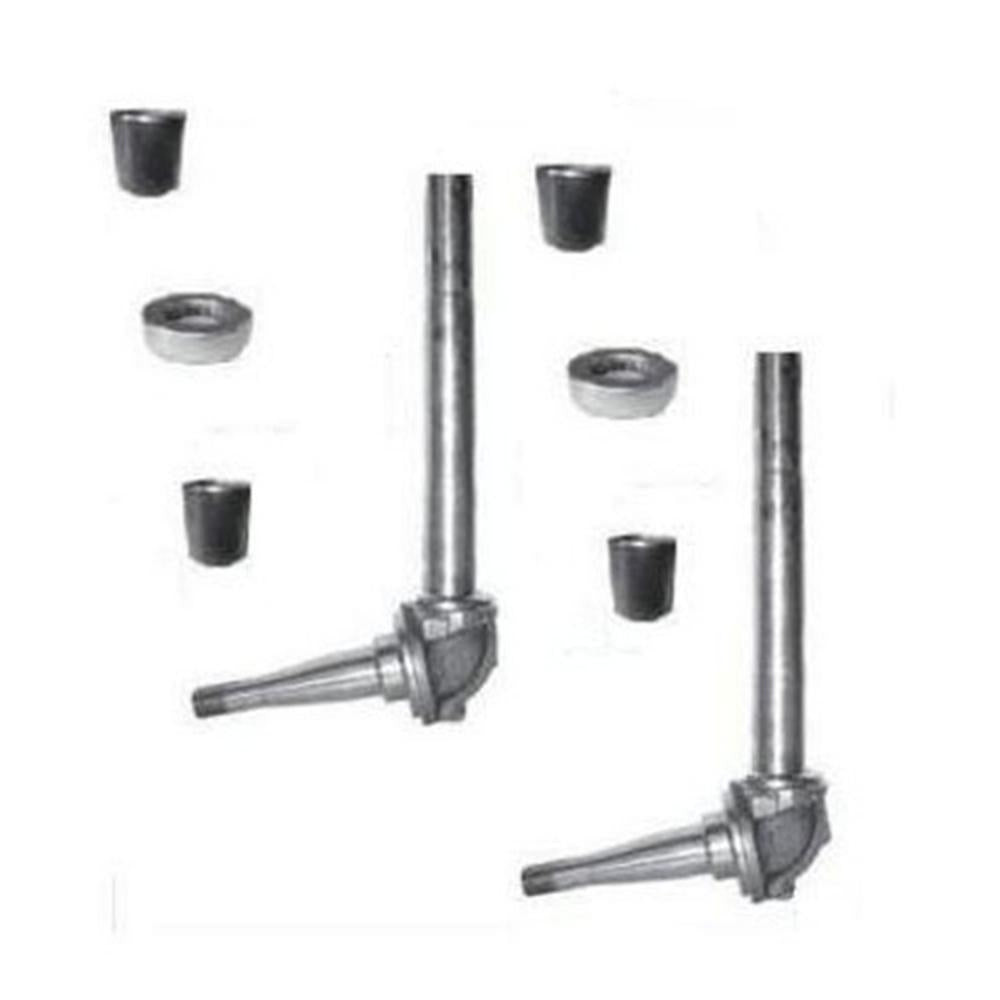

One New Aftermarket Steering Spindle Kit

Tech Info:
 -(1) Right Hand Spindle:
 -Right side as sitting in the tractor seat
 -10.750" machined upright shaft
 -1.250" shaft outside diameter
 -1.187" inner bearing diameter
 -0.750" outer bearing diameter
 -Machined for 1/4" x 7/8" key
 -Replaces Part Numbers: F3NN3105AA, 8N3105
 -
 -(1) Left Hand Spindle:
 -Keyed
 -Side
 -Axle Length 5 1/4"
 -Diameter 1 1/4"
 -ID 1 3/16"
 -OD 3/4"
 -Shaft Length 10 11/16"
 -Type Left Hand
 -Replaces Part Numbers: F3NN3106AA
 -
 -(4) Front Spindle Bushing:
 -4 used per tractor,
 -1.255" inside diameter,
 -1.378" outside diameter,
 -1.498" long,
 -Must be honed or reamed to size when installed
 -Replaces Part Numbers: 2N2109, 2N3109, 81717387, 81802940
 -
 -(2) Thrust Bearing:
 -Bearing Type Spindle Bearing
 -Grease Greaseable
 -ID 1.350"
 -ID Type Round
 -OD 2.200"
 -Sourced Import
 -Width Overall 0.620"
 -Replaces Part Number: 957E3123A

Made to Fits Ford/New Holland:
 Tractor Models: 8N, NAA
 Model Breaks: 8N (1948-52),NAA (1953-54)
 Replaces Part Number(s): 8N3105B, F3NN3105AA, 8N3105, 83980355, 8N3106, 8N3106B, F3NN3106AA, 2N3109, 81802940, 957E3109B, C5NN3446A, C0NN3123B, 81859284, 83910196, 957E3123A

 Models: 2600, 2310, 4600, 4000, 700, 3600, 4600SU, 2910, 601, 701, 2N, NAA, 2610, 901, 8N, 3910, 3610, 2810, 4000SU, 2000, 900, 801, 800, 600, 9N, 4610
 Replaces Part Number(s): 957E3123A

Models This Part Fits:

600, 2600, 2000, 701, 2910, 4000, 700, 3910, 4610, 9N, 801, 2810, 8N, 4000SU, 2310, 3610, 2N, 4600, 4600SU, NAA, 900, 2610, 601, 3600, 901, 800

Additional Information:

(1) Right Hand Spindle: Right side as sitting in the tractor seat 10.750" machined upright shaft 1.250" shaft outside diameter 1.187" inner bearing diameter 0.750" outer bearing diameter Machined for 1/4" x 7/8" key Replaces Part Numbers: F3NN3105AA, 8N3105 (1) Left Hand Spindle: Keyed Side Axle Length 5 1/4" Diameter 1 1/4" ID 1 3/16" OD 3/4" Shaft Length 10 11/16" Type Left Hand Replaces Part Numbers: F3NN3106AA (4) Front Spindle Bushing: 4 used per tractor, 1.255" inside diameter, 1.378" outside diameter, 1.498" long, Must be honed or reamed to size when installed Replaces Part Numbers: 2N2109, 2N3109, 81717387, 81802940 (2) Thrust Bearing: Bearing Type Spindle Bearing Grease Greaseable ID 1.350" ID Type Round OD 2.200" Sourced Import Width Overall 0.620" Replaces Part Number: 957E3123A

Reference Numbers:

8N3105B, F3NN3105AA, 8N3105, 83980355, 8N3106, 8N3106B, F3NN3106AA, 2N3109, 81802940, 957E3109B, C5NN3446A, C0NN3123B, 81859284, 83910196, 957E3123A, 957E3123A

Product Sub Group:

Other Steering Components
