S.40411 Piston, 89207

S.40411 Piston, 89207

$57.00 CAD
$57.00 CAD
Sale Sold out
Shipping calculated at checkout.

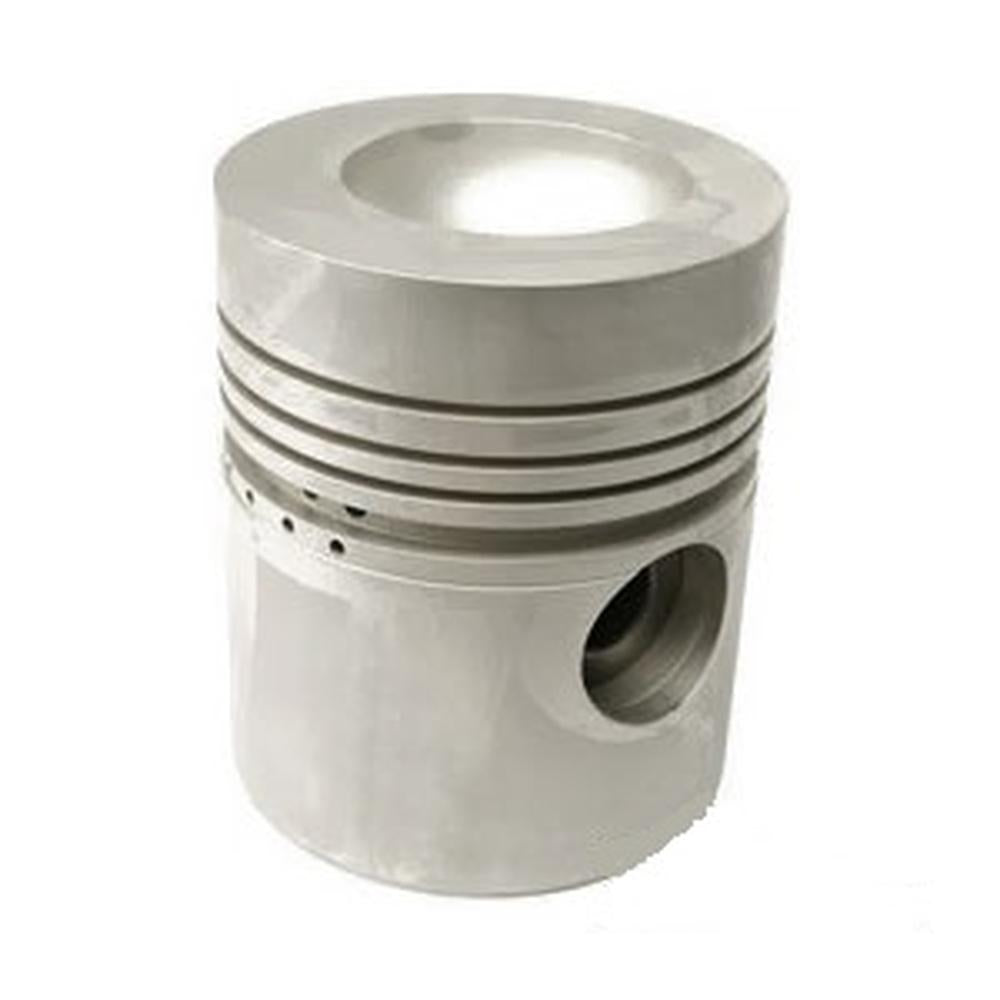

One New Aftermarket Replacement Piston Fits Massey Ferguson (MF) Tractors - Perkins A4.248 Engine

This aftermarket replacement piston fits the Perkins A4.248 four-cylinder diesel engine used in a wide range of Fits Massey Ferguson (MF) and Landini tractors. The piston features a normal combustion bowl design with four ring grooves and is supplied as a standard bore size replacement for worn or damaged engine pistons.

Specifications

  • Piston Length: 120.77mm
  • Compression Height: 69.85mm
  • Bore Diameter: 101.05mm
  • Bowl Depth: 20.83mm
  • Chamber Diameter: 61.47mm
  • Pin Diameter: 34.93mm
  • Number of Rings: 4
  • Bowl Type: Normal
  • Engine: Perkins A4.248

Compatible Models

Fits Massey Ferguson 100 Series: 175, 178, 185, 188, 194, 194C

Fits Massey Ferguson 200 Series: 275, 285, 285 (FR), 285 US Built, 290, 290 US Built, 293, 294, 294-4

Fits Massey Ferguson 300 Series: 382, 383, 387, 390, 390E Brazilian, 393, 394, 397

Fits Massey Ferguson 400 Series: 440 Brazilian, 487

Fits Massey Ferguson 500 Series: 506, 575, 590

Fits Massey Ferguson 600 Series: 690

Fits Massey Ferguson 3000 Series: 3060

Fits Massey Ferguson 8000 Series: 8000, 8500, 8530, 8550, 8560, 8830, 8860, 8870, 8880

Fits Massey Ferguson Other: 60H

Landini: Advantage 85, Fits Blizzard 85, Trekker 85, C7800, C7830, C8860, 7860, 7870, 7880

Replaces Part Number(s):

740821M91, 740821V91, 740821Z91, 89207, 189207, 71007663

Aftermarket Interchange Numbers

S.40411, A66333 (Perkins)

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

C8860, 175, C7830, 390, 7880, 7870, 290, 8870, 8880, 387, 390E BRAZILIAN, 393, 487, 294, 394, 8000, 8530, 3060, 506, 383, 8500, C7800, 382, 440 BRAZILIAN, 8860, 8830, ADVANTAGE 85, 194, 8560, TREKKER 85, 285 (FR), 590, 290 US BUILT, 188, 8550, 285 US BUILT, 293, 275, 294-4, 7860, 178, 185, 690, 575, 194C, BLIZZARD 85, 397, 60H

Additional Information:

Piston Length mm: 120.77mm Compression Height: 69.85mm Bore Diameter: 101.05mm Bowl Depth: 20.83mm Chamber Diameter: 61.47mm Pin Diameter: 34.93mm No. of Rings: 4

Reference Numbers:

71007663, 740821M91, 740821M91, 740821V91, 740821Z91, 89207, 740821M91, 189207
