72162168 Tractor A/C Compressor with Clutch Steiger Fits Allis Chalmer White

Name: 72162168 Tractor A/C Compressor with Clutch Steiger Fits Allis Chalmer White
SKU: 72162168
Price: 300.0 USD
Availability: InStock

72162168 Tractor A/C Compressor with Clutch Steiger Fits Allis Chalmer White

$300.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement A/C Compressor with Clutch Fits Allis Chalmers, White, Fiat, Steiger, Deutz, and AGCO Tractors

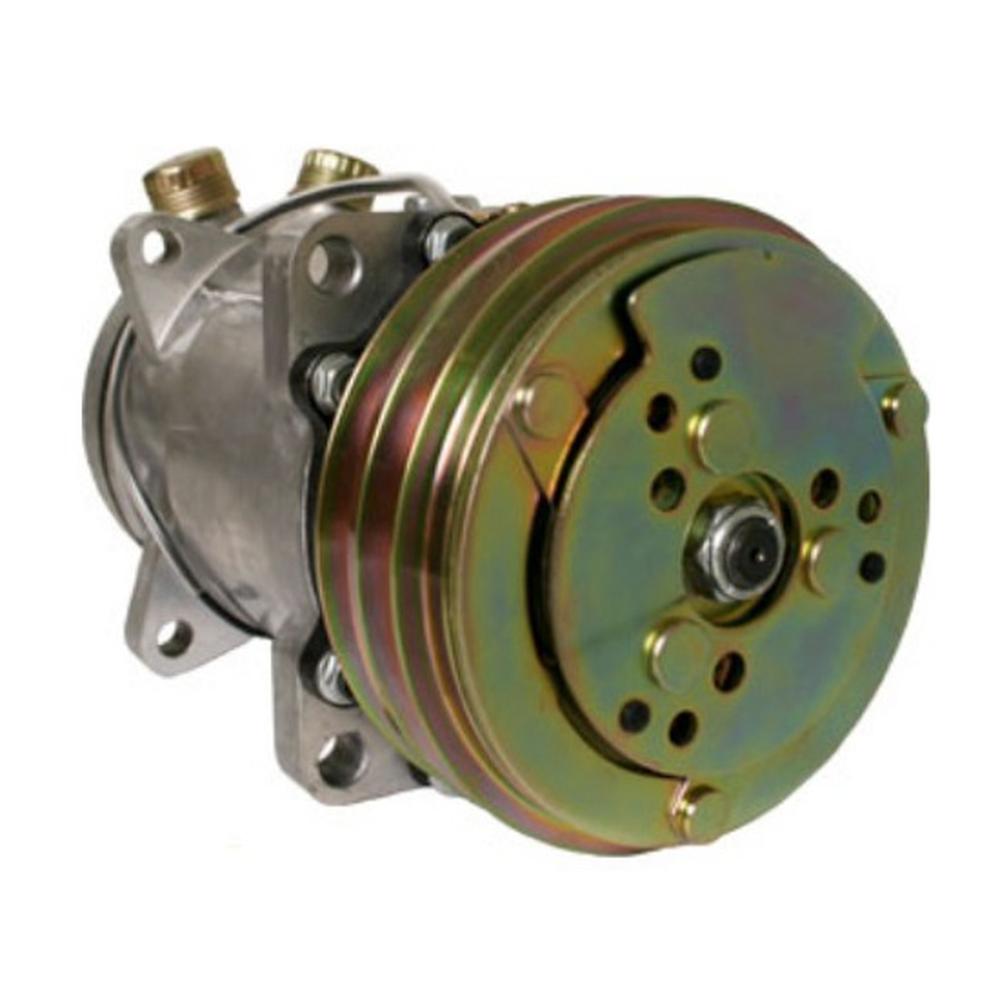

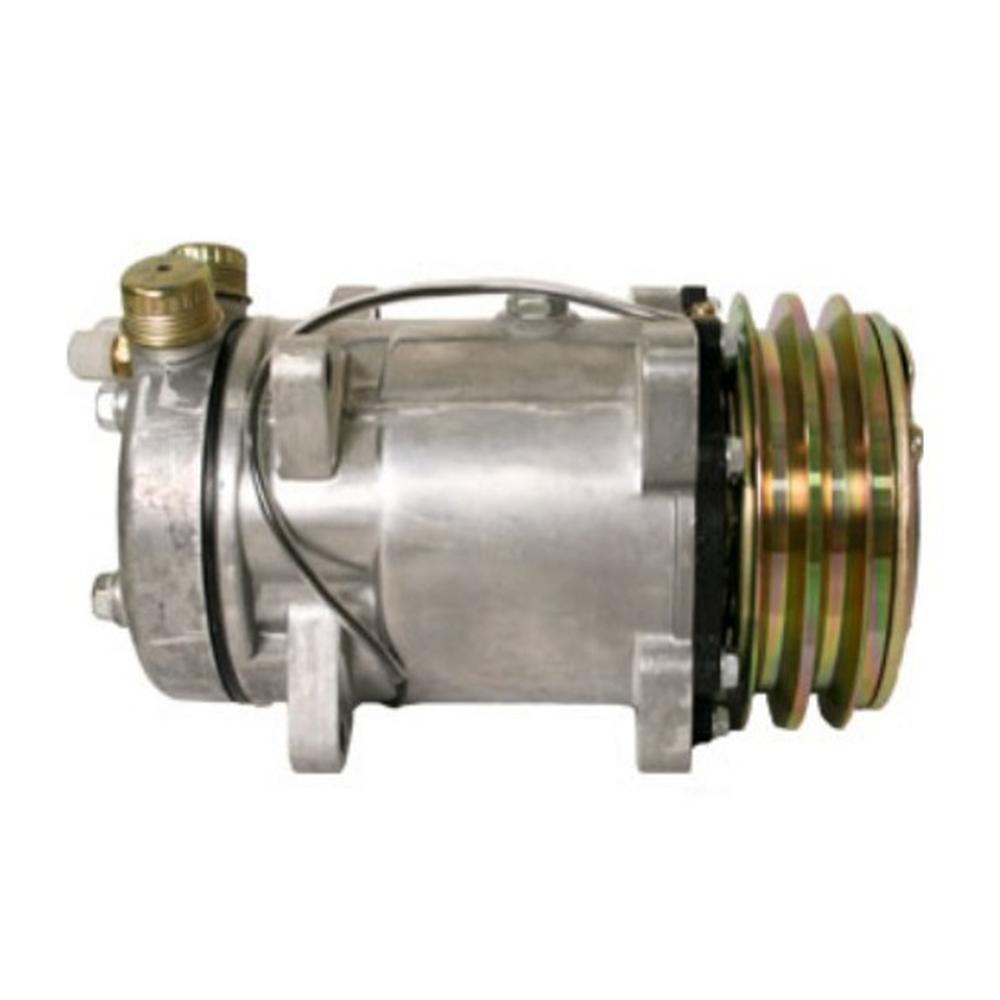

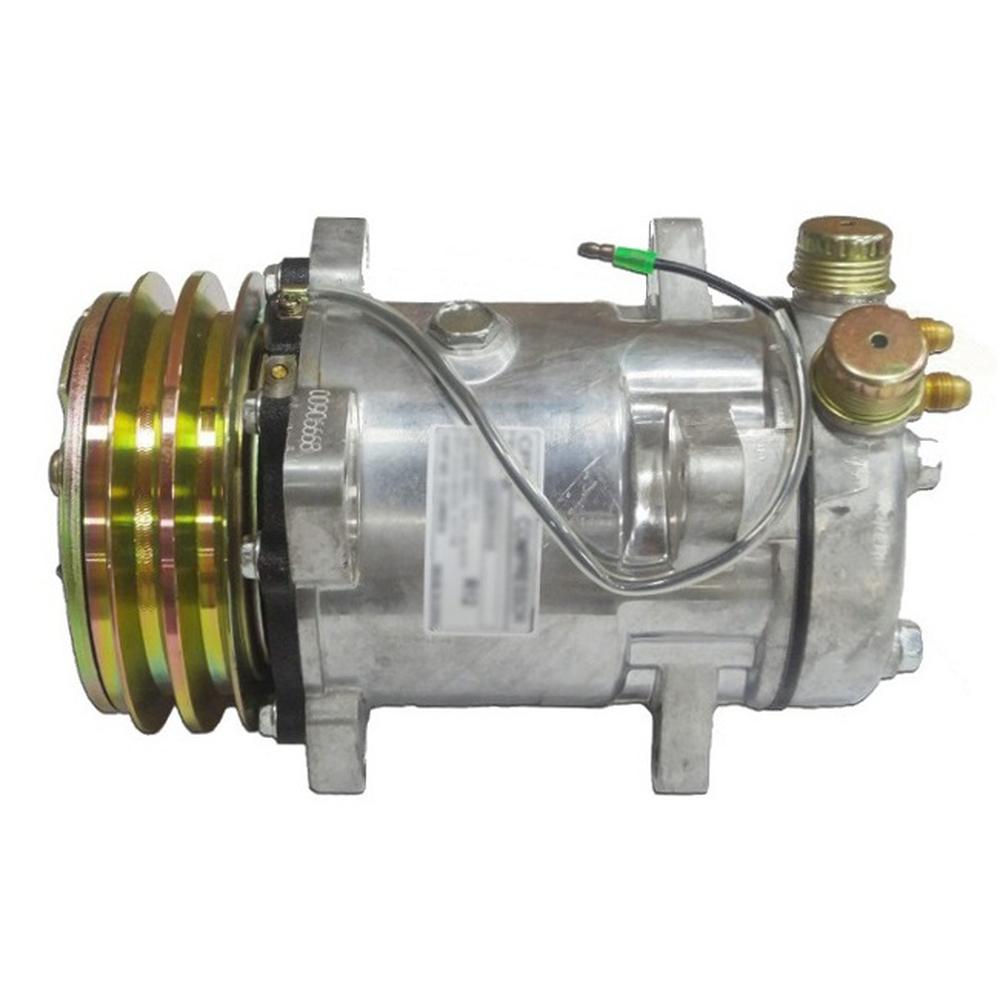

This Sanden SD5H14-style air conditioning compressor with clutch is a direct aftermarket replacement for the cab A/C system on a wide range of agricultural tractors sold under the Fits Allis Chalmers (AGCO), White, Fiat, Steiger, Deutz, and Same nameplates. The compressor features a vertical 1-inch tube O-ring fitting, a 2-groove pulley (5.19-inch / 132mm diameter), 12-volt clutch coil at the 12 o'clock position, R134 PAG oil compatibility, and an oil capacity of approximately 6.99 oz. (207cc). Compressor head type is C.

Specifications

Type: Sanden SD5H14 style (SD510 series)
Clutch: 2-groove, 5.19 in. (132mm) pulley diameter
Voltage: 12V
Head Type: C
Fitting: Vertical 1 in. Tube O-Ring
Oil Type: R134 PAG Oil
Oil Capacity: 6.99 oz. (207cc)
Coil Position: 12 o'clock

Compatible Models

Fits Allis Chalmers: 6670, 6680, 6690, 7600, 7630, 7650, 8610, 8630, 9130, 9150, 9170, 9190, 9435, 9455, 9630 (s/n 921001 and later), 9635, 9650 (s/n 941001 and later), 9655, 9670 (s/n 961001 and later), 9675, 9690 (s/n 981001 and later), 9695, 9815

White (Oliver/Minneapolis-Moline): 2-85, 2-88, 2-110, 2-135 (s/n 299208 and later), 2-155 (s/n 299208 and later), 2-180 (s/n 301922 and later), 4-210, 4-225, 4-270, 60 American, 80 American, 100, 120, 125, 140, 145, 160, 170, 185, 195, 6065 (s/n 51001 and later), 6085 (s/n 1566 and later), 6105 (s/n 1402 and later), 6124, 6125, 6144, 6145 (s/n 641001 and later), 6175 (s/n 661001 and later), 6195 (s/n 681001 and later), 2-105

Fiat: F100, F100DT, F110, F110DT, F115, F115DT, F130, F130DT, F140, F140DT, 140-90, 140-90DT, 160-90, 160-90DT, 180-90, 180-90DT

Steiger: Bearcat, CM225, CM250, CM280, CM325, CM360, KM225, KM280, KM325, KM360, SM325, Tiger, WC Series I/II, BC Series I/II, CM Series IV, KM Series IV, SM Series IV, CU-Industrial Series, CA-Industrial Series

Deutz: D6507, D6507C, D7007, D7007C, D7207, D7807, D7807C

AGCO: GT55A, GT65A, GT75A, 8360 AGCOSTAR, 8425 AGCOSTAR

Same: Row Crop 90

Note - Serial number restrictions apply to several models listed above. Verify your serial number against the ranges shown before ordering.

Replaces Part Number(s):

72162168, 72201567, 72275276, 72276373, 303373000, 30-3373029, 303373029, 351224T9, 351224T91, 500-1434, 500-496, 500-676, 504-1427, 504-1434, 504-1443, 51219592, 5744781, 9114, 4525, 6625522, 6677, 6678, U4525, U6677, U6678

Aftermarket Interchange Numbers

A-72162168, 351224T9-R, AMX10131

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

F100DT, 195, 8630, 9130, D7807C, 4-210, 6105, 8360 AGCOSTAR, 9670, F130, 6125, 160, 2-180 Series III, 4640, 7600, 9650, 6670, D6507C, 2-135, 6175, 170, 140, 7650, 2-135 Series III, 120, 9170, F110DT, F140, 8610, 145, 6085, 6680, F100, 2-88, 4440, 7630, 140-90DT, 180-90, 6690, F110, F130DT, 3640, 2-85, 185, 60 American, 80 American, 4-270, 9690, 9150, 6195, 2-110, F140DT, 140-90, 8425 AGCOSTAR, 2-180, 125, 9630, D7007C, 2-155, Row Crop 90, 218, 4-225, 6065, 160-90, 2410, 6145, F115, 160-90DT, F115DT, 100, 2-155 Series III, 9190, 2400, 180-90DT

Reference Numbers:

303373000,303373029, 9114, 351224T9,351224T91, 51219592,5744781, 500-1434,500-496,500-676,504-1427,504-1434,504-1443, 30-3373029, 4525, 6625522, 6677, 6678, 72162168, 72201567, 72275276, 72276373, U4525, U6677, U6678
