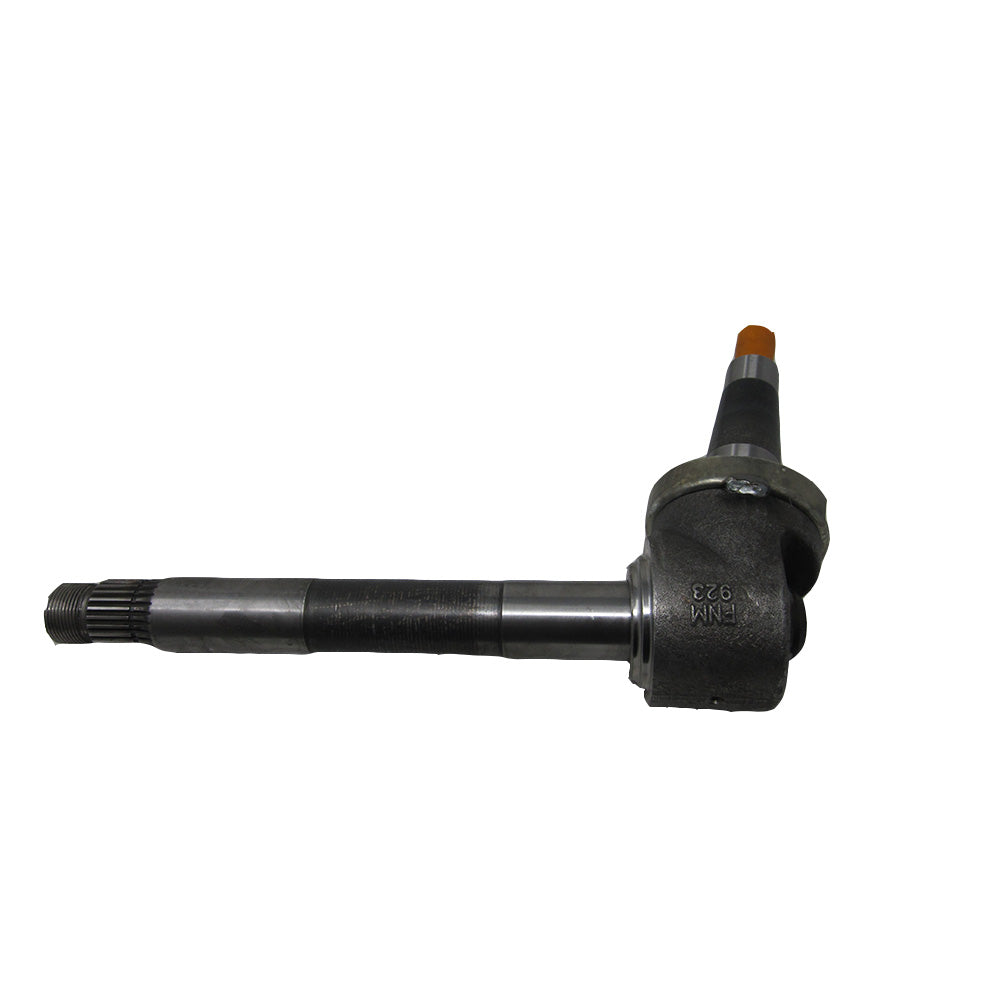

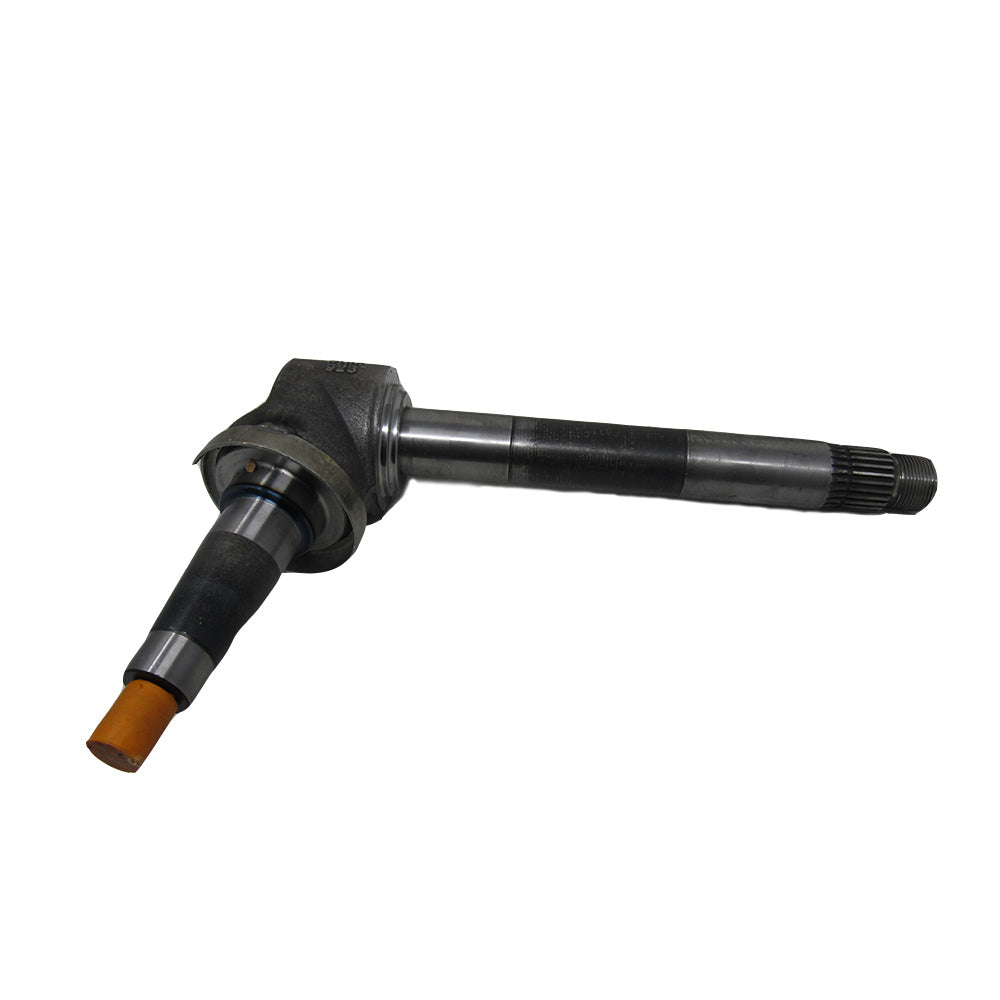

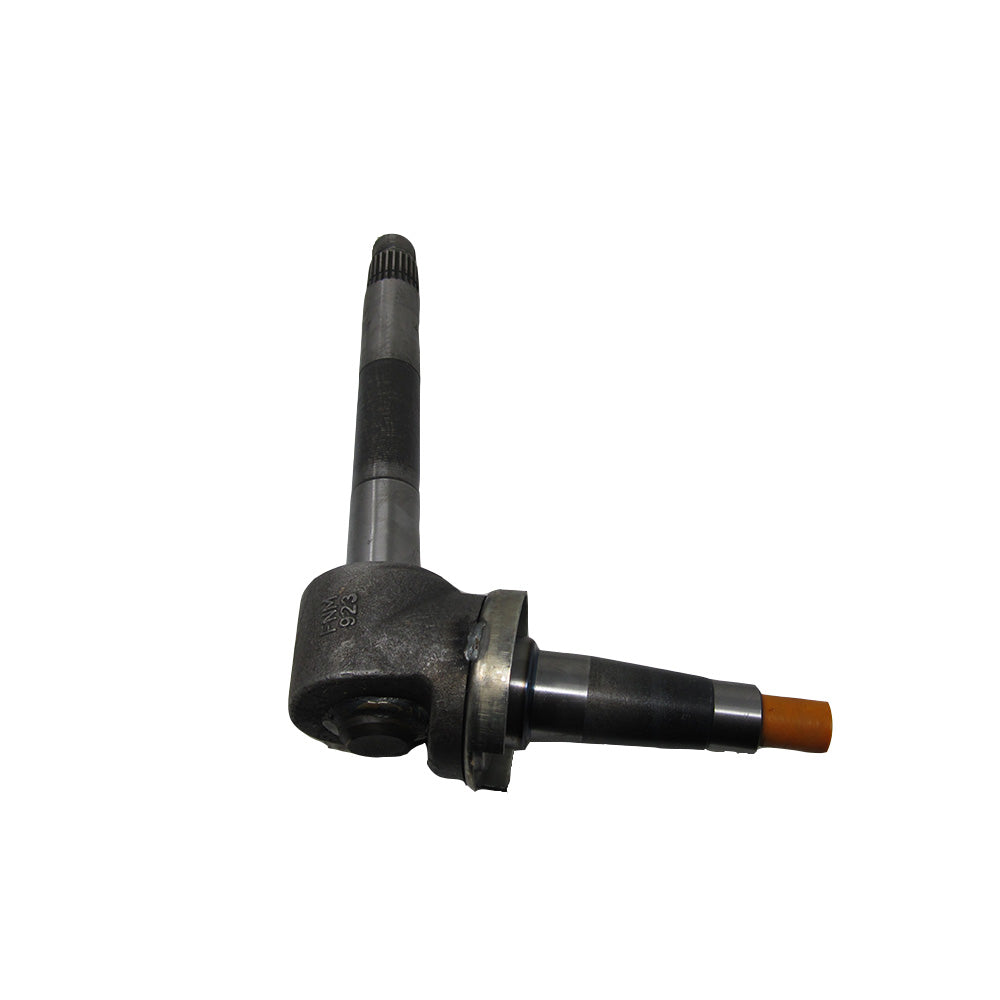

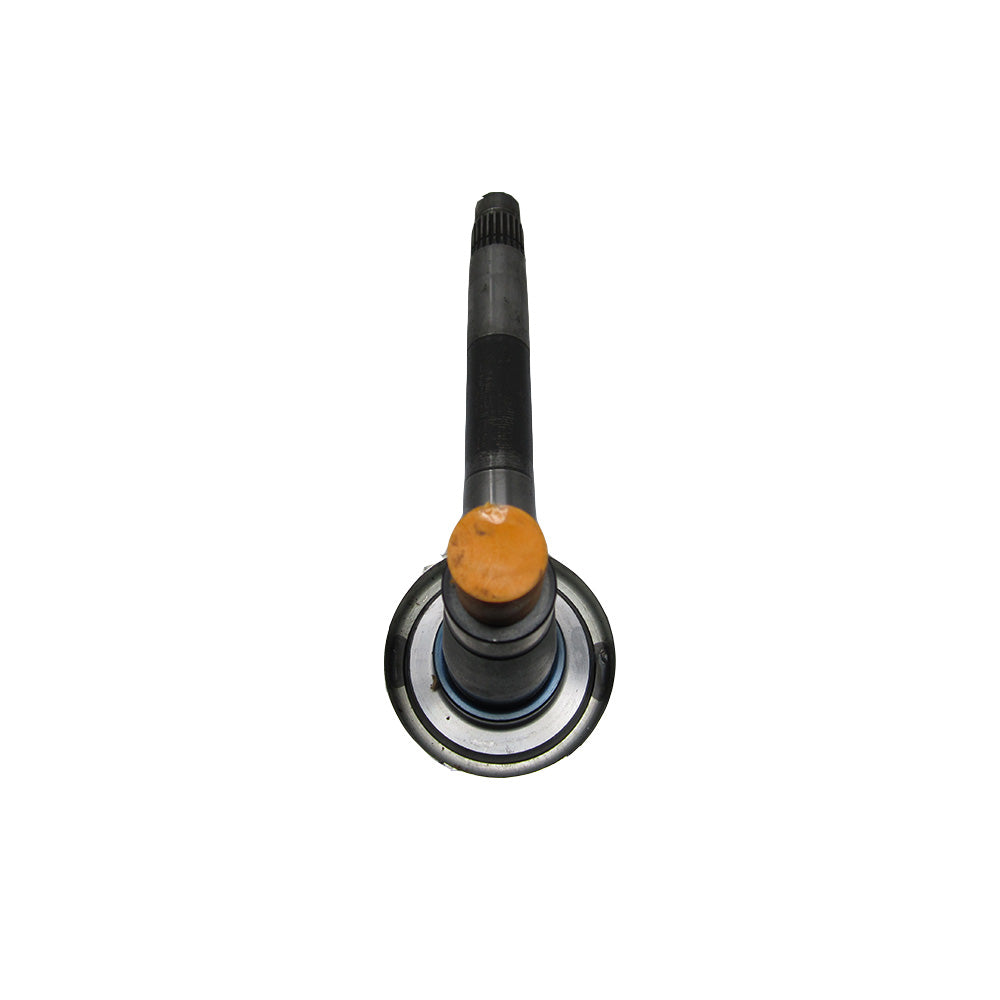

Spindle - RH/LH 856 756 1086 826 966 1466 766 1066 1486 Fits International

Spindle - RH/LH 856 756 1086 826 966 1466 766 1066 1486 Fits International

$389.00 CAD
$389.00 CAD
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement Left Hand & Right Hand Spindle for Front and Rear, Fits Case/IH Front Tractor models: (Hydro 100, 186, 70, 86), 1026, 1066, 1086, 1256, 1456, 1466, 1468, 1486, 1566, 1568, 1586, 3088, 3288, 3488, 3688, 5088, 5288, 5488, 656, 666, 686, 756, 766, 786, 826, 856, 886, 966, 986

Tech Info:
Length: 12.750"
Main Shaft O.D: 1.667"
Shoulder O.D: 1.780"
Thread Size: 1.375"
Spline Count: 24

Fits Rear Combine: (1420, 1440, 1460 (w/ 11.0x16, 12.4x16, 18.4x26, 11.2x24 tires)), 1620 (w/ 10.0x16, 9.0x18 tires), (815, 915 (SN 8001->). Cotton Picker: 1822, 1844, 2022, 2044, 782



Replaces Part Number: 71785HD







Models This Part Fits:

1026, 1066, 1086, 1206, 1256, 1456, 1466, 1468, 1486, 1566, 1568, 1586, 186, 21026, 3088, 3288, 504, HYDRO 100, HYDRO 186, HYDRO 70, HYDRO 86, Hydro 100

Additional Information:

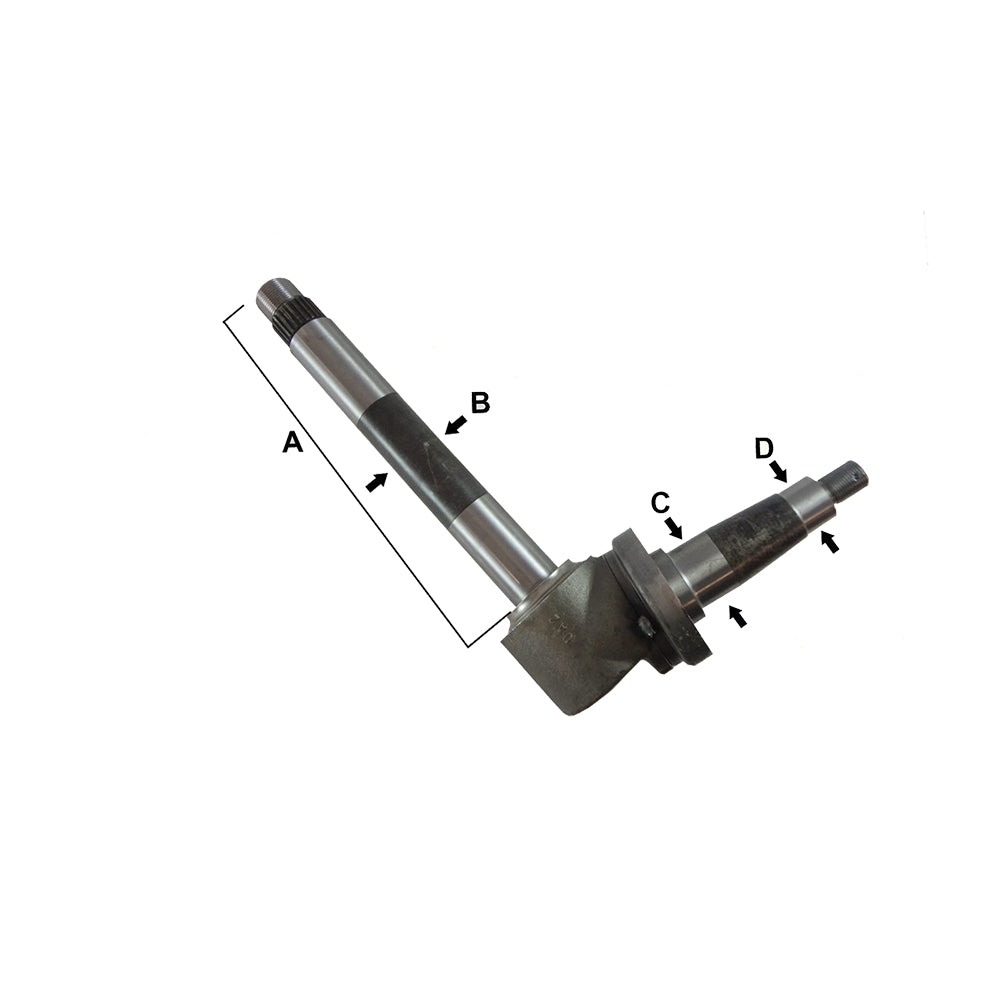

Please see corresponding photo: Dimension A: 12.750" Dimension B: 1.667" Dimension C: 1.780" Dimension D: 1.375" Spline Count: 24

Reference Numbers:

1704-3523, 1704-3523-A, 196334C2, 71785C1, 71785C2, 71785C92, 71785C92-A, 71785HD

Product Category:

Agriculture
View More: Agriculture Replacement Parts

View full details
  • 5 stars: 2 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
R
Robert Seeley (Hope, US)
1086 spindle

Was the right part tractor 🚜 is on the move again

B
Benjamin Beaman (Chicago, US)
spindle spline count was wrong for my application

there is no reference for spline count. I assumed a 1086 spindle would be correct. turns out my old one was 17 and replacement I ordered was 24. I ended up having to buy a 24 spline steering arm to make 24 spline spindle work.
