71147567 Muffler for Gleaner Combine F F2 K Gas 19" Long 2.5" I.D. 2 3/8" O.D.
71147567 Muffler for Gleaner Combine F F2 K Gas 19" Long 2.5" I.D. 2 3/8" O.D.
Regular price
$153.00 CAD
Regular price
Sale price
$153.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

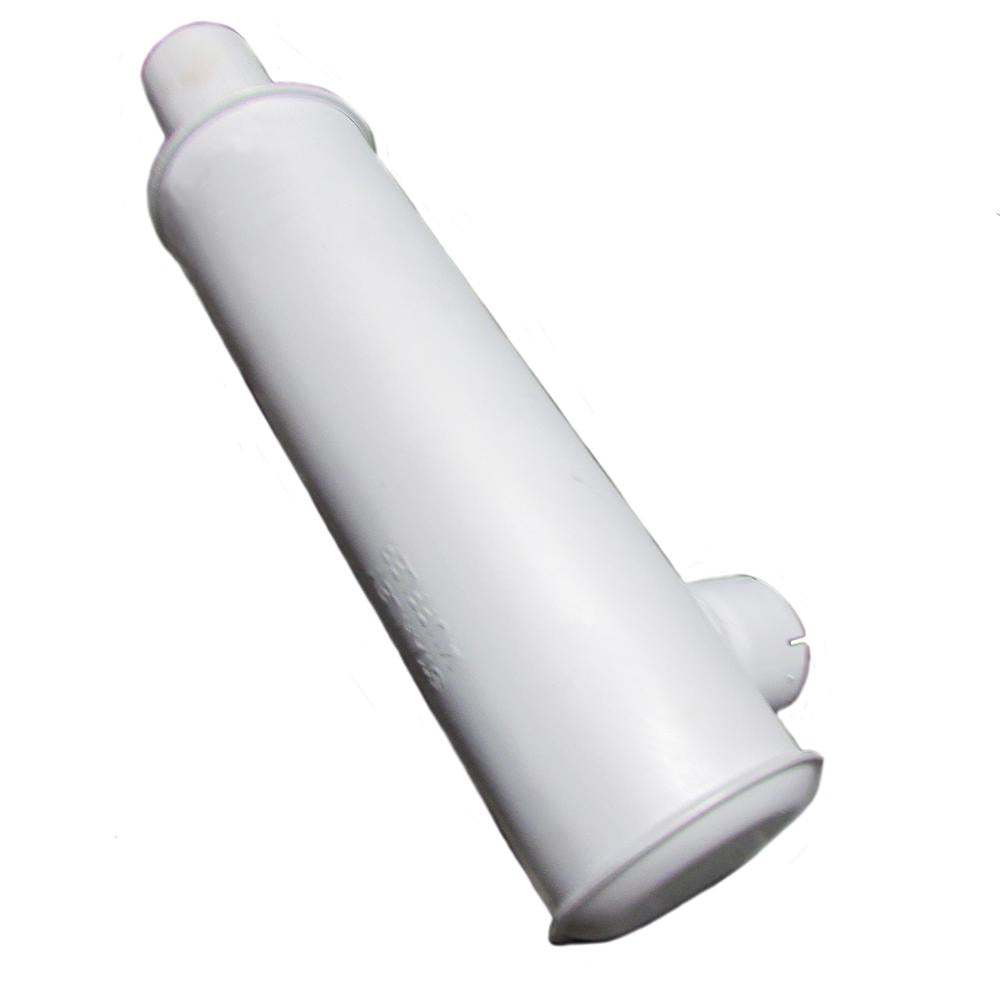

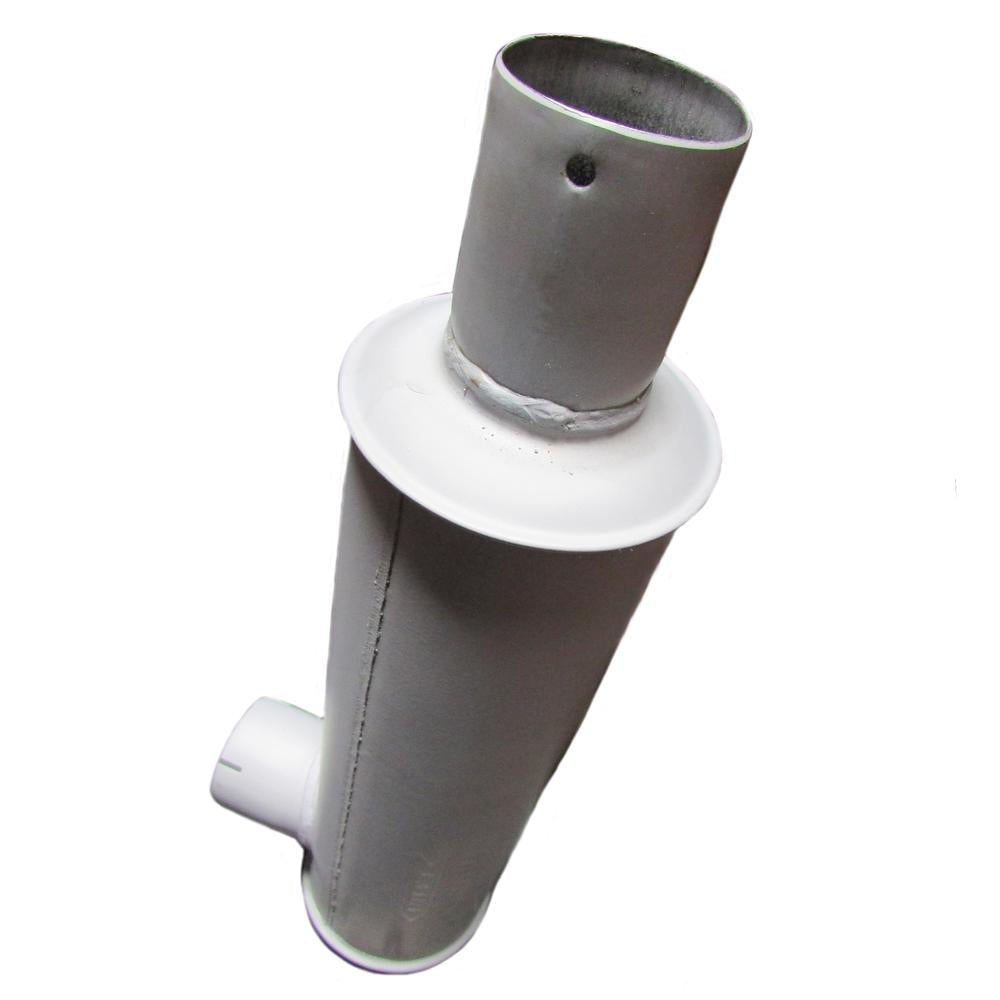

One New Aftermarket Replacement Muffler that fits Gleaner Combine Models F (W/ GAS ENGINE - SN 12201>), F2 (W/ GAS ENGINE - SN <39201), K (W/ GAS ENGINE - SN <25201).
• Horizontal / Round Body - 4 1/4" Shell Diameter

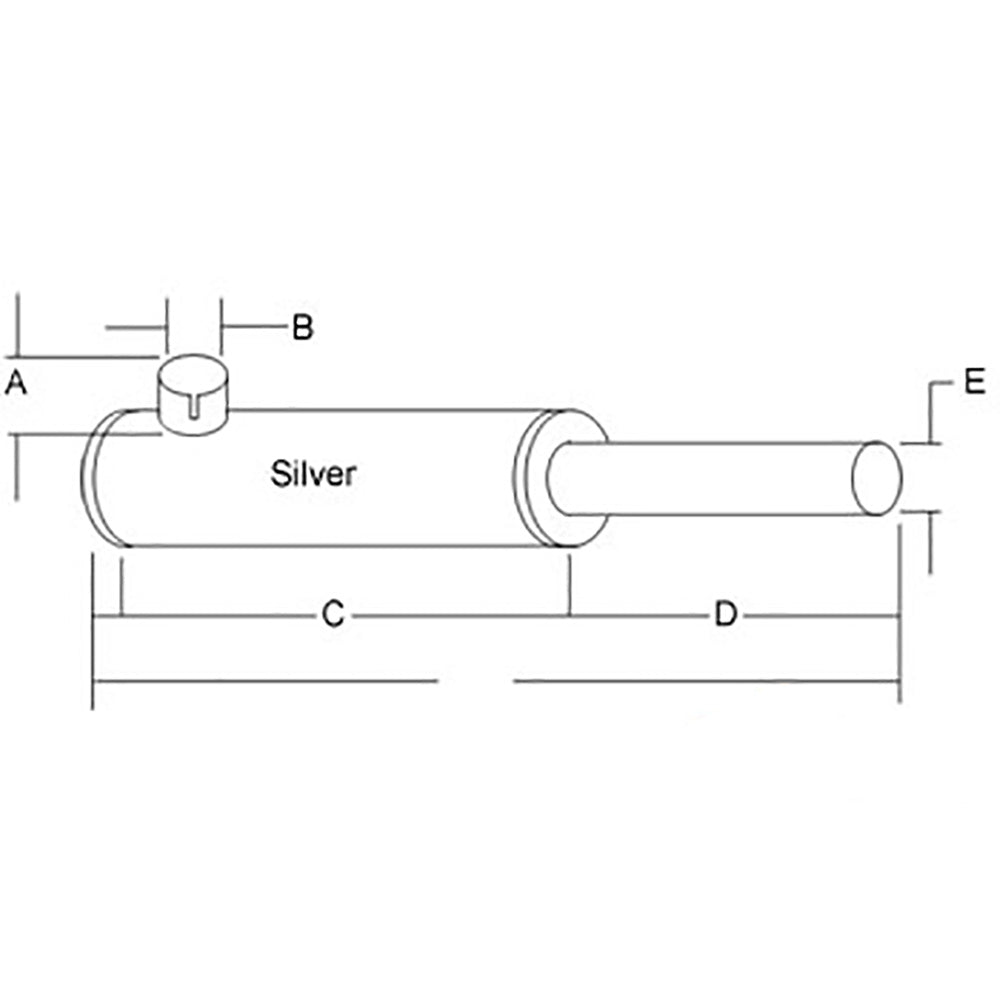

Dim A (1) A: 2 1/4" INLET LENGTH
Dim B (2) B: 2 1/2" INLET I.D.
Dim C (3) C: 16" SHELL LENGTH
Dim D (4) D: 3" OUTLET LENGTH
Dim E (5) E: 2 3/8" OUTLET O.D.
Dim F (6) F: 19" OVERALL LENGTH
Replaces Part Number 71147567.
