70276914 Brake Lining Kit Fits Allis Chalmers D15 D17 170 175 180
70276914 Brake Lining Kit Fits Allis Chalmers D15 D17 170 175 180
Regular price
$65.00 CAD
Regular price
Sale price
$65.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Replacement Brake Lining Kit Fits Allis-Chalmers Tractors

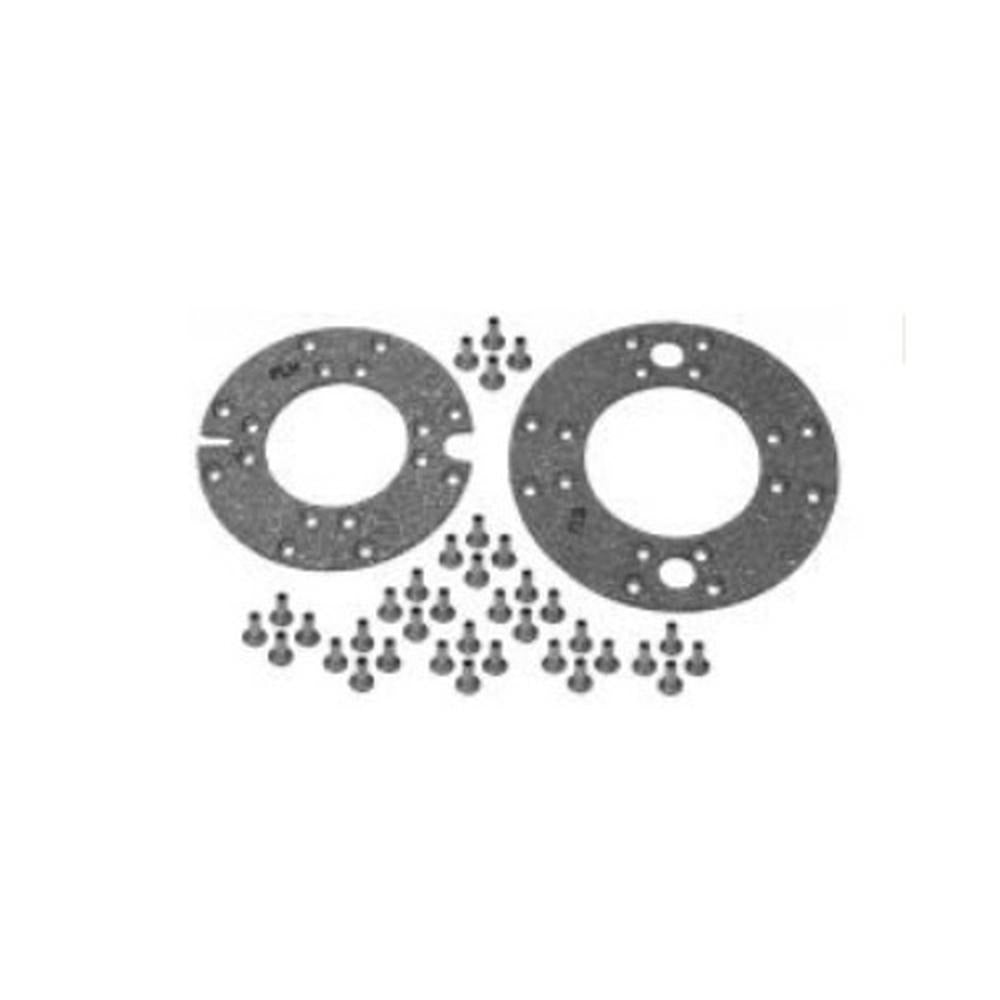

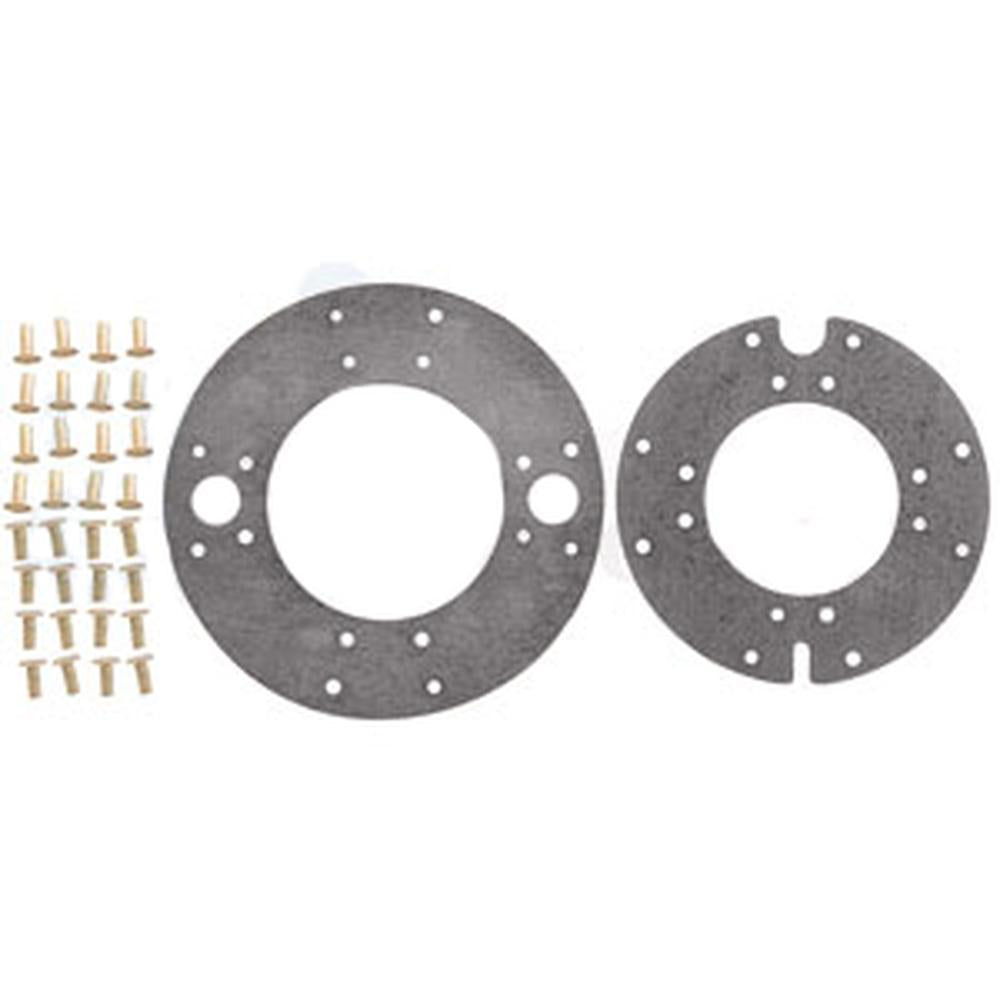

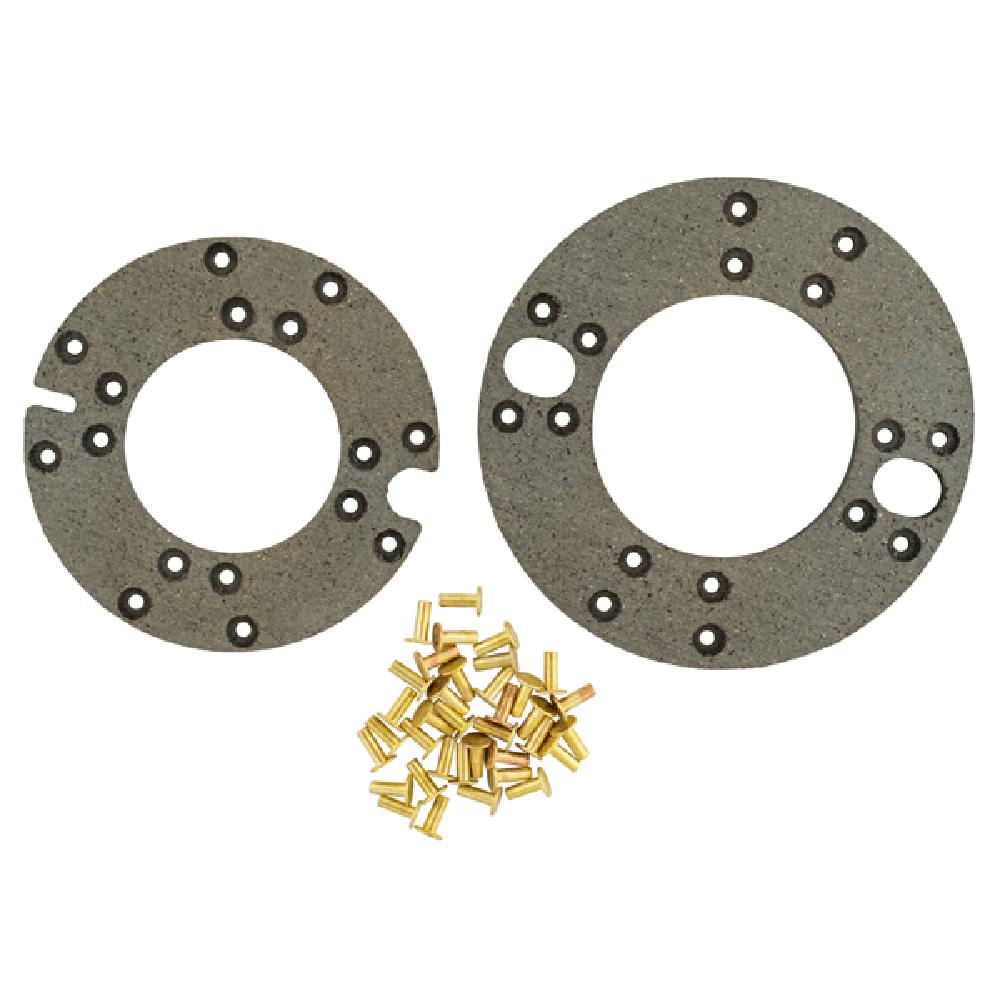

This aftermarket replacement brake lining kit services the Bendix disk brake system found on Fits Allis-Chalmers D-series and 100-series tractors. The kit includes two non-asbestos linings with rivets -- enough to reline one wheel (one side of the tractor). It is designed to reline brake plate 70248221 (also listed as 70277326) and brake drum 70237418. Order two kits for a complete both-sides brake job.
Specifications
- Includes: Two Linings and Rivets (one wheel/one side)
- Lining 1 OD: 6.500" with 3.500" center hole
- Lining 2 OD: 5.375" with 2.875" center hole
- Thickness: .188"
- Material: Non-Asbestos
- For use with brake plate 70248221 / 70277326 and brake drum 70237418
Compatible Models
Fits Allis-Chalmers Tractors: D15, D17 (Series I, II, III), D17 Series IV, 170, 175, 180, 185
Note: D17 fitment is confirmed for Series I, II, and III. Verify compatibility for D17 Series IV before ordering.
Replaces Part Number(s):
70237421, 70276914, 70277199
New aftermarket replacement part - not remanufactured, not used.
