COMPLETE TIE ROD ASSEMBLY Fits Allis CHALMERS D19 WD WD45

Name: COMPLETE TIE ROD ASSEMBLY Fits Allis CHALMERS D19 WD WD45
SKU: 70254660
Price: 129.0 USD
Availability: InStock

COMPLETE TIE ROD ASSEMBLY Fits Allis CHALMERS D19 WD WD45

$129.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

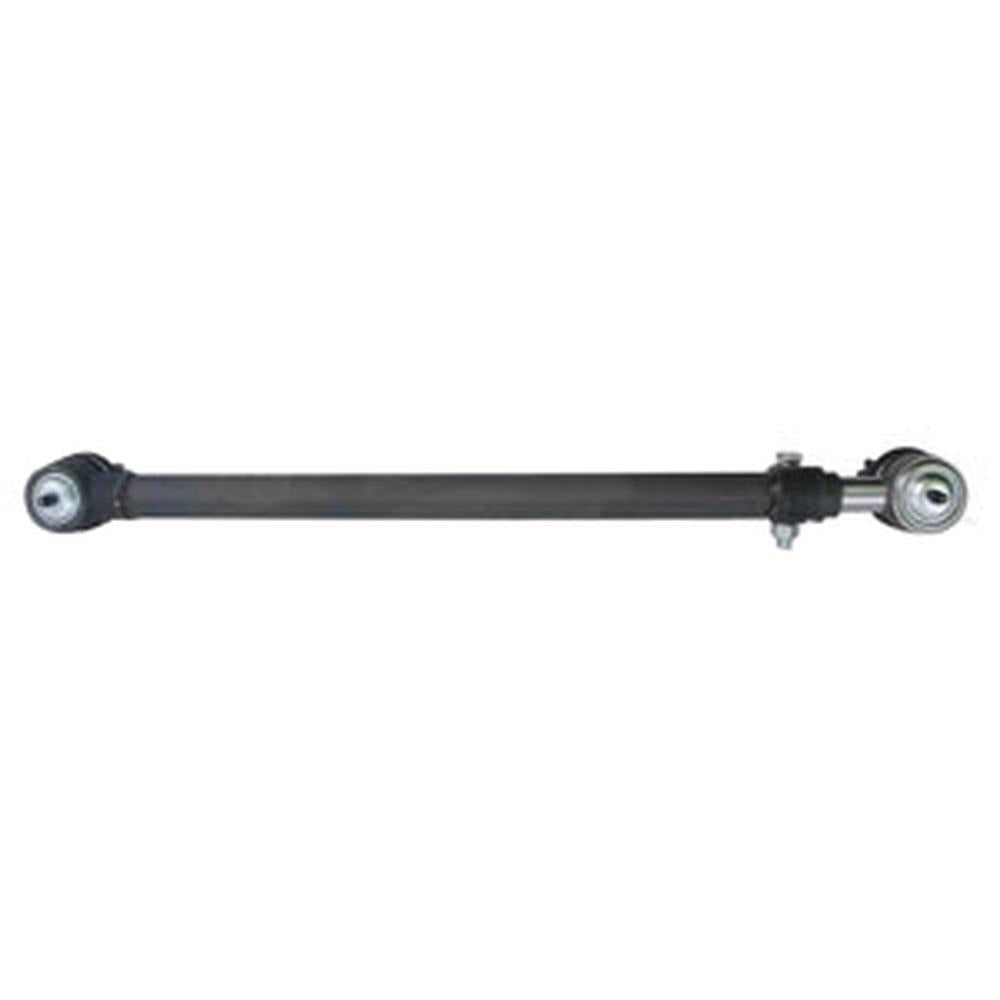

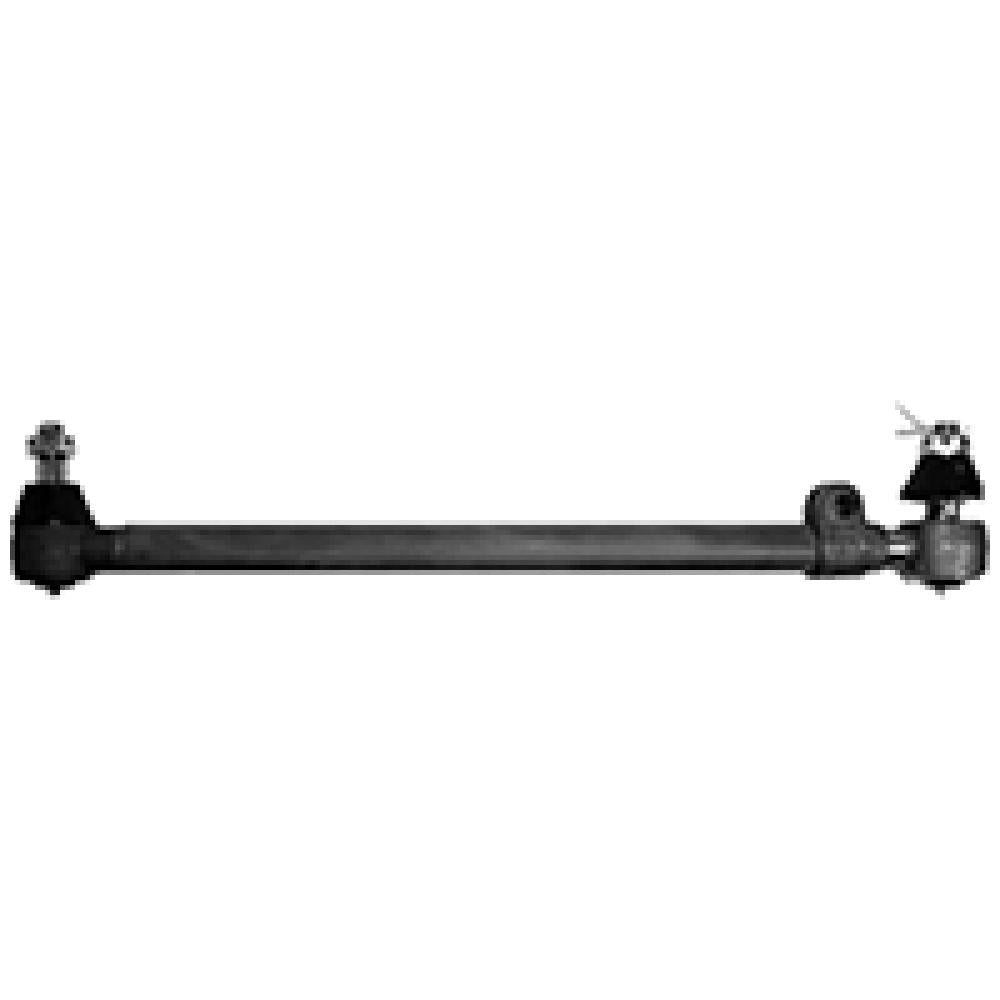

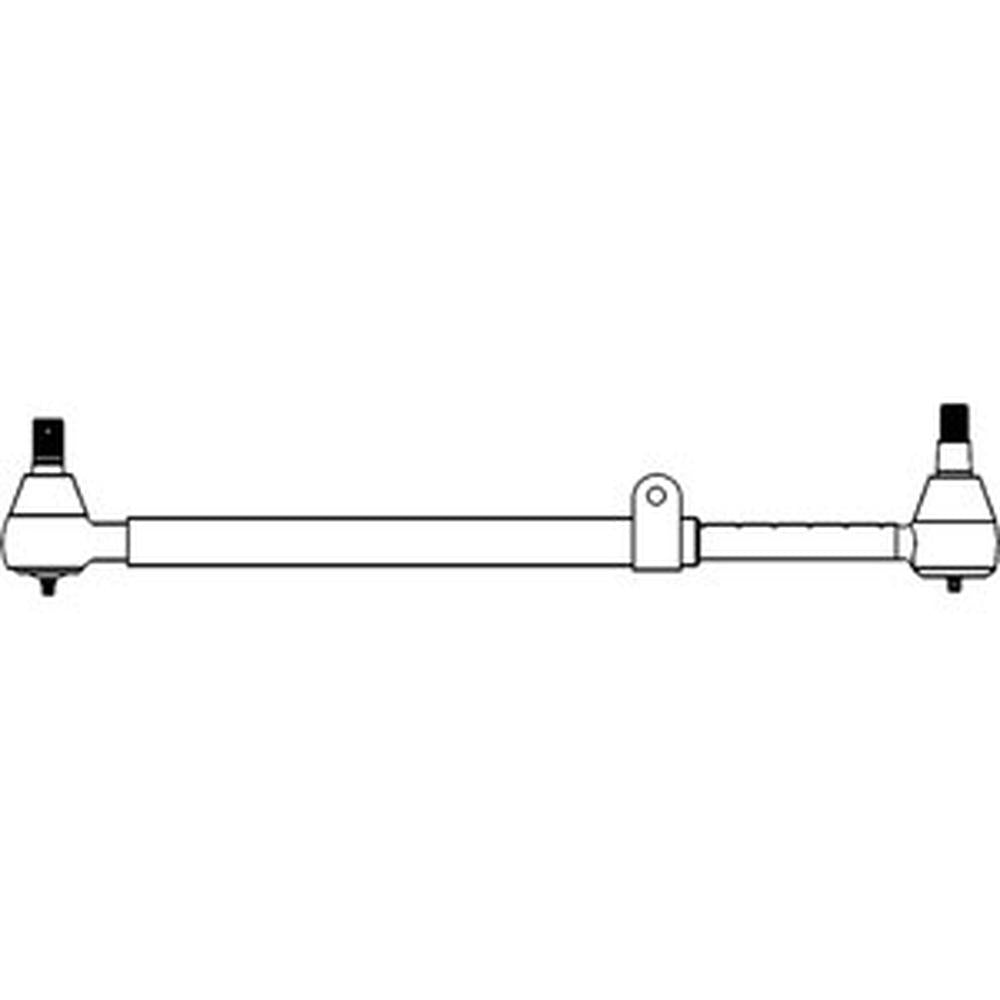

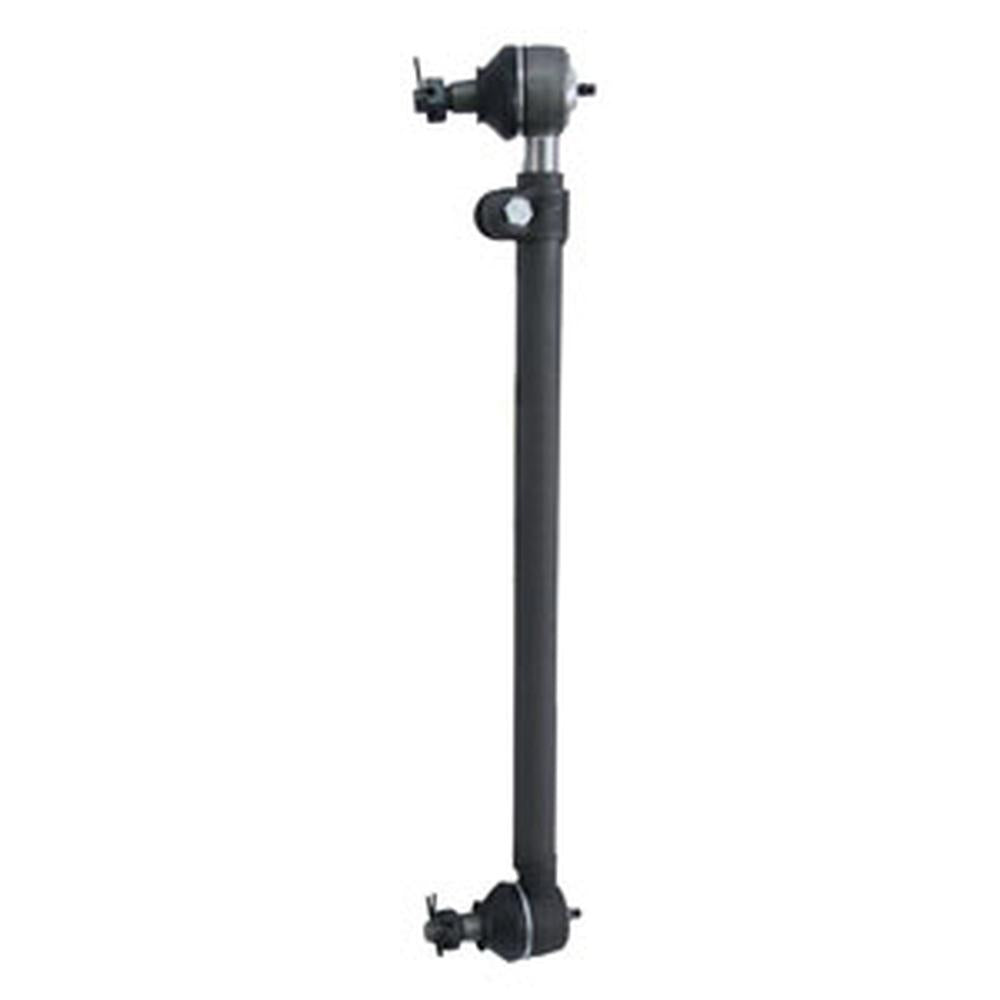

One New Aftermarket Replacement Complete Tie Rod Assembly Fits Allis-Chalmers Tractors

This complete two-piece tie rod assembly is a direct aftermarket replacement for the front steering linkage on Fits Allis-Chalmers tractors. The assembly includes one female tie rod end and one male tie rod end, along with a cap screw, nut, and lock washer. Note: On WD, WD45, D14, D15, D17, and D19 models, the male tie rod end must be cut to proper length prior to installation. On models 170 (up to SN 170-7500) and 175 (up to SN 175-2035), serial number restrictions apply - verify your serial number before ordering.

Specifications

Inner tie rod length: 16-3/8" (grease fitting to end)
Inner rod diameter: 0.782"
Outer tube length: 17-3/8" (grease fitting to end)
Outer tube outside diameter: 1.56"
Tie rod end taper: 0.660" to 0.735"
Extended length (rod inserted 3-1/4"): 30-1/2" (center to center)
Collapsed length: 18-3/4" (center to center)
Kit includes: Female tie rod end, male tie rod end, cap screw, nut, lock washer

Compatible Models

Fits Allis-Chalmers Tractors (standard fitment): 170 (up to SN 170-7500), 175 (up to SN 175-2035), 180, 185, 190, 190XT, 190XT III, 200

Fits Allis-Chalmers Tractors (cut male end to length before installation): WD, WD45, D14, D15, D17, D19

Also fits: CA (with adjustable wide front axle)

Replaces Part Number(s):

70254660, 254660, 70254661, 254661, 70254662, 254662, 70254662V, 70249418, 249418, 70250141, 250141, 70250142, 250142, 70225279, 225279, 70225280, 225280, 70227481, 227481, 70222084, 222084, 70227830, 70253249, 70247836, 70235789, 721696

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

190XTIII, 190XT, D15, 170, 200, D17, 190XT III, 185, CA, WD, 180, WD45, D14, 175, D19, 190

Additional Information:

The inside tie rod measures 16-3/8" long from the grease fitting to the end 0.782" diameter rod Outer tube is 17-3/8" long from the grease fitting to the end 1.56" tube outside diameter The tie rod end tapers from 0.660" to 0.735" Extended length with tie rod inserted 3 1/4 inches is 30 1/2 inches.(measurement from tie rod center to tie rod center) Collapsed it is 18 3/4 inches. (measurement from tie rod center to tie rod center)

Reference Numbers:

70254660, 70250141, 70254661, 70227830, 70254662, 70253249, 70247836, 70235789, 70249418, 70254660, 70254661, 70254662, 70254662V, 254661, 70249418, 70250141, 70250142, 250141, 250142, 225279, 249418, 70225279, 70227481, 70254661, 70254662, 227481, 225280, 254662, 70222084, 222084, 70225280
