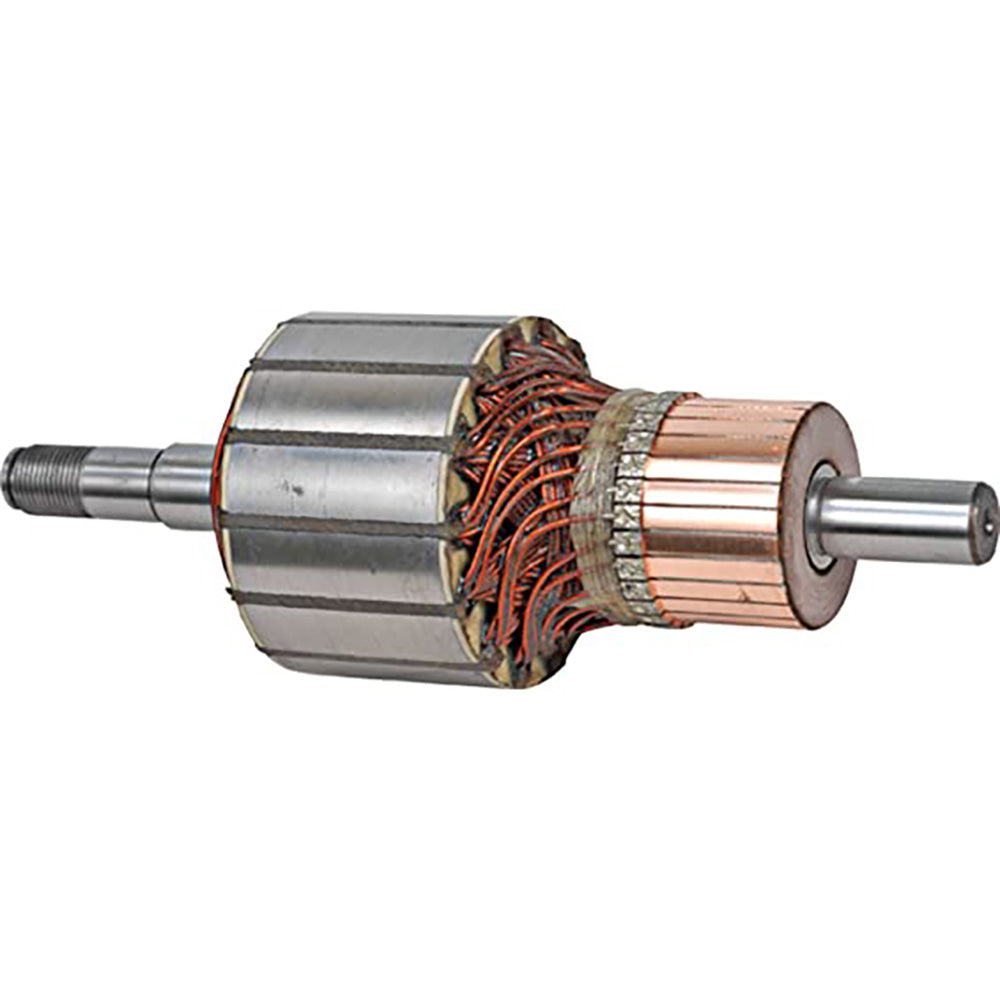

6V Armature Fits Lester 1313 1455 RGA1313 Tractors 301-12014

6V Armature Fits Lester 1313 1455 RGA1313 Tractors 301-12014

$165.00 CAD
$165.00 CAD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Replacement Fits Delco 6 Volt Generator Armature

Fits Delco Models:
1100045 - Fits Delco Generator (AMPS 20, ROTATION DIRECTION Clockwise, VOLT 6)
1100046 - Fits Delco Part (AMPS 35, ROTATION DIRECTION Clockwise, VOLT 6)
1100306 - Fits Delco Generator (AMPS 20, ROTATION DIRECTION Clockwise, VOLT 12)
1100307 - Fits Delco Generator (AMPS 20, ROTATION DIRECTION Clockwise, VOLT 12)
1100346 - Fits Delco Generator (AMPS 20, ROTATION DIRECTION Clockwise, VOLT 12)
1100347 - Fits Delco Generator (AMPS 20, ROTATION DIRECTION Clockwise, VOLT 12)
1100368 - Fits Delco Part (AMPS 25, ROTATION DIRECTION Clockwise, VOLT 12)
1100501 - Fits Delco Part (AMPS 25, ROTATION DIRECTION Clockwise, VOLT 6)
1100534 - Fits Delco Part (AMPS 10, VOLT 6)
1100964 - Fits Delco Part (AMPS 13, ROTATION DIRECTION Clockwise, VOLT 12)
1100997 - Fits Delco Part (AMPS 16, ROTATION DIRECTION Clockwise, VOLT 12)
1101355 - Fits Delco Part (AMPS 16, ROTATION DIRECTION Clockwise, VOLT 6)
1101358 - Fits Delco Part (AMPS 16, ROTATION DIRECTION Clockwise, VOLT 6)
1101361 - Fits Delco Generator (AMPS 16, VOLT 6)
1101372 - Fits Delco Part (AMPS 16, ROTATION DIRECTION Clockwise, VOLT 6)
1101423 - Fits Delco Part (AMPS 15, ROTATION DIRECTION Clockwise, VOLT 6)

Tech Info:
Description: Armature
Volt: 6
Rotation Direction: Clockwise
Body OD: 2.776"/70.500mm
CE OD: 0.563"/14.300mm
DE OD: 0.669"/17mm
Length: 251.600 mm/9.906"
CE to Stop: 25.300
DE to Stop: 69.800
LAM Stack Thickness: 2.681"/68.100mm
Notes: Keyway on DE@ 0.669"-20 Threaded DE Shaft

Replaces Part Numbers:
Fits Delco: 1873054, 1913560, 1913735, 1932055, 1947352, 1947802
Fits J&N: 301-12011, 301-12011R, 301-12014, 301-12014R
Fits Lester: 1313, 1455, RGA1313
Fits Arrowhead: GDR3001

Models This Part Fits:

1100501, 1100534, 1100997, 1101423, 1100045, 1100346, 1101361, 1101358, 1101372, 1100347, 1100306, 1100307, 1101355, 1100046, 1100368, 1100964

Additional Information:

Voltage: 6 Body OD: 2.776in / 70.5mm CE OD: 0.563in / 14.3mm DE OD: 0.669in / 17mm Length: 9.906in / 251.6mm CE to Bearing/Bushing Stop: 0.996in / 25.3mm DE to Bearing/Bushing Stop: 2.748in / 69.8mm Number of Comm Bars: 28 Lam Stack Thickness: 2.681in / 68.1mm Notes: Keyway on DE 0.669"-20 Threaded DE Shaft

Reference Numbers:

1313, 1455, RGA1313, 1873054, 1913560, 1913735, 1932055, 1947352, 1947802
