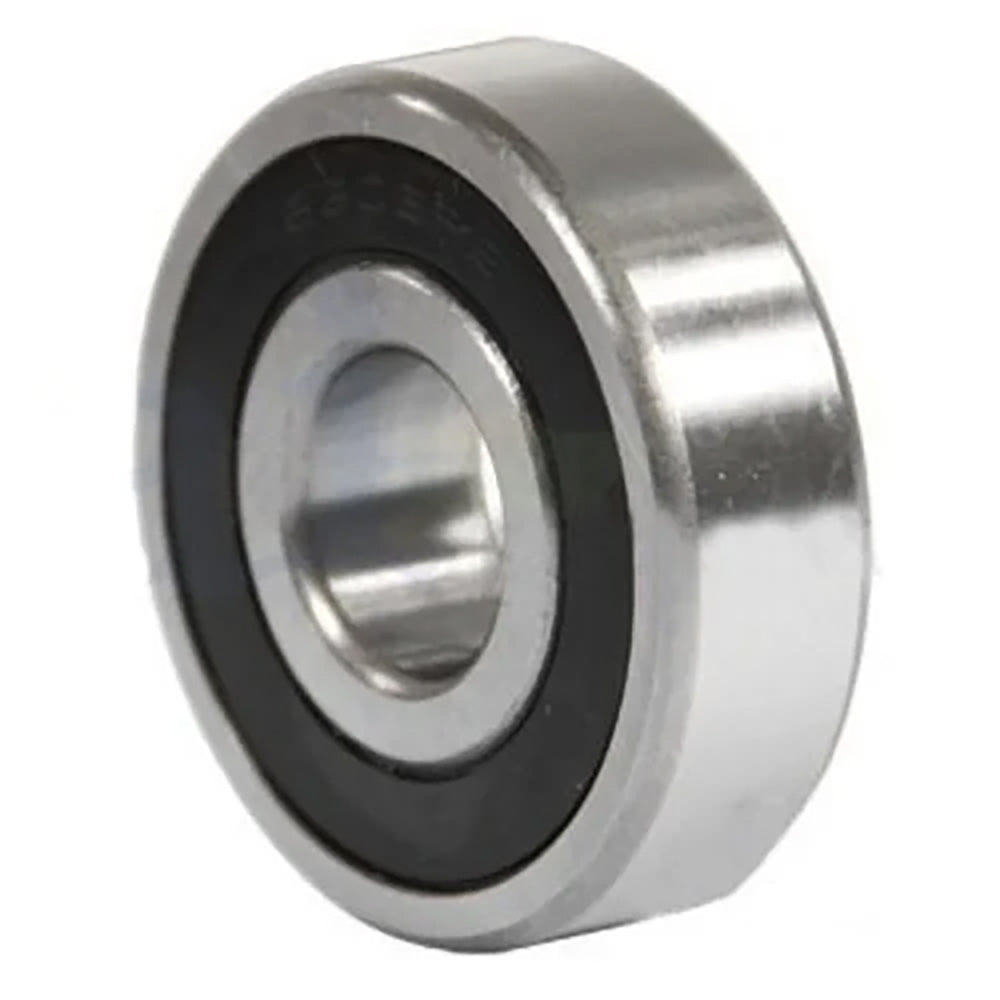

6304-2RS 524598R1 Clutch Pilot Bearing Fits International 1066 1086 1206 1256 ++
6304-2RS 524598R1 Clutch Pilot Bearing Fits International 1066 1086 1206 1256 ++
Couldn't load pickup availability
One New Aftermarket Replacement Clutch Pilot Bearing for International Harvester (IH) Tractors and Industrial/Construction Equipment
This clutch pilot bearing supports and centers the transmission input shaft within the crankshaft pilot bore, allowing smooth clutch engagement and disengagement. It is a sealed deep groove radial ball bearing (6304-2RS) with two rubber contact seals to retain grease and exclude contaminants, making it well suited for the demanding clutch environments found on International Harvester and Case-IH agricultural and industrial equipment.
Specifications
- Bearing Number: 6304-2RS
- Bearing Type: Deep Groove Radial Ball Bearing, Double Rubber Sealed
- Bore (ID): 20 mm (0.787 in)
- Outside Diameter (OD): 52 mm (2.047 in)
- Width: 15 mm (0.591 in)
- Seals: 2 Contact Seals
Compatible Models
Case-IH / International Harvester Tractors: 350, 460, 606, 656, 686, 706, 756, 766, 786, 806, 826, 856, 886, 966, 986, 1066, 1086, 1206, 1256, 1456, 1466, 1468, 1486, 1566, 1568, 1586, 2706, 2756, 2806, 2826, 2856, 3088, 3288, 3388, 3588, 3688, 3788, 4100, 4156, 4166, 4186, 6388, 6588, 6788, 21206, 21256, 21456
Case-IH / International Harvester Industrial/Construction: 2656, 3616
Case-IH / International Harvester Combines: 815, 915
Case-IH / International Harvester Backhoe Loaders: 3400A, 3500A
Replaces Part Number(s):
524598R1
New aftermarket replacement part - not remanufactured, not used.
