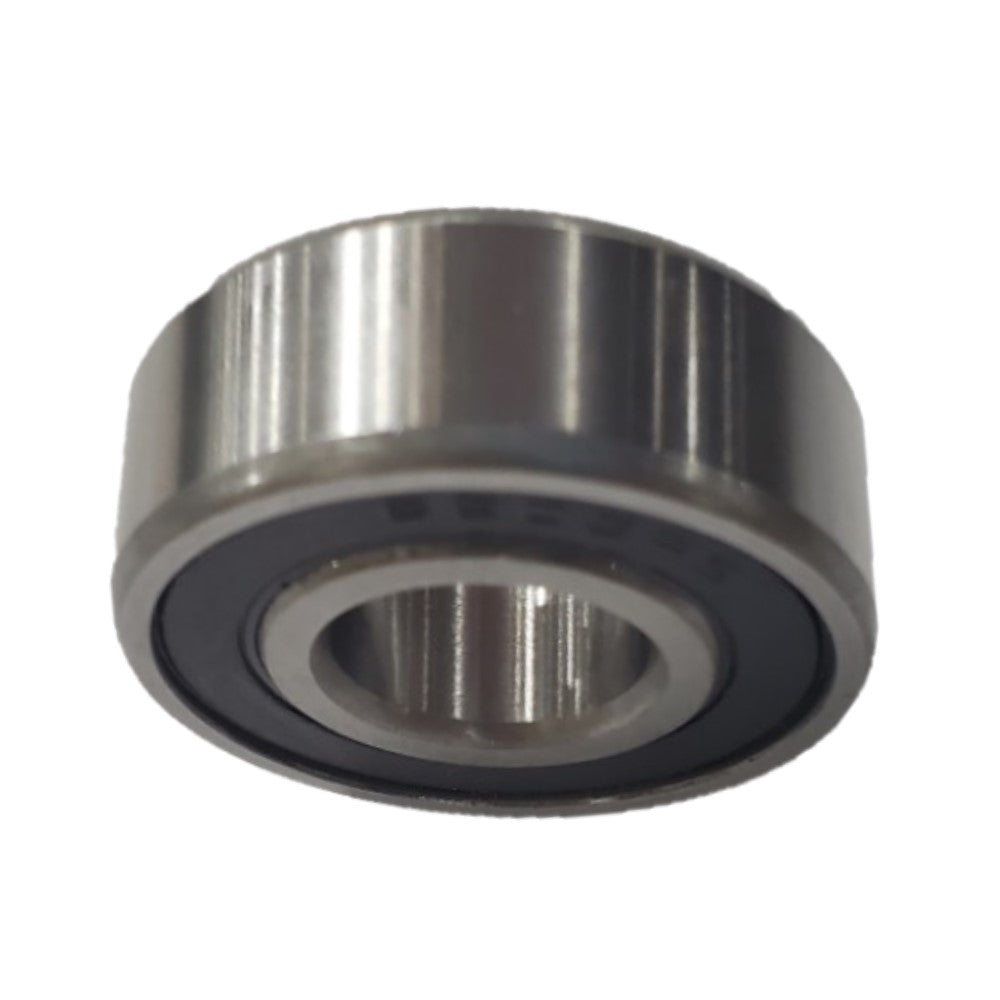

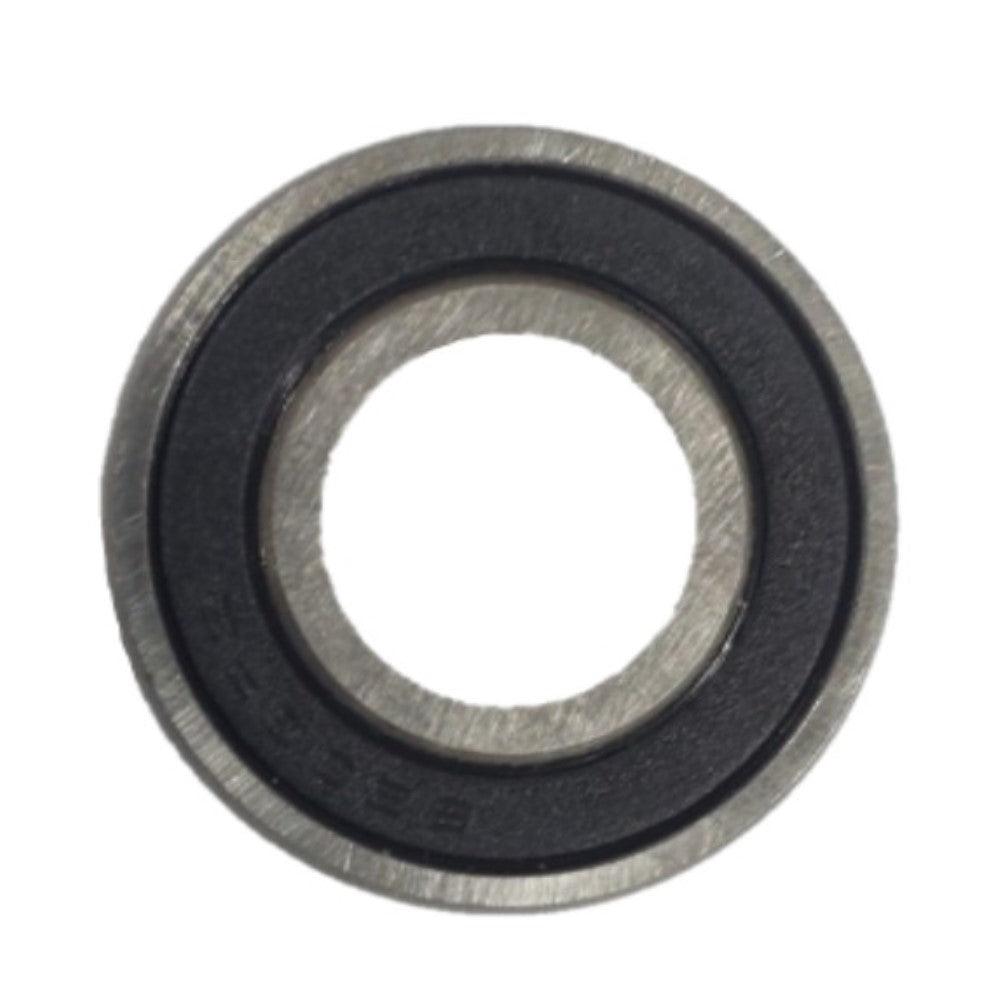

6203 2Z GENERAL BALL BEARING

6203 2Z GENERAL BALL BEARING

Regular price $13.00 CAD
Regular price Sale price $13.00 CAD
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement Clutch Pilot Bearing - 6203 2Z Deep Groove Ball Bearing Fits Ford, Fits Massey Ferguson, Fits John Deere, and More

This aftermarket replacement 6203 2Z clutch pilot bearing is a single-row, deep groove ball bearing used to support and center the transmission input shaft within the crankshaft bore on tractors and industrial equipment equipped with manual clutch systems. It seats in the crankshaft pilot bore and allows the input shaft to rotate freely when the clutch is disengaged. The 6203 2Z (also listed as 6203ZZ, 6203-2Z) designation indicates a double-shielded bearing pre-lubricated with grease and ready for installation. Fits a wide range of Fits Ford, Fits Ford/New Holland, Fits Massey Ferguson, Fits Massey Harris, Fits John Deere, Fits Allis Chalmers, Long, White, Fits Kubota, Landini, Farmtrac, Tafe, and Renault tractors and industrial equipment.

Specifications

  • Type: Single-Row Deep Groove Ball Bearing (Clutch Pilot Bearing)
  • Inside Diameter (Bore): 17 mm (0.669 in)
  • Outside Diameter: 40 mm (1.575 in)
  • Width: 12 mm (0.472 in)
  • Shielding: Double-shielded (metal shields both sides), grease-lubricated
  • Bearing Series: 6200

Compatible Models

Fits Ford / Fits Ford New Holland: 2N, 8N, 9N, NAA, Jubilee, 501, 515, 531, 532, 535, 540, 540A, 540B, 541, 545, 545A, 545C, 545D, 550, 555, 555A, 555B, 600, 601, 630, 640, 650, 660, 700, 701, 741, 751, 800, 801, 820, 840, 841, 851, 860, 900, 901, 941, 950, 960, 961, 981-4, 1000, 1300, 1500, 1600, 1800, 1801, 1811, 1821, 1841, 1871, 1881, 2000, 2000 3 Cylinder, 2000 4 Cylinder, 2000 US Built, 2100, 2110, 2110LCG, 2120, 2130, 2150, 2300, 2310, 2355, 2600, 2600N, 2600 US Built, 2600V, 2610, 2610 US Built, 2610V, 2810, 2910, 3000, 3000 US Built, 3055, 3100, 3110, 3120, 3150, 3190, 3230, 3300, 3310, 3330, 3400, 3400 US Built, 3415, 3430, 3500, 3500 US Built, 3550, 3550 US Built, 3600, 3600N, 3600 US Built, 3600V, 3610, 3610 US Built, 3610V, 3910, 3910N, 3910V, 3930, 4000, 4000 3 Cylinder, 4000 4 Cylinder, 4000 US Built, 4100, 4110, 4110 US Built, 4110LCG, 4110N, 4110V, 4130, 4130N, 4130 3 Cylinder, 4140, 4200, 4230, 4240, 4330, 4340, 4400, 4400 US Built, 4410, 4500, 4500 US Built, 4520, 4600, 4600 US Built, 4600SU, 4610, 4610 US Built, 4610N, 4610SU, 4610V, 4620, 4630, 4630N, 4830, 4830N, 4840, 5000, 5030, 5100, 5110, 5190, 5200, 5340, 6410, 6510, 7020, 7630, 7830, Dexta, Super Dexta, Major, Super Major

Fits Massey Ferguson / Fits Massey Harris: 35, 40, 45, 50, 65, 85, 88, 92, 94, 96, 98, 135, 150, 160, 165, 175, 180, 202, 203, 204, 205, 230, 231, 233, 234, 235, 240, 245, 250, 253, 255, 265, 275, 285, 300, 302, 304, 333, 334, 335, 340, 345, 350, 360, 362, 380, 390, 398, 399, 410, 420, 424, 425, 431, 435, 439, 445, 450, 461, 481, 496, 498, 500, 510, 530, 531, 532, 550, 560, 580, 590, 620, 630, 650, 655, 660, 670, 690, MF40, MH50, Super 90, TE20, TEA20, TO20, TO30

Fits John Deere: 20, 30, 40, 50, 60, 88, 2030, 2130, 2240, 2440, 2510, 2520, 2550, 2555, 2630, 2640, 2650, 3010, 3020, 3120, 4010, 4020, 4040, 4230, 4240, 4320, 4340, 4400, 4430, 4440, 4520, 4620, 4630, 4640, 4840, 5010, 5020

Fits Allis Chalmers: 160, 170, 175, 180, 185, 190, 200, 210, 220, D14, D15, D17, D19, D21, WD, WD45

Fits Kubota: L3750, L3750DT, L4150, L4150DT, L4850, L4850DT, L5450, L5450DT, M4000, M4030, M4050, M4500, M4950, M5030, M5850

Long / Farmtrac / Tafe / Landini / White / Renault / Other Makes: See compatible part numbers and cross-references below. Fitment spans multiple brands including Farmtrac, Fits Mitsubishi, Landini, Tafe, Renault, and White tractors. Verify by cross-referencing OEM part number.

Replaces Part Number(s):

6203, 6203-2RS, 6203ZZ, 6203-Z, 6203ZZC3, 6203ZZQSS, 62032RS, 6303-2RS, C5NN7600A, ESL10692, B7600A3, 832960M1, 832960M3, 832960M4, 832960M91, 832960V3, 832953M3, 832953M4, 832953M91, 823953M3, 828123M1, 828123M2, 836203, 488952M4, 3436488M1, 3704327M1, 1440487X1, 1440492X1, 93350647, 81805417, 87302841, 87554550, 80210040, 210040, 410 0020 000, 4100020000, 410002040, 410010810, 53206040, 362804, 081410620, 465004R91, G10623, 0249748, 0532094, 1129247, 1666292, 203S, 227392, 29963X, 61543, 72074920, 72097586, 907998, 990023, 990044, 990057, AA61722, BEA-6203 ZZ, VPG5010, JD8504, JD8535, JD9281, JD9394, JD9449, CH12908, 100-1048, 109966, 112-0423, 136-5441, 38-7820, 33-0062995, 7RA10094A

Aftermarket Interchange Numbers

CLB10-0018, 201-019, 741-0524, 741-0524P, M04-25-01, TP-JD9449, TPJD9281, JD92, 836203, VPG5010

New aftermarket replacement part - not remanufactured, not used.
