6 to 12 Volt Conversion Kit Fits FARMALL Tractors 100 130 200

Name: 6 to 12 Volt Conversion Kit Fits FARMALL Tractors 100 130 200
SKU: ELV40-0203CONVERSION-RAP
Price: 361.0 USD
Availability: InStock

6 to 12 Volt Conversion Kit Fits FARMALL Tractors 100 130 200

$361.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One (1) New Aftermarket Replacement 6 to 12 Volt Conversion Kit

Fits FARMALL Tractor Models:
100, 130, 200

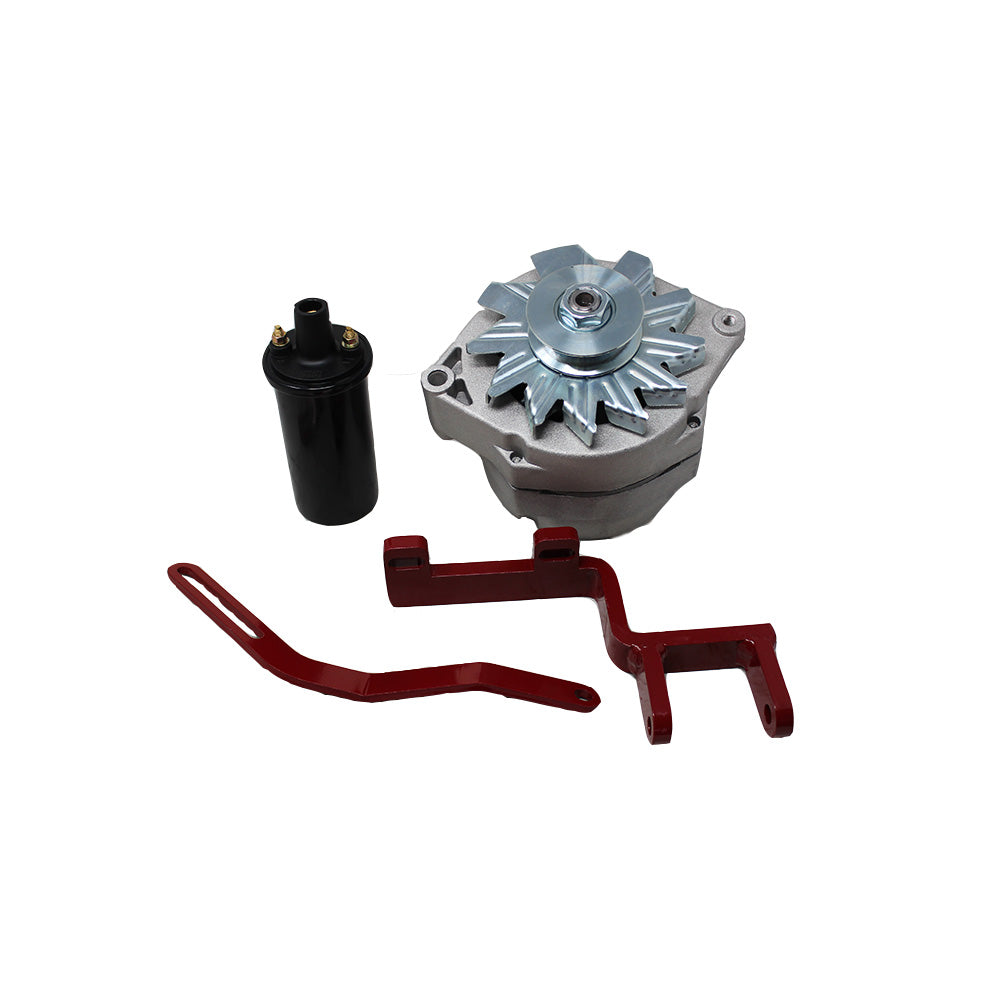

Kit Contains:
(1) Alternator
(1) Internal Resistor Coil
(1) Alternator Bracket Kit

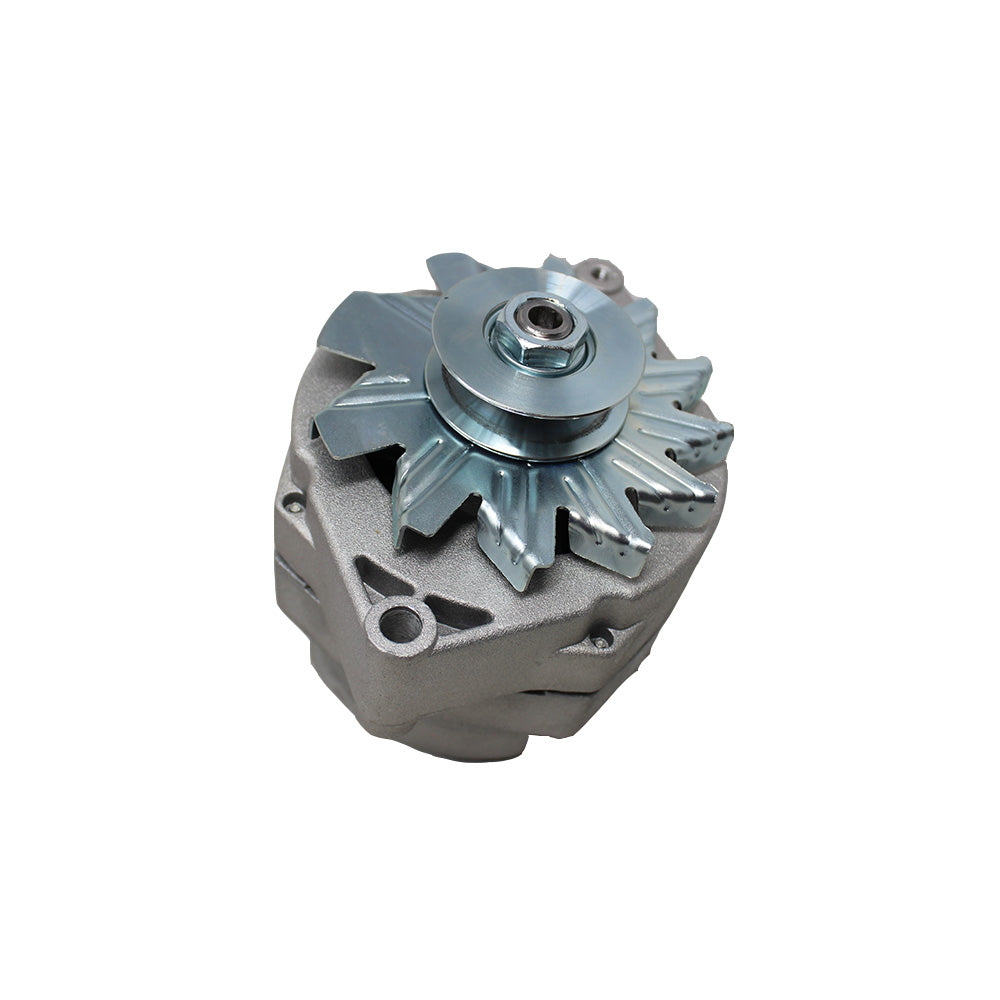

Alternator - Tech Info:
Voltage: 12
Amps: 63
Rotation: CW
Mount Type: Spool
Mtg Ear 1 Hole: 5/16-18 Threaded
Mtg Ear 2 Hole: 10mm Unthreaded
Mtg Ear 1 Thickness: 0.709in / 18mm
Mtg Ear 2 Thickness: 2.008in / 51mm
Regulator Clock: 3:00
Fan Location: External
Regulator Location: Internal
B+ Terminal: 12-24
Polarity: Negative
Pulley Grooves: 1
Pulley Type: Solid
Pulley OD: 2.48in / 63mm
1-Wire System
Self-Excited
5/8" Groove Pulley

Replaces Part Numbers:
103798A1R, 30000502, 530440M92, 579880M91, A-1100585, ELV40-0203

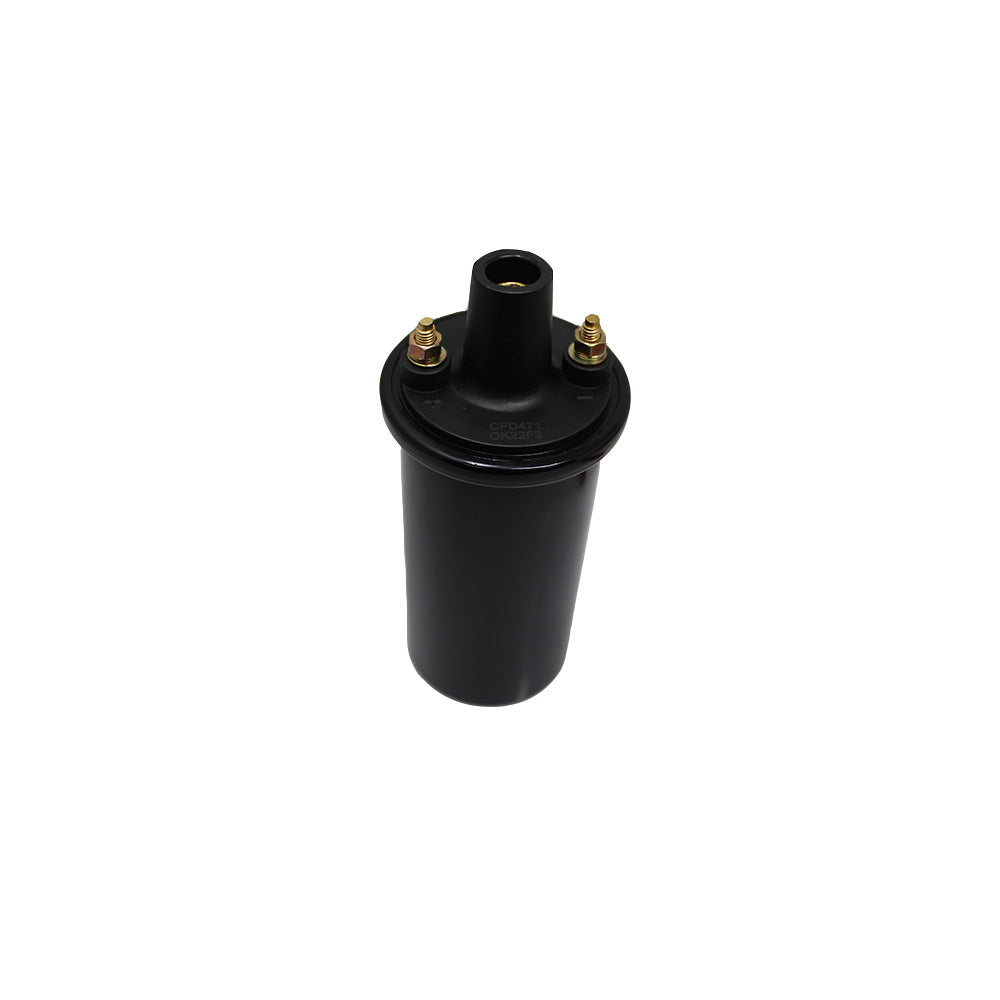

Internal Resistor Coil - Tech Info:
6V W/O Resister, 12V W/ Resister

Replaces Part Numbers:
4723SMP308076, 4723SMP408076, D5TE12029AB, ELI80-0008, XD800

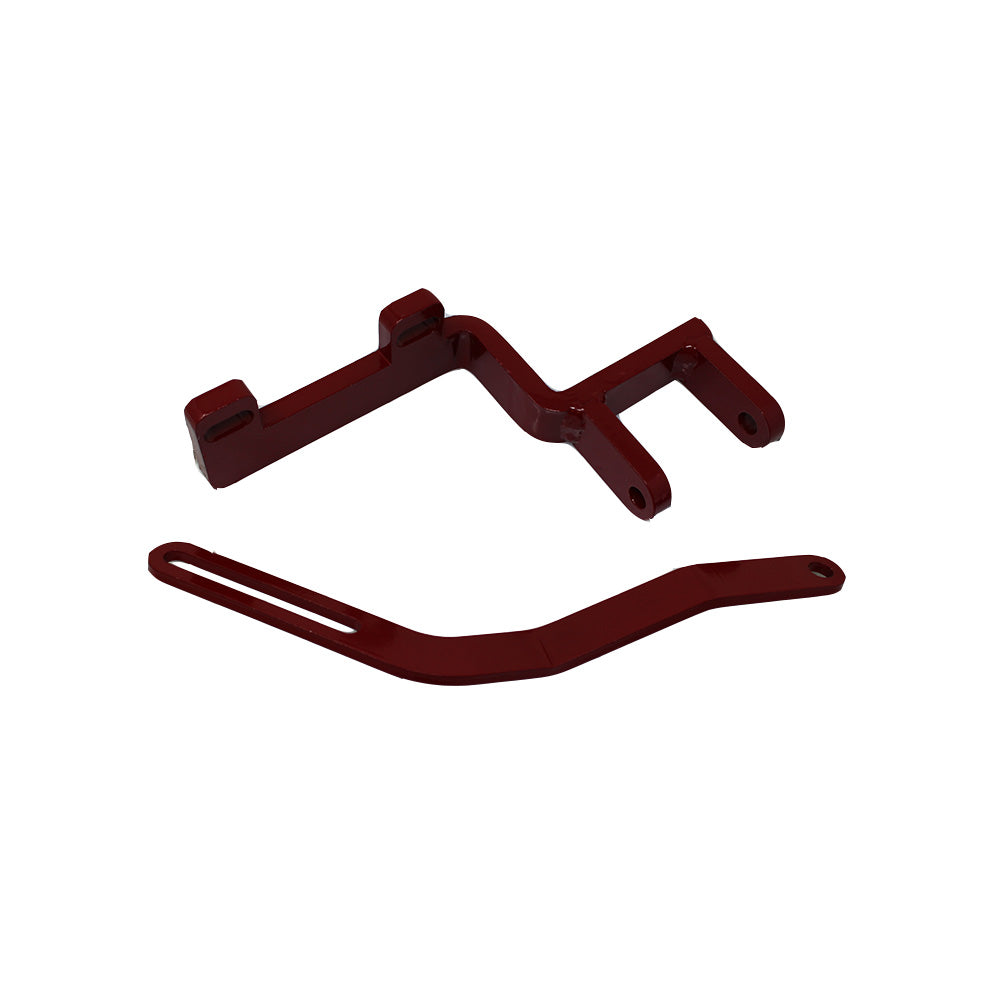

Alternator Bracket Kit - Tech Info:
Lower Bracket is 2" between tabs for Alternator.

Replaces Part Numbers:
IHS2349, RAP2349

Models This Part Fits:

100, 130, 200

Additional Information:

Includes: (1) Internal Resistor Coil: 12 Volt Replaces Part Numbers: A11074, A33438, A41820, G44808, 396547R91, 1115103, 1115339, 1115376, 1115380, 1115381, 1115385, 1115394, 1115396, 1115400, 178N, U505 (1) Alternator: Clockwise Rotation 12 Volt 10SI 63 amp 6-1/4" Housing Diameter 2-1/2" Pulley Diameter 5/8" Belt Width 6-3/8" Center to Center Mounting Bolt Pattern Replaces Part Numbers: 103798A1R, A45201, A45202, 10459509, 1100490, 1100491, 1100583, 1100587, 1102375, 1103183 (1) Alternator Bracket Kit: All Without Cultivators Lower Bracket Is 2" Between Tabs for Alternator Replaces Part Numbers: IHS2349
