MF Seat Assembly Fits TE20,TEA20,TO20,TO30,TO35, F40, MH50 S61390

Name: MF Seat Assembly Fits TE20,TEA20,TO20,TO30,TO35, F40, MH50 S61390
SKU: 513353M91-WBUCKET
Price: 294.0 USD
Availability: InStock

MF Seat Assembly Fits TE20,TEA20,TO20,TO30,TO35, F40, MH50 S61390

$294.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Bucket Seat Assembly Fits Massey Ferguson (MF) and Fits Massey Harris Tractors

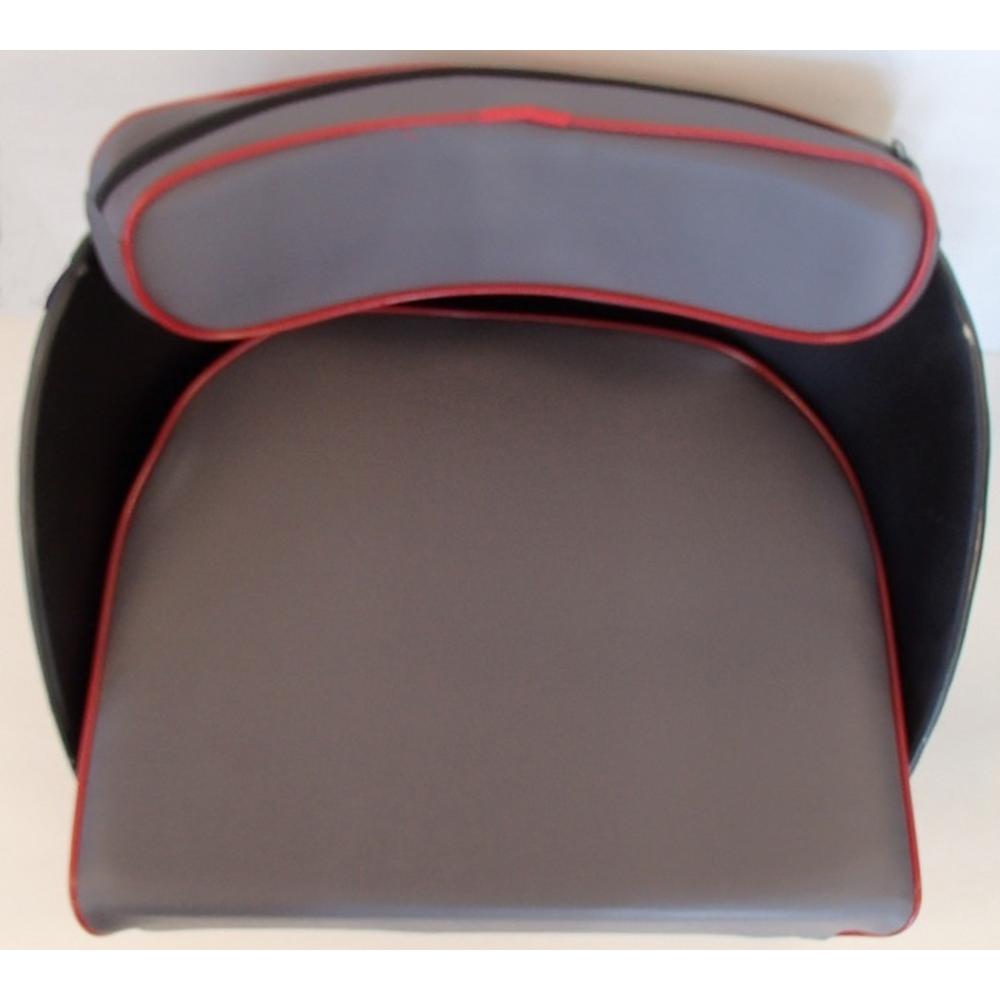

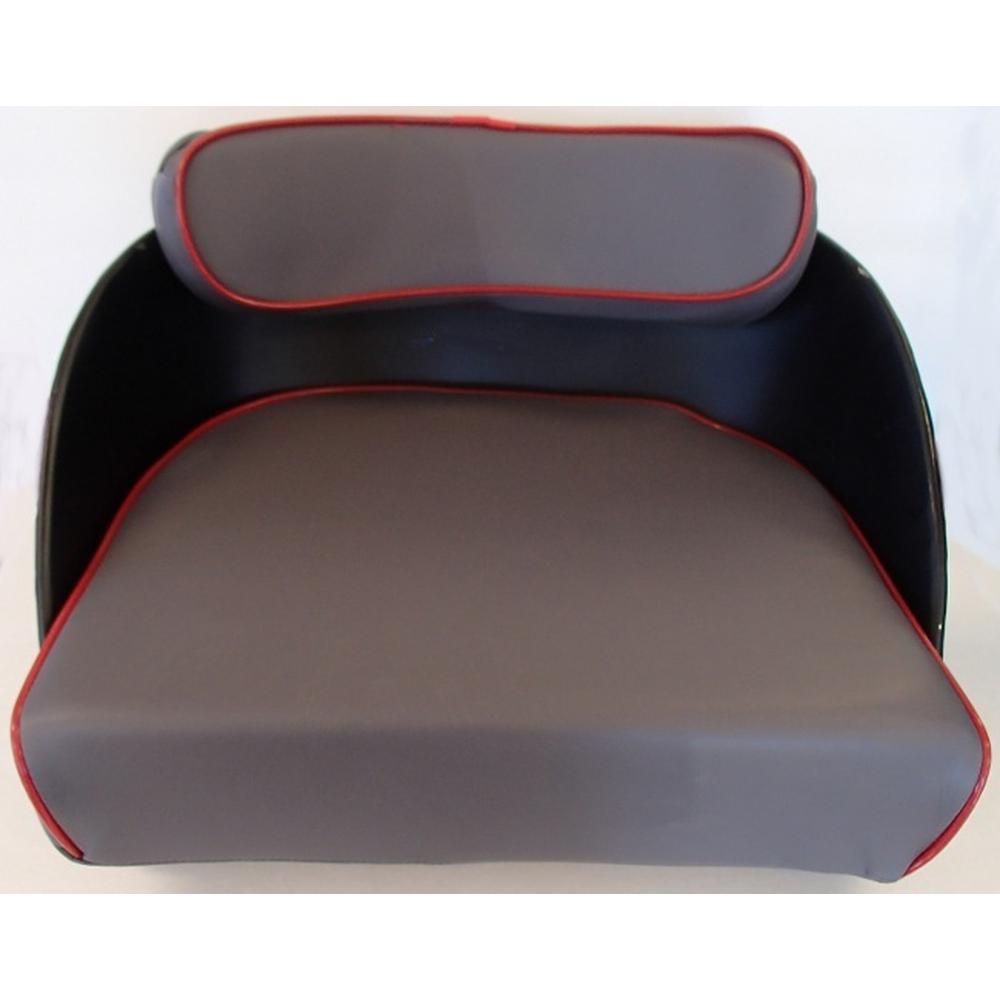

This complete 3-piece aftermarket bucket seat assembly restores operator comfort to classic Fits Massey Ferguson and Fits Massey Harris tractors. The kit includes a steel seat pan base, a bottom cushion with inlay and cover, and a gray vinyl backrest with red trim - everything needed to replace the original deluxe float-style bucket seat. The backrest is designed for use with the 2-inch foam float-style bucket seat with holes; the original seat back bracket must be reused.

Kit Includes

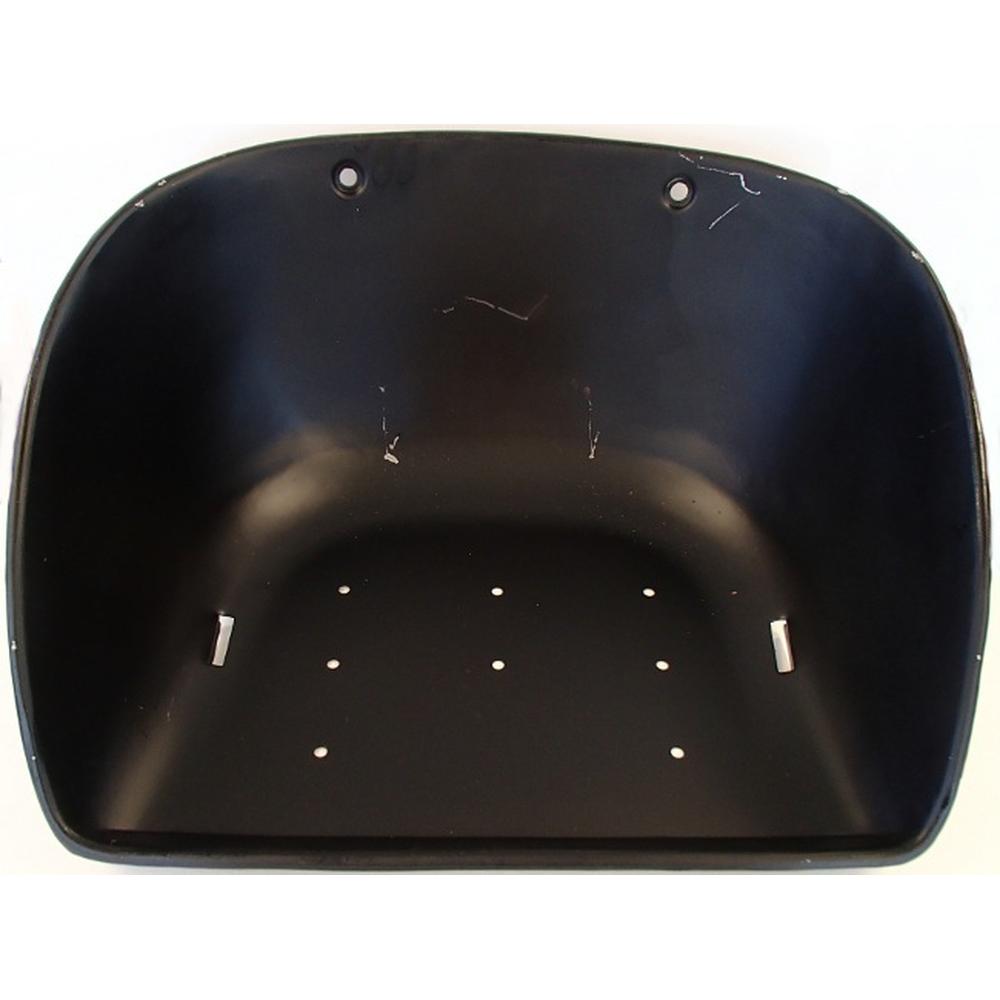

Seat Pan - steel construction, black finish, 21-5/8" wide, 9-5/8" tall, low back bucket style, weight capacity 264 lbs.

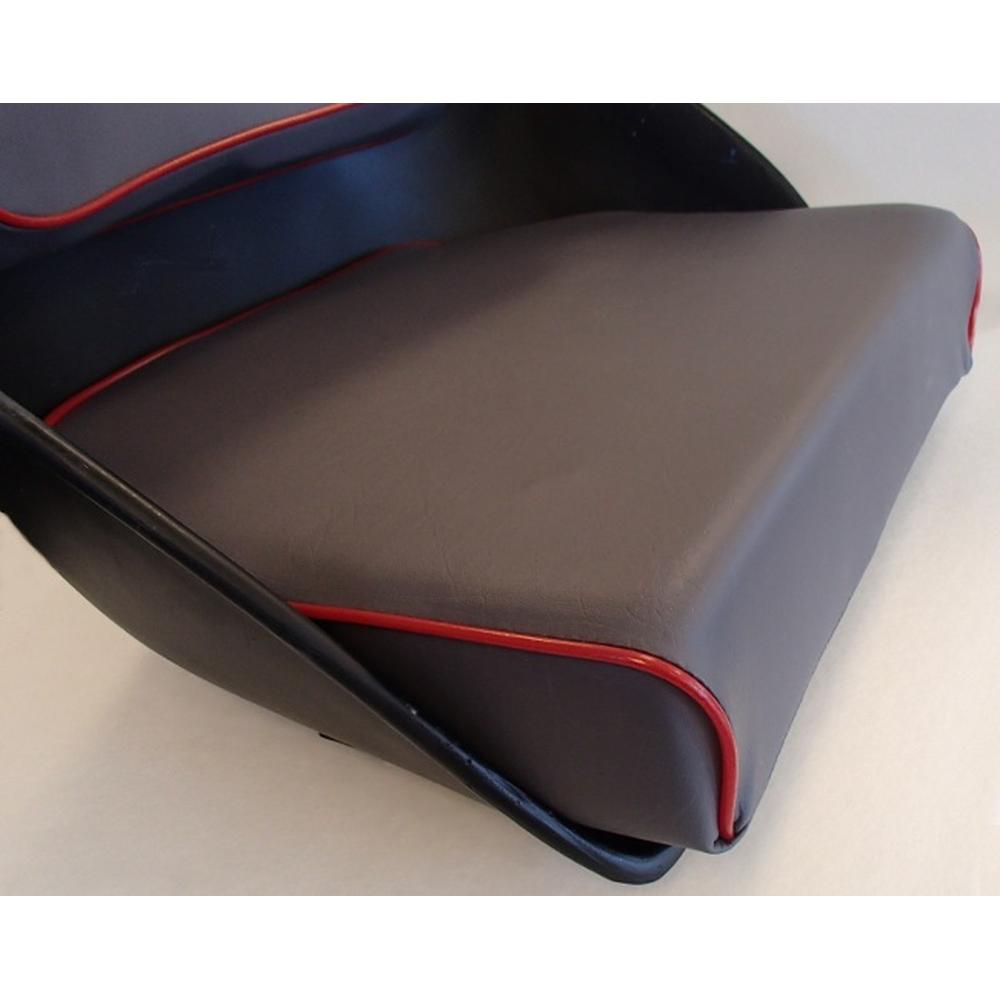

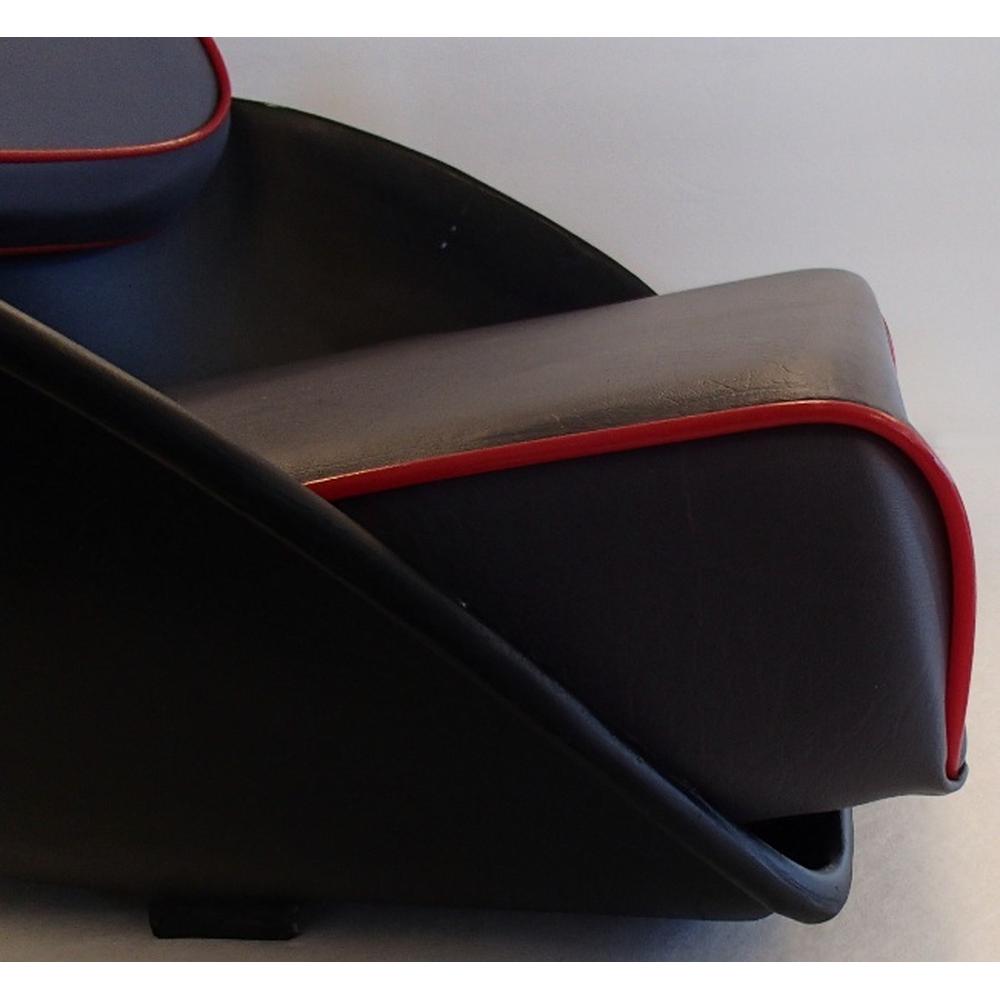

Bottom Seat Cushion with inlay and cover
Seat Backrest - gray vinyl with red trim, 2" foam, thicker and deeper than standard cushion dimensions, holes with wing nuts for height adjustment; must reuse original seat back bracket

Compatible Models

Fits Massey Ferguson (MF) Tractors: TE20, TEA20, TO20, TO30, TO35, MF35, 20, 25, 30, 30B, 30D, 30E, 31, 35, 40, 40B, 50, 50A, 50C, 65, 85, 88, 95, 98, 130, 135, 150, 165, 202, 203, 204, 205, 230, 235, 240, 245, 250, 265, 282, 283, 333, 444, 555, 2135, 2200, 3165

Fits Massey Ferguson (MF) Industrials / Backhoe Loaders: 20, 20C, 20D, 30, 30E, 40, 50, 50A, 50C, 98, 202, 203, 204, 205, 2135, 2200, 3165

Fits Massey Harris (MH): MH50, F40

Note: TO20 and TO30 fitment applies when equipped with the optional Deluxe Seat. Verify fitment before ordering.

Replaces Part Number(s):

S61390, 181313M91, 181313M93, M92M93, 181326M1, 30073V1, 30077E91, 30077V91, 513351M91, 181324M1, 513353M91, MF8BR, S90-0023, 181313M91-A, 181313M93-A, 891869M91, 891869M91-A

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

245, 444, To30, 2135, To20, 240, 165, 50C, Mf50, 30B, 150, 203, 20D, 50, 65, 20, 85, 30D, 204, 2200, Te20, 50A, 555., 235, 250, 40B, 205, 230, 283, Mh50, 40, 265, 135, F40, Mf35, Tea20, 202, 98, 3165, 88, 333, 20C, To35, 30E, 30, 31

Additional Information:

(1) Seat Cushion Bottom Cushion with Inlay and Cover Replaces Part Numbers: 181326M1, 30073V1, 30077E91, 30077V91, 513351M91 (1) Seat Pan Steel material, black Replaces Part Numbers: M92M93, 181313M91 (1) Seat Backrest with Red Trim Gray vinyl with red trim For use with 2" foam float style bucket seat with holes Thicker & deeper than standard cushion dimensions Must reuse original bracket in seat back Replaces Part Numbers: 181324M1, 181326M1, 513353M91, MF8BR
