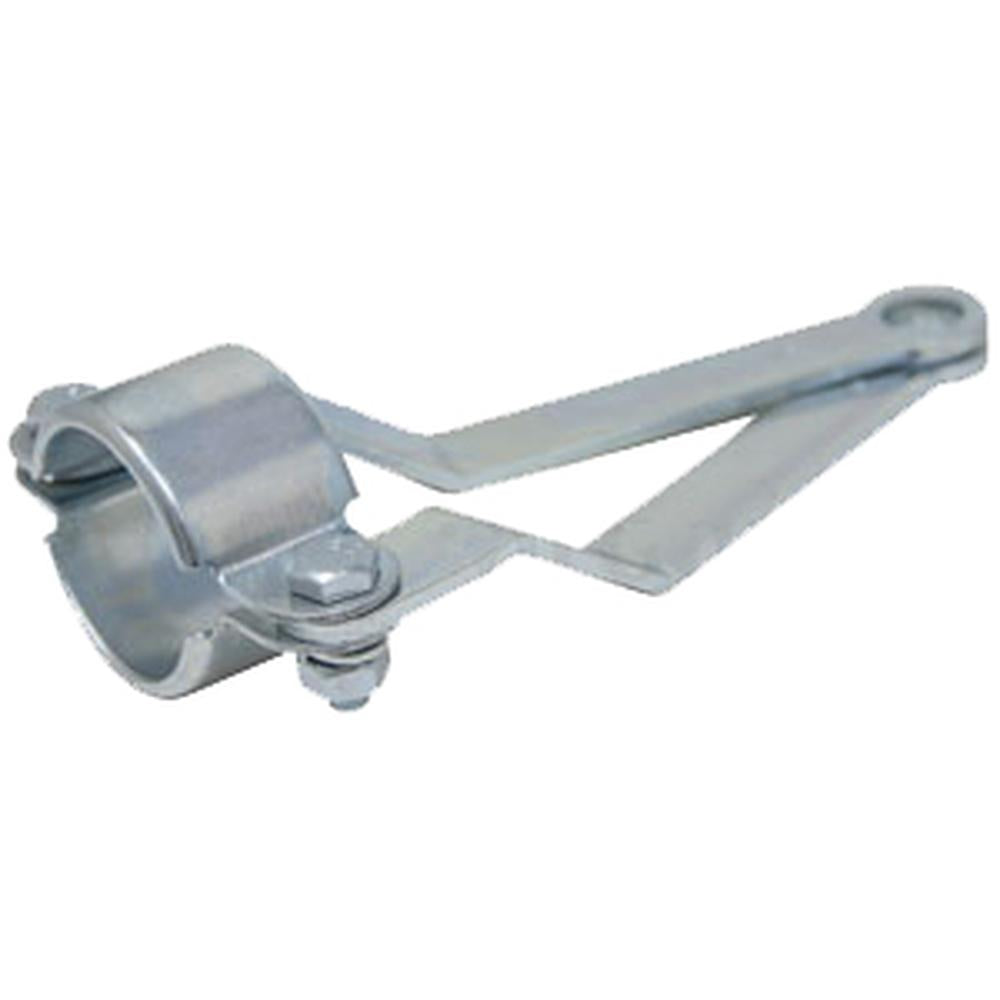

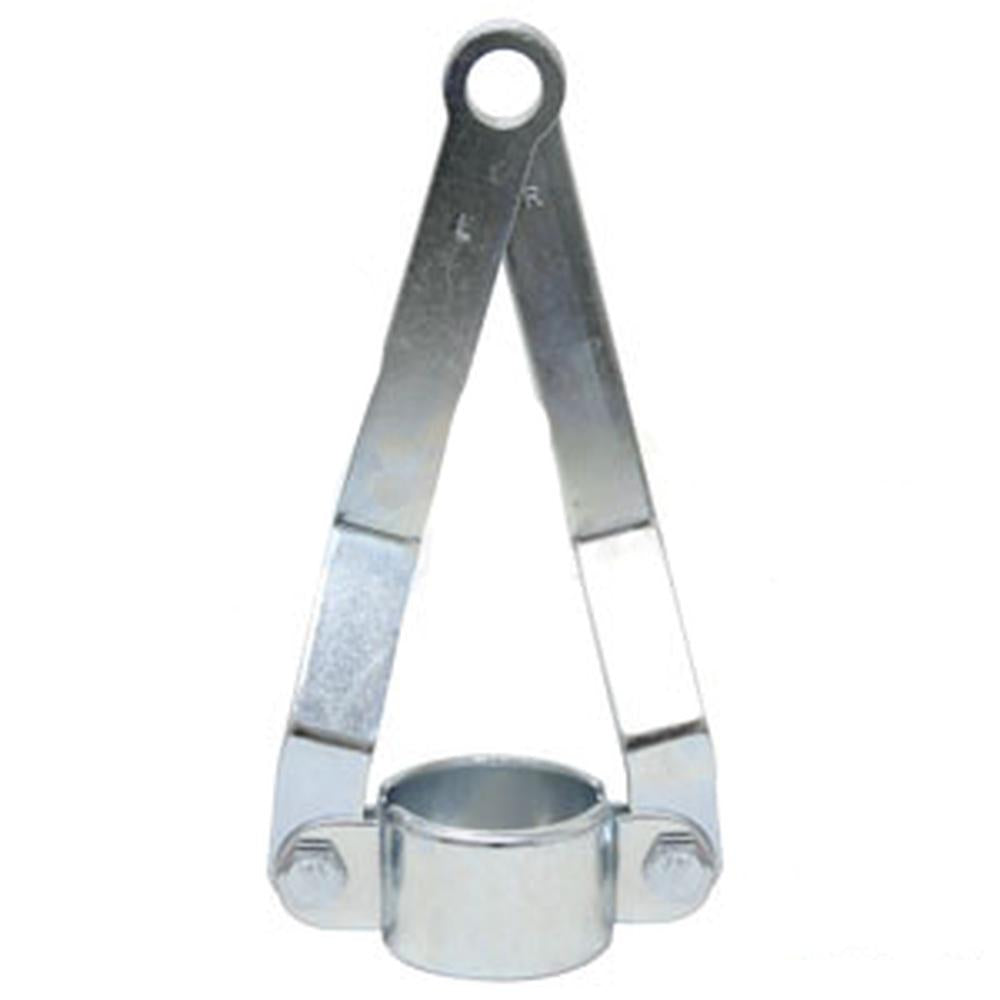

One New Aftermarket Replacement Single Breakaway Clamp for Pioneer Hydraulics Quick Couplings
This single breakaway clamp mounts one Pioneer hydraulic coupler to a tractor or implement panel. Designed for 1/2" body size agricultural quick couplings with 1-1/2" diameter push-pull / double-acting sleeves, it allows the coupler and male tip to disconnect cleanly in a breakaway situation - automatically closing the coupler valves and helping prevent hose damage and hydraulic fluid spillage.
Specifications
- Clamp Style: Single (mounts one coupler)
- Coupler Body Size: 1/2"
- Sleeve Diameter: 1-1/2" push-pull / double-acting type
- Yokes and braces: heavy-duty metal stampings
Compatible Coupler Series
Pioneer (Parker) Quick Couplings: 4200 Series, 8200 Series
Fits all Pioneer 1/2" body size agricultural quick couplers with 1-1/2" diameter push-pull type sleeves. For two-coupler mounting applications, see Pioneer double breakaway clamp 5006-4.
Replaces Part Number(s):
5001-4, 50014, 44A50014, 182974M1, 4796-52596, B505066, BR5001-4
New aftermarket replacement part - not remanufactured, not used.
