4T6694 Edge-Segment Fits Caterpillar IT24F IT28F IT28G 953C 963B 963C 963D 924F
4T6694 Edge-Segment Fits Caterpillar IT24F IT28F IT28G 953C 963B 963C 963D 924F
Regular price
$149.00 CAD
Regular price
Sale price
$149.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

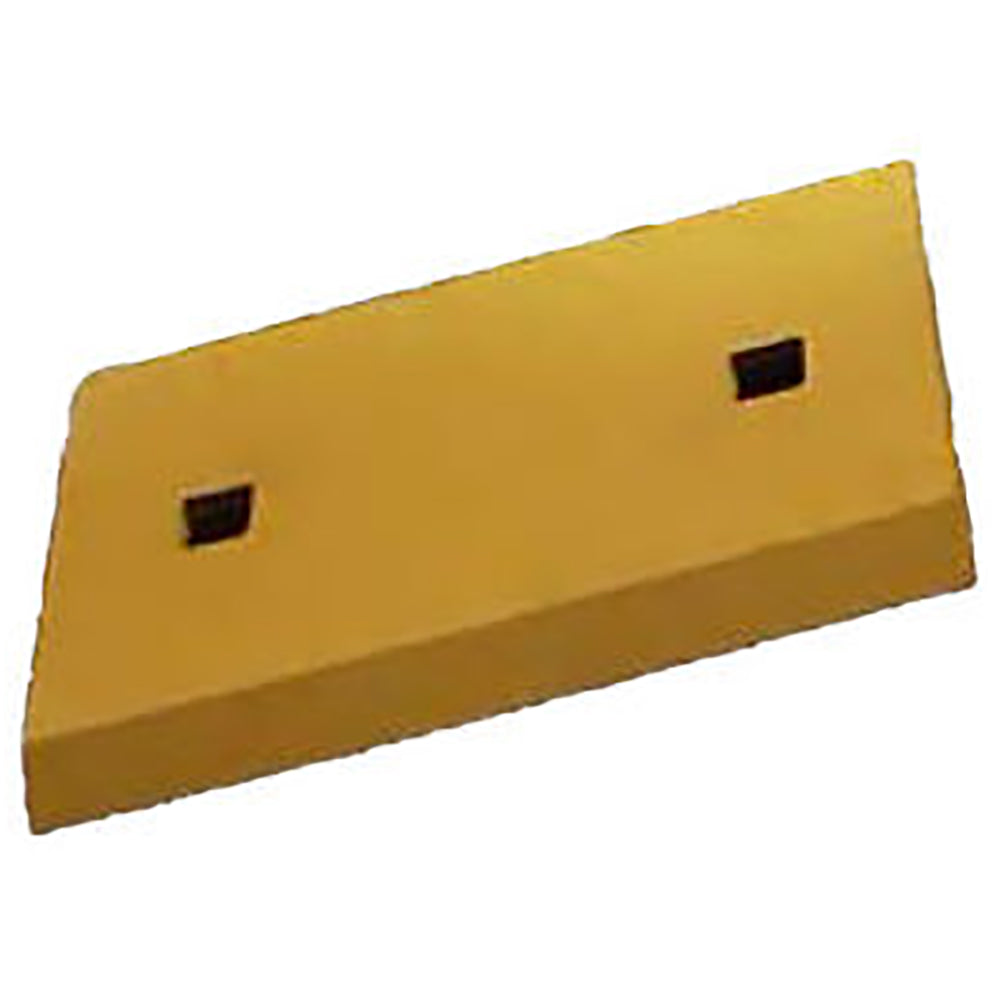

One New Aftermarket Replacement Edge Segment Fits Caterpillar (Fits CAT) Integrated Toolcarriers and Track-Type Loaders
This bolt-on edge segment is a ground engaging tool (G.E.T.) designed to protect the base edge lip of the loader bucket between adapters, improve bucket penetration, and increase bucket capacity. The double beveled, reversible design allows the segment to be flipped for extended wear life. It mounts with two 1" x 2-3/4" (100x275) plow bolts and two 1" hex nuts, with bolt hole spacing of 6.1" center-to-center.
Specifications
- Thickness: 1 in. (approx. 25mm)
- Width: 11 in.
- Length: 8.875 in.
- Weight: approx. 24 lbs.
- Style: Double beveled, reversible
- Bolt hole spacing: 6.1 in. center-to-center
- Hardware required: Two 1" x 2-3/4" plow bolts, two 1" hex nuts (not included)
Compatible Models
Fits Caterpillar Integrated Toolcarriers: IT24F, IT28F, IT28G
Fits Caterpillar Track-Type Loaders: 943, 953, 953C, 963, 963B, 963C, 963D
Fits Caterpillar Wheel Loaders: 916, 924F, 926, 928G, 930, 936, 936F, 938F
Replaces Part Number(s):
4T6694, 4T6694-A, 4T-6694
New aftermarket replacement part - not remanufactured, not used.
