462978R1 Fits International HAY RAKE TEETH 10 PACK

462978R1 Fits International HAY RAKE TEETH 10 PACK

$43.00 CAD
$43.00 CAD
Sale Sold out
Shipping calculated at checkout.

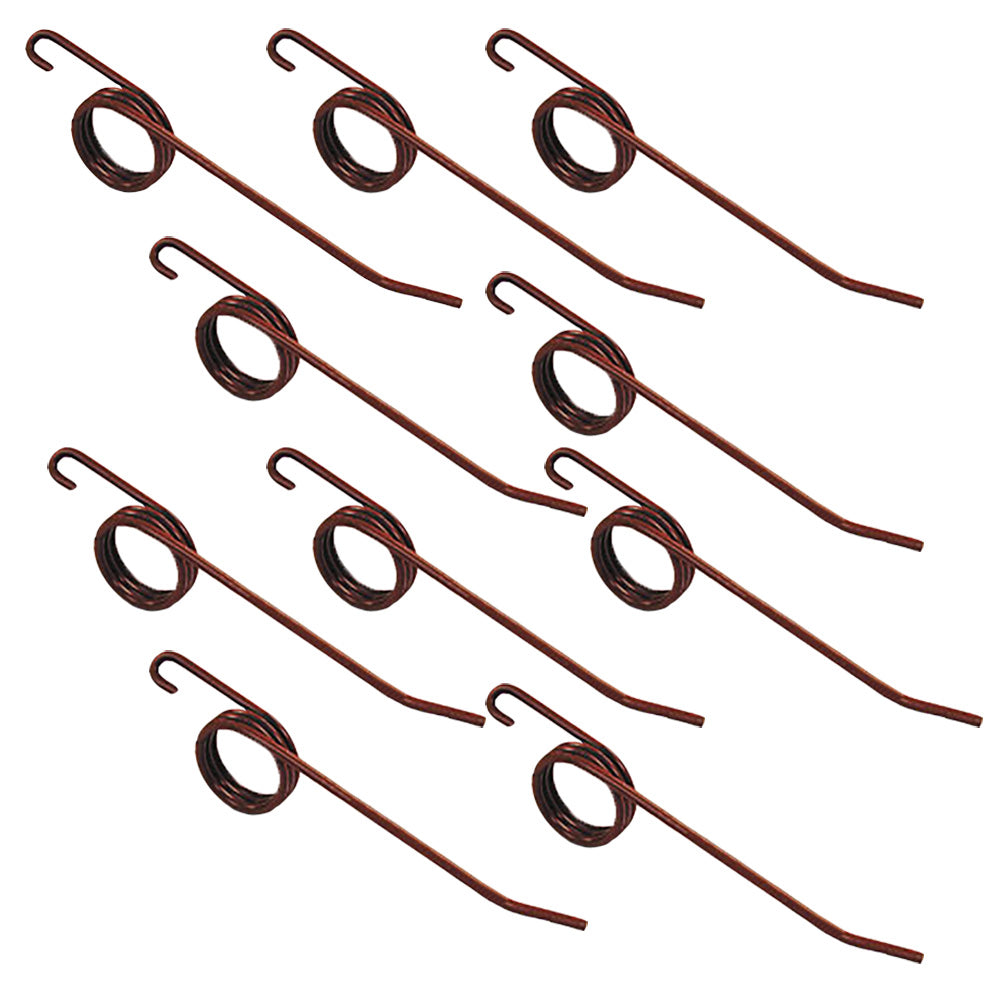

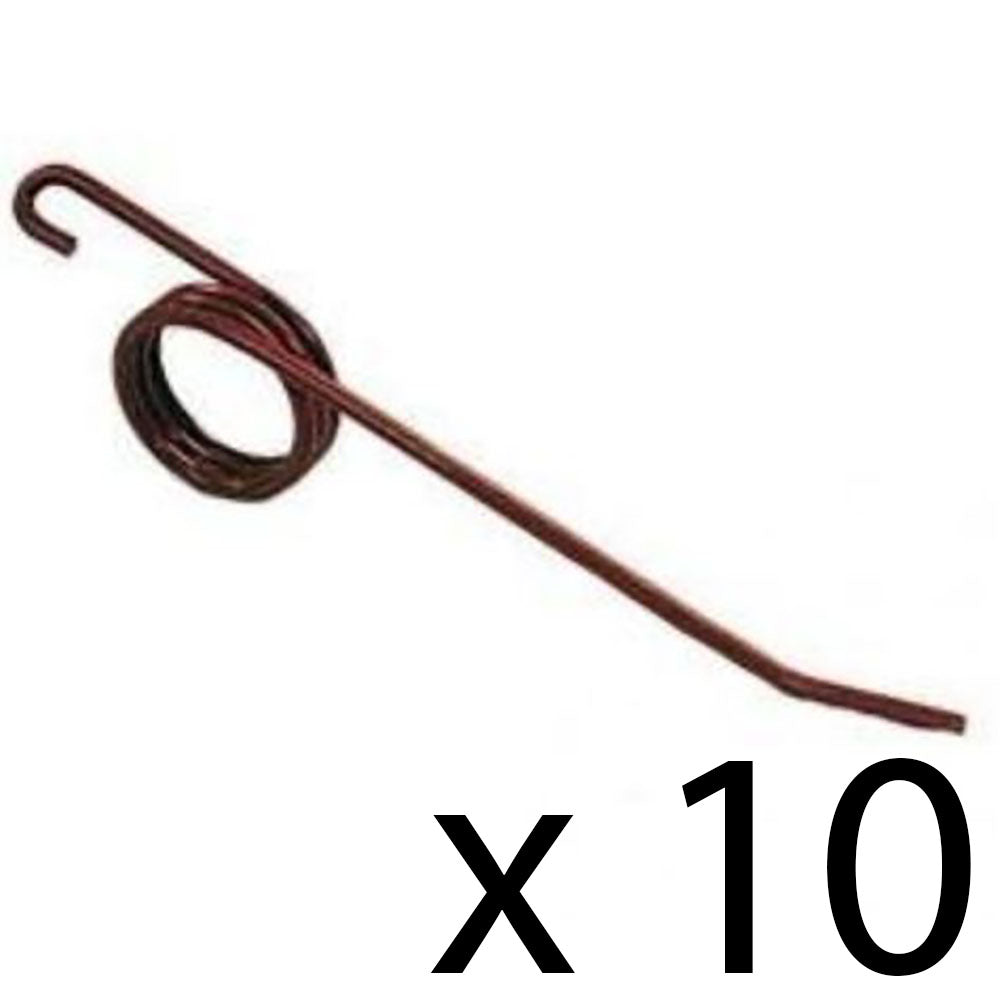

Ten New Aftermarket Replacement Hay Rake Teeth (10-Pack) Fits International Harvester Hay Rakes

This kit includes 10 aftermarket replacement rake teeth (tines) Fits International Harvester (Fits Case IH) finger wheel hay rakes. These spring coil tines mount to the rake wheel bars and gather cut hay into windrows. Made from 225-gauge steel wire, white finish.

Kit Includes

  • 10 Hay Rake Teeth (Tines)

Specifications

  • Tine Length (Dim A): 6.750"
  • Coil to Hook Length (Dim B): 4.00"
  • Coil Outside Diameter (Dim C): 2.25"
  • Wire Gauge: 225
  • Finish: White

Compatible Models

Fits International Harvester (Fits Case IH) Hay Rakes: 3, 4, 5, 8, 9, 11 (1956 and later), 14, 15 (1956 and later), 16, 30, 35, 86, 96, 97

Replaces Part Number(s):

462978R1, 457374R91, 457374R1, 804-462978R1, 96IH1B, PMIH-1B

Aftermarket Interchange Numbers

462-978R1, TEIH1, TEIH1B, IH-1B, IH1B, A-462978R1, A462978R1, IH1A-IMP, IH1AIMP, 462978R91

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

8, 4, 5, 15, 3, 35, 97, 16, 86, 9, 14, 96, 11, 30

Additional Information:

Kit Includes: 10 Rake Teeth Item Specs: Tine length: 6.75" Coil O.D: 2.25" Coil to Hook Length: 4" Dim A (1): 6.750" Dim B (2): 4.00" Dim C (3): 2.25" 225 Wire, White

Reference Numbers:

462978R1, 457374R91, 96IH1B, 804-462978R1, 457374R1, PMIH-1B
