46" Lawn Mower Deck Parts Rebuild Kit Fits Craftsman YT 4000

46" Lawn Mower Deck Parts Rebuild Kit Fits Craftsman YT 4000

$237.00 CAD
$237.00 CAD
Sale Sold out
Shipping calculated at checkout.
Brand New Aftermarket 46" Mower Deck Kit Fits Sears Fits Craftsman 46" Lawn Tractors


This Kit Includes the Following Parts:

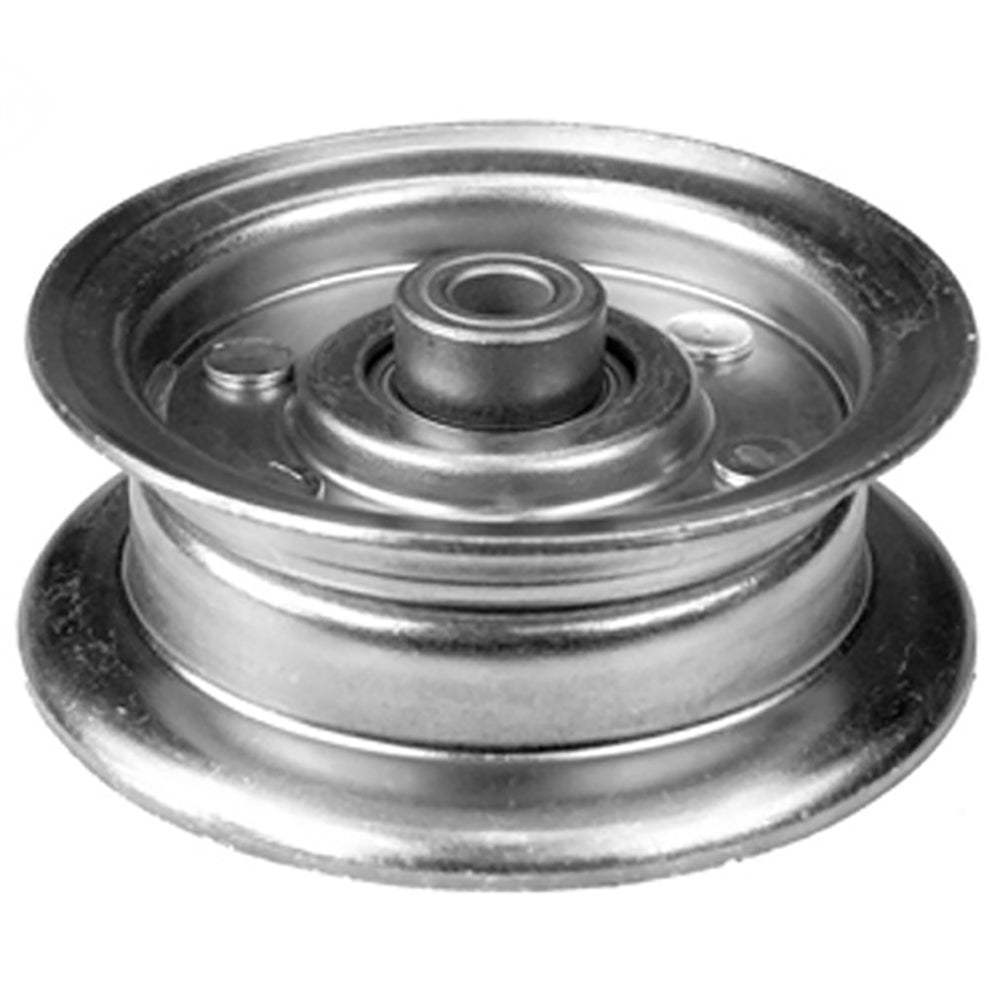

(Qty. 1) Idler Pulley
Height 1 7/16"
ID 3/8"
OD 4"


(Qty. 1) Idler Pulley
ID: 3/8"
OD: 5-3/8"
Height: 1-5/8"
Painted

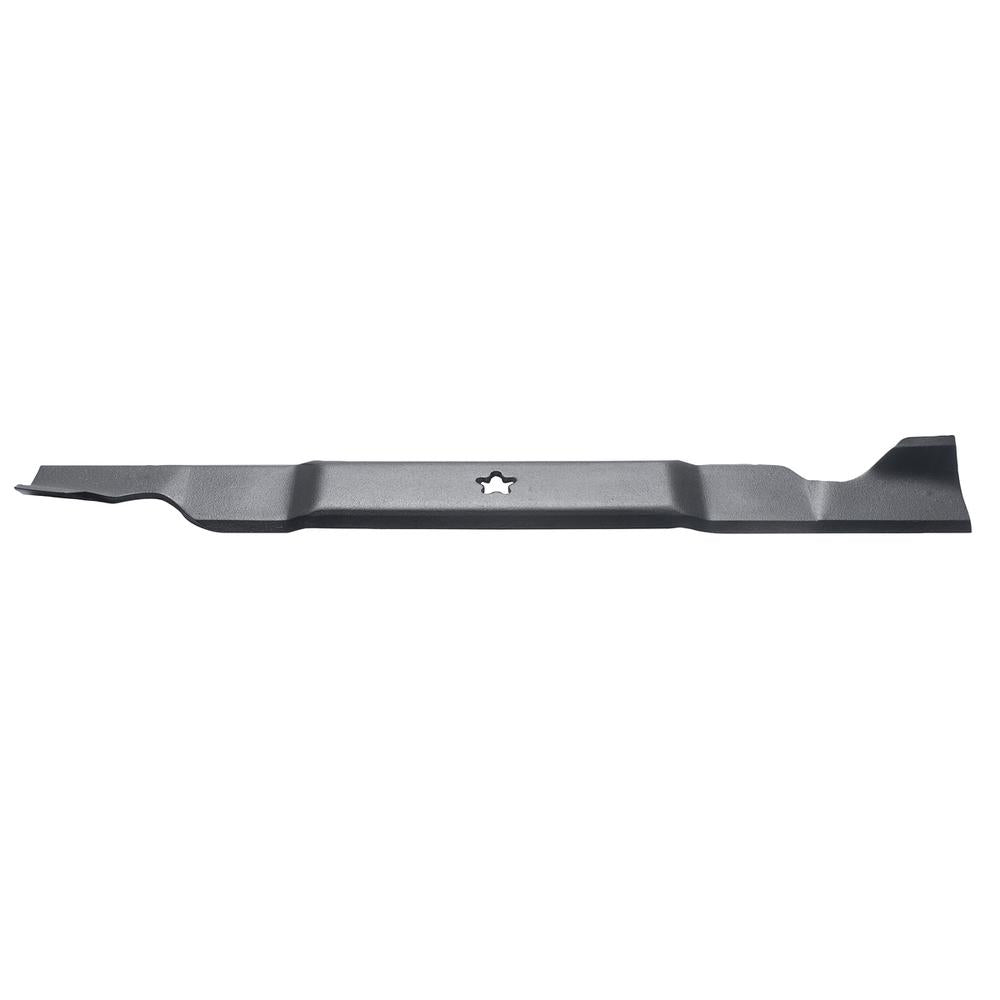

(Qty. 2) 23" Blades
Center Hole 5 point star
Length 22-7/8"
Thickness .156
Width 2-3/4"


Models This Part Fits:

YTH24K54 (96045003300), LGTH24V54 96048006200, GTH26K54 96043003101, EZ17 968999502

Additional Information:

(2) Mower Blades Length: 22-7/8" Width: 2-3/4" Thickness: 0.156" Center Hole: 5 point star Replaces Part Number(s): 403107, 503405380, 532403107, 532405380, 594892801 (1) Flat Idler Pulley Inner Diameter: 3/8" Outer Diameter: 5-3/8" Height: 1-5/8" Painted Replaces Part Number(s): 196106, 197379, 532196106 (1) Deck Belt 1/2" x 105.875" Thickness: 0.35" Made With Aramid Cord Replaces Part Number(s): 532405143, 584453101 (2) Spindle Assemblies 4-Bolt Long Housing 5-Point Star Blade Mount Threaded Mounting Holes for Easy Installation Shaft is Splined for Spline-Type Pulleys Includes: Pulley Locknut Blade Bolt/Washer Spacer 4 Mounting Bolts Replaces Part Number(s): 192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301 (1) Flat Idler Deck Pulley Height: 1-7/16" Inner Diameter: 3/8" Outer Diameter: 4" Material: Metal Heavy Duty: TRUE Replaces Part Number(s): 532177968, 532193197

Reference Numbers:

192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301

Product Category:

Lawn & Garden
View More: Lawn & Garden Replacement Parts

Product Sub Group:

Deck Components
View More: Deck Components Replacement Parts
