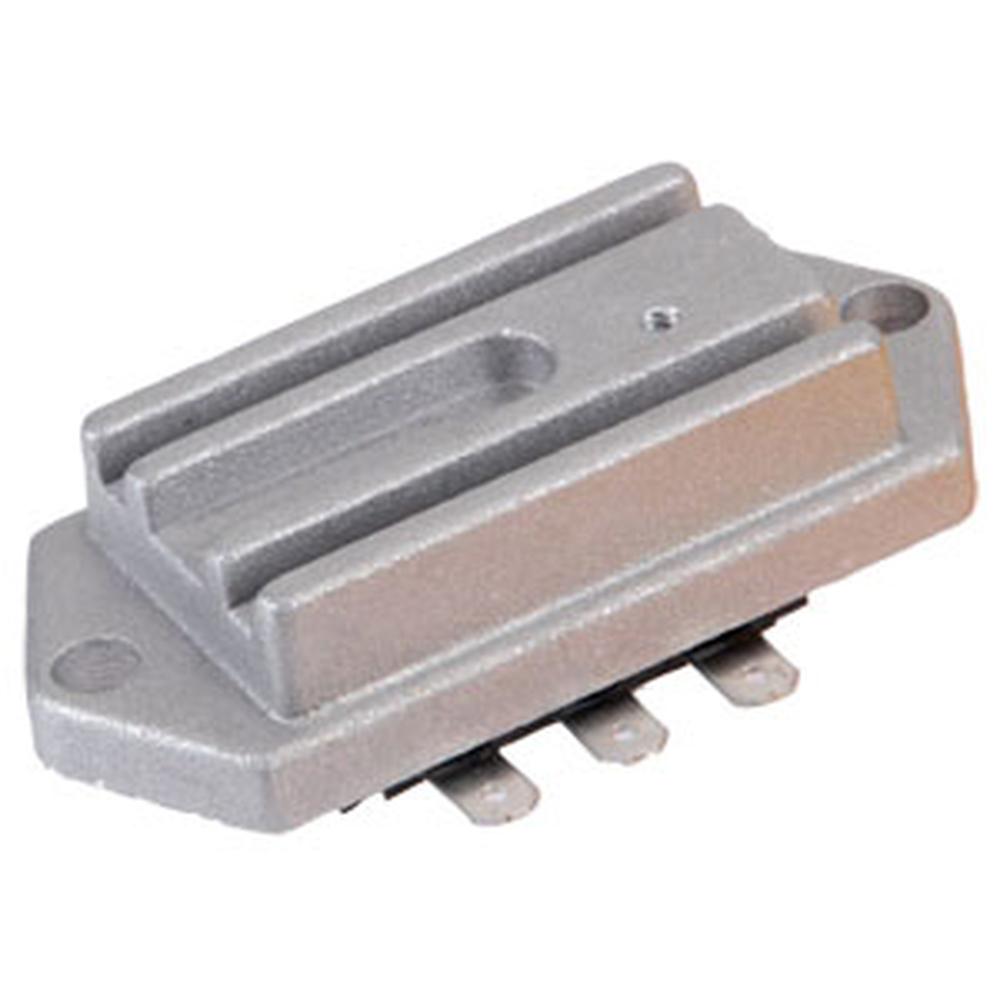

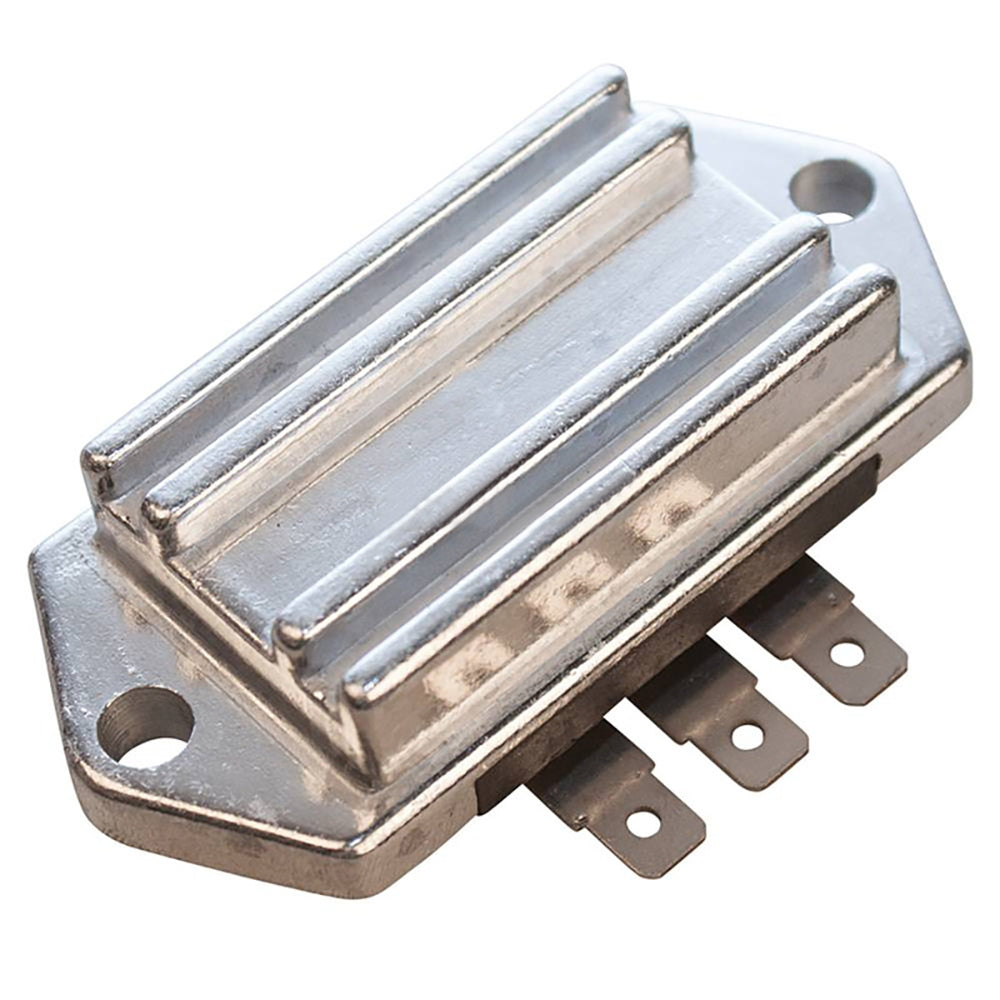

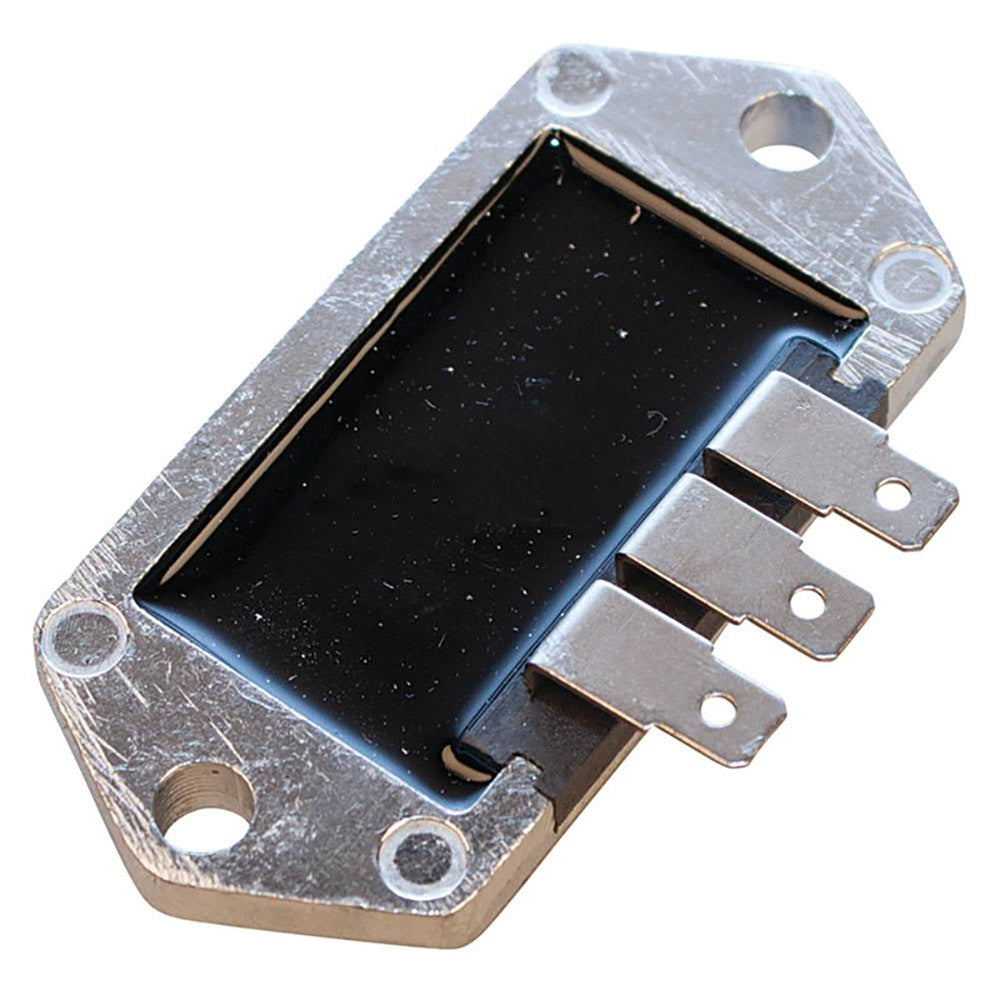

435-081 Voltage Regulator Fits John Deere
435-081 Voltage Regulator Fits John Deere
Couldn't load pickup availability
One New Aftermarket Replacement Voltage Regulator for John Deere Riding Mowers and Garden Tractors with Kohler Engines
This aftermarket replacement voltage regulator regulates and stabilizes the 12V electrical output on Kohler-powered John Deere riding mowers and garden tractors equipped with 15-amp alternators. It features three in-line terminals in a row and is compatible with Kohler CH, CV, M, and MV series engines ranging from 8 to 24 HP. Also fits Gravely equipment with the same Kohler powerplants.
Specifications
- Voltage: 12V
- Amperage: 15 amps
- Terminals: 3 in-line (3 in a row)
- Compatible engine HP range: 8 thru 24 HP
Compatible Models
John Deere Riding Mowers and Garden Tractors: 200, 208, 210, 212, 214, 216, 300, 312, 314, 316, 317, 400, LX172, LX173, LX176, LX178, LX186, LX188, STX30, STX38, STX46
John Deere Kohler Engine Models (K-Series): K181, K301, K321
Kohler Engines: CH5, CH6, CH11, CH12, CH13, CH14, CH15, CV11, CV12, CV13, CV14, CV15, M8, M10, M12, M14, M16, M18, M20, MV16, MV18, MV20
Gravely: M8-M20, MV16-MV20, CH5, CH6, CH11-CH15, CV11-CV15
Replaces Part Number(s):
MIA11665, AM106358, 032492, 20570300, 21465500, 33-401, B1KO41, 610479, 25 403 03, 25 755 03, 2540303, 2575503, 41 403 01, 41 403 04, 41 403 05, 41 403 09, 4140301, 4140304, 4140305, 4140309, 435-081
Aftermarket Interchange Numbers
Oregon 33-401, Rotary 8969, Prime Line 7-01697, Sunbelt B1KO41, Sunbelt KO-41, Tecumseh 610479, ELP50-0006, Atlantic Quality Parts 1400-0557
New aftermarket replacement part - not remanufactured, not used.
