4250-4 fits pioneer female hyd coupler 1/2"-14 NPTF " FREE SHIPPING"

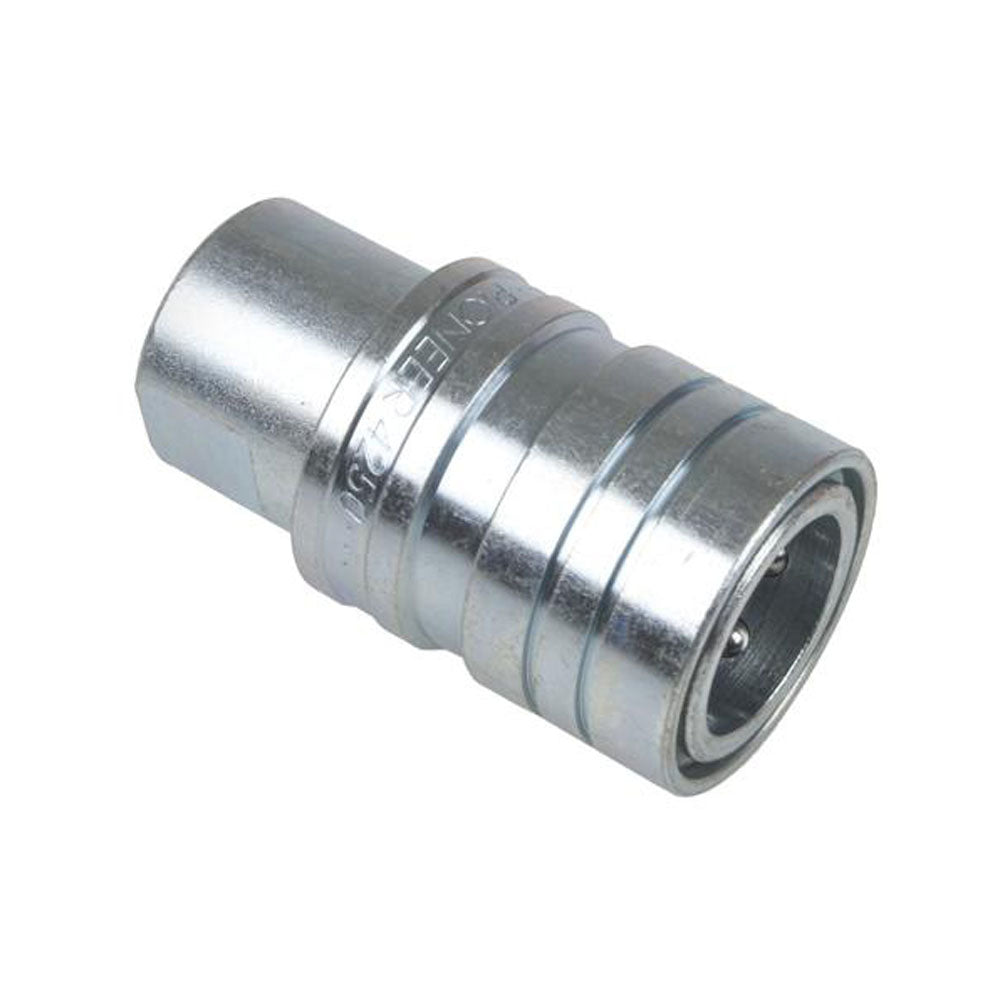

One New Aftermarket Replacement Pioneer 4250-4 Female Hydraulic Quick Coupler - 1/2"-14 NPTF

This aftermarket replacement for the Pioneer (Parker) 4250-4 is a 1/2" female hydraulic quick coupler designed for agricultural tractors and implements. Part of the proven 4200 Series, it features a push-to-connect design with a double shut-off ball valve and a push/pull breakaway sleeve for one-handed connection when clamp or bulkhead mounted. Compatible with both open center and closed center hydraulic systems. Built from heavy-duty steel with hardened critical components, the coupler accepts ISO 5675-compliant male tips including Pioneer 8010-4, 8010-15, and 8010-16 series nipples.

Specifications

• Body Size: 1/2"
• Thread Size: 1/2"-14 NPTF (Female)
• Valve Style: Ball (double shut-off)
• Rated Working Pressure: 3,000 PSI
• Flow Rate: 12 GPM
• Sleeve Type: Push/pull breakaway
• Body Material: Steel
• Seal Material: Nitrile
• Standard: ISO 5675
• Operating Temperature: -40 F to 250 F

Compatible Models

This is a universal hydraulic coupler suitable for tractors and implements from multiple manufacturers. Compatible with open center and closed center hydraulic systems on tractors including but not limited to:

Fits Ford/New Holland: 501, 600, 700, 800, 900, 2000, 2110, 2120, 2600, 3000, 3600, 4000, 4600, 5000, 5600, 6600, 1700, 1710, 1720, 1900, 1910, 1920

Fits Kubota: B8200, B9200, L2250, L2550, L2850

Fits Case/International Harvester: Several models (verify fitment)

Replaces Part Number(s):

4250-4, 5050-4, 1994568C1

Aftermarket Interchange Numbers

Push to Connect Quick Coupler; interchangeable with ISO 5675-compliant female couplers from major manufacturers. Compatible with 5001-4 and 5006-4 breakaway clamps.

New aftermarket replacement part - not remanufactured, not used.
