412359A1 Angle Cylinder Without bushings Fits Case 650K, 750K, 850K
412359A1 Angle Cylinder Without bushings Fits Case 650K, 750K, 850K
Regular price
$2,104.00 CAD
Regular price
Sale price
$2,104.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

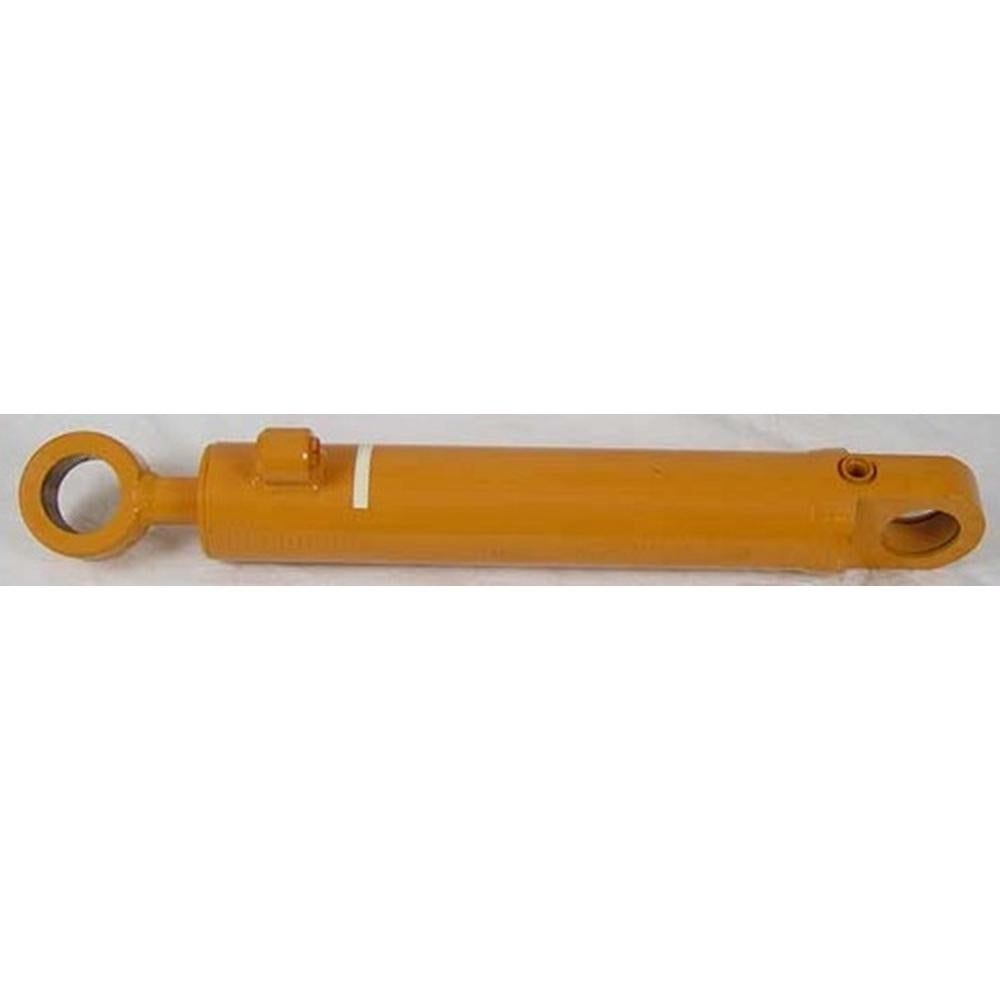

One New Aftermarket Replacement Hydraulic Angle Cylinder (Without Bushings) Fits Case (Fits Case/International Harvester) Crawler Dozers
This hydraulic angle cylinder controls left and right blade angling on Fits Case crawler dozers, providing the hydraulic force needed for fine grading, ditch shaping, and finish work. Cylinder only -- bushings are not included and must be ordered separately (see compatible bushing part numbers below).
Specifications
- Rod Diameter: 1-3/4 in.
- Bore: 3-1/2 in.
- Stroke: 15-19/32 in.
- Bushings: Not included
- Fits All Serial Numbers
Compatible Models
Fits Case/International Harvester Crawler Dozers: 650K, 750K, 850K
Replaces Part Number(s):
412359A1, 412359A1-A, 84135900
Aftermarket Interchange Numbers
87615546
Note: Bushings not included. To complete installation, order separately: 407538A1 bushing, 407539A1 bushing, and 103-21281 snap rings (qty 4).
New aftermarket replacement part - not remanufactured, not used.
