325951R1 325951R91 Ignition Kit Fits Case 100 130 140 200 230 240

Models This Part Fits:

560, 340, Super H, H, 200, 240, C, 404, 460, A, 330, Super MTA, 230, 400, Super A, HV, 350, 300, Cub, B, Super M, 450, 424, M

Additional Information:

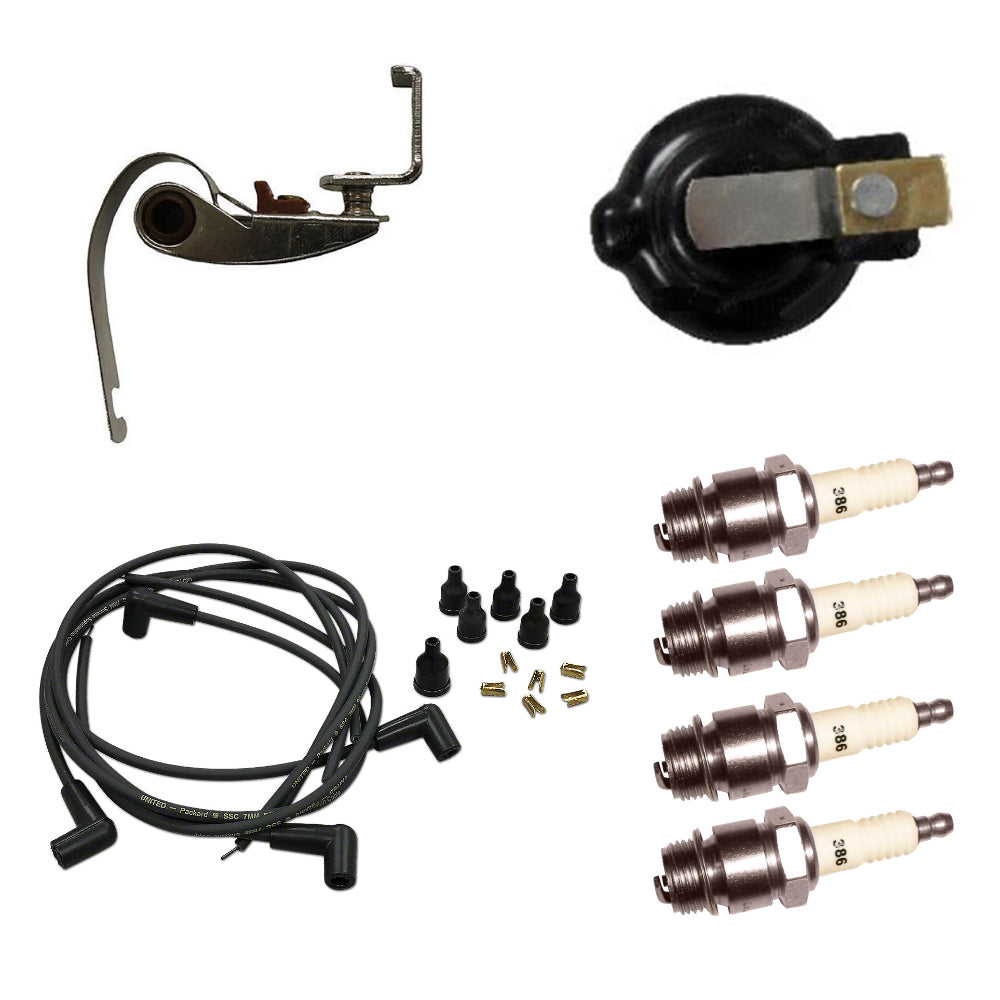

Kit Contains: (1) Spark Plug Wire Set ALL 4-CYL (1939-1964) Wire Dimensions: Wire Diameter: 1/4'' With Cap: 5/8'' Lenght: 30'' Cap Dimensions: Length: 1 3/8'' Diameter: 3/4 Metal Pieces: Length: 3/4'' Width: 1/4'' Height: 1/2'' Replaces Part Number: CPN12259 (4) Spark Plug Standard Info Thread Size: 18mm 7/8" Hex Shoulder Hex Size: 13/16" (20.6mm) Reach: 12mm (.472") Seat Type: Gasket Gap: .028" (0.7mm) Heat Range: 2 Terminal Type: Removable Nut Resistor: No Thread Pitch: 1.5mm Center Electrode Type: Standard Material: Nickel Size: 2.5mm Projection: Non-Projected Ground Electrode Type: Standard Material: Nickel Replaces Part Number(s): G44840, 4012405C (1) Rotor Replaces Part Number: 353896R91 (1) Ignition Points Set 0.020" Point Gap Replaces Part Number: 353172R1 (1) Ignition Condenser Fits 1951-62 Distributors. Also Fits J4 Magneto For Serial Numbers 81411 & Up Replaces Part Number(s): 251539R91, 353903R91, 353903R92, 353905R1, 354136R92

Reference Numbers:

G44840, 4012405C, 353896R91, 353172R1, 251539R91, 353903R91, 353903R92, 353905R1, 354136R92, CPN12259

Product Category:

Agriculture
View More: Agriculture Replacement Parts

Product Sub Group:

Ignition Components
View More: Ignition Components Replacement Parts
