Tune Up Kit with Plugs Fits Case/International Harvester Replaces 4012405C

Tune Up Kit with Plugs Fits Case/International Harvester Replaces 4012405C

$88.00 CAD
$88.00 CAD
Sale Sold out
Shipping calculated at checkout.

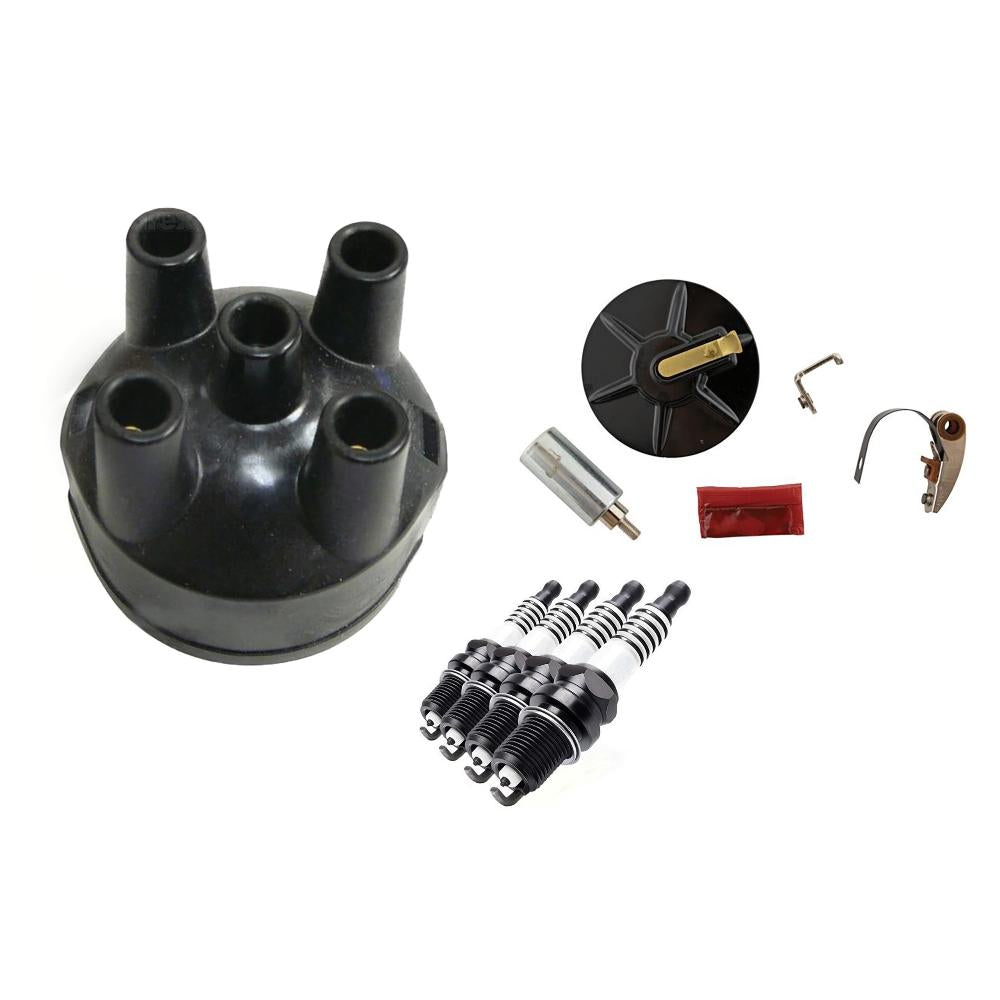

One New Aftermarket Tune Up Kit with Plugs

Tech Info:
 -Kit Contains:
 -(1) Ignition Kit
 -Contains:
 -Points,
 -Condensers &
 -Rotors to service H-4 Magneto
 -
 -Replaces Part Number(s): 407017R91, 407017R92
 -
 -(4) Spark Plugs
 -Standard Info
 -Thread Size: 18mm
 -7/8" Hex Shoulder
 -Hex Size: 13/16" (20.6mm)
 -Reach: 12mm (.472")
 -Seat Type: Gasket
 -Gap: .028" (0.7mm)
 -Heat Range: 2
 -Terminal Type: Removable Nut
 -Resistor: No
 -Thread Pitch: 1.5mm
 -Center Electrode
 -Type: Standard
 -Material: Nickel
 -Size: 2.5mm
 -Projection: Non-Projected
 -Ground Electrode
 -Type: Standard
 -Material: Nickel
 -
 -Replaces Part Number(s): G44840, 4012405C
 -
 -(1) Distributor Cap
 -Services H-4 Magneto
 -Clip Style
 -
 -Replaces Part Number(s): 407017R91, 407017R92

Made to Fits Case/International Harvester:
 Tractor Models: A, AV, Super A, BN, C, Super C, H, HV, Super H, Super HV, I9, ID9, M, MD, Super M, Super MD, Super MDV, MDV, MV, Super MV, O4, O6, OS4, OS6, T6, TD6, Super W4, W4, Super W6, W6, W9, WD6, Super WD9, Super WDR9, WD9, WDR9, WR9S, 100, 130, 200, 230, 300, 350, 400, W400 Wheatland, 450, W450 Wheatland, 600, 650.
 Replaces Part Number(s): 407017R91, 407017R92, G44840, 4012405C, 407017R91, 407017R92

Models This Part Fits:

300, WDR9, W450 Wheatland, Super MDV, Super WDR9, Super WD9, 230, 450, Super H, 100, W9, 400, 600, C, O6, Super W4, WD6, TD6, W400 Wheatland, Super MD, Super W6, W6, Super MV, WR9S, BN, T6, 650., MDV, W4, OS4, 200, MV, Super A, Super HV, OS6, H, Super M, Super C, M, 130, AV, ID9, 350, A, WD9, O4, HV, MD, I9

Additional Information:

Kit Contains: (1) Ignition Kit Contains: Points, Condensers & Rotors to service H-4 Magneto Replaces Part Number(s): 407017R91, 407017R92 (4) Spark Plugs Standard Info Thread Size: 18mm 7/8" Hex Shoulder Hex Size: 13/16" (20.6mm) Reach: 12mm (.472") Seat Type: Gasket Gap: .028" (0.7mm) Heat Range: 2 Terminal Type: Removable Nut Resistor: No Thread Pitch: 1.5mm Center Electrode Type: Standard Material: Nickel Size: 2.5mm Projection: Non-Projected Ground Electrode Type: Standard Material: Nickel Replaces Part Number(s): G44840, 4012405C (1) Distributor Cap Services H-4 Magneto Clip Style Replaces Part Number(s): 407017R91, 407017R92

Reference Numbers:

407017R91, 407017R92, G44840, 4012405C, 407017R91, 407017R92

Product Sub Group:

Ignition Components
