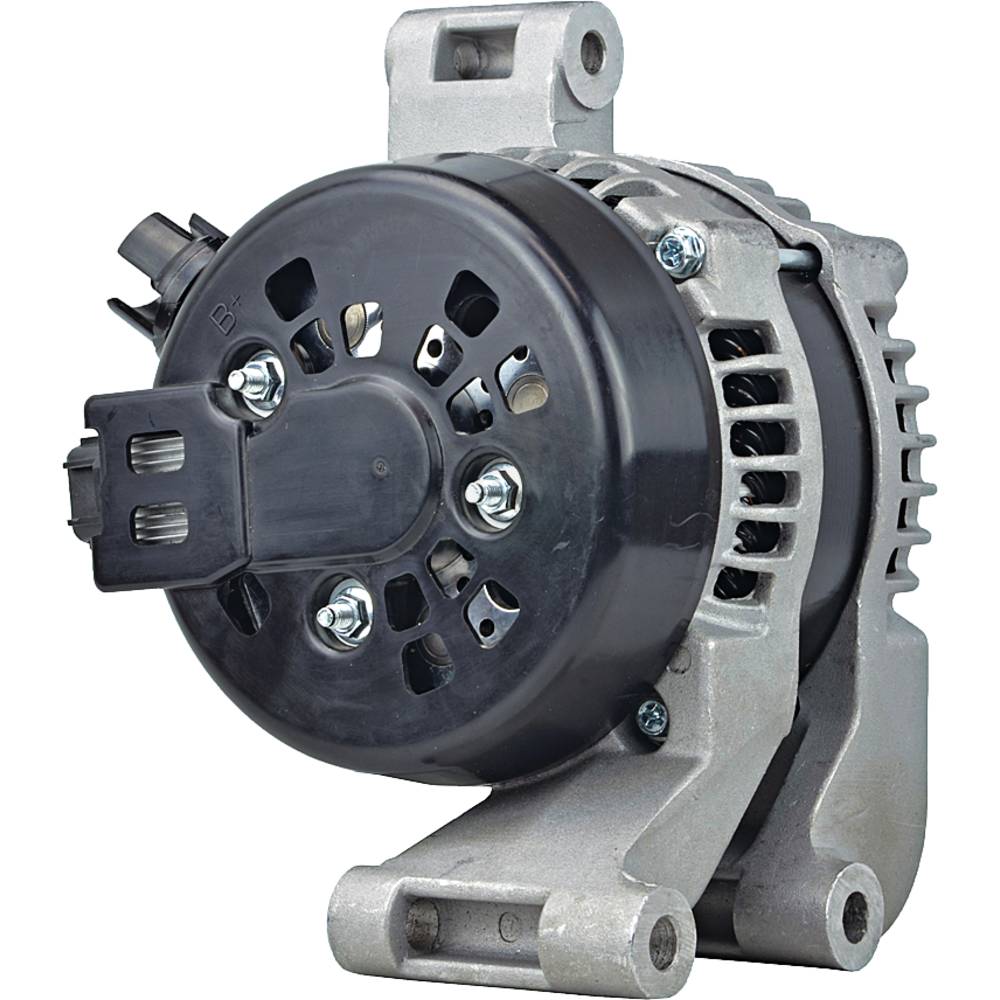

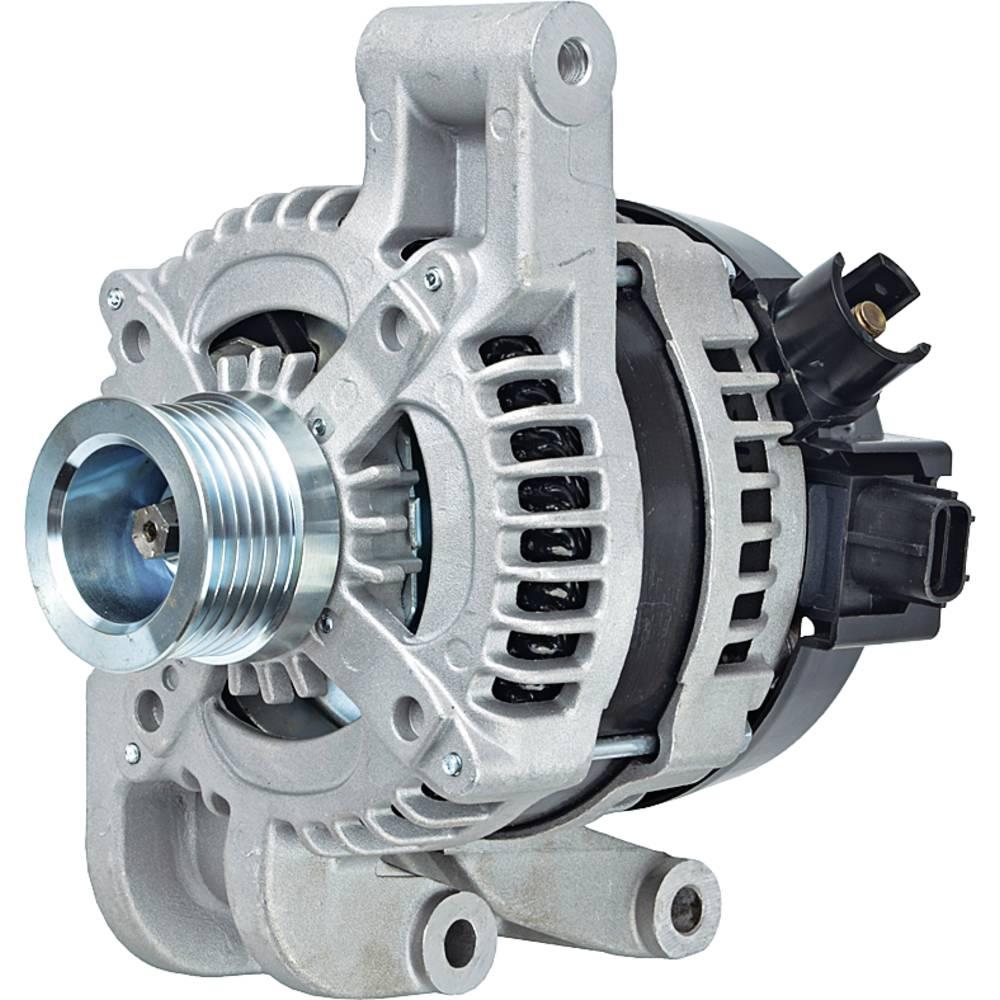

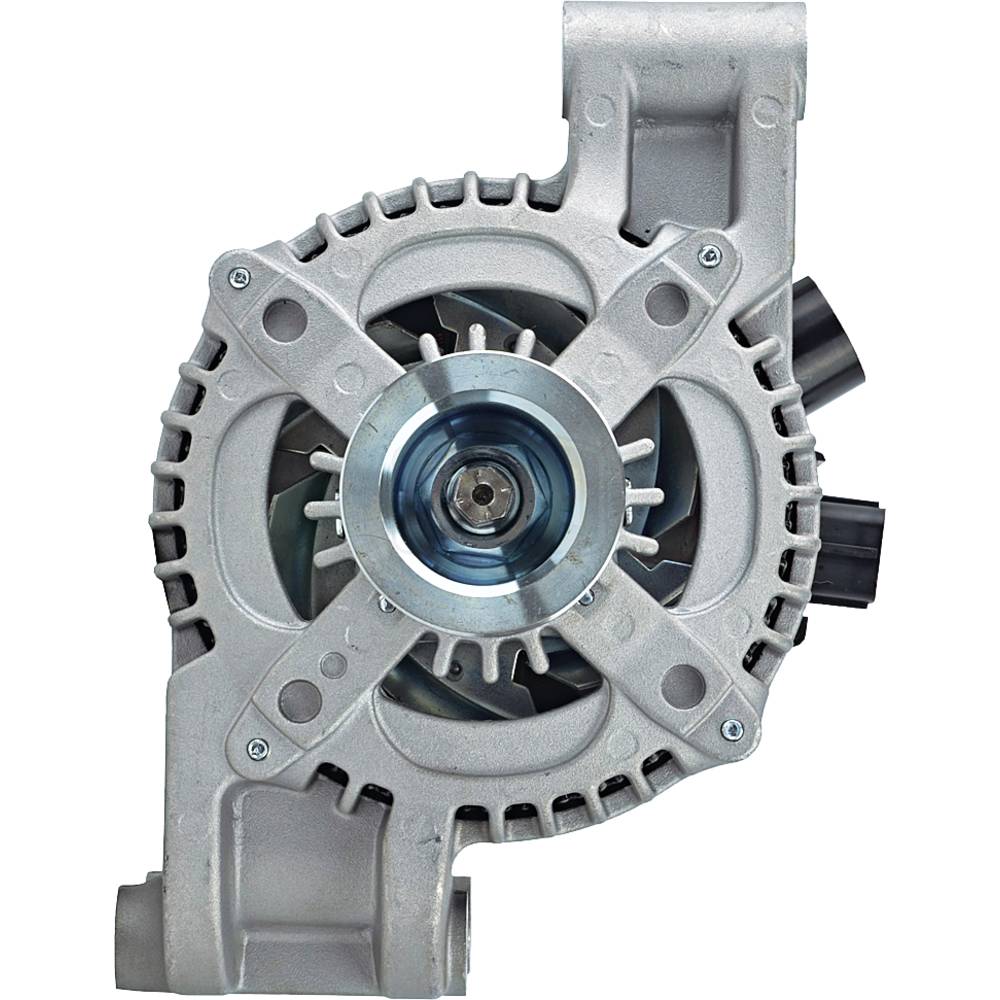

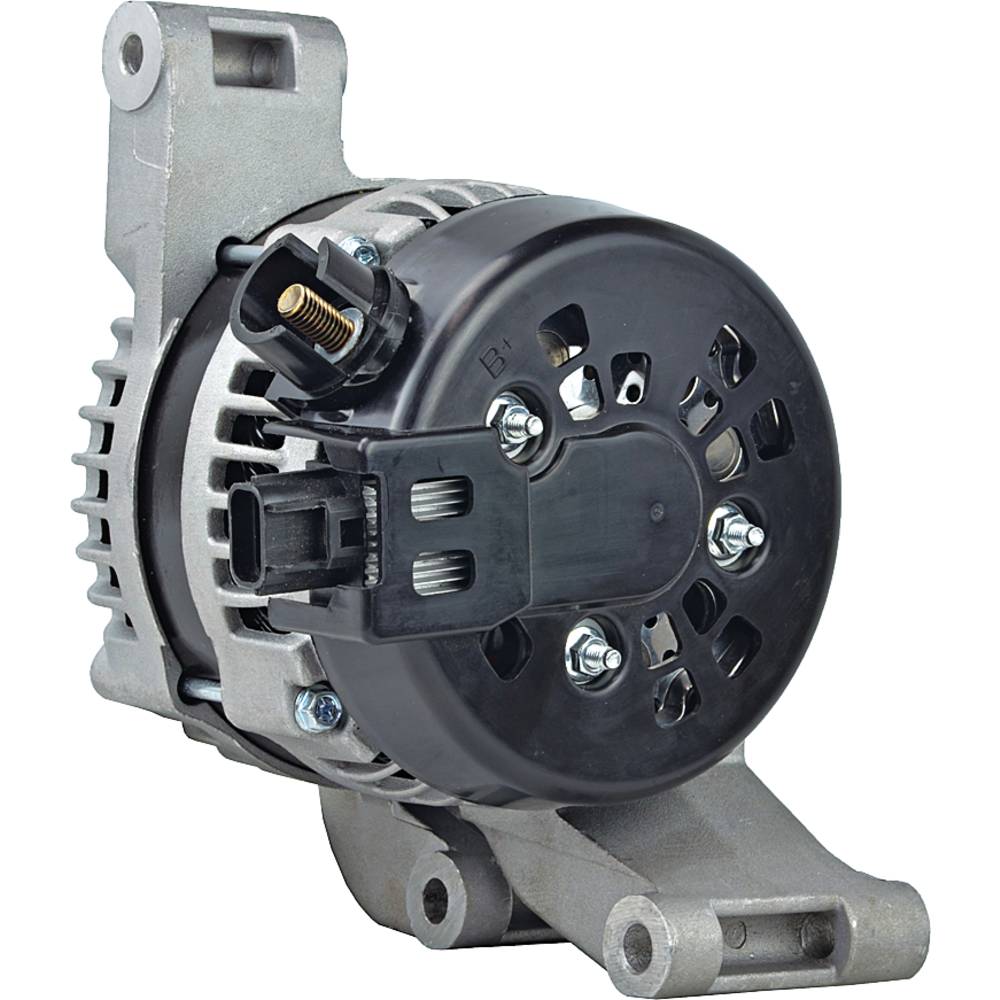

400-52695R-JN J&N Electrical Products Alternator

400-52695R-JN J&N Electrical Products Alternator

$532.00 CAD
$532.00 CAD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket J&N Electrical Products Alternator

Tech Info:
-Arrowhead: 400-52695; Fits Denso: 104210-3531, 104210-3532; Fits Ford: 3M5T10300LA, 3M5T10300LB, 3M5T10300LC, 3M5T10300LD; Lester: 24046; Fits Lucas Electric: LRA03047
-LESTER: 24046, FAMILY: Fits Denso SC (Hairpin), VOLT: 12, AMPS: 120, CONDITION: Remanufactured, REGULATOR CLOCK: 9:00, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: 8.500mm, MOUNT HOLE 1 TYPE: Unthreaded, MOUNT HOLE 2 TYPE: Unthreaded, MOUNT HOLE ID 3: 9.500mm, MOUNT HOLE 3 TYPE: Unthreaded, MOUNTING EAR THICKNESS: 1.890", MOUNTING EAR THICKNESS: 48mm, MOUNTING EAR 2 THICKNESS: 2.835", MOUNTING EAR 2 THICKNESS: 72mm, MOUNTING EAR 3 THICKNESS: 2.835", MOUNTING EAR 3 THICKNESS: 72mm, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M8x1.25, TERMINAL ID 3: S, TERMINAL 3 SIZE: Spade, TERMINAL ID 4: RC, TERMINAL 4 SIZE: Spade, TERMINAL ID 5: L, TERMINAL 5 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 6, GROOVE OD: 1.937", GROOVE OD: 49.200mm, PULLEY TYPE: Solid, PULLEY OUTER DIAMETER: 2.087", PULLEY OUTER DIAMETER: 53mm

Replaces Part Number(s): 400-52695R

Additional Information:

Arrowhead: 400-52695; Denso: 104210-3531, 104210-3532; Ford: 3M5T10300LA, 3M5T10300LB, 3M5T10300LC, 3M5T10300LD; Lester: 24046; Lucas Electric: LRA03047, LESTER: 24046, FAMILY: Denso SC (Hairpin), VOLT: 12, AMPS: 120, CONDITION: Remanufactured, REGULATOR CLOCK: 9:00, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: 8.500mm, MOUNT HOLE 1 TYPE: Unthreaded, MOUNT HOLE 2 TYPE: Unthreaded, MOUNT HOLE ID 3: 9.500mm, MOUNT HOLE 3 TYPE: Unthreaded, MOUNTING EAR THICKNESS: 1.890", MOUNTING EAR THICKNESS: 48mm, MOUNTING EAR 2 THICKNESS: 2.835", MOUNTING EAR 2 THICKNESS: 72mm, MOUNTING EAR 3 THICKNESS: 2.835", MOUNTING EAR 3 THICKNESS: 72mm, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M8x1.25, TERMINAL ID 3: S, TERMINAL 3 SIZE: Spade, TERMINAL ID 4: RC, TERMINAL 4 SIZE: Spade, TERMINAL ID 5: L, TERMINAL 5 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 6, GROOVE OD: 1.937", GROOVE OD: 49.200mm, PULLEY TYPE: Solid, PULLEY OUTER DIAMETER: 2.087", PULL

Reference Numbers:

400-52695R
