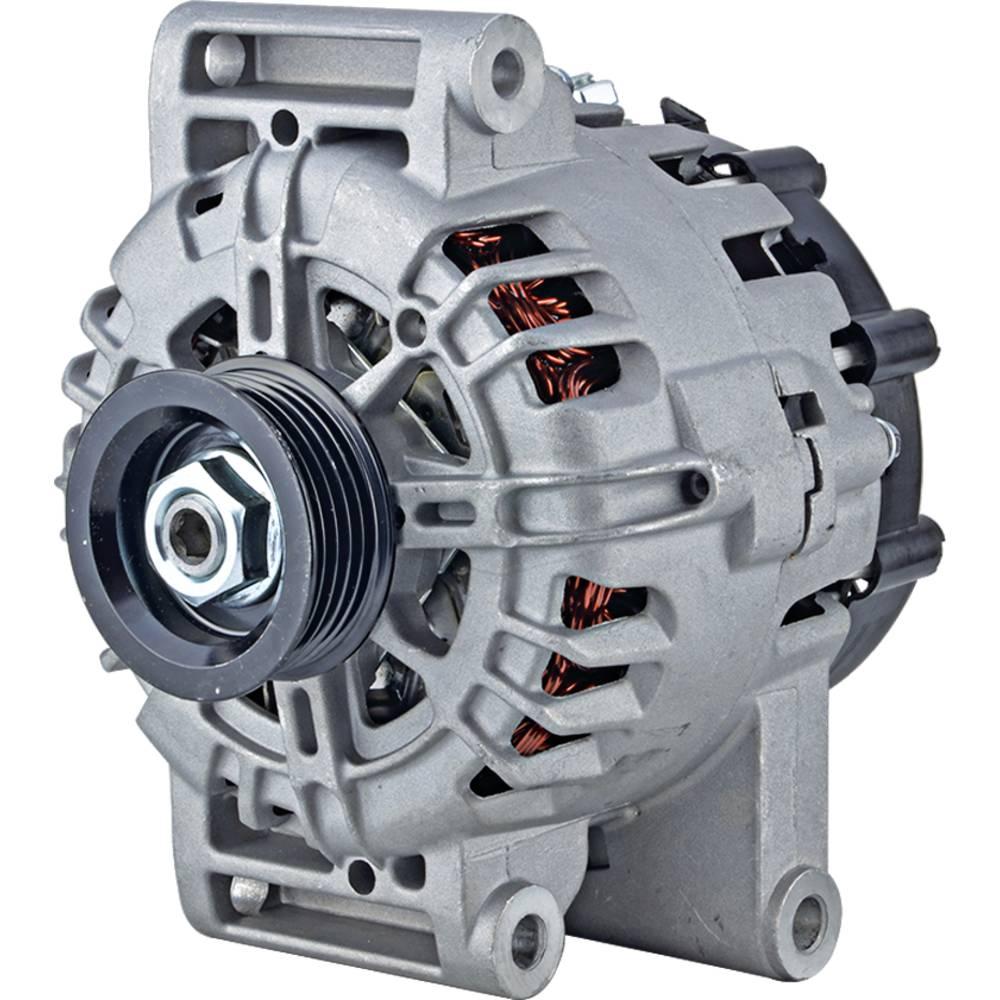

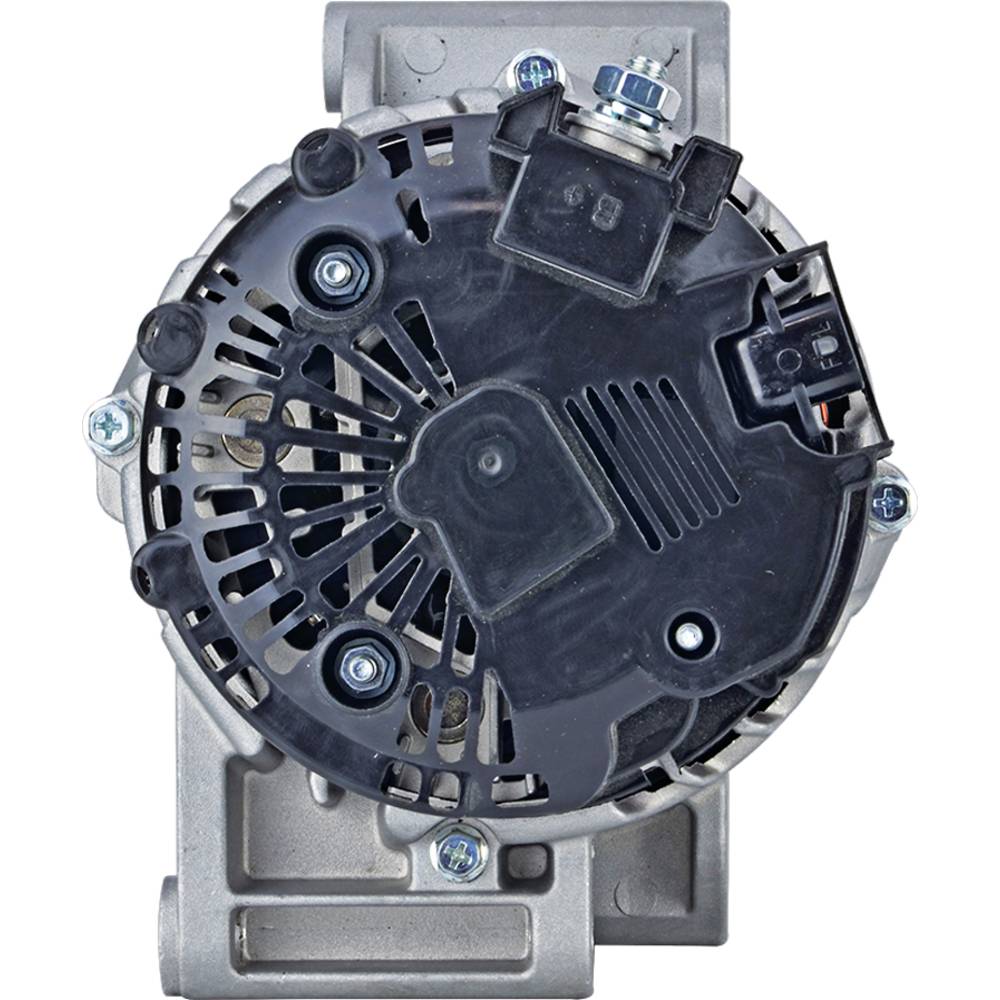

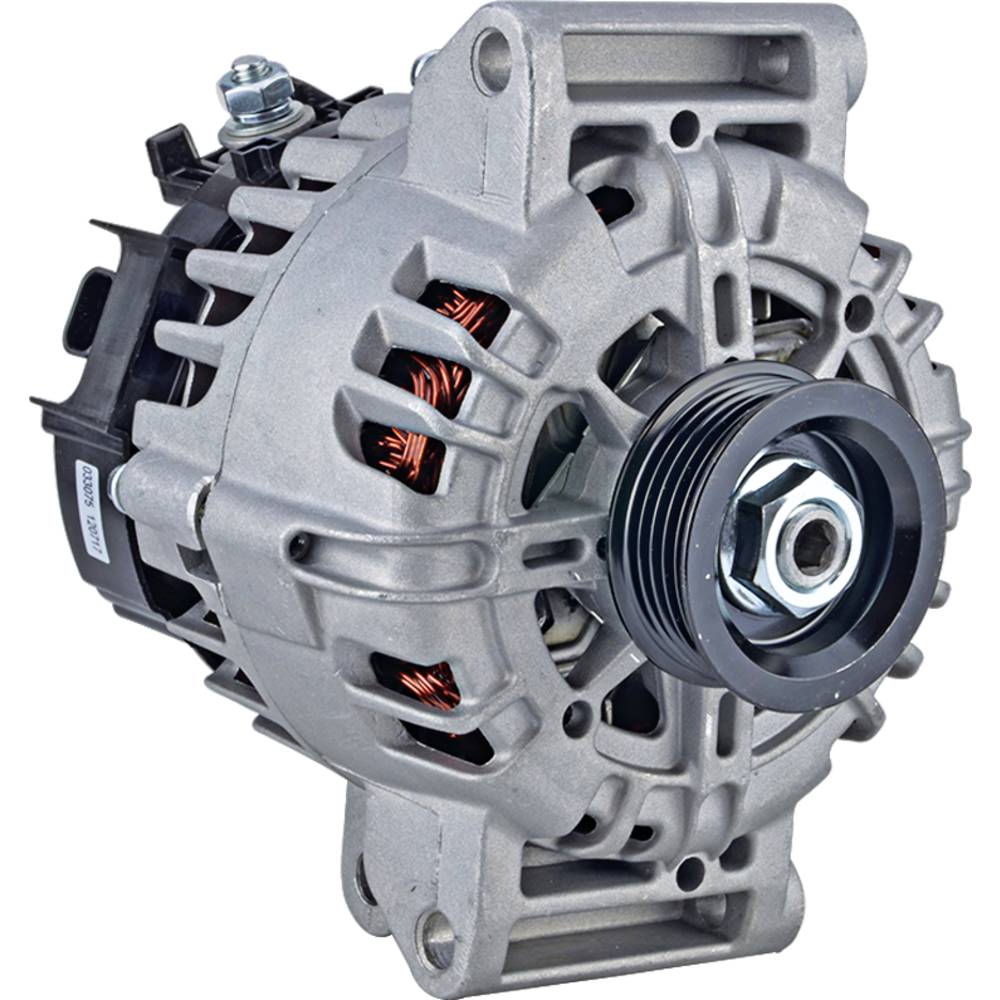

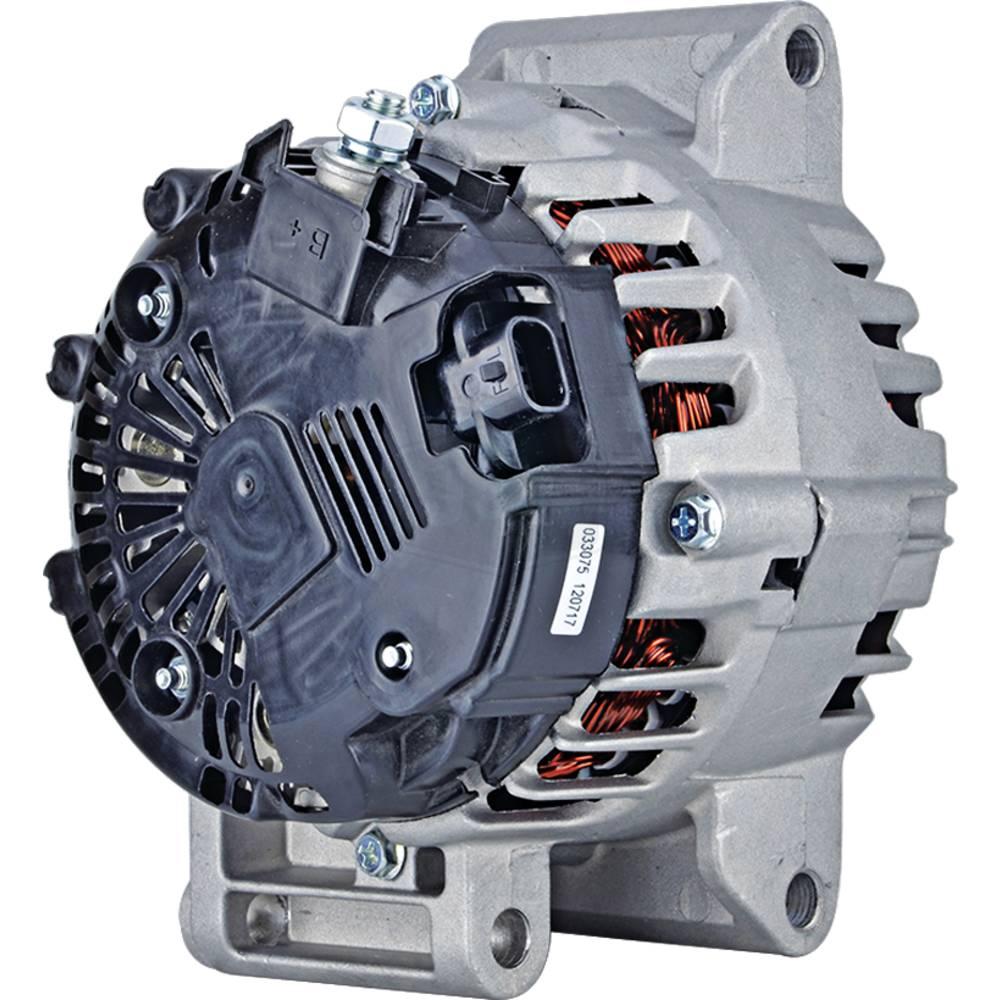

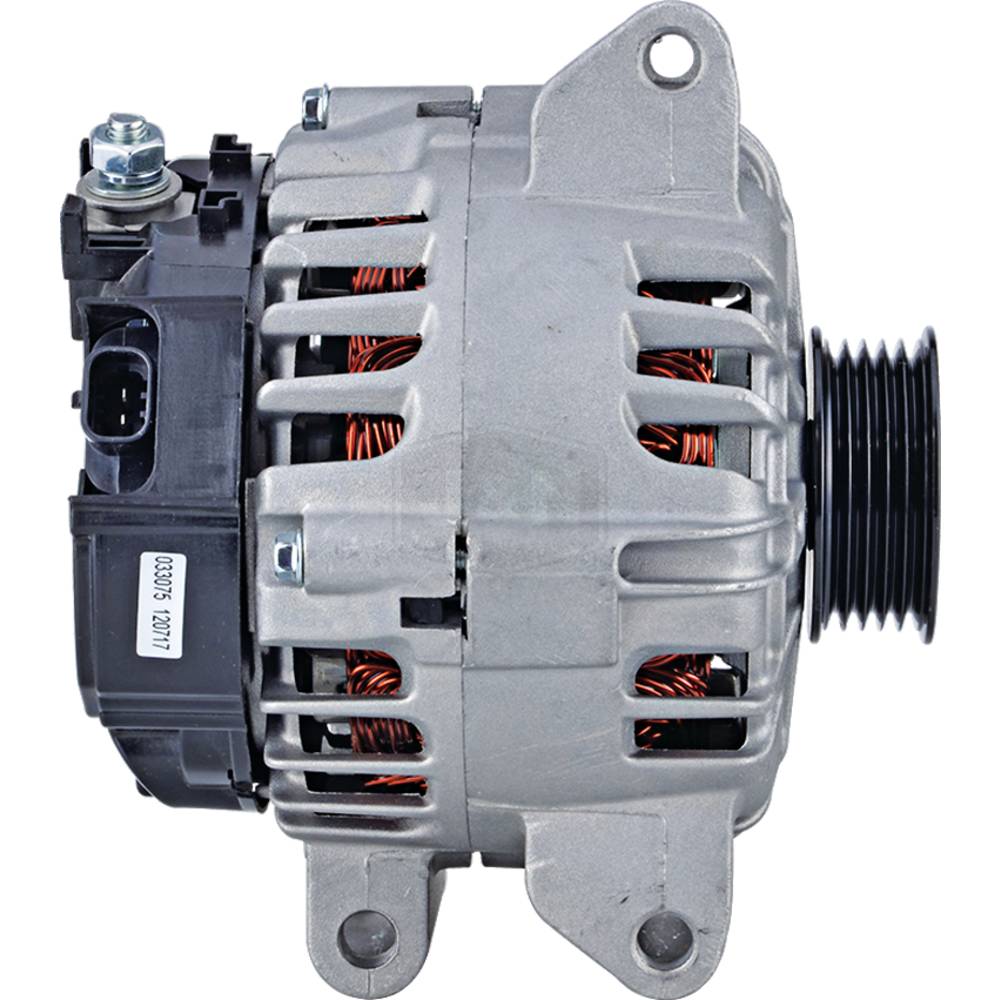

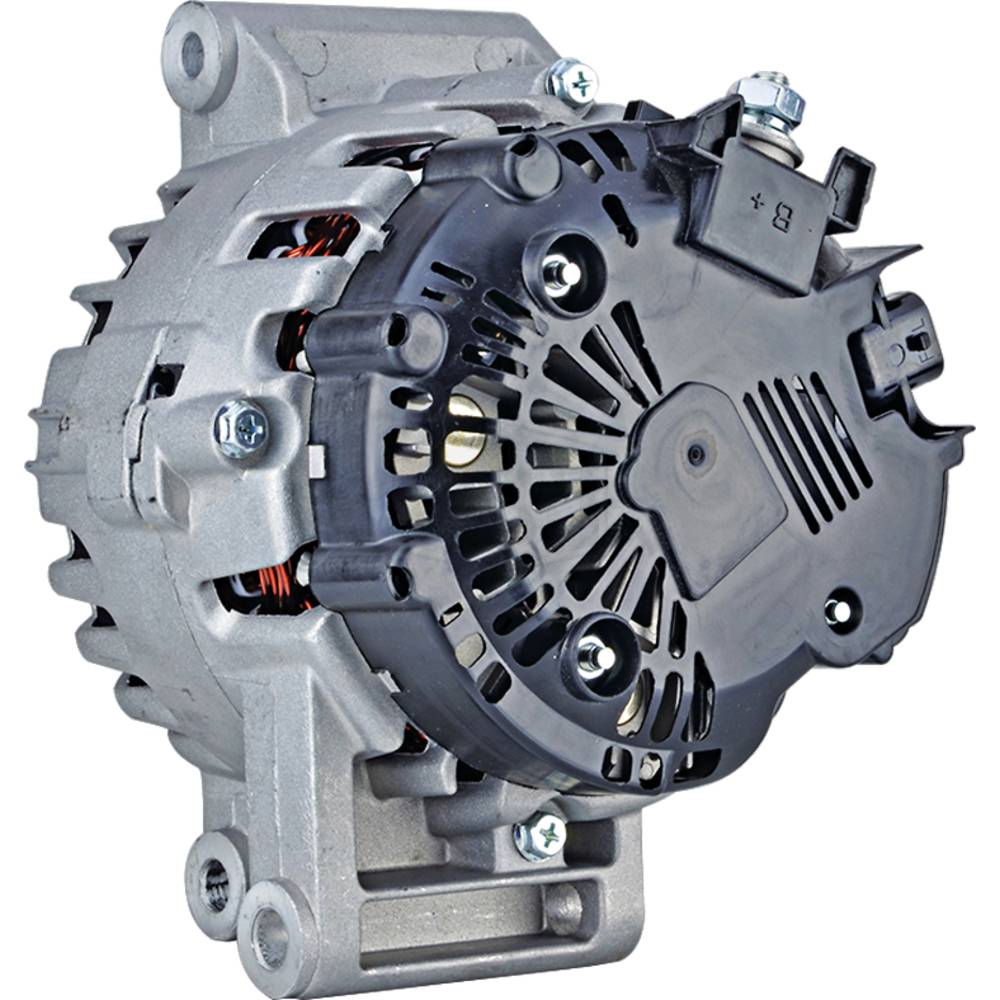

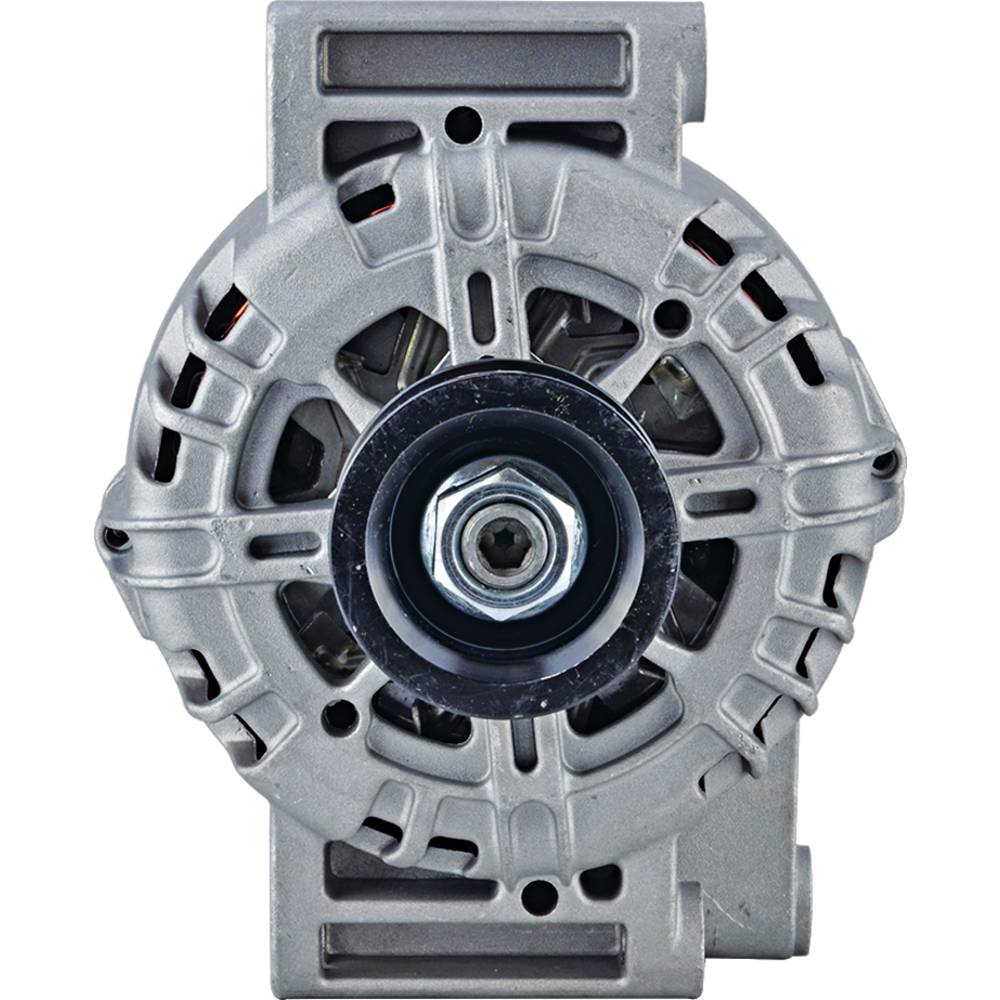

400-40144-JN J&N Electrical Products Alternator

Additional Information:

Arrowhead: AVA0171; General Motors: 13500315, 13588328; Lester: 11459; Valeo: 2605323A, 2620360, 849114, TG12C067, TG12C174, LESTER: 11459, VOLT: 12, AMPS: 130, CONDITION: New, REGULATOR CLOCK: 2:30, ROTATION DIRECTION: Clockwise, MOUNT HOLE ID 1: 8.300mm, MOUNT HOLE 1 TYPE: Unthreaded, MOUNT HOLE 2 TYPE: Slotted, MOUNT HOLE ID 3: 10.400mm, MOUNT HOLE 3 TYPE: Unthreaded, MOUNTING EAR THICKNESS: 3.110", MOUNTING EAR THICKNESS: 79mm, MOUNTING EAR 2 THICKNESS: 3.150", MOUNTING EAR 2 THICKNESS: 80mm, MOUNTING EAR 3 THICKNESS: 3.110", MOUNTING EAR 3 THICKNESS: 79mm, FAN LOCATION: Internal, REGULATOR LOCATION: Internal, TERMINAL ID 2: B+, TERMINAL 2 SIZE: M8x1.25, TERMINAL ID 3: F (FR), TERMINAL 3 SIZE: Spade, TERMINAL ID 4: L (RVC), TERMINAL 4 SIZE: Spade, POLARITY: Negative, NUMBER OF GROOVES: 5, GROOVE OD: 2.205", GROOVE OD: 56mm, PULLEY TYPE: Solid, PULLEY OUTER DIAMETER: 2.402", PULLEY OUTER DIAMETER: 61mm

Reference Numbers:

400-40144
